概述

数组构造队列

class ArrayQueue{
        private int[] arr;
        private int maxSize = 10;  //队列容量,默认容量为10
        private int front;  //队头
        private int rear;   //队尾

        public ArrayQueue(){
            arr = new int[this.maxSize];
            front = rear = -1;
        }
        public ArrayQueue(int maxSize){
            this.maxSize = maxSize;
            arr = new int[this.maxSize];
            front = rear = -1;
        }
        //判断队列是否已满
        public Boolean isFull(){
            return rear == maxSize-1;
        }
        //判断队列是否为空
        public Boolean isEmpty(){
            return front==rear;
        }
        //数据入队
        public void enterQueue(int data){
            if(isFull()) throw new RuntimeException("队列以满");
            arr[++rear] = data;
        }
        //数据出队
        public int getQueue(){
            if (isEmpty()) throw new RuntimeException("队列为空");
            return arr[++front];
        }
        //显示队头数据
        public int ShowFrontQueue(){
            if(isEmpty()) throw new RuntimeException("队列为空");
            return arr[front+1];
        }
        //遍历队列
        public void traverseQueue(){
            if(isEmpty()) throw new RuntimeException("队列为空");
            for(int i=1;front+i<=rear;i++) System.out.println(arr[front+i]);
        }
    }

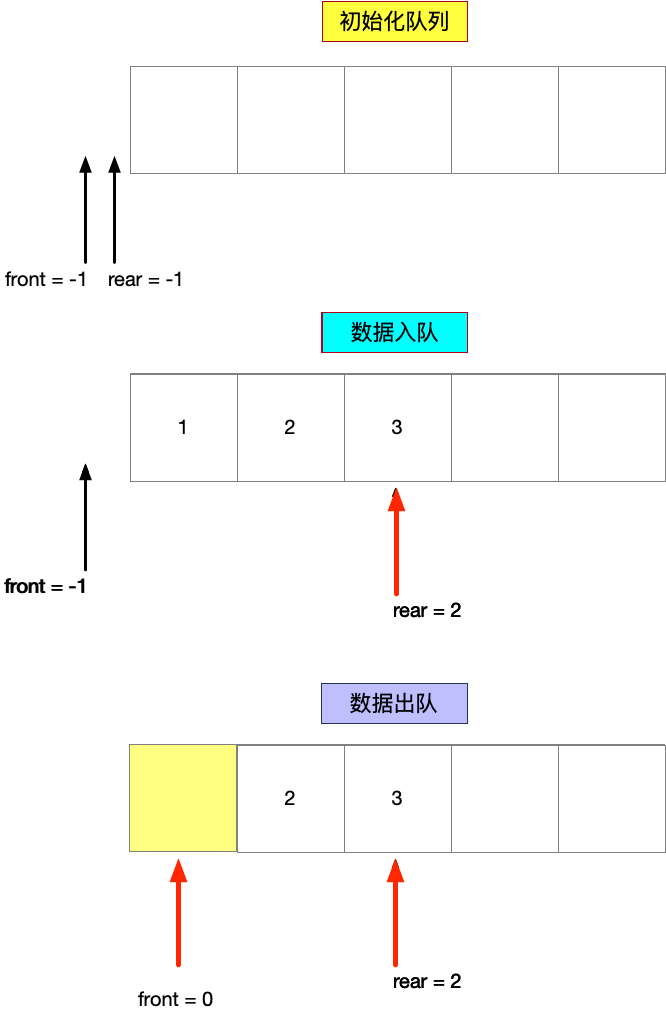

在上面的队列构造中，存在一个最大的问题就是，当数据入队到数组的最大容量后，此时rear=MaxSize-1，表示队列已满。数据出队后，前面的空间（图上变黄的地方）虽然空出来了，但是依然无法插入数据进去。这样构造的队列每个空间只能利用一次。

为了达到重复利用，需要优化成循环队列，允许队头和队尾围绕一个圈移动。

优化成循环队列

构造成环形队列不唯一，可根据实际情况构造。不同的设计在计算队列是否为空，是否已满的算法上存在不同。

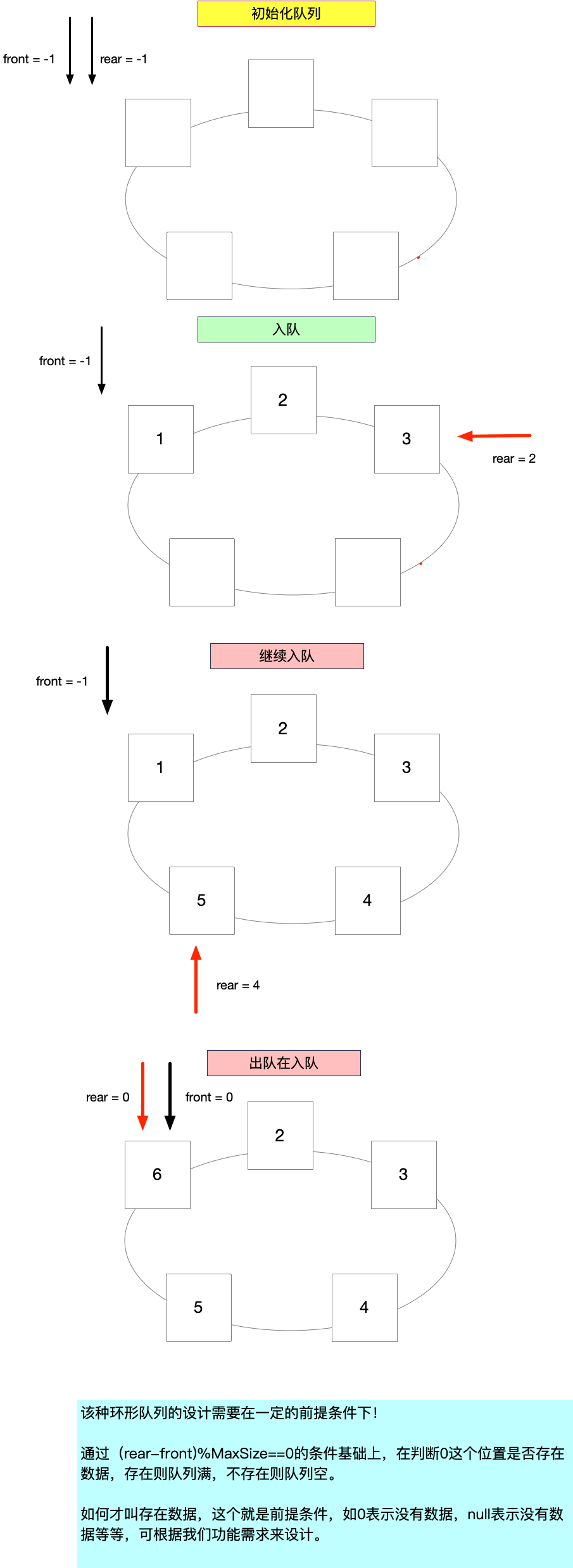

构造第一种环形队列

class ArrayQueue{
    private int[] arr;
    private int maxSize = 10;  //队列容量,默认容量为10
    private int front;  //队头
    private int rear;   //队尾

    public ArrayQueue(){
        arr = new int[this.maxSize];
        front = rear = -1;
    }
    public ArrayQueue(int maxSize){
        this.maxSize = maxSize;
        arr = new int[this.maxSize];
        front = rear = -1;
    }
    //判断队列是否已满
    public Boolean isFull(){
        return (rear-front)%maxSize==0&&arr[0]!=0;  //值等于0表示此空间没有数据作为前提条件
    }
    //判断队列是否为空
    public Boolean isEmpty(){
        return (rear-front)%maxSize==0&&arr[0]==0;
    }
    //数据入队
    public void enterQueue(int data){
        if(isFull()) throw new RuntimeException("队列以满");
        rear = (rear+1)%maxSize;
        arr[rear] = data;
    }
    //数据出队
    public int getQueue(){
        if (isEmpty()) throw new RuntimeException("队列为空");
        front = (front+1)%maxSize;
        //出队把数据还原成0
        int temp = arr[front];
        arr[front] = 0;
        return temp;
    }
    //显示队头数据
    public int ShowFrontQueue(){
        if(isEmpty()) throw new RuntimeException("队列为空");
        return arr[(front+1)%maxSize];
    }
    //遍历整个数组
    public void traverseQueue(){
        if(isEmpty()) throw new RuntimeException("队列为空");
        for(int i=0;i<maxSize;i++) System.out.print(arr[i]+" ");
    }
}

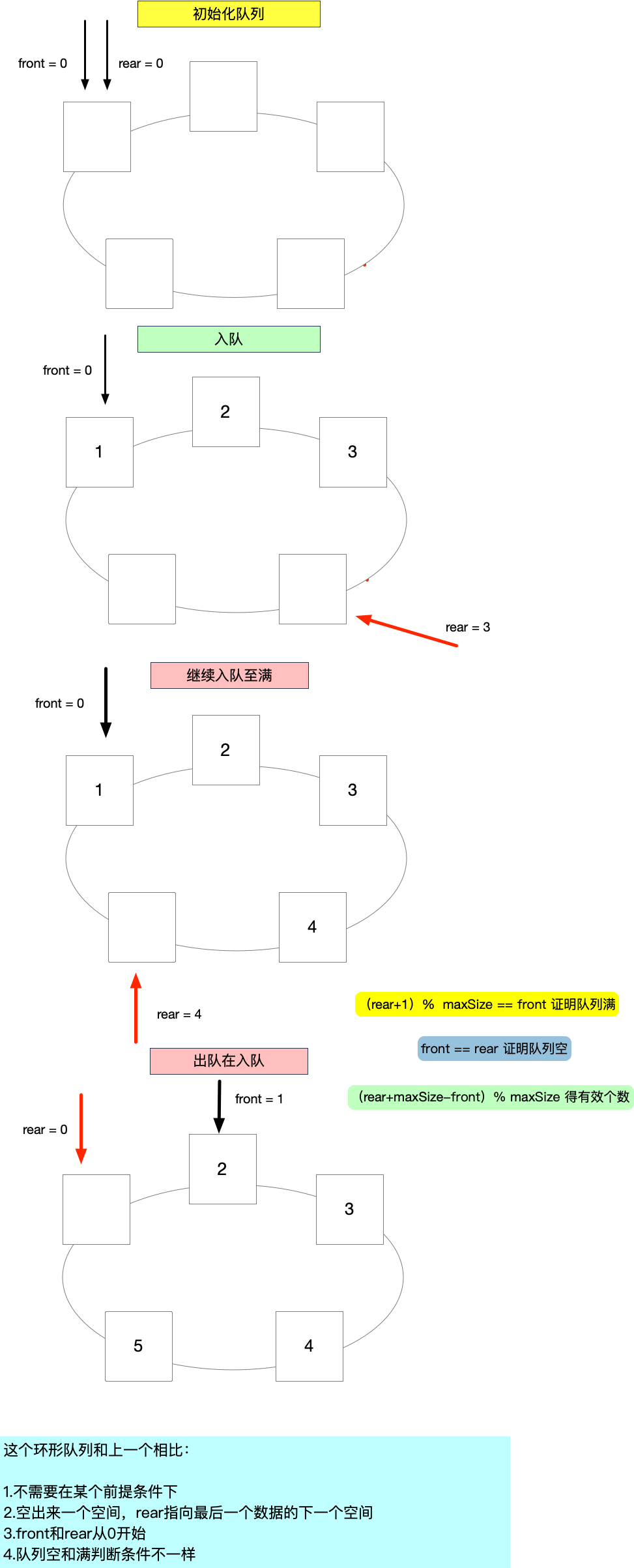

构造第二种环形队列

class ArrayQueue{
    private int[] arr;
    private int maxSize = 10;  //队列容量,默认容量为10
    private int front;  //队头
    private int rear;   //队尾

    public ArrayQueue(){
        arr = new int[this.maxSize];
        front = rear = 0;
    }
    public ArrayQueue(int maxSize){
        this.maxSize = maxSize;
        arr = new int[this.maxSize];
        front = rear = 0;
    }
    //判断队列是否已满
    public Boolean isFull(){
        return (rear+1)%maxSize==front;  //值等于0表示此空间没有数据作为前提条件
    }
    //判断队列是否为空
    public Boolean isEmpty(){
        return rear == front;
    }
    //数据入队
    public void enterQueue(int data){
        if(isFull()) throw new RuntimeException("队列以满");
        arr[rear] = data;
        rear = (rear+1)%maxSize;
    }
    //数据出队
    public int getQueue(){
        if (isEmpty()) throw new RuntimeException("队列为空");
        int temp = arr[front];
        front = (front+1)%maxSize;
        return temp;
    }
    //显示队头数据
    public int ShowFrontQueue(){
        if(isEmpty()) throw new RuntimeException("队列为空");
        return arr[front];
    }
    //遍历整个数组
    public void traverseQueue(){
        if(isEmpty()) throw new RuntimeException("队列为空");
        for(int i=0;i<maxSize;i++) System.out.print(arr[i]+" ");
    }
}
