概述

一、安装Elasticsearch

mkdir -p /home/qiang/data/elasticsearch/data
mkdir -p /home/qiang/data/elasticsearch/logs
chmod 777 /home/qiang/data/elasticsearch/data /home/qiang/data/elasticsearch/logs
# 如迁移目录则授权
chown -R 1000:root /home/qiang/data/elasticsearch/data/

version: '3'
services:
  elasticsearch:
    image: elasticsearch:7.12.1
    container_name: elasticsearch
    restart: always
    ports:
      - "9200:9200"
    volumes:
      - /home/qiang/data/elasticsearch/data:/usr/share/elasticsearch/data
      - /home/qiang/data/elasticsearch/logs:/usr/share/elasticsearch/logs
    environment:
      - "ES_JAVA_OPTS=-Xms256m -Xmx256m"
      - "discovery.type=single-node"

# 复制配置文件
mkdir -p /home/qiang/data/elasticsearch/conf
docker cp elasticsearch:/usr/share/elasticsearch/config/elasticsearch.yml /home/qiang/data/elasticsearch/conf

elasticsearch.yml

# 集群名称
cluster.name: my-application
# 节点名称
node.name: node-1
# 是否可以成为master节点
node.master: true
# 是否允许该节点存储数据,默认开启
node.data: true
# 网络绑定
network.host: 0.0.0.0
# 设置对外服务的http端口
http.port: 9200
cluster.initial_master_nodes: ["node-1"]
# 支持跨域访问
http.cors.enabled: true
http.cors.allow-origin: "*"
# 安全认证
xpack.security.enabled: false
#http.cors.allow-headers: "Authorization"

version: "3"
services:
  elasticsearch:
    container_name: elasticsearch
    hostname: elasticsearch
    image: elasticsearch:7.12.1
    restart: always
    ports:
      - 9200:9200
    volumes:
      - /home/qiang/data/elasticsearch/data:/usr/share/elasticsearch/data
      - /home/qiang/data/elasticsearch/logs:/usr/share/elasticsearch/logs
      - /home/qiang/data/elasticsearch/conf/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml
    environment:
      - "ES_JAVA_OPTS=-Xms256m -Xmx256m"

二、安装Logstash

version: '3'
services:
  logstash:
    image: logstash:7.12.1
    container_name: logstash
    restart: always
    ports:
      - "5044:5044"
      - "9600:9600"
    environment:
      - "LS_JAVA_OPTS=-Xms256m -Xmx256m"

# 创建目录
mkdir -p /home/qiang/data/logstash/config/
# 复制配置文件
docker cp logstash:/usr/share/logstash/config/logstash.yml /home/qiang/data/logstash/config/

docker cp logstash:/usr/share/logstash/config/logstash-sample.conf /home/qiang/data/logstash/config/logstash.conf

logstash.yml

http.host: "0.0.0.0"
xpack.monitoring.elasticsearch.hosts: [ "http://192.168.1.51:9200" ]

logstash.conf

input {
  tcp {
    port => 5044
    codec => json_lines
  }
}

output {
  # 输出到控制台
  stdout {
    codec => rubydebug
  }
  elasticsearch {
    hosts => ["http://192.168.1.51:9200"]
    index => "logstash_%{+YYYY.MM.dd}"
  }
}

有数据卷

version: '3'
services:
  logstash:
    image: logstash:7.12.1
    container_name: logstash
    restart: always
    ports:
      - "5044:5044"
      - "9600:9600"
    volumes:
      - /home/qiang/data/logstash/config/logstash.yml:/usr/share/logstash/config/logstash.yml
      - /home/qiang/data/logstash/config/logstash.conf:/usr/share/logstash/pipeline/logstash.conf
    environment:
      - "LS_JAVA_OPTS=-Xms256m -Xmx256m"

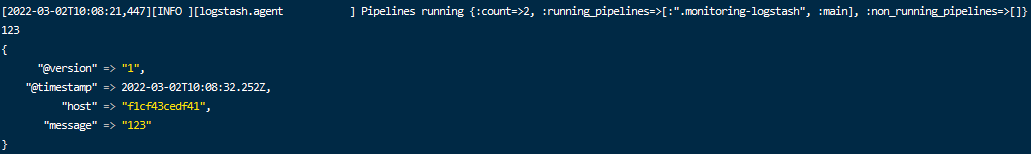

测试命令

# 进入容器
docker exec -it logstash bash
# 输出到控制台
/usr/share/logstash/bin/logstash --path.data /usr/share/logstash/test -e 'input { stdin{} } output { stdout{ codec => rubydebug }}'

# 输出到ES
/usr/share/logstash/bin/logstash --path.data /usr/share/logstash/test  -e 'input { stdin{} } output { elasticsearch {hosts => ["192.168.1.51:9200"] index => "logstash_%{+YYYY.MM.dd}" }}'

# 输出到文件
/usr/share/logstash/bin/logstash --path.data /usr/share/logstash/test -e 'input { stdin{} } output { file { path => "/tmp/logstash_%{+YYYY.MM.dd}.log"}}'

Springboot整合Logstash

pom.xml

<dependency>
    <groupId>net.logstash.logback</groupId>
    <artifactId>logstash-logback-encoder</artifactId>
    <version>7.0.1</version>
</dependency>

logback.xml

<?xml version="1.0" encoding="UTF-8"?>
<!--
    debug: 当此属性设置为true时，将打印出logback内部日志信息，实时查看logback运行状态。默认值为false。
    scan: 当此属性设置为true时，配置文件如果发生改变，将会被重新加载，默认值为true。
    scanPeriod: 设置监测配置文件是否有修改的时间间隔，如果没有给出时间单位，默认单位是毫秒。当scan为true时，此属性生效。默认的时间间隔为1分钟。
-->
<configuration debug="false" scan="true" scanPeriod="30 seconds">

    <!-- 使用：只需要修改服务名的value即可 -->

    <!-- 服务名 -->
    <property name="serviceName" value="logstash-service"/>

    <!-- 获取服务名 -->
    <contextName>${serviceName}</contextName>

    <!-- 控制台输出格式 -->
    <appender name="console" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--
                %d{HH:mm:ss.SSS}：日期输出格式
                %contextName：服务名
                [%thread]：线程名
                %-5level： -5从左显示5个字符宽度，level日志级别
                %logger{36}：类的全名，36最长的字符限制
                %msg：日志信息
                %n：换行
                %tradeId：链路ID
            -->
            <pattern>%red([%d{yyyy-MM-dd HH:mm:ss.SSS}]) %green([%contextName]) %highlight(%-5level) %boldMagenta(%logger{0}:%line) - %cyan(%msg%n)
            </pattern>
        </encoder>
        <!-- 控制台输出INFO级别以上的 -->
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <level>INFO</level>
        </filter>
    </appender>

    <!-- 通过Tcp协议连接Logstash -->
    <appender name="logstash" class="net.logstash.logback.appender.LogstashTcpSocketAppender">
        <destination>192.168.1.51:5044</destination>
        <encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
            <providers>
                <timestamp>
                    <timeZone>UTC</timeZone>
                </timestamp>
                <pattern>
                    <pattern>
                        {
                        "date":"%d",
                        "serviceName":"%contextName",
                        "level":"%level",
                        "thread":"%thread",
                        "logger":"%logger{0}:%line",
                        "log": "%msg"
                        }
                    </pattern>
                </pattern>
            </providers>
        </encoder>
        <filter class="ch.qos.logback.classic.filter.ThresholdFilter">
            <level>INFO</level>
        </filter>
    </appender>
    <!-- 选择输入的日志级别 -->
    <root level="info">
        <!-- 输出到打印控制台 -->
        <appender-ref ref="console"/>
        <!-- 输出到logstash -->
        <appender-ref ref="logstash"/>
    </root>

</configuration>

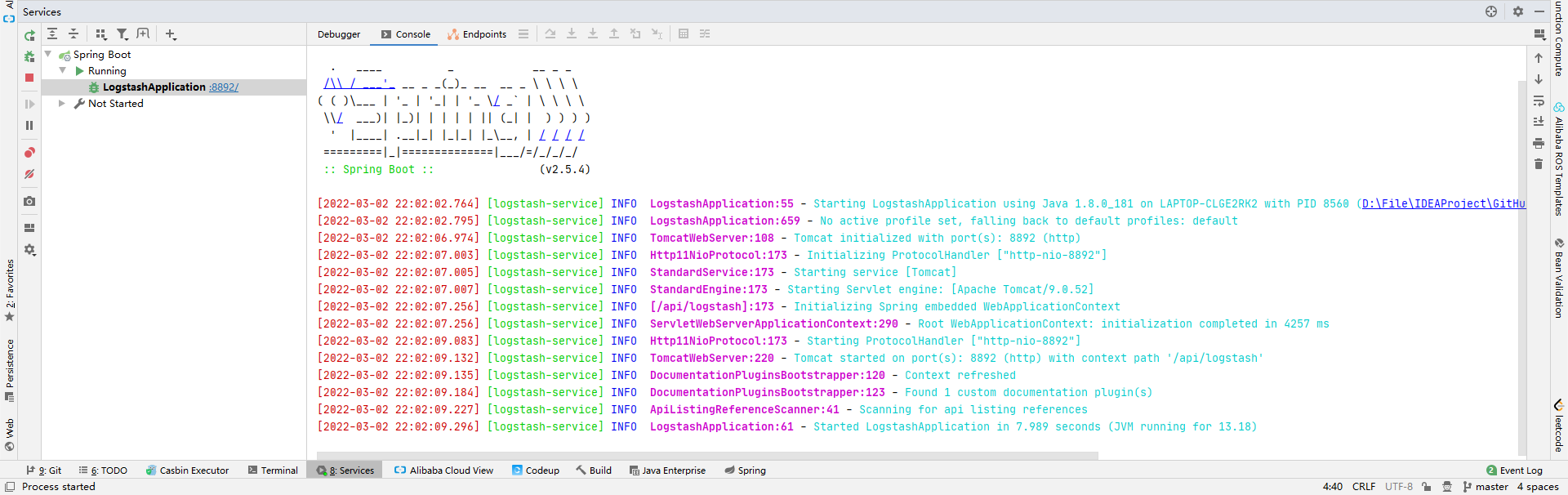

启动服务

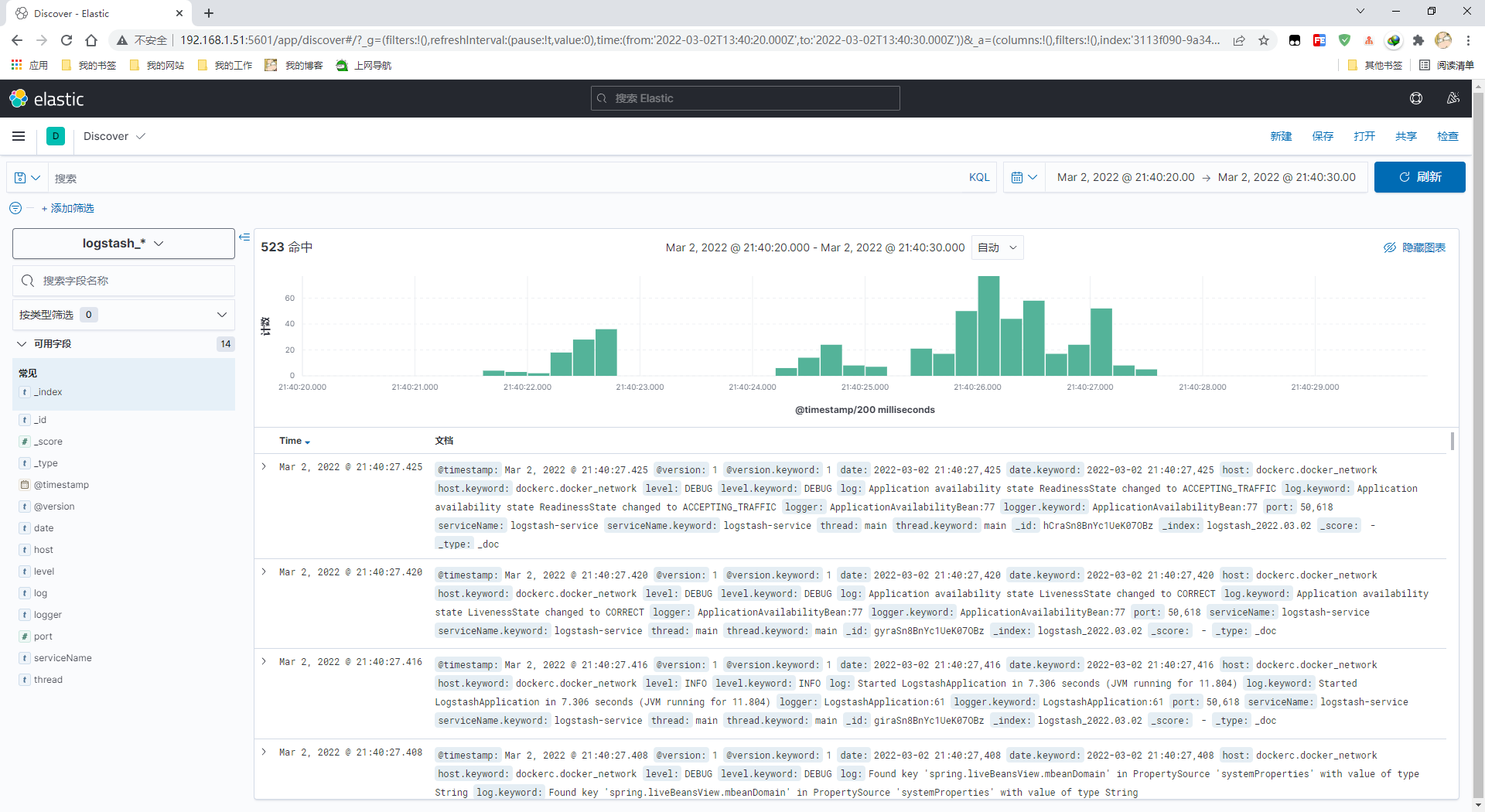

收集到日志springboot -> logstash -> elasticsearch

三、安装Kibana

无数据卷

version: '3'
services:
  kibana:
    image: kibana:7.12.1
    container_name: kibana
    restart: always
    privileged: true
    ports:
      - "5601:5601"
    environment:
      - "ELASTICSEARCH_HOSTS=http://192.168.1.51:9200"
      - "I18N_LOCALE=zh-CN"

访问地址

# 复制配置文件
mkdir -p /home/qiang/data/kibana/
docker cp kibana:/usr/share/kibana/config/kibana.yml /home/qiang/data/kibana/

kibana.yml

#
# ** THIS IS AN AUTO-GENERATED FILE **
#

# Default Kibana configuration for docker target
server.name: kibana
server.host: "0"
server.basePath: "/kibana"
elasticsearch.hosts: [ "http://elasticsearch:9200" ]
monitoring.ui.container.elasticsearch.enabled: true

docker-compose.yaml

version: '3'
services:
  kibana:
    image: kibana:7.12.1
    container_name: kibana
    restart: always
    privileged: true
    ports:
      - "5601:5601"
    environment:
      - "ELASTICSEARCH_HOSTS=http://192.168.1.51:9200"
      - "I18N_LOCALE=zh-CN"
    volumes:
      - /home/qiang/data/kibana/kibana.yml:/usr/share/kibana/config/kibana.yml

nginx代理

location /kibana/ {
    proxy_pass http://192.168.1.51:5601;
    rewrite ^/elk/(.*)$ /$1 break;
    proxy_set_header  X-Real-IP  $remote_addr;
    proxy_set_header  Host $host:$server_port;
    proxy_set_header  X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_http_version 1.1;
}
