跟踪分析Linux内核的启动过程

106 阅读 0 评论 70 点赞

我是靠谱客的博主标致冷风，这篇文章主要介绍跟踪分析Linux内核的启动过程，现在分享给大家，希望可以做个参考。

陈良 + 原创作品转载请注明出处 + 《Linux内核分析》MOOC课程http://www.xuetangx.com/courses/course-v1:ustcX+USTC001+_/about

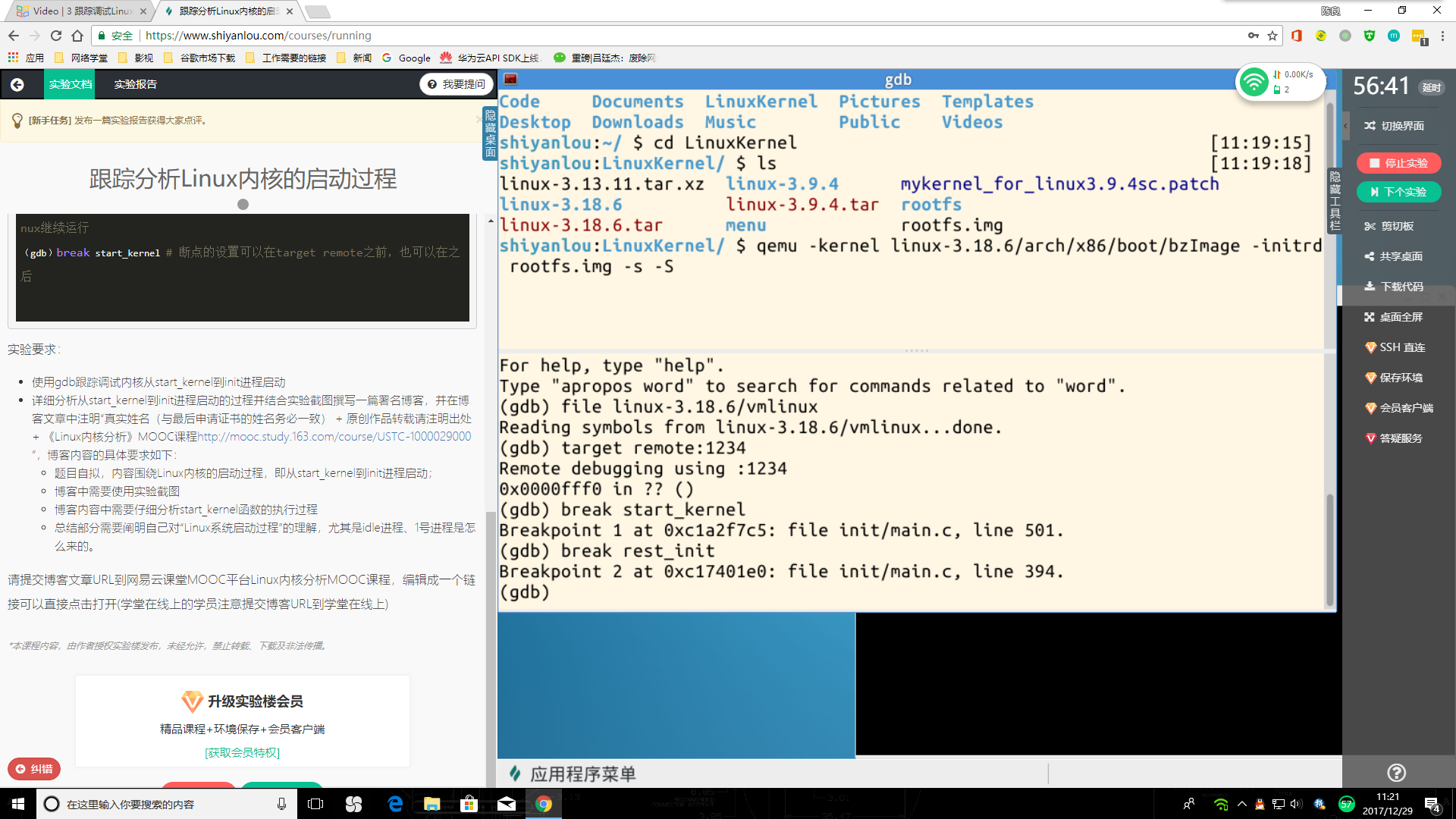

1. 调试gdb

（1）运行qemu

（2）运行gdb并链接remote

（3）设置断点break start_kernel，break rest_init

2. 分析start_kernel

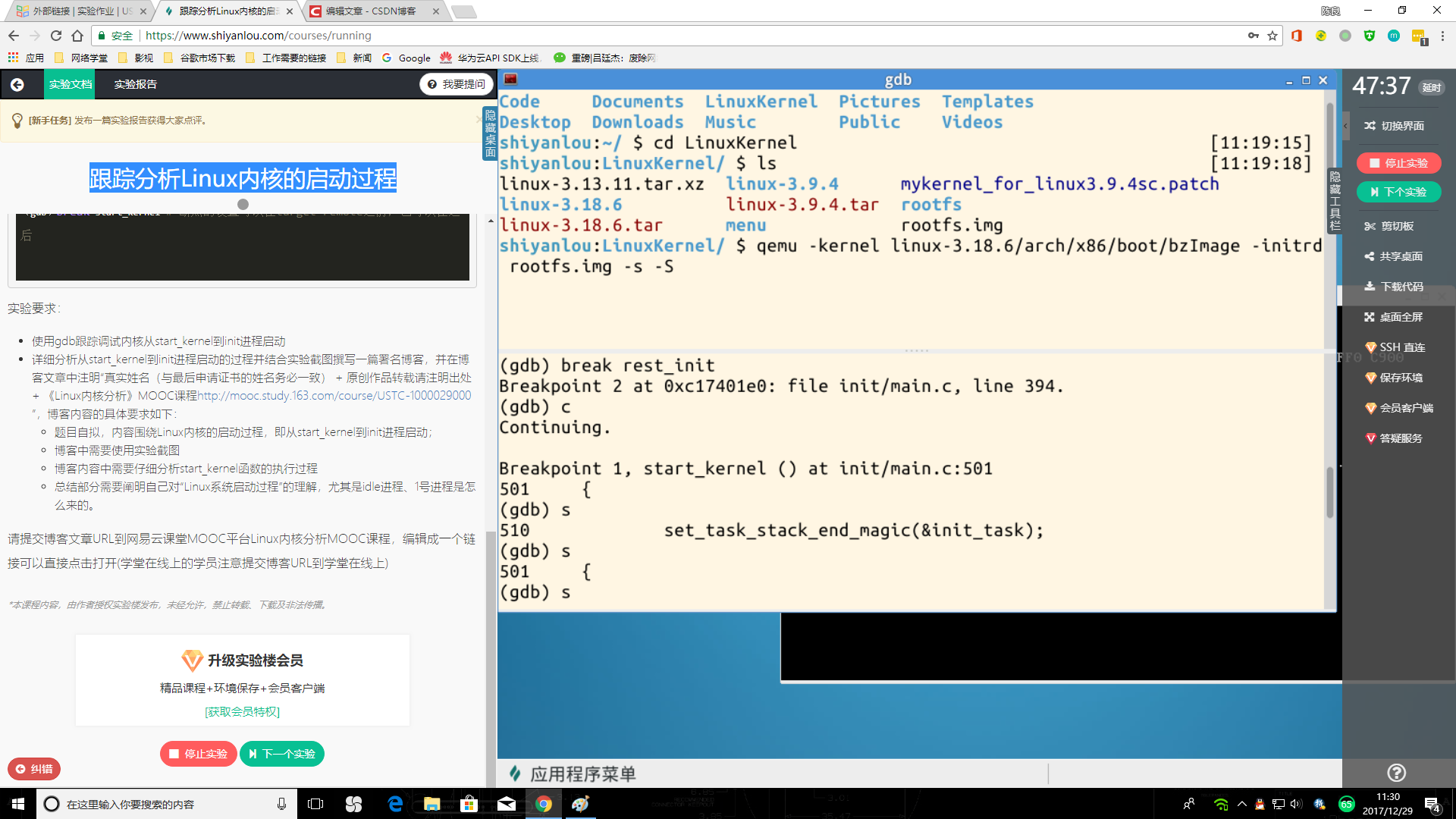

在断点处停止：

分析start_kernel

复制代码

1
asmlinkage __visible void __init start_kernel(void)

函数中最后一行调用

复制代码

1
rest_init();

进入rest_init()

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
393static noinline void __init_refok rest_init(void)
394{
395	int pid;
396
397	rcu_scheduler_starting();
398	/*
399	 * We need to spawn init first so that it obtains pid 1, however
400	 * the init task will end up wanting to create kthreads, which, if
401	 * we schedule it before we create kthreadd, will OOPS.
402	 */
403	kernel_thread(kernel_init, NULL, CLONE_FS);   //kernel_init启动1号进程
404	numa_default_policy();
405	pid = kernel_thread(kthreadd, NULL, CLONE_FS | CLONE_FILES);        //kthreadd创建了其他的内核线程
406	rcu_read_lock();
407	kthreadd_task = find_task_by_pid_ns(pid, &init_pid_ns);
408	rcu_read_unlock();
409	complete(&kthreadd_done);
410
411	/*
412	 * The boot idle thread must execute schedule()
413	 * at least once to get things moving:
414	 */
415	init_idle_bootup_task(current);
416	schedule_preempt_disabled();
417	/* Call into cpu_idle with preempt disabled */
418	cpu_startup_entry(CPUHP_ONLINE);            //调用cpu_idle_loop
419}

查看cpu_startup_entry

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
256void cpu_startup_entry(enum cpuhp_state state)
257{
258	/*
259	 * This #ifdef needs to die, but it's too late in the cycle to
260	 * make this generic (arm and sh have never invoked the canary
261	 * init for the non boot cpus!). Will be fixed in 3.11
262	 */
263#ifdef CONFIG_X86
264	/*
265	 * If we're the non-boot CPU, nothing set the stack canary up
266	 * for us. The boot CPU already has it initialized but no harm
267	 * in doing it again. This is a good place for updating it, as
268	 * we wont ever return from this function (so the invalid
269	 * canaries already on the stack wont ever trigger).
270	 */
271	boot_init_stack_canary();
272#endif
273	arch_cpu_idle_prepare();
274	cpu_idle_loop();              //此处调用零号进程
275}

进入cpu_idle_loop查看

复制代码

189static void cpu_idle_loop(void)
190{
191	while (1) {
192		/*
193		 * If the arch has a polling bit, we maintain an invariant:
194		 *
195		 * Our polling bit is clear if we're not scheduled (i.e. if
196		 * rq->curr != rq->idle).  This means that, if rq->idle has
197		 * the polling bit set, then setting need_resched is
198		 * guaranteed to cause the cpu to reschedule.
199		 */
200
201		__current_set_polling();
202		tick_nohz_idle_enter();
203
204		while (!need_resched()) {
205			check_pgt_cache();
206			rmb();
207
208			if (cpu_is_offline(smp_processor_id()))
209				arch_cpu_idle_dead();
210
211			local_irq_disable();
212			arch_cpu_idle_enter();
213
214
223			if (cpu_idle_force_poll || tick_check_broadcast_expired())
224				cpu_idle_poll();
225			else
226				cpuidle_idle_call();
227
228			arch_cpu_idle_exit();
229		}
230
239		preempt_set_need_resched();
240		tick_nohz_idle_exit();
241		__current_clr_polling();
242
249		smp_mb__after_atomic();
250
251		sched_ttwu_pending();
252		schedule_preempt_disabled();
253	}
254}
