大家好 , 我是逼哥 , 记得每天好好学习 , 天天向上 , 尤其是大学生 . 不要荒废学业.

首先说明 , 我使用的开发环境是  vs2017  , 有些函数方法可能不通用 ,大家可以百度下其他方法. 向童老师致敬

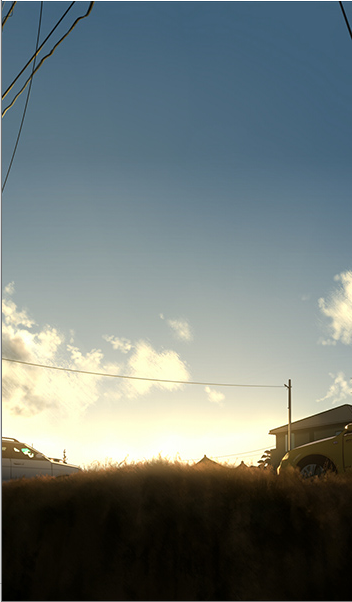

第一步:先读取本地的背景图片



1 . 这第一步就非常简单 , 只需要先读取背景图 , 并且显示出来就可以.

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
#include <graphics.h> #include <conio.h> void main() { initgraph(350,600); IMAGE bird_bg; // 小鸟图片背景 loadimage(&bird_bg , _T("D:\桌面\super_bird\background.jpg") ); putimage(0, 0, &bird_bg); // 在坐标(0 , 0 )位置显示IMAGE 对象 _getch(); //防止窗口关闭 closegraph(); }

2 . 处理小鸟

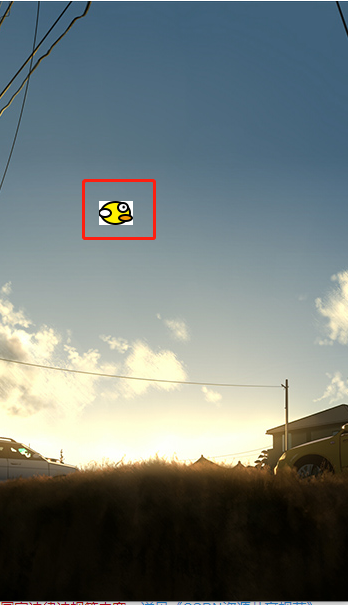

如果直接显示小鸟

因为我们显示的小鸟图片是矩形 , 这样的小鸟是留有白色区域棱角就不好看了 ,此时就需要用函数去处理 , 是白色区域透明化

拿到小鸟的遮罩和原图

可以利用美图秀秀进行抠图 ,扣出原图和遮罩.

NOTSRCERASE 先对遮罩进行处理 , 使得遮罩白色变黑 ,黑色区域变透明

SRCINVERT 在对小鸟原图处理

 一定要遮罩在前 ,作为背景 , 小鸟在后



让两张处理过的图片在同一区域进行效果叠加  , 看小效果

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
#include <graphics.h> #include <conio.h> void main() { initgraph(350,600); IMAGE bird_bg; // 小鸟图片背景 loadimage(&bird_bg , _T("D:\桌面\super_bird\background.jpg") ); putimage(0, 0, &bird_bg); // 在坐标(0 , 0 )位置显示IMAGE 对象 IMAGE im_bird_shade; //遮罩 IMAGE im_bird; loadimage(&im_bird_shade, _T("D:\桌面\super_bird\bird1.jpg")); loadimage(&im_bird, _T("D:\桌面\super_bird\bird2.jpg")); // 一定要遮罩在前 ,作为背景 , 小鸟在后 putimage(100, 200, &im_bird_shade, NOTSRCERASE); //NOTSRCERASE -->目标图像 = NOT (目标图像 OR 源图像) //遮罩的黑色进行透明处理 , 白色区域显黑色 putimage(100, 200, &im_bird , SRCINVERT); //SRCINVERT---> 目标图像 = 目标图像 XOR 源图像 (三原色进行系列取反运算) _getch(); //防止窗口关闭 closegraph(); // }



版本升级处理 , 对 显示数据 进行 模块化 , 用函数来封装 . 修改后的代码.

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
#include <graphics.h> #include <conio.h> // 引用 Windows Multimedia API #pragma comment(lib,"Winmm.lib") //全局变量 IMAGE img_bk, img_bd1, img_bd2, img_bar_up1, img_bar_up2, img_bar_down1, img_bar_down2; int bird_x; int bird_y; void startup() { initgraph(350, 600); loadimage(&img_bk, _T("D:\桌面\super_bird\background.jpg") ); loadimage(&img_bd1, _T("D:\桌面\super_bird\bird1.jpg")); loadimage(&img_bd2, _T("D:\桌面\super_bird\bird2.jpg")); bird_x = 50; bird_y = 200; BeginBatchDraw(); } void show() { putimage(0, 0, &img_bk); // 显示背景 putimage(bird_x, bird_y, &img_bd1, NOTSRCERASE); // 遮罩透明处理 putimage(bird_x, bird_y, &img_bd2, SRCINVERT);// 显示小鸟 FlushBatchDraw(); Sleep(50); } void updateWithoutInput() { } void updateWithInput() { } void gameover() { EndBatchDraw(); _getch(); closegraph(); } int main() { startup(); // 数据初始化 while (1) // 游戏循环执行 { show(); // 显示画面 updateWithoutInput(); // 与用户输入无关的更新 updateWithInput(); // 与用户输入有关的更新 } gameover(); // 游戏结束、后续处理 return 0; }



第三步: 显示障碍物 ,并且让小鸟自由下落

1. 障碍物 ,和处理小鸟一致 , 只要读取图片 , 处理遮罩  , 处理障碍物原图 , 叠加显示即可

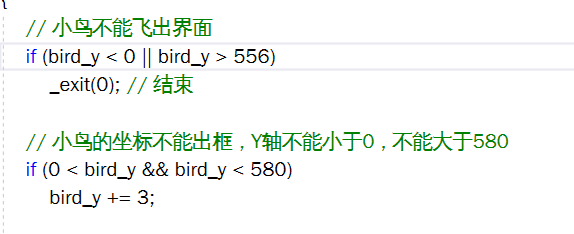

2. 小鸟自由下落 , 就是 改变 小鸟图片的左上角的起始绘画点的坐标.  只能上下自自由下落 ,改变小鸟的Y轴坐标即可 .

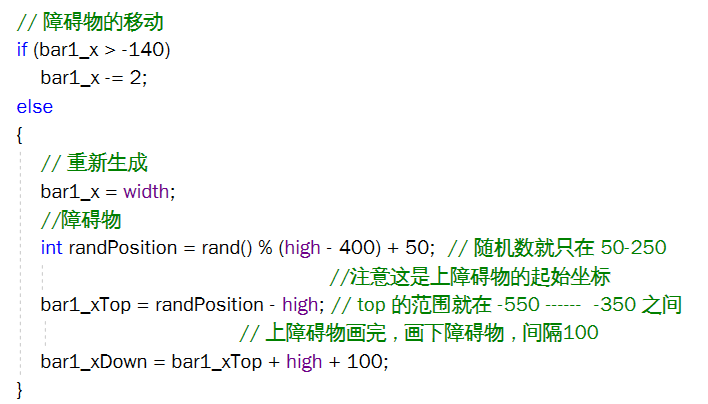

3. 移动障碍物

4.障碍物 随机生成 , 并且随机高度

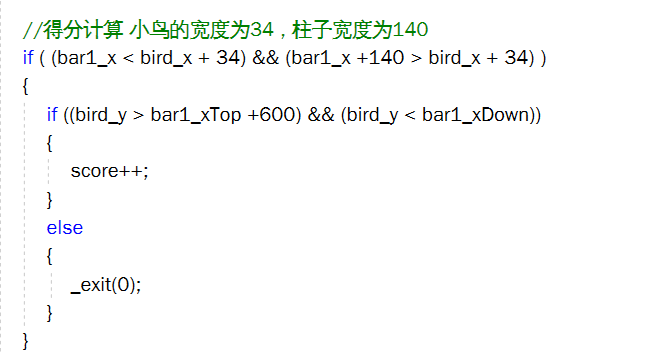

5.小鸟越过障碍物 , 并计算得分  ,  撞上柱子则死亡

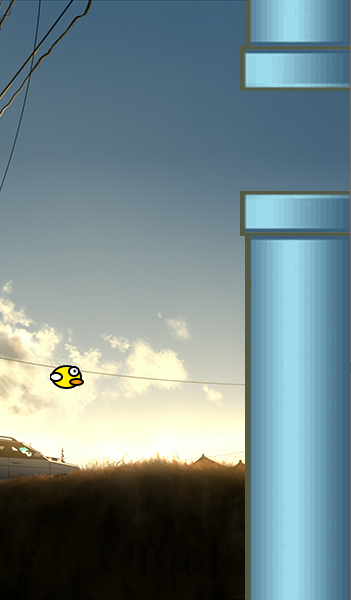

看下效果





最后, 贴出所有的代码 , 环境是 : VS2017

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
#include <graphics.h> #include <conio.h> // 引用 Windows Multimedia API #pragma comment(lib,"Winmm.lib") #define width 350 #define high 600 //全局变量 IMAGE img_bk, img_bd1, img_bd2, img_bar_up1, img_bar_up2, img_bar_down1, img_bar_down2; int bird_x , bird_y; int bar1_x, bar1_xDown, bar1_xTop; // 障碍物1的相关坐标 int score; // 得分,经过障碍物的个数 void startup() { initgraph(width, high); loadimage(&img_bk, _T("D:\桌面\super_bird\background.jpg") ); loadimage(&img_bd1, _T("D:\桌面\super_bird\bird1.jpg")); loadimage(&img_bd2, _T("D:\桌面\super_bird\bird2.jpg")); //显示上下障碍物 loadimage(&img_bar_up1, _T("D:\桌面\super_bird\bar_up1.gif")); loadimage(&img_bar_up2, _T("D:\桌面\super_bird\bar_up2.gif")); loadimage(&img_bar_down1, _T("D:\桌面\super_bird\bar_down1.gif")); loadimage(&img_bar_down2, _T("D:\桌面\super_bird\bar_down2.gif")); //小鸟 bird_x = width / 7; // 50 bird_y = high / 3; //200 score = 0; //障碍物 bar1_x = width; int randPosition = rand() % (high - 400) +50; // 随机数就只在 50-250 //注意这是上障碍物的起始坐标 bar1_xTop = randPosition - high; // top 的范围就在 -550 ------ -350 之间 // 上障碍物画完 , 画下障碍物 , 间隔100 bar1_xDown = bar1_xTop +high + 100; BeginBatchDraw(); } void show() { putimage(0, 0, &img_bk); // 显示背景 putimage(bird_x, bird_y, &img_bd1, NOTSRCERASE); // 遮罩透明处理 putimage(bird_x, bird_y, &img_bd2, SRCINVERT);// 显示小鸟 //显示 障碍物 putimage(bar1_x, bar1_xTop, &img_bar_up1, NOTSRCERASE); // 遮罩透明处理 putimage(bar1_x, bar1_xTop, &img_bar_up2, SRCINVERT);// 显示上障碍物 putimage(bar1_x, bar1_xDown, &img_bar_down1, NOTSRCERASE); // 遮罩透明处理 putimage(bar1_x, bar1_xDown, &img_bar_down2, SRCINVERT);// 显示下障碍物 FlushBatchDraw(); Sleep(50); } void updateWithoutInput() { // 输入空格进行控制小鸟 char input; if (_kbhit()) { input = _getch(); if (input == ' ' && bird_y > 20) bird_y -= 25; } } // 图形更新 void updateWithInput() { // 小鸟不能飞出界面 if (bird_y < 0 || bird_y > 556) _exit(0); // 结束 // 小鸟的坐标不能出框 , Y轴不能小于0 , 不能大于580 if (0 < bird_y && bird_y < 580) bird_y += 3; // 障碍物的移动 if (bar1_x > -140) bar1_x -= 2; else { // 重新生成 bar1_x = width; //障碍物 int randPosition = rand() % (high - 400) + 50; // 随机数就只在 50-250 //注意这是上障碍物的起始坐标 bar1_xTop = randPosition - high; // top 的范围就在 -550 ------ -350 之间 // 上障碍物画完 , 画下障碍物 , 间隔100 bar1_xDown = bar1_xTop + high + 100; } //得分计算 小鸟的宽度为34 , 柱子宽度为140 if ( (bar1_x < bird_x + 34) && (bar1_x +140 > bird_x + 34) ) { if ((bird_y > bar1_xTop +600) && (bird_y < bar1_xDown)) { score++; } else { _exit(0); } } } void gameover() { EndBatchDraw(); _getch(); closegraph(); } int main() { startup(); // 数据初始化 while (1) // 游戏循环执行 { show(); // 显示画面 updateWithoutInput(); // 界面的更新 updateWithInput(); // 与用户输入有关的更新 } gameover(); // 游戏结束、后续处理 return 0; }



到这里,我们可以配上音乐

可以引用 Windows Multimedia API
使用  #pragma comment(lib,"Winmm.lib")

复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
#include <graphics.h> #include <conio.h> // 引用 Windows Multimedia API #pragma comment(lib,"Winmm.lib") #define width 350 #define high 600 //全局变量 IMAGE img_bk, img_bd1, img_bd2, img_bar_up1, img_bar_up2, img_bar_down1, img_bar_down2; int bird_x , bird_y; int bar1_x, bar1_xDown, bar1_xTop; // 障碍物1的相关坐标 int score; // 得分,经过障碍物的个数 void startup() { initgraph(width, high); loadimage(&img_bk, _T("D:\桌面\super_bird\background.jpg") ); loadimage(&img_bd1, _T("D:\桌面\super_bird\bird1.jpg")); loadimage(&img_bd2, _T("D:\桌面\super_bird\bird2.jpg")); //显示上下障碍物 loadimage(&img_bar_up1, _T("D:\桌面\super_bird\bar_up1.gif")); loadimage(&img_bar_up2, _T("D:\桌面\super_bird\bar_up2.gif")); loadimage(&img_bar_down1, _T("D:\桌面\super_bird\bar_down1.gif")); loadimage(&img_bar_down2, _T("D:\桌面\super_bird\bar_down2.gif")); //小鸟 bird_x = width / 7; // 50 bird_y = high / 3; //200 score = 0; //障碍物 bar1_x = width; int randPosition = rand() % (high - 400) +50; // 随机数就只在 50-250 //注意这是上障碍物的起始坐标 bar1_xTop = randPosition - high; // top 的范围就在 -550 ------ -350 之间 // 上障碍物画完 , 画下障碍物 , 间隔100 bar1_xDown = bar1_xTop +high + 100; BeginBatchDraw(); mciSendString(_T("open D:\桌面\super_bird\background.mp3 alias bkmusic"), NULL, 0, NULL);//打开背景音乐 mciSendString(_T("play bkmusic repeat"), NULL, 0, NULL); // 循环播放 } void show() { putimage(0, 0, &img_bk); // 显示背景 putimage(bird_x, bird_y, &img_bd1, NOTSRCERASE); // 遮罩透明处理 putimage(bird_x, bird_y, &img_bd2, SRCINVERT);// 显示小鸟 //显示 障碍物 putimage(bar1_x, bar1_xTop, &img_bar_up1, NOTSRCERASE); // 遮罩透明处理 putimage(bar1_x, bar1_xTop, &img_bar_up2, SRCINVERT);// 显示上障碍物 putimage(bar1_x, bar1_xDown, &img_bar_down1, NOTSRCERASE); // 遮罩透明处理 putimage(bar1_x, bar1_xDown, &img_bar_down2, SRCINVERT);// 显示下障碍物 FlushBatchDraw(); Sleep(50); } void updateWithoutInput() { // 输入空格进行控制小鸟 char input; if (_kbhit()) { input = _getch(); if (input == ' ' && bird_y > 20) { bird_y -= 25; mciSendString(_T("close jpmusic"), NULL, 0, NULL); // 先把前面一次的音乐关闭 mciSendString(_T("open D:\Jump.mp3 alias jpmusic"), NULL, 0, NULL);// 打开跳动音乐 mciSendString(_T("play jpmusic"), NULL, 0, NULL); // 仅播放一次 } } } // 图形更新 void updateWithInput() { // 小鸟不能飞出界面 if (bird_y < 0 || bird_y > 556) _exit(0); // 结束 // 小鸟的坐标不能出框 , Y轴不能小于0 , 不能大于580 if (0 < bird_y && bird_y < 580) bird_y += 3; // 障碍物的移动 if (bar1_x > -140) bar1_x -= 2; else { // 重新生成 bar1_x = width; //障碍物 int randPosition = rand() % (high - 400) + 50; // 随机数就只在 50-250 //注意这是上障碍物的起始坐标 bar1_xTop = randPosition - high; // top 的范围就在 -550 ------ -350 之间 // 上障碍物画完 , 画下障碍物 , 间隔100 bar1_xDown = bar1_xTop + high + 100; } //得分计算 小鸟的宽度为34 , 柱子宽度为140 if ( (bar1_x < bird_x + 34) && (bar1_x +140 > bird_x + 34) ) { if ((bird_y > bar1_xTop +600) && (bird_y < bar1_xDown)) { score++; } else { _exit(0); } } } void gameover() { EndBatchDraw(); _getch(); closegraph(); } int main() { startup(); // 数据初始化 while (1) // 游戏循环执行 { show(); // 显示画面 updateWithoutInput(); // 界面的更新 updateWithInput(); // 与用户输入有关的更新 } gameover(); // 游戏结束、后续处理 return 0; }

好了 , 到此结束 . 大家记得每天提醒自己 , 好好学习 , 天天向上
