Spring Cloud实战(四)-配置中心一.配置中心config-server

77 阅读 0 评论 51 点赞

我是靠谱客的博主丰富白开水，最近开发中收集的这篇文章主要介绍Spring Cloud实战(四)-配置中心一.配置中心config-server，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

接着上一篇 Spring Cloud实战(三)-监控中心现在开始搭建配置中心

一.配置中心config-server

1.pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>cloud-action</artifactId>
        <groupId>com.example</groupId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>config-server</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-server</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <!--  实现配置文件自动刷新[https://docs.spring.io/spring-cloud-config/docs/current/reference/html/#_embedding_the_config_server] -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bus-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-config-monitor</artifactId>
        </dependency>
    </dependencies>

</project>

2.application.yml

spring:
  application:
    name: config-server
  profiles:
    active: single

---
#单机版
spring:
  config:
    activate:
      on-profile: single
  cloud:
    config:
      server:
        git:
          #uri: file://${user.home}/config-repo
          uri: https://gitee.com/wip/config-repo
          default-label: master
          search-paths: cloud-action
        #native:
           #search-locations: classpath:/config-repo #配置其他应用所需的配置文件所在位置
  rabbitmq:
    virtual-host: /mqbus
    host: localhost
    port: 5672
    username: mqbus
    password: mqbus
server:
  port: 3333
#监控配置
management:
  endpoints:
    web:
      exposure:
        #公开所有端点 对于生产,您应该仔细选择要公开的端点.
        include: "*"
  endpoint:
    health:
      show-details: always
  info:
    env:
      enabled: true
eureka:
  instance:
    lease-renewal-interval-in-seconds: 30 #服务续约(心跳检测)时间,默认30秒
    lease-expiration-duration-in-seconds: 90 #服务剔除时间,默认90秒
    health-check-url-path: /actuator/health
    metadata-map:
      startup: ${random.int}    #需要在重启后触发信息和端点更新
  client:
    service-url:
     defaultZone: http://localhost:1111/eureka/ #eureka-client设置eureka-server的地址

---
spring:
  config:
    activate:
      on-profile: peer1
  cloud:
    config:
      server:
        git:
          #uri: file://${user.home}/config-repo
          uri: https://gitee.com/wip/config-repo
          default-label: master
          search-paths: cloud-action
#        native:
#          search-locations: classpath:/config-repo #配置其他应用所需的配置文件所在位置
  rabbitmq:
    virtual-host: /mqbus
    host: localhost
    port: 5672
    username: mqbus
    password: mqbus
server:
  port: 3334
#监控配置
management:
  endpoints:
    web:
      exposure:
        include: "*" #公开所有端点 对于生产,您应该仔细选择要公开的端点.
  endpoint:
    health:
      show-details: always
  info:
    env:
      enabled: true
eureka:
  instance:
    lease-renewal-interval-in-seconds: 30 #服务续约(心跳检测)时间,默认30秒
    lease-expiration-duration-in-seconds: 90 #服务剔除时间,默认90秒
    health-check-url-path: /actuator/health
    metadata-map:
      startup: ${random.int}    #需要在重启后触发信息和端点更新
  client:
    service-url:
     defaultZone: http://peer1:1112/eureka/,http://peer2:1113/eureka/ #eureka-client设置eureka-server的地址

---
spring:
  config:
    activate:
      on-profile: peer2
  cloud:
    config:
      server:
        git:
          #uri: file://${user.home}/config-repo
          uri: https://gitee.com/wip/config-repo
          default-label: master
          search-paths: cloud-action
#        native:
#          search-locations: classpath:/config-repo #配置其他应用所需的配置文件所在位置
  rabbitmq:
    virtual-host: /mqbus
    host: localhost
    port: 5672
    username: mqbus
    password: mqbus
server:
  port: 3335
#监控配置
management:
  endpoints:
    web:
      exposure:
        include: "*" #公开所有端点 对于生产,您应该仔细选择要公开的端点.
  endpoint:
    health:
      show-details: always
  info:
    env:
      enabled: true
eureka:
  instance:
    lease-renewal-interval-in-seconds: 30 #服务续约(心跳检测)时间,默认30秒
    lease-expiration-duration-in-seconds: 90 #服务剔除时间,默认90秒
    health-check-url-path: /actuator/health
    metadata-map:
      startup: ${random.int}    #需要在重启后触发信息和端点更新
  client:
    service-url:
      defaultZone: http://peer1:1112/eureka/,http://peer2:1113/eureka/ #eureka-client设置eureka-server的地址

3.ConfigApplication.java

package com.example.config;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.config.server.EnableConfigServer;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

/**
 * @author 86188
 */
@SpringBootApplication
@EnableEurekaClient
@EnableConfigServer
public class ConfigApplication {
    public static void main(String[] args) {
        SpringApplication.run(ConfigApplication.class, args);
    }
}

4.测试

环境准备

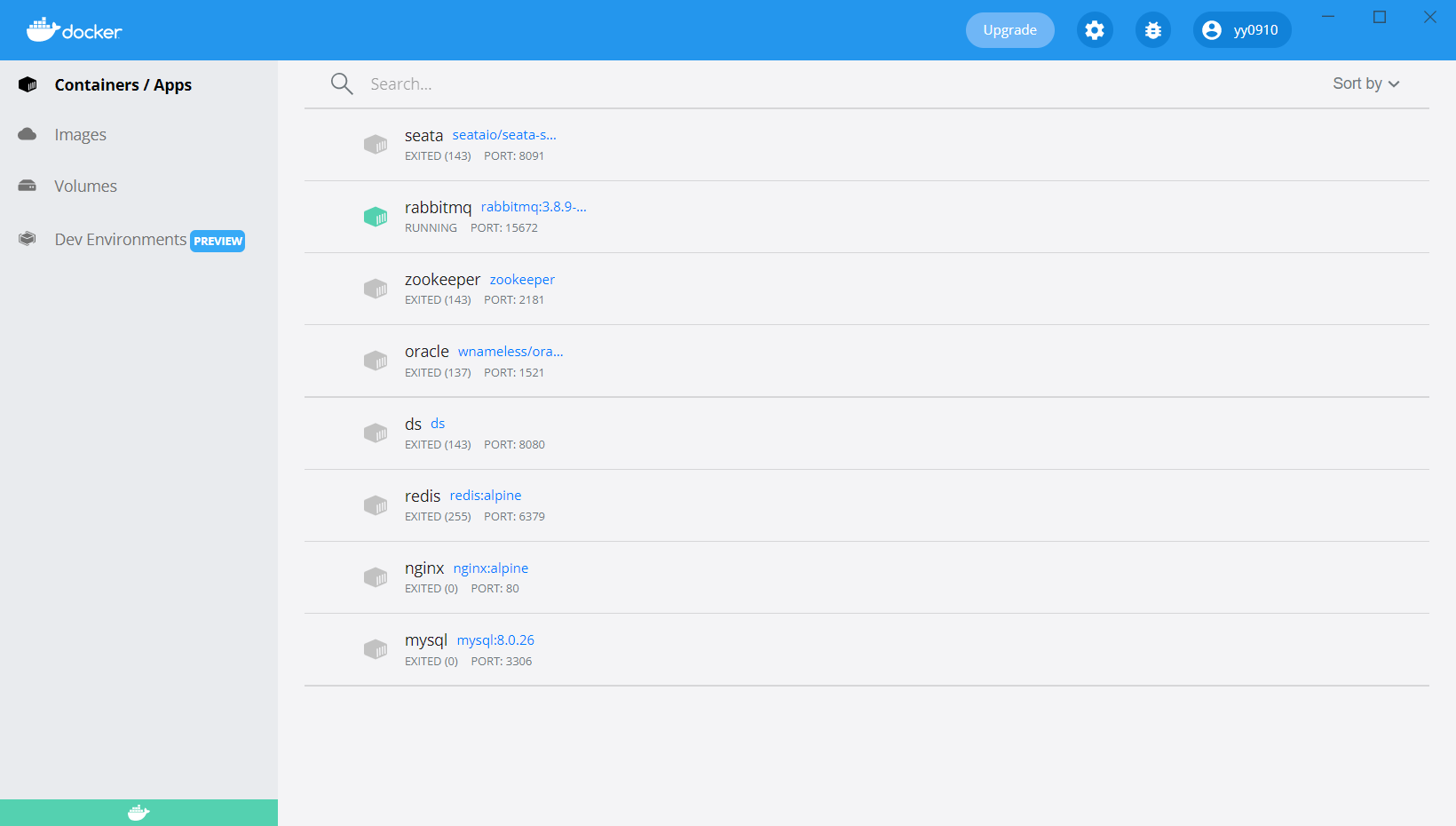

该模块用到了RabbitMQ,此处我使用了docker快速搭建了RabbitMQ环境,如果你已经有了RabbitMQ环境可以略过.如果没有,可以查看我的其他博客Windows10家庭版上安装docker等其他相关博客.

docker run -dp 5672:5672 -p 15672:15672 --name rabbitmq -v D:/WinLinux/docker/rabbitmq/data:/var/lib/rabbitmq -e RABBITMQ_DEFAULT_USER=admin -e RABBITMQ_DEFAULT_PASS=yaoyong  rabbitmq:3.8.9-management

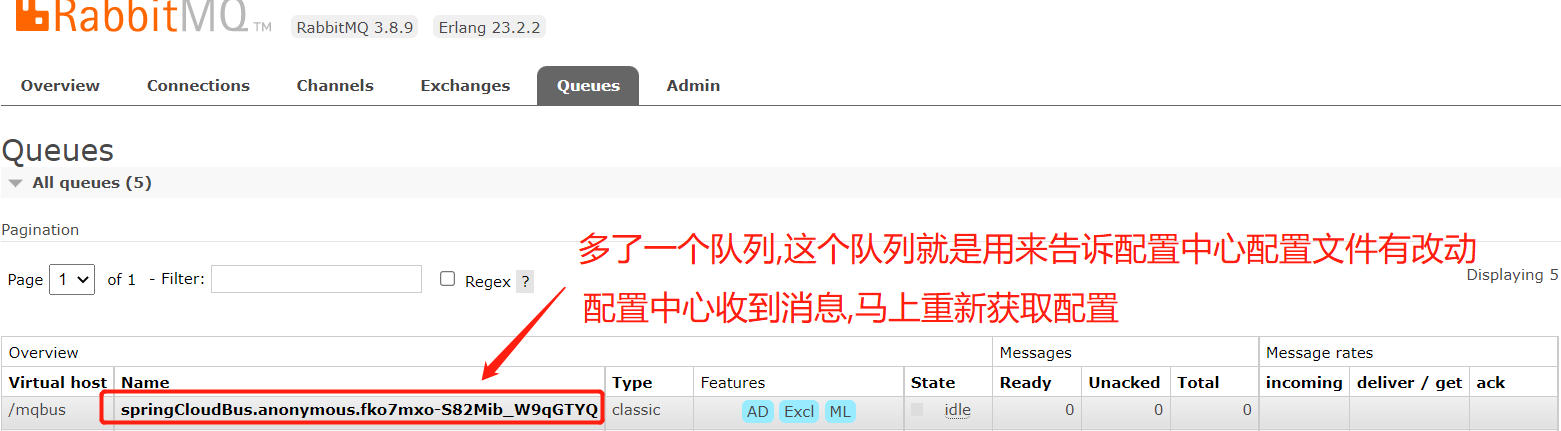

启动项目

依次启动之前的项目

java -jar register-server-0.0.1-SNAPSHOT.jar

java -jar monitor-server-0.0.1-SNAPSHOT.jar

java -jar config-server-0.0.1-SNAPSHOT.jar

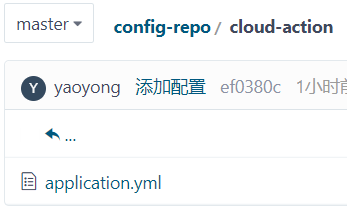

git上添加一个配置,然后测试传送门

测试内容如下

spring:
  datasource:
    driverClassName: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306
    username: root
    password: root
#  rabbitmq:
#    virtual-host: /mqbus
#    host: localhost
#    port: 5672
#    username: mqbus
#    password: mqbus
#book:
#  name: Spring Cloud 微服务实战
#  author: 你猜一猜

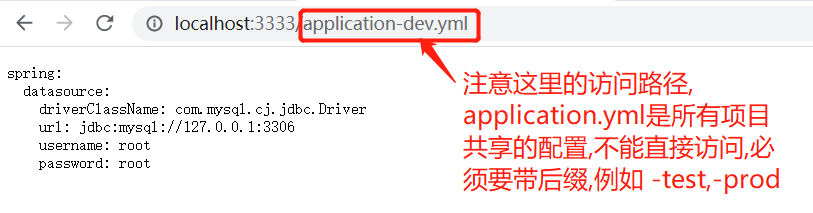

Spring Cloud Config官方文档

HTTP 服务具有以下形式的资源:

/{application}/{profile}[/{label}]
/{application}-{profile}.yml
/{label}/{application}-{profile}.yml
/{application}-{profile}.properties
/{label}/{application}-{profile}.properties

例如:

curl localhost:8888/foo/development
curl localhost:8888/foo/development/master
curl localhost:8888/foo/development,db/master
curl localhost:8888/foo-development.yml
curl localhost:8888/foo-db.properties
curl localhost:8888/master/foo-db.properties

修改测试内容

spring:
  datasource:
    driverClassName: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306
    username: root
    password: root
  rabbitmq:
    virtual-host: /mqbus
    host: localhost
    port: 5672
    username: mqbus
    password: mqbus

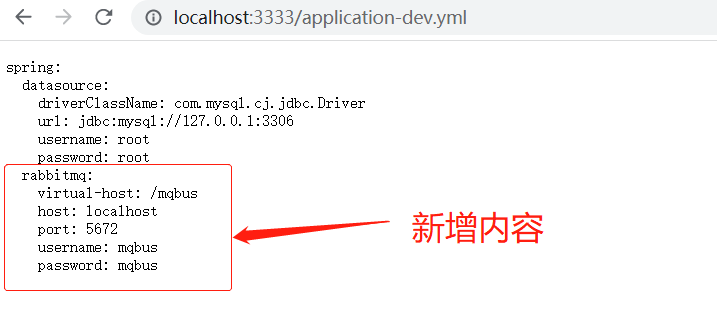

再次访问
