APISIX初体验-部署安装

1.从官网把apisix-docker仓库下载下来

git clone https://github.com/apache/apisix-docker.git
cd apisix-docker/example

2.找到docker-compose.yml文件，删除了一些暂时不用的配置

version: "3"
services:
  apisix-dashboard:
    image: apache/apisix-dashboard:2.13-alpine
    restart: always
    volumes:
    - ./dashboard_conf/conf.yaml:/usr/local/apisix-dashboard/conf/conf.yaml
    ports:
    - "9000:9000"
    networks:
      apisix:
  apisix:
    image: apache/apisix:2.14.1-alpine
    restart: always
    volumes:
      - ./apisix_log:/usr/local/apisix/logs
      - ./apisix_conf/config.yaml:/usr/local/apisix/conf/config.yaml:ro
    depends_on:
      - etcd
    ports:
      - "9080:9080/tcp"
      - "9091:9091/tcp"
      - "9443:9443/tcp"
      - "9092:9092/tcp"
    networks:
      apisix:
  etcd:
    image: bitnami/etcd:3.4.15
    restart: always
    volumes:
      - etcd_data:/bitnami/etcd
    environment:
      ETCD_ENABLE_V2: "true"
      ALLOW_NONE_AUTHENTICATION: "yes"
      ETCD_ADVERTISE_CLIENT_URLS: "http://0.0.0.0:2379"
      ETCD_LISTEN_CLIENT_URLS: "http://0.0.0.0:2379"
    ports:
      - "2379:2379/tcp"
    networks:
      apisix:
networks:
  apisix:
    driver: bridge
volumes:
  etcd_data:
    driver: local

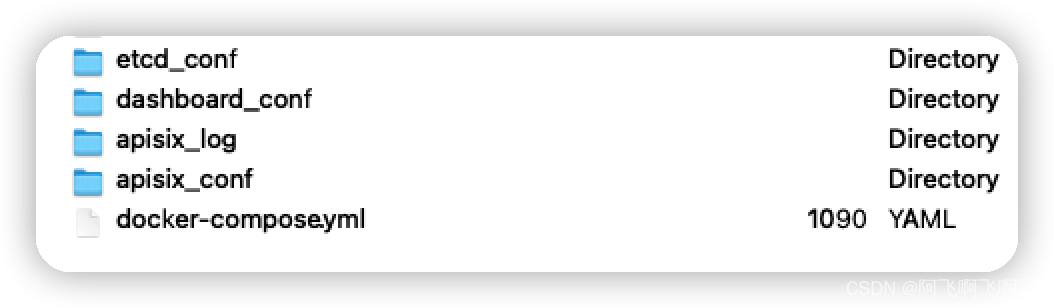

我的服务器（10.10.10.2）目录结构如图

 etcd的配置文件

#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

# This is the configuration file for the etcd server.

# Human-readable name for this member.
name: 'default'

# Path to the data directory.
data-dir:

# Path to the dedicated wal directory.
wal-dir:

# Number of committed transactions to trigger a snapshot to disk.
snapshot-count: 10000

# Time (in milliseconds) of a heartbeat interval.
heartbeat-interval: 100

# Time (in milliseconds) for an election to timeout.
election-timeout: 1000

# Raise alarms when backend size exceeds the given quota. 0 means use the
# default quota.
quota-backend-bytes: 0

# List of comma separated URLs to listen on for peer traffic.
listen-peer-urls: http://0.0.0.0:2380

# List of comma separated URLs to listen on for client traffic.
listen-client-urls: http://0.0.0.0:2379

# Maximum number of snapshot files to retain (0 is unlimited).
max-snapshots: 5

# Maximum number of wal files to retain (0 is unlimited).
max-wals: 5

# Comma-separated white list of origins for CORS (cross-origin resource sharing).
cors:

# List of this member's peer URLs to advertise to the rest of the cluster.
# The URLs needed to be a comma-separated list.
initial-advertise-peer-urls: http://0.0.0.0:2380

# List of this member's client URLs to advertise to the public.
# The URLs needed to be a comma-separated list.
advertise-client-urls: http://0.0.0.0:2379

# Discovery URL used to bootstrap the cluster.
discovery:

# Valid values include 'exit', 'proxy'
discovery-fallback: 'proxy'

# HTTP proxy to use for traffic to discovery service.
discovery-proxy:

# DNS domain used to bootstrap initial cluster.
discovery-srv:

# Initial cluster configuration for bootstrapping.
initial-cluster:

# Initial cluster token for the etcd cluster during bootstrap.
initial-cluster-token: 'etcd-cluster'

# Initial cluster state ('new' or 'existing').
initial-cluster-state: 'new'

# Reject reconfiguration requests that would cause quorum loss.
strict-reconfig-check: false

# Accept etcd V2 client requests
enable-v2: true

# Enable runtime profiling data via HTTP server
enable-pprof: true

# Valid values include 'on', 'readonly', 'off'
proxy: 'off'

# Time (in milliseconds) an endpoint will be held in a failed state.
proxy-failure-wait: 5000

# Time (in milliseconds) of the endpoints refresh interval.
proxy-refresh-interval: 30000

# Time (in milliseconds) for a dial to timeout.
proxy-dial-timeout: 1000

# Time (in milliseconds) for a write to timeout.
proxy-write-timeout: 5000

# Time (in milliseconds) for a read to timeout.
proxy-read-timeout: 0

client-transport-security:
  # Path to the client server TLS cert file.
  cert-file:

  # Path to the client server TLS key file.
  key-file:

  # Enable client cert authentication.
  client-cert-auth: false

  # Path to the client server TLS trusted CA cert file.
  trusted-ca-file:

  # Client TLS using generated certificates
  auto-tls: false

peer-transport-security:
  # Path to the peer server TLS cert file.
  cert-file:

  # Path to the peer server TLS key file.
  key-file:

  # Enable peer client cert authentication.
  client-cert-auth: false

  # Path to the peer server TLS trusted CA cert file.
  trusted-ca-file:

  # Peer TLS using generated certificates.
  auto-tls: false

# Enable debug-level logging for etcd.
debug: false

logger: zap

# Specify 'stdout' or 'stderr' to skip journald logging even when running under systemd.
log-outputs: [stderr]

# Force to create a new one member cluster.
force-new-cluster: false

auto-compaction-mode: periodic
auto-compaction-retention: "1"

dashboard的配置文件

#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

conf:
  listen:
    host: 0.0.0.0     # `manager api` listening ip or host name
    port: 9000          # `manager api` listening port
  allow_list:           # If we don't set any IP list, then any IP access is allowed by default.
    - 0.0.0.0/0
  etcd:
    endpoints:          # supports defining multiple etcd host addresses for an etcd cluster
      - "http://10.10.10.2:2379"
                          # yamllint disable rule:comments-indentation
                          # etcd basic auth info
    # username: "root"    # ignore etcd username if not enable etcd auth
    # password: "123456"  # ignore etcd password if not enable etcd auth
    mtls:
      key_file: ""          # Path of your self-signed client side key
      cert_file: ""         # Path of your self-signed client side cert
      ca_file: ""           # Path of your self-signed ca cert, the CA is used to sign callers' certificates
    # prefix: /apisix     # apisix config's prefix in etcd, /apisix by default
  log:
    error_log:
      level: warn       # supports levels, lower to higher: debug, info, warn, error, panic, fatal
      file_path:
        logs/error.log  # supports relative path, absolute path, standard output
                        # such as: logs/error.log, /tmp/logs/error.log, /dev/stdout, /dev/stderr
    access_log:
      file_path:
        logs/access.log  # supports relative path, absolute path, standard output
                         # such as: logs/access.log, /tmp/logs/access.log, /dev/stdout, /dev/stderr
                         # log example: 2020-12-09T16:38:09.039+0800	INFO	filter/logging.go:46	/apisix/admin/routes/r1	{"status": 401, "host": "127.0.0.1:9000", "query": "asdfsafd=adf&a=a", "requestId": "3d50ecb8-758c-46d1-af5b-cd9d1c820156", "latency": 0, "remoteIP": "127.0.0.1", "method": "PUT", "errs": []}
authentication:
  secret:
    secret              # secret for jwt token generation.
                        # NOTE: Highly recommended to modify this value to protect `manager api`.
                        # if it's default value, when `manager api` start, it will generate a random string to replace it.
  expire_time: 3600     # jwt token expire time, in second
  users:                # yamllint enable rule:comments-indentation
    - username: admin   # username and password for login `manager api`
      password: 123456789
    - username: user
      password: 123456789

plugins:                          # plugin list (sorted in alphabetical order)
  - api-breaker
  - authz-keycloak
  - basic-auth
  - batch-requests
  - consumer-restriction
  - cors
  # - dubbo-proxy
  - echo
  # - error-log-logger
  # - example-plugin
  - fault-injection
  - grpc-transcode
  - hmac-auth
  - http-logger
  - ip-restriction
  - jwt-auth
  - kafka-logger
  - key-auth
  - limit-conn
  - limit-count
  - limit-req
  # - log-rotate
  # - node-status
  - openid-connect
  - prometheus
  - proxy-cache
  - proxy-mirror
  - proxy-rewrite
  - redirect
  - referer-restriction
  - request-id
  - request-validation
  - response-rewrite
  - serverless-post-function
  - serverless-pre-function
  # - skywalking
  - sls-logger
  - syslog
  - tcp-logger
  - udp-logger
  - uri-blocker
  - wolf-rbac
  - zipkin
  - server-info
  - traffic-split

apisix的配置文件

#
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#

apisix:
  node_listen: 9080              # APISIX listening port
  enable_ipv6: false

  allow_admin:                  # http://nginx.org/en/docs/http/ngx_http_access_module.html#allow
    - 0.0.0.0/0              # We need to restrict ip access rules for security. 0.0.0.0/0 is for test.

  admin_key:
    - name: "admin"
      key: 123456789
      role: admin                 # 命令行操作会使用到
    - name: "viewer"
      key: 123456789
      role: viewer

  enable_control: true
  control:
    ip: "0.0.0.0"
    port: 9092

etcd:
  host:                           # it's possible to define multiple etcd hosts addresses of the same etcd cluster.
    - "http://10.10.10.2:2379"     # multiple etcd address
  prefix: "/apisix"               # apisix configurations prefix
  timeout: 30                     # 30 seconds

然后执行

docker-compose up -d

3.登录使用

访问http://10.10.10.227:9000/，用户名密码：admin/123456789，开始使用
