概述
Spring Cloud spiEureka主要是服务的注册发现，本人博客主要类似操作文档。将项目搭建步骤记录下来。至于如何深刻理解Spring Cloud Eureka需要各自查找学习资料。
Spring Cloud是基于spring boot的。其中最主要的问题就是版本的问题。本人用的sping boot 2.0.0。Spring Cloud用的是

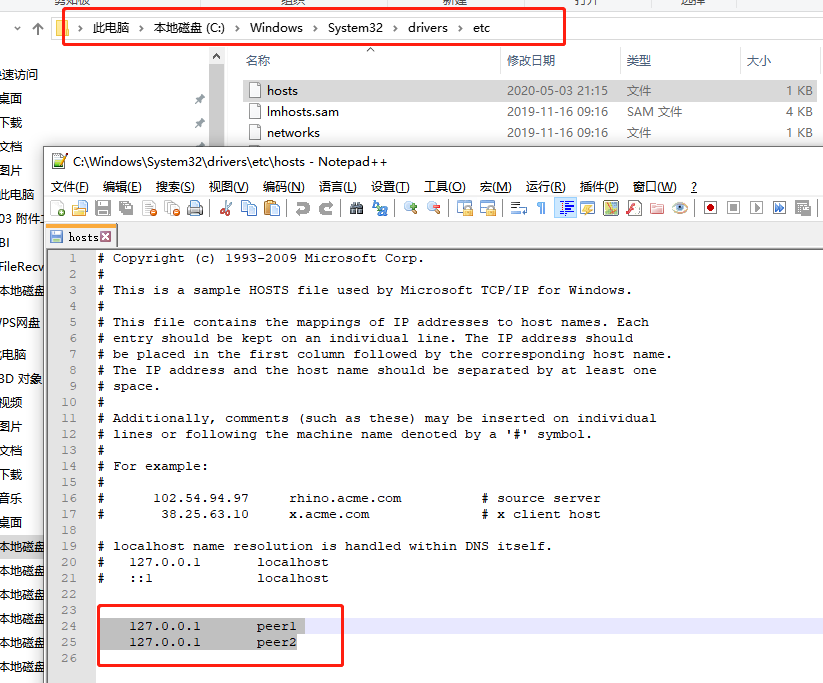

Finchley.RELEASE本文要实现的是在一台主机上双注册中心，如果不同的物理机器上此步骤可忽略。首先要在电脑上的C:WindowsSystem32driversetchosts文件添加如下内容,
127.0.0.1 peer1
127.0.0.1 peer2
如下图

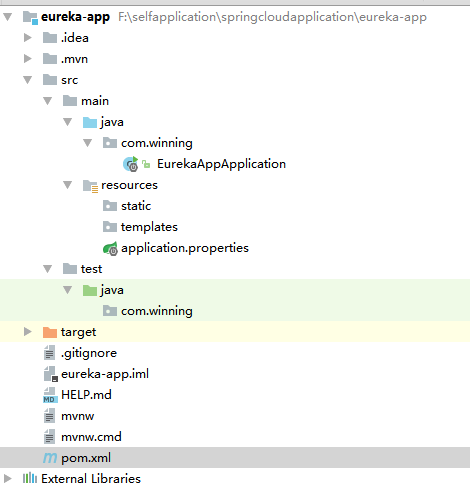

项目结构
下面我们就开始直接搭建步骤
1.引入需要的jar包。pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.0.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.winning</groupId>
<artifactId>eureka-app</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>eureka-app</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
<exclusions>
<exclusion>
<groupId>org.junit.vintage</groupId>
<artifactId>junit-vintage-engine</artifactId>
</exclusion>
</exclusions>
</dependency>
<!-- SpringCloud Eureka依赖 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
</dependencies>
<!-- Spring Cloud 管理依赖 -->
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Finchley.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2.添加配置。application.properties
server.port=1111
spring.application.name=eureka-server
#eureka配置
#关闭保护机制
eureka.server.enable-self-preservation=false
eureka.instance.hostname=peer1
#由于该应用是注册中心，false：代表不向注册中心注册自己;true:代表注册自己
eureka.client.register-with-eureka=false
#是否启动检测服务，由于注册中心的职责是维护服务实例，所以它不需要检服务
eureka.client.fetch-registry=false
eureka.client.service-url.defaultZone=http://peer2:1112/eureka/3.在启动类加入注解
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
@EnableEurekaServer
@SpringBootApplication
public class EurekaAppApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaAppApplication.class, args);
}
}4.到此我们已经完成了注册中心的搭建，下面我们需要搭建第二个注册中心，我们只需要将上面实现的代码拷贝一份。直接修改配置文件即可。application.properties
server.port=1112
spring.application.name=eureka-server-bak
#eureka配置
#关闭保护机制
eureka.server.enable-self-preservation=false
eureka.instance.hostname=peer2
#由于该应用是注册中心，false：代表不向注册中心注册自己;true:代表注册自己
eureka.client.register-with-eureka=false
#是否启动检测服务，由于注册中心的职责是维护服务实例，所以它不需要检服务
eureka.client.fetch-registry=false

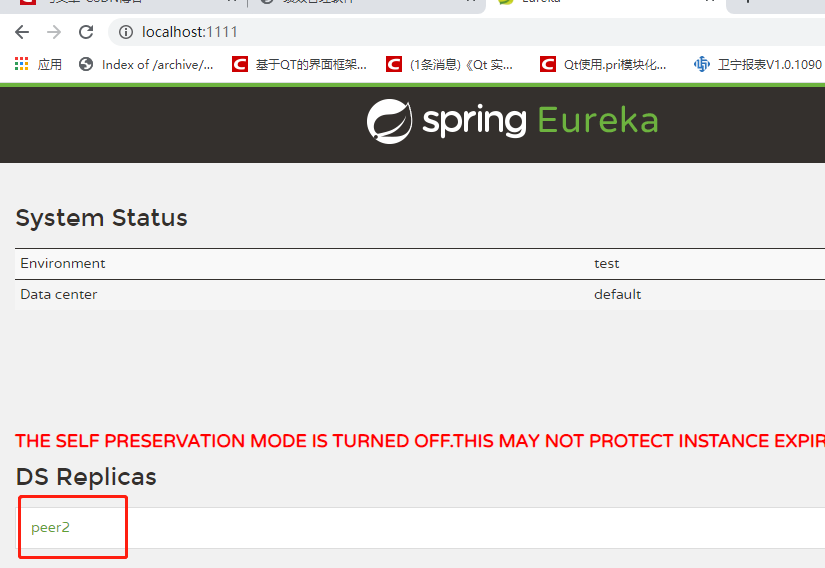

eureka.client.service-url.defaultZone=http://peer1:1111/eureka/5.以上便完成了两个注册中心的搭建，下面测试，启动两个注册中心，并在浏览器中输入：http://localhost:1111/如下图：表明注册中心搭建完成
接下来我们需要实现一个服务注册到注册中心去，确认注册中心是否真正的起作用，并关闭一个注册中心服务是否正常访问

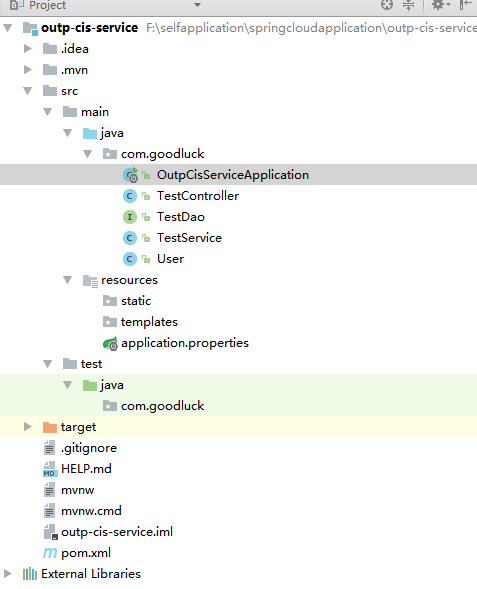

1.新建maven一个新项目。项目结构为
2.引入需要得jar包。pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.0.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.goodluck</groupId>
<artifactId>outp-cis-service</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>outp-cis-service</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>2.1.3</version>
</dependency>
<dependency>
<groupId>com.microsoft.sqlserver</groupId>
<artifactId>mssql-jdbc</artifactId>
<scope>runtime</scope>
</dependency>
<!-- SpringCloud Eureka依赖 -->
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
<exclusions>
<exclusion>
<groupId>org.junit.vintage</groupId>
<artifactId>junit-vintage-engine</artifactId>
</exclusion>
</exclusions>
</dependency>
</dependencies>
<!-- Spring Cloud 管理依赖 -->
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Finchley.RELEASE</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
3.启动类添加注解@EnableDiscoveryClient
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
@EnableDiscoveryClient
@SpringBootApplication
public class OutpCisServiceApplication {
public static void main(String[] args) {
SpringApplication.run(OutpCisServiceApplication.class, args);
}
}
4.添加配置。application.properties
spring.application.name=outp-cis-service
server.port=9091
eureka.client.service-url.defaultZone=http://peer1:1111/eureka/,http://peer2:1112/eureka/
#数据库连接
spring.datasource.url=jdbc:sqlserver://localhost:1433;DatabaseName=UI_MMS
spring.datasource.driverClassName=com.microsoft.sqlserver.jdbc.SQLServerDriver
spring.datasource.username=sa
spring.datasource.password=123
#连接池配置
spring.datasource.initialSize=5
spring.datasource.maxActive=50
spring.datasource.minIdle=5
#连接等待超时时间
spring.datasource.maxWait=60000
#spring.datasource.validationQuery=select 1
# 打开PSCache，并且指定每个连接上PSCache的大小
#spring.datasource.poolPreparedStatements=true
#spring.datasource.maxOpenPreparedStatements: 20
#配置隔多久进行一次检测(检测可以关闭的空闲连接)
#spring.datasource.timeBetweenEvictionRunsMillis: 60000
#配置连接在池中的最小生存时间
#spring.datasource.minEvictableIdleTimeMillis: 300000
#spring.datasource.validationQuery=SELECT 1 FROM DUAL
#spring.datasource.testWhileIdle=true
#spring.datasource.testOnBorrow=true
#spring.datasource.testOnReturn=true
# 配置监控统计拦截的filters，去掉后监控界面sql无法统计，'wall'用于防火墙
#spring.datasource.filters=stat,wall,log4j
# 通过connectProperties属性来打开mergeSql功能；慢SQL记录
#pring.datasource.connectionProperties=druid.stat.mergeSql=true;druid.stat.slowSqlMillis=5000
5.添加测试类TestController，TestDao，TestService，User
package com.goodluck;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
/**
* Created by 76706 on 2020/6/18.
*/
@RestController
public class TestController {
@Autowired
private TestService testService;
@RequestMapping("/test")
public String getId(){
return testService.getIdd()+"";
}
Logger logger= LoggerFactory.getLogger(getClass());
@RequestMapping("/hello")
public String hello(){
// ServiceInstance instance = client.getLocalServiceInstance();
return "hello2";
}
@RequestMapping(value = "/hello1",method = RequestMethod.GET)
public String hello(@RequestParam String name){
// ServiceInstance instance = client.getLocalServiceInstance();
return "hello2"+name;
}
@RequestMapping(value = "/hello2",method = RequestMethod.GET)
public User hello(@RequestHeader String name, @RequestHeader Integer age){
// ServiceInstance instance = client.getLocalServiceInstance();
return new User(name,age);
}
@RequestMapping(value = "/hello3",method = RequestMethod.POST)
public String hello(@RequestBody User user){
// ServiceInstance instance = client.getLocalServiceInstance();
return "hello2"+user.getName()+","+user.getAge();
}
}
package com.goodluck;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;
/**
* Created by 76706 on 2020/6/18.
*/
@Mapper
public interface TestDao {
/**
* 测试连接
*/
@Select(" select name from sstable ")
String testSqlConnent();
}
package com.goodluck;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
/**
* Created by 76706 on 2020/6/18.
*/
@Service
public class TestService {
@Autowired
private TestDao testDao;
public String getIdd(){
return testDao.testSqlConnent();
}
}
package com.goodluck;
/**
* Created by Administrator on 2020-05-19.
*/
public class User {
private String name;
private Integer age;
public User() {
}
public User(String name, Integer age) {
this.name = name;
this.age = age;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public Integer getAge() {
return age;
}
public void setAge(Integer age) {
this.age = age;
}
}

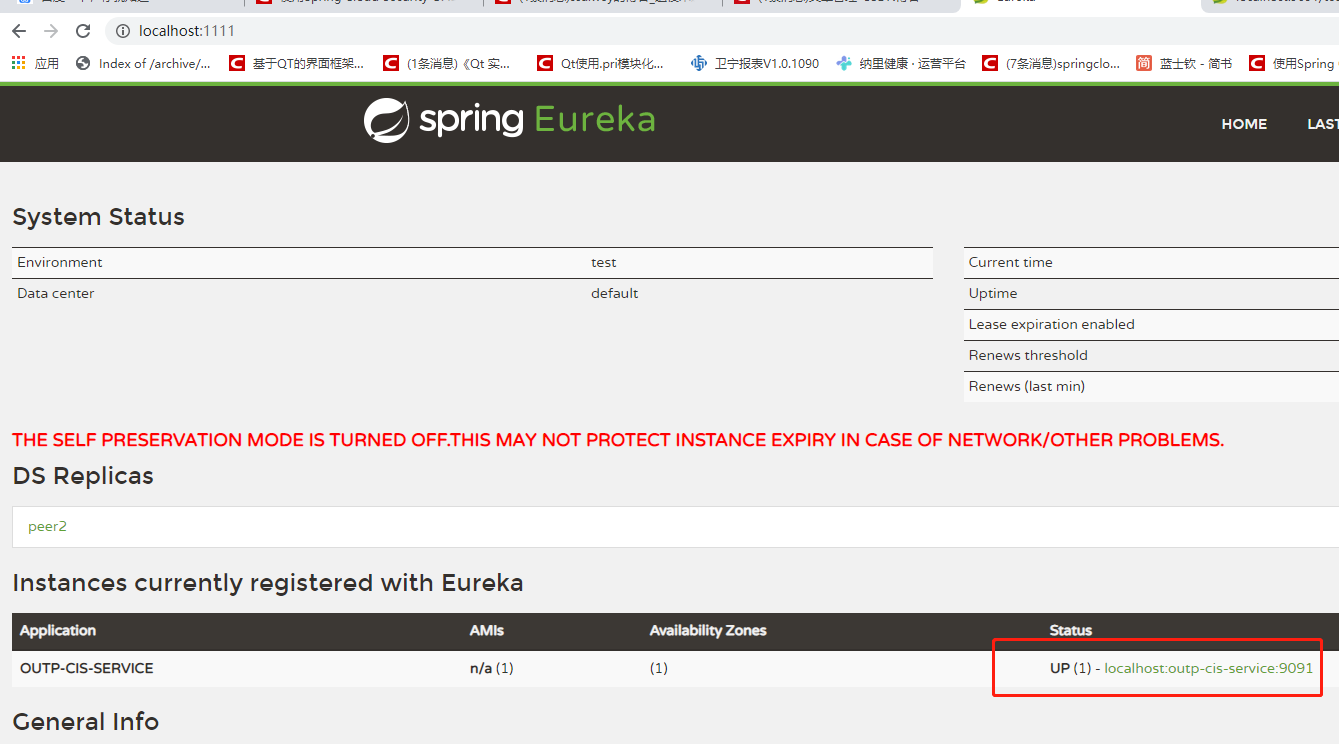

6.以上便完成了服务得搭建，启动该服务。刷新http://localhost:1111/网页。查看一下多了一个服务，服务名为outp-cis-service
7.测试服务是否正常能够访问http://localhost:9091/test，并正确连接数据库，本人数据库为sqlserver。如下则表示测试成功。数据库也连接成功
