概述

一、实验目的及要求
【实验一】实现sIoT配置并实现sIoT上mqtt消息的通讯。
【实验二】通过AppInventor结合sIoT实现手机app控制掌控板的灯和显示内容。

二、实验原理与内容
sIoT可以在局域网上实现mqtt消息的通讯。借助sIoT可以通过手机app实现局域网内的设备操控。

三、实验软硬件环境
硬件：掌控板
软件：Mind+

四、实验过程
【实验一】
1、先下载SIoT1.2，打开运行，如下图所示。
在这里插入图片描述

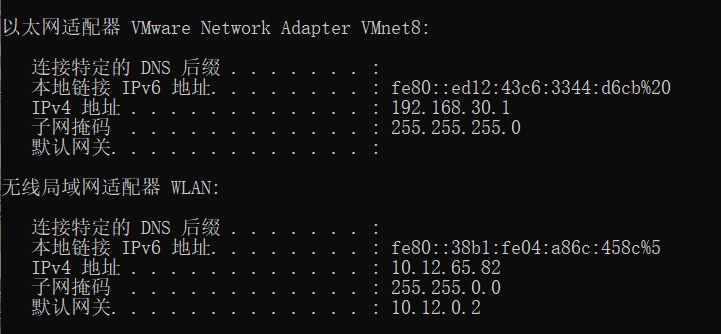

2、打开命令行提示符，得知本电脑的ip地址，打开浏览器，输入(本机ip地址+：8888),输入用户名和密码，创建两个项目。

3、打开mind+与掌控版连接，在扩展板选择掌控板，在网络服务中选择WIFI和MQTT.

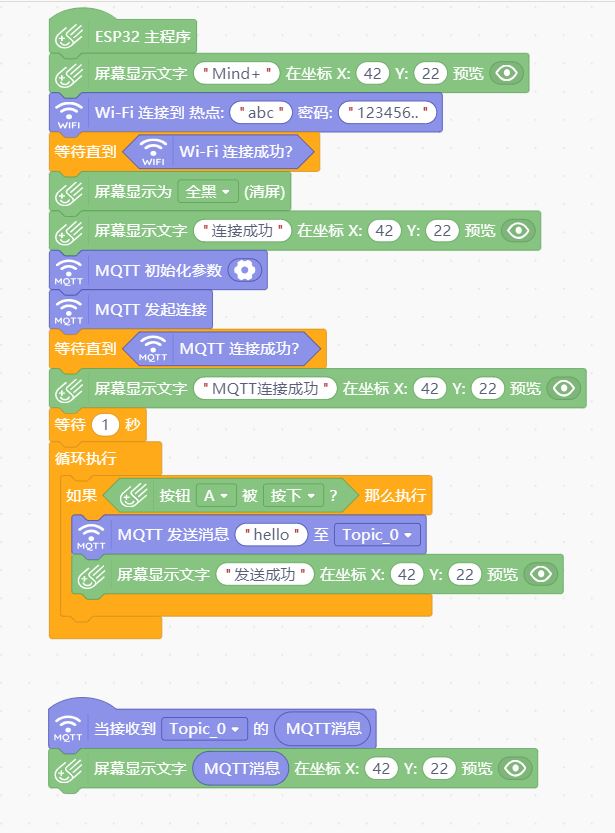

4、编写代码：
在这里插入图片描述
核心代码：

/*!
 * MindPlus
 * mpython
 *
 */
#include <MPython.h>
#include <DFRobot_Iot.h>
// 函数声明
void obloqMqttEventT0(String& message);
// 静态常量
const String topics[5] = {"lf/1号","lyz/1号","","",""};
const MsgHandleCb msgHandles[5] = {obloqMqttEventT0,NULL,NULL,NULL,NULL};
// 创建对象
DFRobot_Iot myIot;


// 主程序开始
void setup() {
	mPython.begin();
	myIot.setMqttCallback(msgHandles);
	display.setCursor(42, 22);
	display.print("Mind+");
	myIot.wifiConnect("abc", "123456..");
	while (!myIot.wifiStatus()) {yield();}
	display.fillScreen(0);
	display.setCursor(42, 22);
	display.print("连接成功");
	myIot.init("192.168.137.1","602","","iot", topics, 1883);
	myIot.connect();
	while (!myIot.connected()) {yield();}
	display.setCursor(42, 22);
	display.print("MQTT连接成功");
	delay(1000);
}
void loop() {
	if ((buttonA.isPressed())) {
		myIot.publish(topic_0, "hello");
		display.setCursor(42, 22);
		display.print("发送成功");
	}
}


// 事件回调函数
void obloqMqttEventT0(String& message) {
	display.setCursor(42, 22);
	display.print(message);
}

将代码上传到设备，连接WIFI 成功后，按下A键发送信息并接受伙伴的信息。

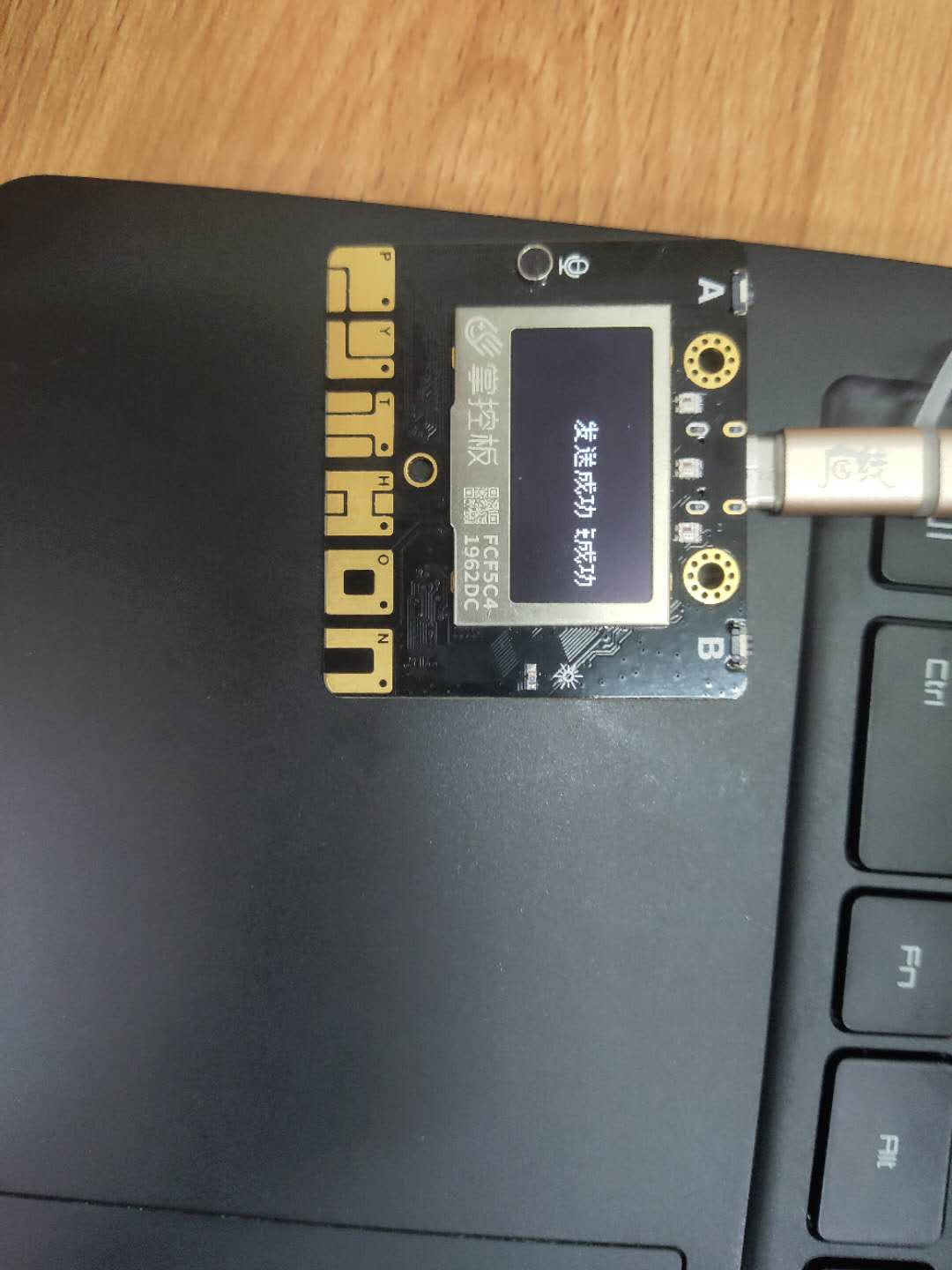

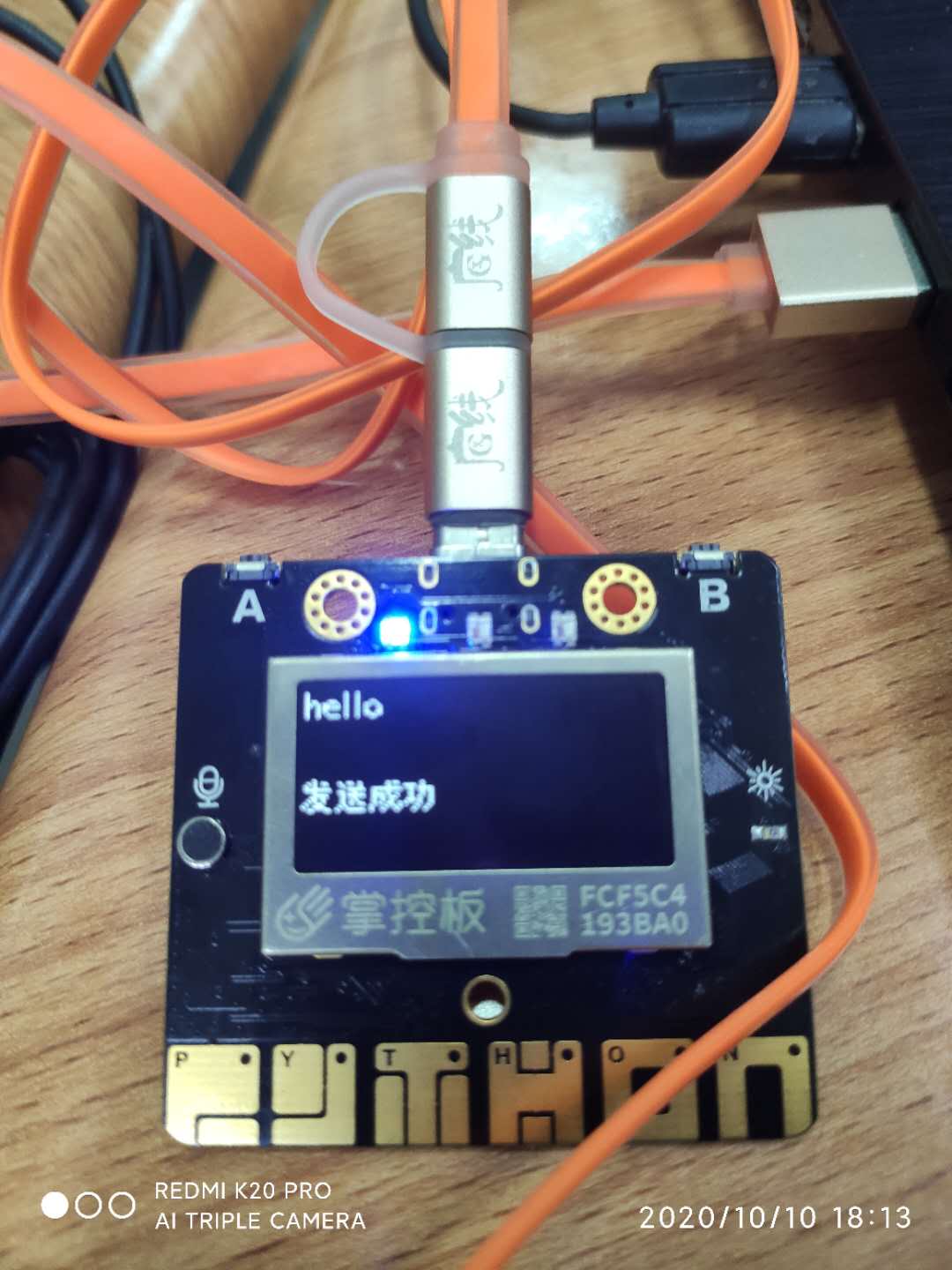

5、实验效果：
在这里插入图片描述

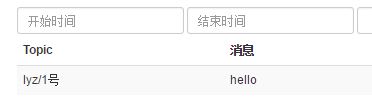

双方都发送和接收信息成功。

【实验二】

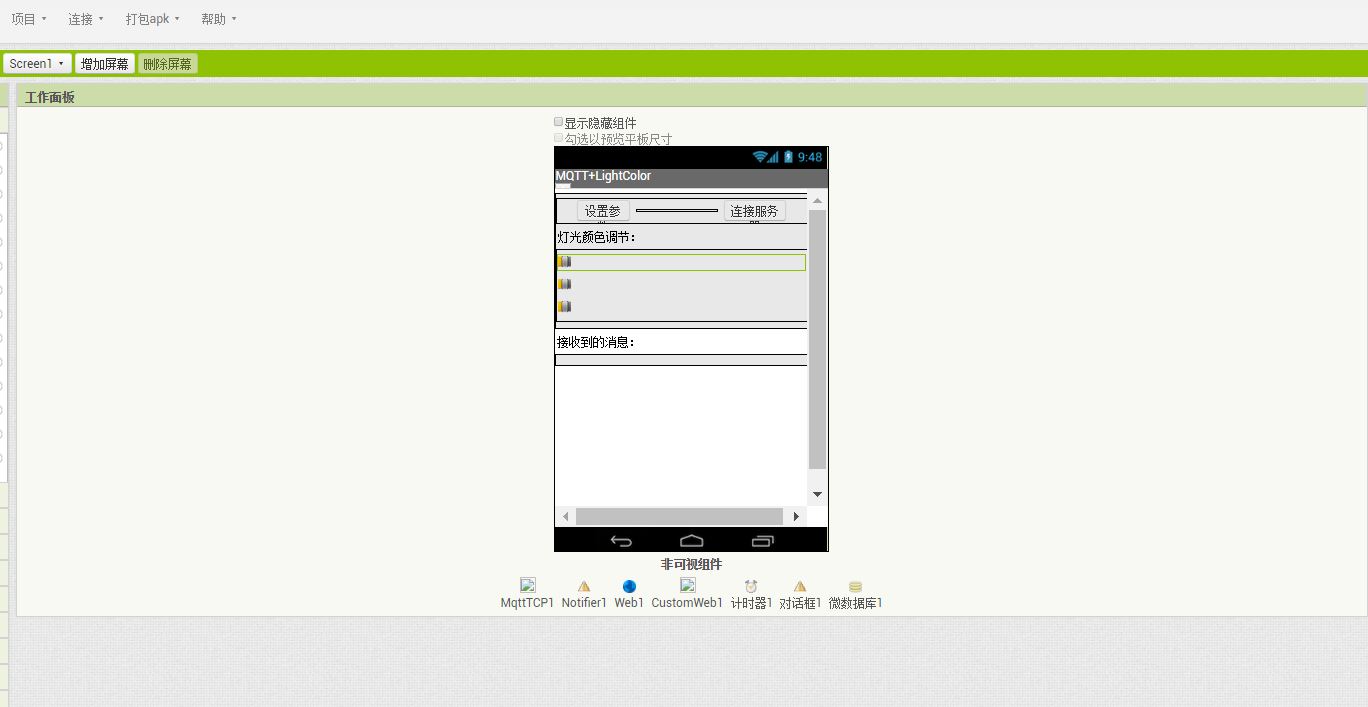

1、打开浏览器，搜索App inventor,登录进去，点击导入项目，把老师发的LightColorCtr.aia导进去。
在这里插入图片描述
点击逻辑设计，修改相关变量：SIOT的登录名、登录密码，个人IP地址。

2、点击打包apk，选择打包apk到电脑，并发送到手机上，在手机上安装好app后，打开mind+,导入老师发的AppCtrLightColor.sb3.连接好掌控板，点击上传设备。用手机上的MQTT IOT进行测试。

代码截图：
在这里插入图片描述
核心代码：

/*!
 * MindPlus
 * mpython
 *
 */
#include <MPython.h>
#include <DFString.h>
#include <DFRobot_Iot.h>

// 动态变量
volatile float mind_n_DouHao1, mind_n_DouHao2, mind_n_R, mind_n_G, mind_n_B;
// 函数声明
void     obloqMqttEventT0(String& message);
uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b);
// 静态常量
const uint8_t imageMatrix[][350] = {
	{0x0,0x0,0x0,0x1f,0x80,0x0,0x0,0x0,0x0,0x0,0x30,0xc0,0x0,0x0,0x0,0x0,0x0,0x60,0x60,0x0,0x0,0x0,0x0,0x0,0x40,0x20,0x0,0x0,0x0,0x0,0x0,0x40,0x20,0x0,0x0,0x0,0x0,0x0,0x40,0x20,0x0,0x0,0x0,0x0,0x0,0x60,0x60,0x0,0x0,0x0,0x0,0x0,0x30,0xc0,0x0,0x0,0x0,0x0,0x0,0x33,0x80,0x0,0x0,0x0,0x1e,0x0,0x22,0x0,0x0,0x0,0x0,0x33,0x80,0x62,0x0,0x3c,0x0,0x0,0x60,0xc0,0x46,0x0,0xee,0x0,0x0,0x40,0xc0,0xc6,0x1,0x83,0x0,0x0,0xc0,0x40,0x86,0x1,0x1,0x80,0x0,0x40,0xc1,0x8c,0x1,0x1,0x80,0x0,0x7c,0x9f,0xff,0x1,0x1,0x80,0x0,0x37,0x98,0x3,0x81,0xa3,0x0,0x0,0x24,0x30,0x0,0x83,0x26,0x0,0x0,0x64,0x30,0x0,0xc6,0x7c,0x0,0x0,0xc7,0xff,0xff,0xf8,0x40,0x0,0x7f,0xff,0xff,0xff,0xff,0xfc,0x0,0xfe,0x0,0x0,0x0,0x1,0xff,0xc0,0xc0,0x0,0x0,0x0,0x0,0x1,0xc0,0xc0,0x0,0x0,0x0,0x0,0x0,0xc0,0xc0,0x0,0x0,0x0,0x0,0x0,0xc0,0xc0,0x0,0x0,0x0,0x0,0x0,0xc0,0xc0,0x0,0x0,0x0,0x0,0x0,0xc0,0xc0,0x3f,0xff,0xff,0xe0,0x1,0x80,0xdc,0x0,0x0,0x0,0x3,0xf9,0x80,0xcf,0xff,0xff,0xff,0xfc,0x5,0x80,0xcb,0xff,0xff,0xff,0xff,0xf5,0x80,0xcb,0xf8,0xff,0xff,0x9f,0xf9,0x80,0xcb,0xf8,0x7f,0xff,0xf,0xf9,0x80,0xcb,0xf8,0x7f,0xff,0xf,0xe9,0x80,0xcb,0xf8,0x7f,0xff,0xf,0xe9,0x80,0x4b,0xf8,0x7f,0xff,0xf,0xe9,0x80,0x68,0x7c,0xff,0xff,0x1f,0xf1,0x80,0x63,0x87,0xff,0xff,0xff,0x93,0x0,0x60,0x38,0x7f,0xff,0xf0,0x33,0x0,0x60,0x3,0x8f,0xfe,0xf,0x83,0x0,0x60,0x0,0x38,0x3,0xe0,0x3,0x0,0x60,0x0,0x7,0xf8,0x0,0x3,0x0,0x60,0x0,0x0,0x0,0x0,0x3,0x0,0x60,0x0,0x0,0x0,0x0,0x3,0x0,0x60,0x0,0x0,0x0,0x0,0x3,0x0,0x60,0x0,0x0,0x0,0x0,0x6,0x0,0x60,0x0,0x0,0x0,0x0,0x6,0x0,0x60,0x0,0x0,0x0,0x0,0x6,0x0,0x7f,0xff,0xff,0xff,0xff,0xfe,0x0,0x7f,0xff,0xff,0xff,0xff,0xfe,0x0}
};
const String topics[5] = {"App/lightCtr","","","",""};
const MsgHandleCb msgHandles[5] = {obloqMqttEventT0,NULL,NULL,NULL,NULL};
// 创建对象
DFRobot_Iot myIot;


// 主程序开始
void setup() {
	mPython.begin();
	myIot.setMqttCallback(msgHandles);
	display.fillScreen(0);
	display.drawImage(39, 7, 50, 50, imageMatrix[0]);
	myIot.wifiConnect("abc", "123456..");
	while (!myIot.wifiStatus()) {yield();}
	display.fillScreen(0);
	display.setCursor(0, 0);
	display.print("WIFI已连接");
	myIot.init("178.16.206.80","SyW1ZPJi57","","dfrobot", topics, 1883);
	myIot.connect();
	while (!myIot.connected()) {yield();}
	display.fillScreen(0);
	display.setCursor(0, 0);
	display.print("连接成功");
}
void loop() {

}

// 事件回调函数
void obloqMqttEventT0(String& message) {
	mind_n_DouHao1 = (dfstring.indexOf(",",message));
	mind_n_DouHao2 = (dfstring.lastIndexOf(",",message));
	display.setCursor(0, 44);
	display.print((dfstring.substring(message,0,0,0,mind_n_DouHao1)));
	mind_n_R = (String("123").toInt());
	display.setCursor(40, 44);
	display.print((dfstring.substring(message,0,(mind_n_DouHao1 + 1),0,mind_n_DouHao2)));
	mind_n_G = (String("123").toInt());
	display.setCursor(80, 44);
	display.print((dfstring.substring(message,0,(mind_n_DouHao2 + 1),0,(String(message).length()))));
	mind_n_B = (String("123").toInt());
	rgb.write(-1, rgbToColor(round(mind_n_R), round(mind_n_G), round(mind_n_B)));
}

// 静态函数
uint32_t rgbToColor(uint8_t r, uint8_t g, uint8_t b)
{
  return (uint32_t)((((uint32_t)r<<16) | ((uint32_t)g<<8)) | (uint32_t)b);
}

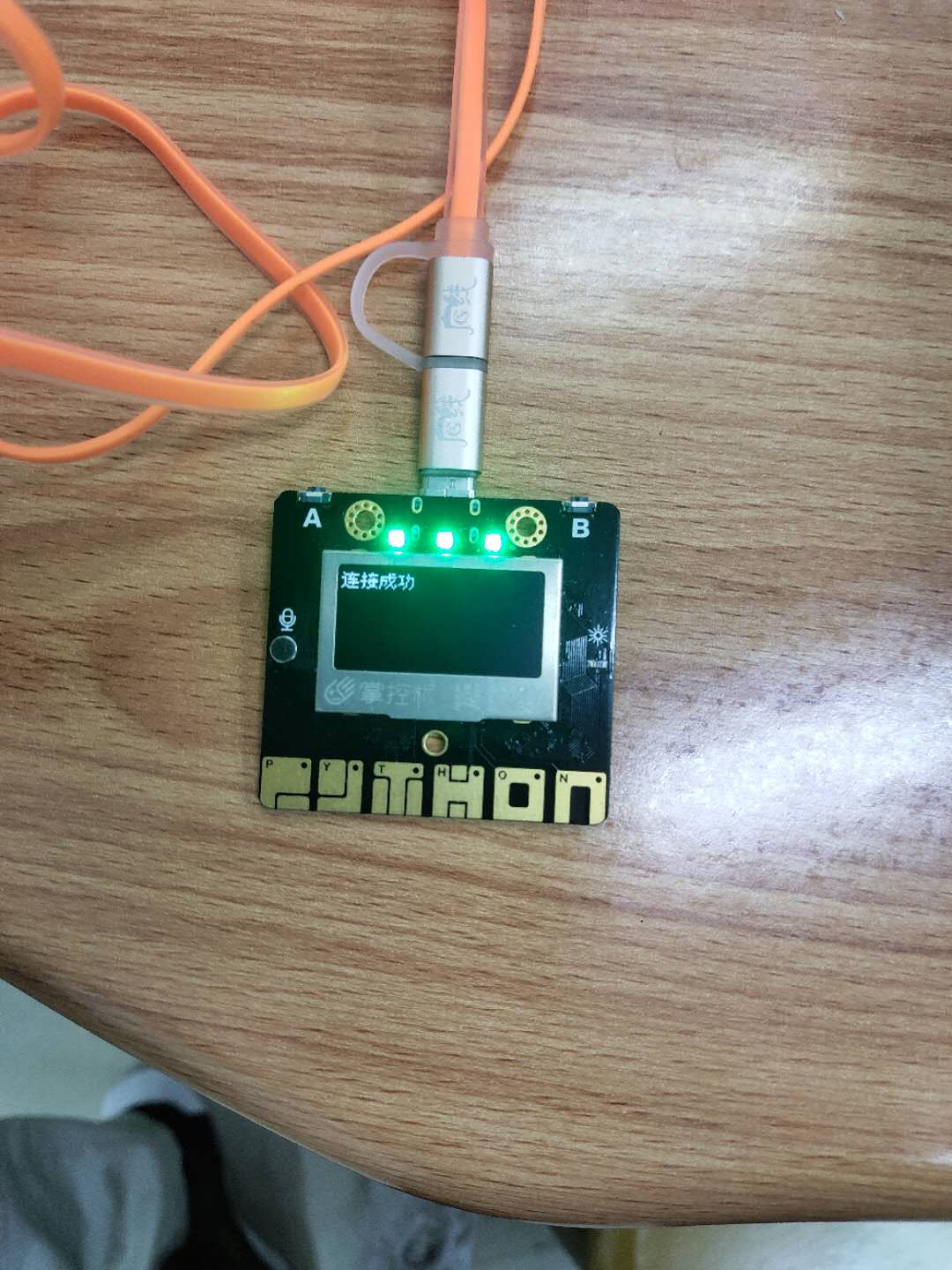

3、实验效果：
在这里插入图片描述

在这里插入图片描述

五、实验结果分析与结论

在实验一中，合作双方的个人电脑需要连接在同一个WiFi热点中。MQTT初始化参数中的服务器地址是个人电脑的局域网IP地址，双方需要填写一致。Topic_0和Topic_1中的信息要与在Web服务器中创建的设备信息一致。
实验二过程不难，但是要认真细致对待，此次实验让我对“万物互联”这个概念有了更深刻的了解，多动手练习才能体会到物联网实验的乐趣，总之让我受益匪浅。
