概述
文章目录
- 1. 简介
- 1.1 Spring Cloud 官方资源
- 1.2 Spring Cloud 特性
- 1.3 Spring Cloud 与 Dubbo 区别
- 1.4 Spring Cloud 版本
- 1.5 演示示例环境说明
- 2. Spring Cloud 项目创建
- 2.1 程序示例
- 2.2 创建 Spring Initializr Project
- 2.3 服务注册中心配置
1. 简介
Spring Cloud 是一套分布式服务管理框架,本身不会提供具体功能性的操作,专注于服务之间的通讯、熔断、监控等。因此就需要很多的组件来支持一套功能。微服务是可以独立部署、水平扩展、独立访问(或者有独立的数据库)的服务单元,Spring Cloud 可以很好的管理多个独立的服务,相近模式的架构是Dubbo。
1.1 Spring Cloud 官方资源
- 官方文档:https://spring.io/projects/spring-cloud/
- 中文文档:https://www.springcloud.cc/spring-cloud-dalston.html
- Github:https://github.com/spring-cloud
1.2 Spring Cloud 特性
Distributed/versioned configuration(分布式/版本化配置)
Service registration and discovery(服务注册和发现)
Routing(路由)
Service-to-service calls(服务到服务的通话)
Load balancing(负载均衡)
Circuit Breakers(断路器)
Global locks(全局锁)
Leadership election and cluster state(领导竞选和集群状态)
Distributed messaging(分布式消息)
1.3 Spring Cloud 与 Dubbo 区别
Dubbo | Spring Cloud | |
---|---|---|
服务注册中心 | Zookeeper | Spring Cloud Netflix Eureka |
服务调用方式 | RPC | RESTAPI |
服务监控 | Dubbo-monitor | Spring Boot Admin |
断路器 | 不完善 | Spring Cloud Netflix Hystrix |
服务网关 | 无 | Spring Cloud Netflix Zuul |
分布式配置 | 无 | Spring Cloud Config |
服务跟踪 | 无 | Spring Cloud Sleuth |
消息总线 | 无 | Spring Cloud Bus |
数据流 | 无 | Spring Cloud Stream |
批量任务 | 无 | Spring Cloud Task |
简单来说Spring Cloud 体系架构更广,包含了Dubbo 的功能,相对的可以说在某些地方Dubbo 做的更深入,还是推荐使用Spring Cloud。
1.4 Spring Cloud 版本
Greenwich 只支持 Spring Boot 2.1.x 分支。错误使用版本会存在兼容性问题,版本对应关系,可以在官方文档主页面找到。
Boot Version | 2.2.x | 2.1.x | 2.0.x | 1.5.x |
---|---|---|---|---|
Release Train | Hoxton | Greenwich | Finchley | Edgware/Dalston |
1.5 演示示例环境说明
系统 | 工具 | Spring Cloud 版本 | Spring Boot 版本 |
---|---|---|---|
Win10 | IDEA | Greenwich SR3 | 2.1.9 |
2. Spring Cloud 项目创建
2.1 程序示例
Spring Cloud 和Spring Boot 同样方便,使用Spring Cloud 的注解就可以拥有很多功能。如下服务发现程序示例,可以使用注解 @EnableDiscoveryClient 声明程序启动类,使得项目支持服务发现。使用注解 @EnableEurekaServer 使得项目支持服务注册。
@SpringBootApplication
@EnableDiscoveryClient
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}
2.2 创建 Spring Initializr Project

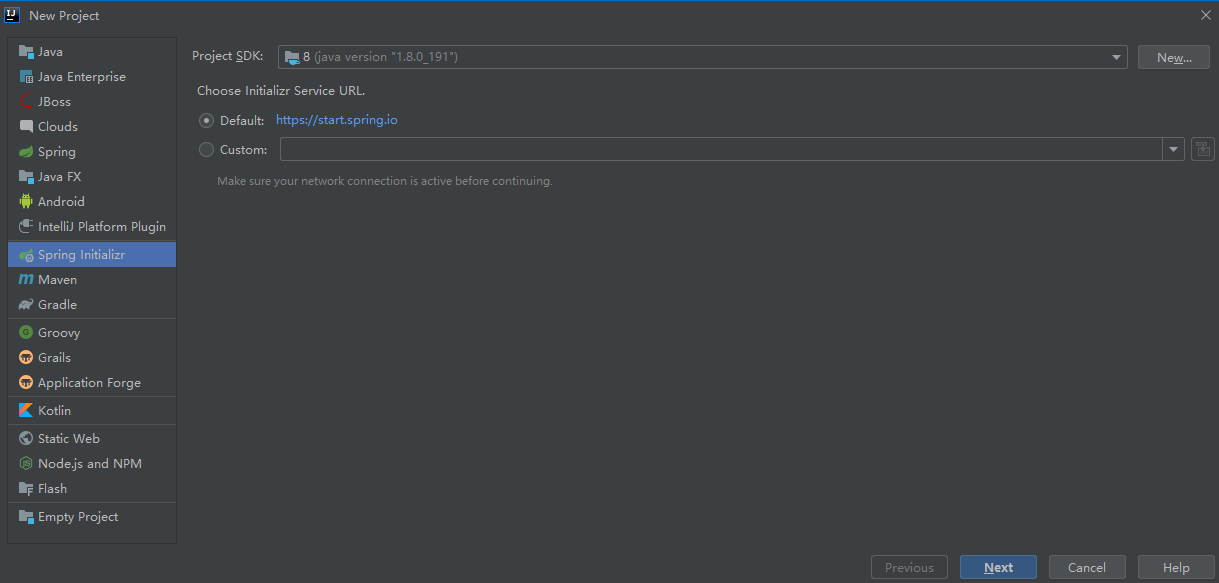

2.2.1 新建项目
2.2.2 可以在创建项目时选中Eureka Server 依赖,当然你也可以不选,创建项目后手动配置。

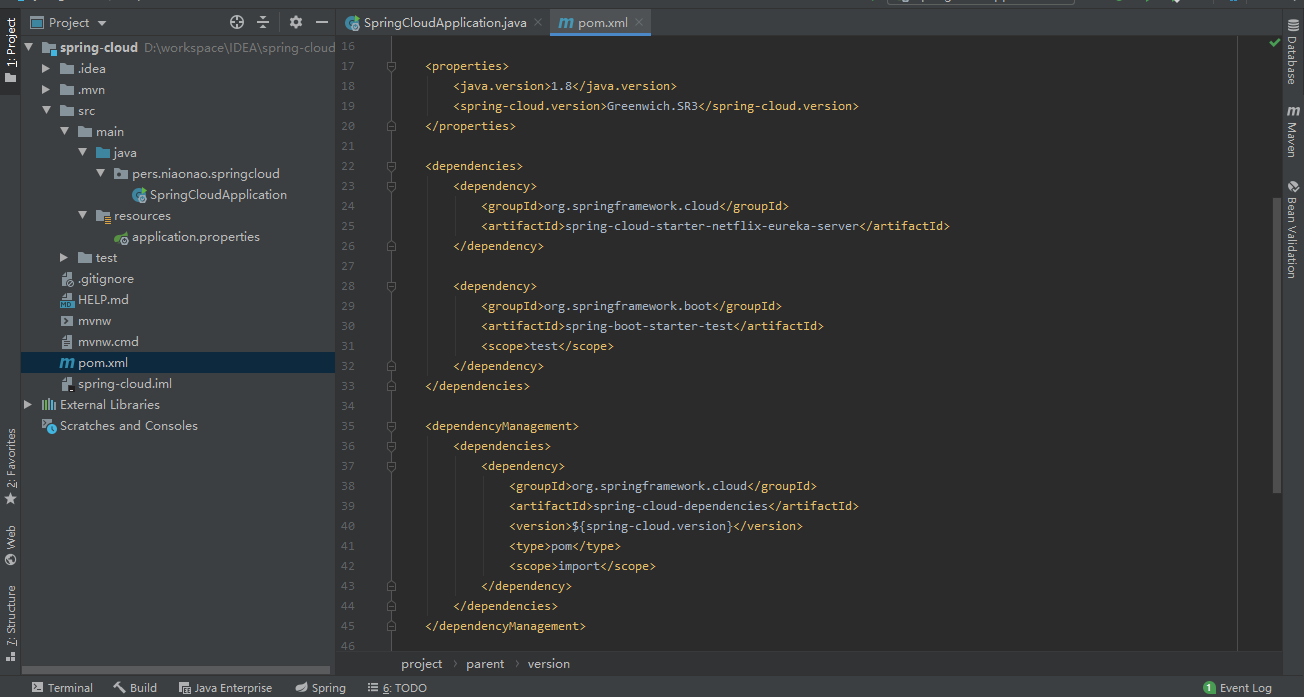

2.2.3 创建完成的项目如下
2.3 服务注册中心配置
2.3.1 依赖管理配置pom.xml 没有改动
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.9.RELEASE</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>pers.niaonao</groupId>
<artifactId>spring-cloud</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>spring-cloud</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
<spring-cloud.version>Greenwich.SR3</spring-cloud.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>${spring-cloud.version}</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
2.3.2 应用程序入口启动类添加注解 @EnableEurekaServer
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;
@SpringBootApplication
@EnableEurekaServer
public class SpringCloudApplication {
public static void main(String[] args) {
SpringApplication.run(SpringCloudApplication.class, args);
}
}
2.3.3 配置文件application.yml; 建议使用yaml 格式文档,此处替代application.properties 文件
# server.port 服务发现端口,默认为8761
server:
port: 8761
# eureka.instance.hostname 主机IP,访问实例时需要通过主机IP+端口号访问,主机名+端口号访问不到
# fetch-registry 检索服务选项,当设置为True(默认值)时,会进行服务检索,注册中心不负责检索服务。
# register-with-eureka 服务注册中心也会将自己作为客户端来尝试注册自己,为true(默认)时自动生效
# eureka.client.serviceUrl.defaultZone 是一个默认的注册中心地址。配置该选项后,可以在服务中心进行注册。
# 为什么不建议使用default-zone 替代defaultZone
# service-url 的Value 支持Map 键值对;参考博客 https://blog.csdn.net/u011531425/article/details/81713441
# zone 属性会被Eureka Client 解析当成客户端默认当成zone 处理;
# default-zone 被解析时会被认为客户端没有有效的配置service-url;
# defaultZone 会正常处理为默认的service-url 为http://192.168.15.1:8761/eureka/
eureka:
instance:
hostname: 192.168.15.1
client:
register-with-eureka: false
fetch-registry: false
service-url:
defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/

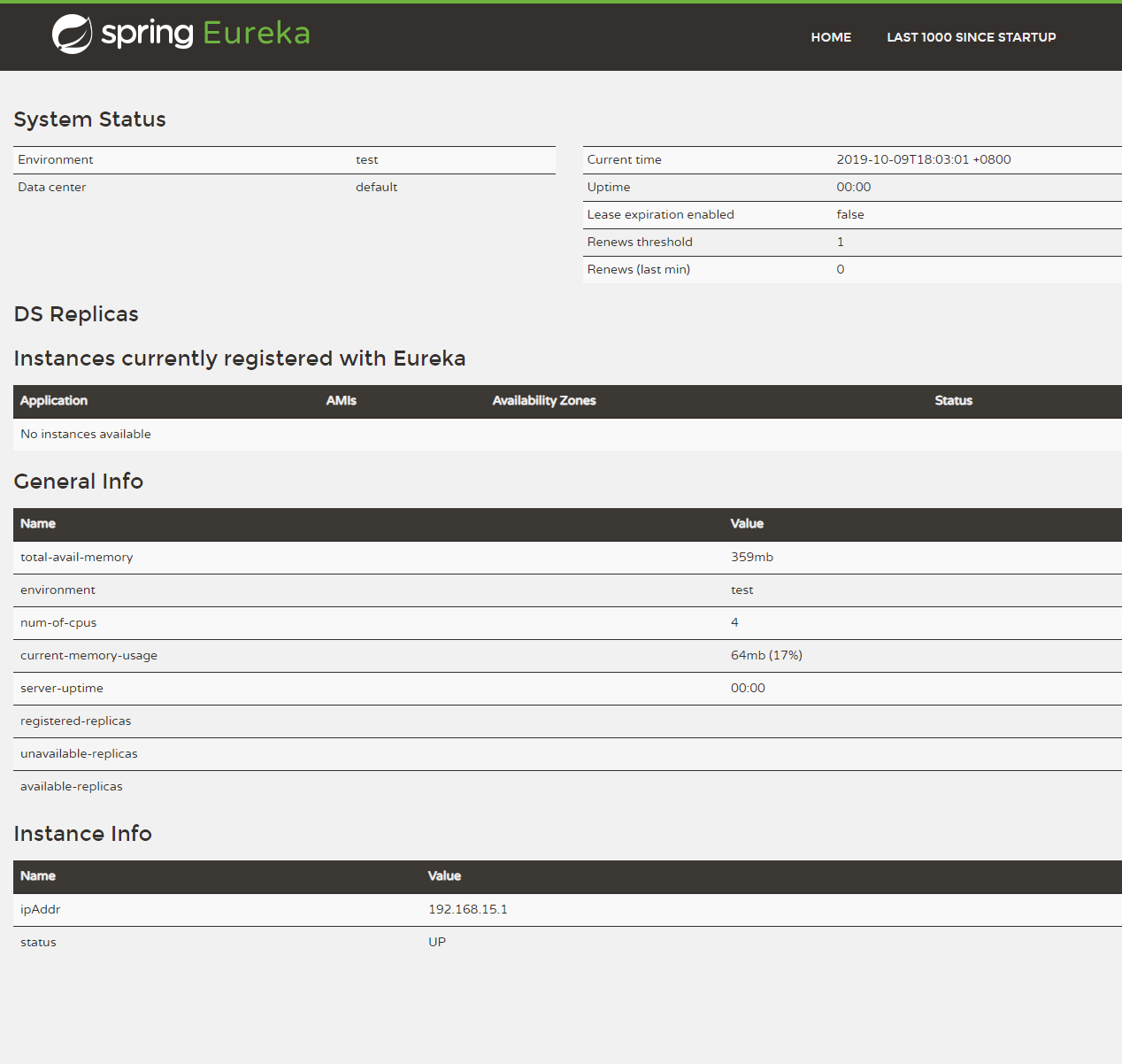

2.3.4 配置完成后通过程序入口类SpringCloudApplication 启动项目,访问http://192.168.15.1:8761/ 或 http://localhost:8761/ 可以看到Eureka 注册中心,此时Spring Cloud 服务注册中心项目创建成功。只是目前还没有注册实例,DS Replicas 面板上显示No instances available。
THE END
