浅入浅出TensorFlow 6 - 实现经典网络

一. 经典网络介绍

       首先介绍目前比较主流的几种经典网络，AlexNet［2012］、VGG16［2014］、GoogLeNet［2014］、ResNet［2015］。

       这几种网络都是在 ILSVRC 比赛中脱颖而出的，越往后网络越复杂， ResNet 为152层结构，测试错误率为 3.57%。

       为了能给大家一个更宏观的视图，作者将目前CNN在多个领域的应用整理了一张图来说明：

       下面我们重点关注和讲解的仍是之前提到的四种主流模型，主要应用聚焦在分类，当然其他方向的应用都是以此为基础，希望有时间可以在后续的文章中展开。

二. AlexNet

       在 LeNet 基础上，AlexNet 加入了ReLU层和DropOut，有效解决了大规模数据训练的震荡问题，因此也开启了一个里程碑，AlexNet 可以看作是深度学习的一个起点，网络分为5个卷积层+3个全连接层，来看网络结构图（这张结构图比较经典，双GPU实现）：

       AlexNet 贡献是非常大的，描述为以下几点：

● 采用 ReLU 替代了sigmoid，提高了网络的非线性；

● 引入Dropout 训练方式，增强了网络的健壮性；

● 通过 LRN（Local Responce Normalization）提高了网络适应性；

       目前LRN已经不怎么使用，基本被BN取代

● 通过Data Augmentation 证明了大量数据对于模型的作用。

       来看 AlexNet 在 TensorFlow 下的时间评测代码：

#coding=utf-8
from datetime import datetime
import math
import time
import tensorflow as tf

batch_size = 32
num_batches = 100

# define print shape
def print_activations(t):
    print(t.op.name,' ',t.get_shape().as_list())

# conv1
def inference(images):
    parameters = []

    with tf.name_scope('conv1') as scope:
        kernel = tf.Variable(tf.truncated_normal([11,11,3,64],dtype=tf.float32,stddev=1e-1), name='weights')
        wx = tf.nn.conv2d(images,kernel,[1,4,4,1],padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[64],dtype=tf.float32),trainable=True,name='biases')
        wx_add_b = tf.nn.bias_add(wx,biases)
        conv1 = tf.nn.relu(wx_add_b,name=scope)
        parameters += [kernel,biases]
    print_activations(conv1)

    lrn1 = tf.nn.lrn(conv1,4,bias=1.0,alpha=0.001/9,beta=0.75,name='lrn1')
    pool1 = tf.nn.max_pool(lrn1,ksize=[1,3,3,1],strides=[1,2,2,1],padding='VALID',name='pool1')
    print_activations(pool1)

# conv2
    with tf.name_scope('conv2') as scope:
        kernel = tf.Variable(tf.truncated_normal([5,5,64,192],dtype=tf.float32,stddev=1e-1), name='weights')
        wx = tf.nn.conv2d(pool1,kernel,[1,1,1,1],padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[192],dtype=tf.float32),trainable=True,name='biases')
        wx_add_b = tf.nn.bias_add(wx,biases)
        conv2 = tf.nn.relu(wx_add_b,name=scope)
        parameters += [kernel,biases]
    print_activations(conv2)

    lrn2 = tf.nn.lrn(conv2,4,bias=1.0,alpha=0.001/9,beta=0.75,name='lrn2')
    pool2 = tf.nn.max_pool(lrn2,ksize=[1,3,3,1],strides=[1,2,2,1],padding='VALID',name='pool2')
    print_activations(pool2)

# conv3
    with tf.name_scope('conv3') as scope:
        kernel = tf.Variable(tf.truncated_normal([3,3,192,384],dtype=tf.float32,stddev=1e-1), name='weights')
        wx = tf.nn.conv2d(pool2,kernel,[1,1,1,1],padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[384],dtype=tf.float32),trainable=True,name='biases')
        wx_add_b = tf.nn.bias_add(wx,biases)
        conv3 = tf.nn.relu(wx_add_b,name=scope)
        parameters += [kernel,biases]
    print_activations(conv3)

# conv4
    with tf.name_scope('conv4') as scope:
        kernel = tf.Variable(tf.truncated_normal([3,3,384,256],dtype=tf.float32,stddev=1e-1), name='weights')
        wx = tf.nn.conv2d(conv3,kernel,[1,1,1,1],padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[256],dtype=tf.float32),trainable=True,name='biases')
        wx_add_b = tf.nn.bias_add(wx,biases)
        conv4 = tf.nn.relu(wx_add_b,name=scope)
        parameters += [kernel,biases]
    print_activations(conv4)

# conv5
    with tf.name_scope('conv5') as scope:
        kernel = tf.Variable(tf.truncated_normal([3,3,256,256],dtype=tf.float32,stddev=1e-1), name='weights')
        wx = tf.nn.conv2d(conv4,kernel,[1,1,1,1],padding='SAME')
        biases = tf.Variable(tf.constant(0.0, shape=[256],dtype=tf.float32),trainable=True,name='biases')
        wx_add_b = tf.nn.bias_add(wx,biases)
        conv5 = tf.nn.relu(wx_add_b,name=scope)
        parameters += [kernel,biases]
    print_activations(conv5)

    pool5 = tf.nn.max_pool(conv5,ksize=[1,3,3,1],strides=[1,2,2,1],padding='VALID',name='pool5')
    print_activations(pool5)
    return pool5,parameters

# define time run
def time_tensorflow_run(session,target,info_string):
    num_steps_burn_in = 10
    total_duration = 0.0
    total_duration_squared = 0.0

    for i in range(num_batches + num_steps_burn_in):
       start_time = time.time()
       _ = session.run(target)
       duration = time.time() - start_time
       if i >= num_steps_burn_in:
           if not i % 10:
               print('%s: step %d, duration = %.3f' %(datetime.now(),i-num_steps_burn_in,duration))
               total_duration += duration
               total_duration_squared += duration * duration

    mn = total_duration / num_batches
    vr = total_duration_squared / num_batches - mn *mn
    sd = math.sqrt(vr)
    print('%s: %s across %d steps, %.3f +/- %.3f sec / batch' %(datetime.now(),info_string,num_batches,mn,sd))

# main fun
def run_benchmark():
    with tf.Graph().as_default():
        image_size = 224
        images = tf.Variable(tf.random_normal([batch_size,image_size,image_size,3],dtype=tf.float32,stddev=1e-1))
        pool5, parameters = inference(images)

        init = tf.global_variables_initializer()
        sess = tf.Session()
        sess.run(init)

        # time
        time_tensorflow_run(sess,pool5,"Forward")
        objective =tf.nn.l2_loss(pool5)
        grad = tf.gradients(objective,parameters)
        time_tensorflow_run(sess,grad,"Forward-backward")

# run
run_benchmark()

三. VGG16

      人们相信，网络层数越多，对应的参数越复杂，所能描述的网络越准确，基于这个假设，将 AlexNet 网络进行扩充，得到了 VGG16/19，这是在当时的条件下能控制住网络震荡最好的网络（预知更多的层，请看之后的分解 ^v^）。

      VGG16 的叫法来自于 网络包含 16 层卷积，包括 13层的卷积+3层的全连接。

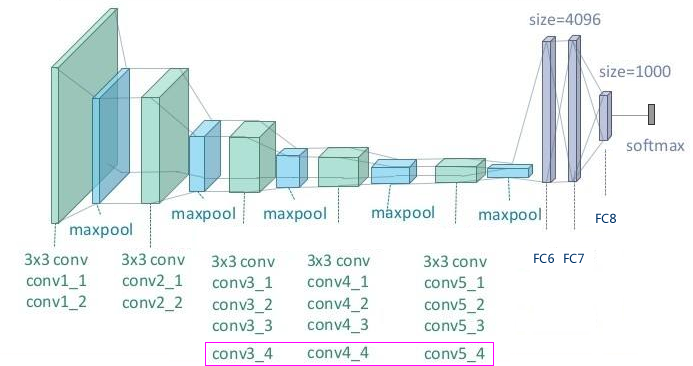

      VGG的网络结构图 【点击查看详图】：

       VGG19 是在 conv3、conv4、conv5 三个Group各添加一层卷积（上图红色框）。

#coding=utf-8
from datetime import datetime
import math
import time
import tensorflow as tf

batch_size = 32
num_batches = 100

# define conv
def conv(input,name,kh,kw,n_out,dh,dw,p):
    n_in = input.get_shape()[-1].value

    with tf.name_scope(name) as scope:
        kernel = tf.get_variable(scope+"w",shape=[kh,kw,n_in,n_out],dtype=tf.float32,initializer=tf.contrib.layers.xavier_initializer_conv2d())
        conv = tf.nn.conv2d(input,kernel,[1,dh,dw,1],padding='SAME')
        bias_init_val = tf.constant(0.0,shape=[n_out],dtype=tf.float32)
        biases = tf.Variable(bias_init_val, trainable=True,name='biases')
        wx_add_b = tf.nn.bias_add(conv,biases)
        relu = tf.nn.relu(wx_add_b,name=scope)
        p += [kernel,biases]
        return relu

# define fc
def fc(input,name,n_out,p):
    n_in = input.get_shape()[-1].value

    with tf.name_scope(name) as scope:
        kernel = tf.get_variable(scope+"w",shape=[n_in,n_out],dtype=tf.float32,initializer=tf.contrib.layers.xavier_initializer())
        biases = tf.Variable(tf.constant(0.1,shape=[n_out],dtype=tf.float32), name="biases")
        relu = tf.nn.relu_layer(input,kernel,biases, name = scope)
        p += [kernel,biases]
        return relu

# define pool
def max_pool(input,name,kh,kw,dh,dw):
    return tf.nn.max_pool(input,ksize=[1,kh,kw,1],strides=[1,dh,dw,1],padding='SAME',name=name)

# define inference
def inference(input,keep_prob):
    p = []
    conv1_1 = conv(input,name="conv1_1",kh=3,kw=3,n_out=64,dh=1,dw=1,p=p)
    conv1_2 = conv(conv1_1,name="conv1_2",kh=3,kw=3,n_out=64,dh=1,dw=1,p=p)
    pool1 = max_pool(conv1_2, name="pool1",kh=2,kw=2,dw=2,dh=2)

    conv2_1 = conv(pool1,name="conv2_1",kh=3,kw=3,n_out=128,dh=1,dw=1,p=p)
    conv2_2 = conv(conv2_1,name="conv2_2",kh=3,kw=3,n_out=128,dh=1,dw=1,p=p)
    pool2 = max_pool(conv2_2, name="pool2",kh=2,kw=2,dw=2,dh=2)

    conv3_1 = conv(pool2,name="conv3_1",kh=3,kw=3,n_out=256,dh=1,dw=1,p=p)
    conv3_2 = conv(conv3_1,name="conv3_2",kh=3,kw=3,n_out=256,dh=1,dw=1,p=p)
    conv3_3 = conv(conv3_2,name="conv3_3",kh=3,kw=3,n_out=256,dh=1,dw=1,p=p)
    pool3 = max_pool(conv3_3, name="pool3",kh=2,kw=2,dw=2,dh=2)

    conv4_1 = conv(pool3,name="conv4_1",kh=3,kw=3,n_out=512,dh=1,dw=1,p=p)
    conv4_2 = conv(conv4_1,name="conv4_2",kh=3,kw=3,n_out=512,dh=1,dw=1,p=p)
    conv4_3 = conv(conv4_2,name="conv4_3",kh=3,kw=3,n_out=512,dh=1,dw=1,p=p)
    pool4 = max_pool(conv4_3, name="pool4",kh=2,kw=2,dw=2,dh=2)


    conv5_1 = conv(pool4,name="conv5_1",kh=3,kw=3,n_out=512,dh=1,dw=1,p=p)
    conv5_2 = conv(conv5_1,name="conv5_2",kh=3,kw=3,n_out=512,dh=1,dw=1,p=p)
    conv5_3 = conv(conv5_2,name="conv5_3",kh=3,kw=3,n_out=512,dh=1,dw=1,p=p)
    pool5 = max_pool(conv5_3, name="pool5",kh=2,kw=2,dw=2,dh=2)

    shp = pool5.get_shape()
    flattened_shape = shp[1].value * shp[2].value * shp[3].value
    resh1 = tf.reshape(pool5,[-1,flattened_shape], name = "resh1")

    fc6 = fc(resh1,name="fc6",n_out=4096,p=p)
    fc6_drop = tf.nn.dropout(fc6,keep_prob,name="fc6_drop")

    fc7 = fc(fc6_drop,name="fc7",n_out=4096,p=p)
    fc7_drop = tf.nn.dropout(fc7,keep_prob,name="fc7_drop")

    fc8 = fc(fc7_drop,name="fc8",n_out=1000,p=p)
    softmax = tf.nn.softmax(fc8)

    predit = tf.argmax(softmax,1)
    return predit,softmax,fc8,p;

# define time run
def time_tensorflow_run(session,target,feed,info_string):
    num_steps_burn_in = 10
    total_duration = 0.0
    total_duration_squared = 0.0

    for i in range(num_batches + num_steps_burn_in):
       start_time = time.time()
       _ = session.run(target, feed_dict=feed)
       duration = time.time() - start_time
       if i >= num_steps_burn_in:
           if not i % 10:
               print('%s: step %d, duration = %.3f' %(datetime.now(),i-num_steps_burn_in,duration))
               total_duration += duration
               total_duration_squared += duration * duration

    mn = total_duration / num_batches
    vr = total_duration_squared / num_batches - mn *mn
    sd = math.sqrt(vr)
    print('%s: %s across %d steps, %.3f +/- %.3f sec / batch' %(datetime.now(),info_string,num_batches,mn,sd))

# main func
def run_benchmark():
    with tf.Graph().as_default():
        image_size = 224
        images = tf.Variable(tf.random_normal([batch_size,image_size,image_size,3],dtype=tf.float32,stddev=1e-1))
        keep_prob = tf.placeholder(tf.float32)
        predictions,softmax,fc8,p=inference(images,keep_prob)

        init = tf.global_variables_initializer()
        sess = tf.Session()
        sess.run(init)

        # time
        time_tensorflow_run(sess,predictions, {keep_prob:1.0}, "Forward")
        objective =tf.nn.l2_loss(fc8)
        grad = tf.gradients(objective,p)
        time_tensorflow_run(sess,grad, {keep_prob:0.5}, "Forward-backward")

# run
run_benchmark()

四. GoogLeNet

       VGG16 以来，深度网络面临的问题比较突出：

1. 深度网络规模越来越大，一味的加深层数使得网络震荡，结果难以收敛，对精度提升并没有作用；

2. 网络深度增加导致参数也越来越多，容易产生过拟合的问题；

3. 网络层数的提高带来计算量增加，严重影响网络性能；

       针对上述问题，Google 提出了一个22层的深度网络 GoogLeNet，将 Top5 错误率降低到 6.67%，获得了2014年 ILSVRC 的冠军。

           （PS：为了纪念 LeNet，Google 搞了个大写）。

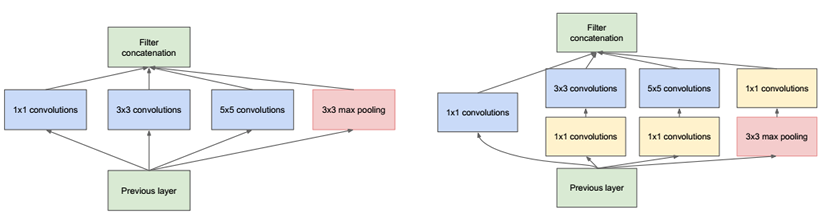

       这是一个 Inception module的概念，采用不同尺度的卷积核进行特征提取（对应下面左图的1*1，3*3，5*5），增加单层网络的特征提取能力；另外，通过 1*1 的卷积核（对应右图）进行降维，如下图所示：

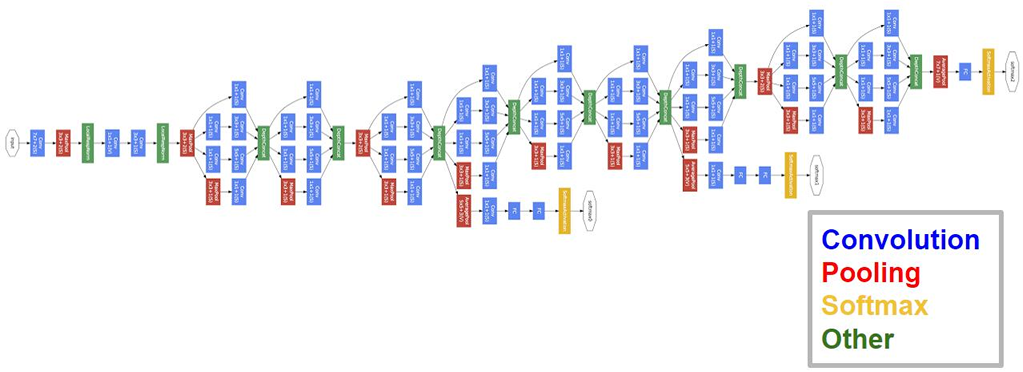

       完整的 GoogLeNet 是多个 Inception Module 的组合，如下图所示：

       TensorFlow 实现 Google Inception V3 可以参考 Tensorflow 的开源实现，代码量比较大，这里就不再贴出来了。

       Github地址：https://github.com/tensorflow/models/blob/master/slim/nets/inception_v3.py
