概述
1.引入word导出所需依赖包

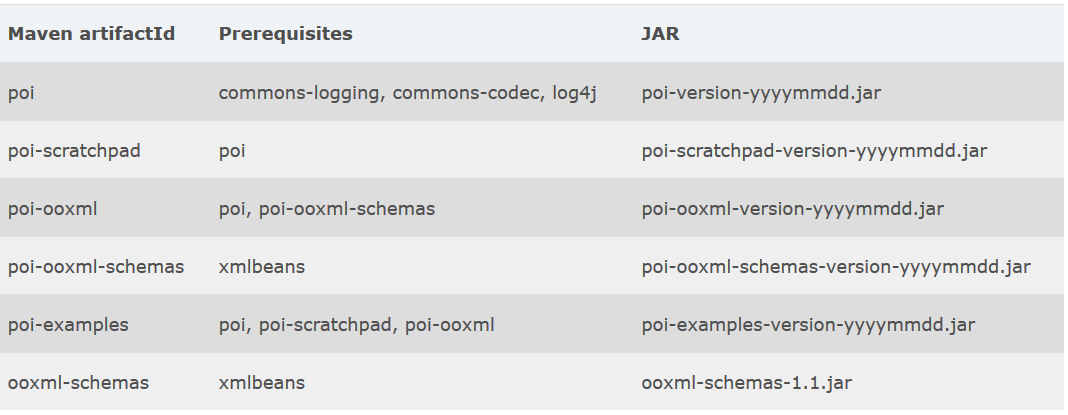

工作常用的excel，word导出，需要引入下面的6个主要包，和主要包依赖的其他包 ，可以看下面的表格进行依赖下载引入

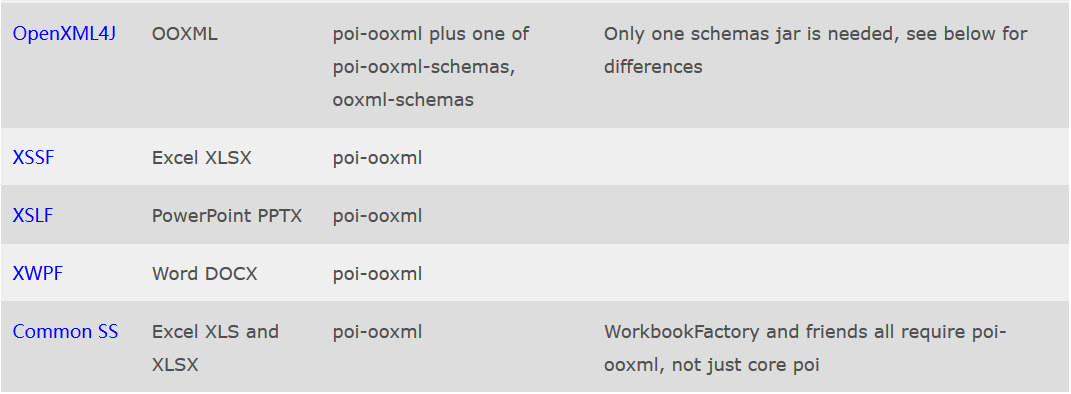

这下面的两张图是主要包对应涉及到功能，可以按需要进行引入，有些真的用不到的主要包可以不引入
2.引入工具类
1.util类
package com.management.util;
import org.apache.poi.POIXMLDocument;
import org.apache.poi.xwpf.usermodel.*;
import org.openxmlformats.schemas.wordprocessingml.x2006.main.*;
import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.util.*;
/**
* Created by wfg 2020-08-12
*/
public class ExportWordUtil {
/**
* 根据模板生成word文档
* @param inputUrl 模板路径
* @param textMap 需要替换的文本内容
* @param mapList 需要动态生成的内容
* @return
*/
public static CustomXWPFDocument changWord(String inputUrl, Map<String, Object> textMap, List<Object> mapList,int[] placeList) {
CustomXWPFDocument document = null;
try {
//获取docx解析对象
document = new CustomXWPFDocument(POIXMLDocument.openPackage(inputUrl));
//解析替换文本段落对象
ExportWordUtil.changeText(document, textMap);
//解析替换表格对象
ExportWordUtil.changeTable(document, textMap, mapList,placeList);
} catch (IOException e) {
e.printStackTrace();
}
return document;
}
/**
* 替换段落文本
* @param document docx解析对象
* @param textMap 需要替换的信息集合
*/
public static void changeText(CustomXWPFDocument document, Map<String, Object> textMap){
//获取段落集合
List<XWPFParagraph> paragraphs = document.getParagraphs();
for (XWPFParagraph paragraph : paragraphs) {
//判断此段落时候需要进行替换
String text = paragraph.getText();
if(checkText(text)){
List<XWPFRun> runs = paragraph.getRuns();
for (XWPFRun run : runs) {
//替换模板原来位置
Object ob = changeValue(run.toString(), textMap);
System.out.println("段落："+run.toString());
if (ob instanceof String){
run.setText((String)ob,0);
}
}
}
}
}
/**
* 替换表格对象方法
* @param document docx解析对象
* @param textMap 需要替换的信息集合
* @param mapList 需要动态生成的内容
*/
public static void changeTable(CustomXWPFDocument document, Map<String, Object> textMap, List<Object> mapList,int[] placeList){
//获取表格对象集合
List<XWPFTable> tables = document.getTables();
//循环所有需要进行替换的文本，进行替换
for (int i = 0; i < tables.size(); i++) {
System.out.println("1111");
XWPFTable table = tables.get(i);
if(checkText(table.getText())){
System.out.println("222");
List<XWPFTableRow> rows = table.getRows();
System.out.println("简单表格替换："+rows);
//遍历表格,并替换模板
eachTable(document,rows, textMap);
}
}
int index=0;
//操作word中的表格
for (int i = 0; i < tables.size(); i++) {
//只处理行数大于等于2的表格，且不循环表头
XWPFTable table = tables.get(i);
if(placeList[index]==i){
List<String[]> list = (List<String[]>) mapList.get(index);
//第二个表格使用daList，插入数据
if (null != list && 0 < list.size()){
insertTable(table, null,list,2);
List<Integer[]> indexList = startEnd(list);
for (int c=0;c<indexList.size();c++){
//合并行
mergeCellVertically(table,0,indexList.get(c)[0]+1,indexList.get(c)[1]+1);
}
}
index++;
}
}
}
/**
* 遍历表格
* @param rows 表格行对象
* @param textMap 需要替换的信息集合
*/
public static void eachTable(CustomXWPFDocument document, List<XWPFTableRow> rows , Map<String, Object> textMap){
for (XWPFTableRow row : rows) {
List<XWPFTableCell> cells = row.getTableCells();
for (XWPFTableCell cell : cells) {
//判断单元格是否需要替换
if(checkText(cell.getText())){
List<XWPFParagraph> paragraphs = cell.getParagraphs();
for (XWPFParagraph paragraph : paragraphs) {
List<XWPFRun> runs = paragraph.getRuns();
for (XWPFRun run : runs) {
Object ob = changeValue(run.toString(), textMap);
if (ob instanceof String){
run.setText((String)ob,0);
}else if (ob instanceof Map){
run.setText("",0);
Map pic = (Map)ob;
int width = Integer.parseInt(pic.get("width").toString());
int height = Integer.parseInt(pic.get("height").toString());
int picType = getPictureType(pic.get("type").toString());
byte[] byteArray = (byte[]) pic.get("content");
ByteArrayInputStream byteInputStream = new ByteArrayInputStream(byteArray);
try {
//String ind = document.addPictureData(byteInputStream,picType);
//document.createPicture(ind, width , height,paragraph);
String ind = document.addPictureData(byteInputStream, picType);
int id = document.getNextPicNameNumber(picType);
document.createPicture(ind, id, width, height, paragraph);
} catch (Exception e) {
e.printStackTrace();
}
}
}
}
}
}
}
}
/**
* 为表格插入数据，行数不够添加新行
* @param table 需要插入数据的表格
* @param tableList 第四个表格的插入数据
* @param daList 第二个表格的插入数据
* @param type 表格类型：1-第一个表格 2-第二个表格 3-第三个表格 4-第四个表格
*/
public static void insertTable(XWPFTable table, List<String> tableList,List<String[]> daList,Integer type){
if (2 == type){
//创建行和创建需要的列
for(int i = 1; i < daList.size(); i++){
//添加一个新行
XWPFTableRow row = table.insertNewTableRow(1);
/*System.out.println("333");
System.out.println(table.getRow(1).getHeight());*/
for(int k=0; k<daList.get(0).length;k++){
row.createCell();//根据String数组第一条数据的长度动态创建列
}
row.setHeight(400);//设置行高度
}
//创建行,根据需要插入的数据添加新行，不处理表头
for(int i = 0; i < daList.size(); i++){
table.getRow(i+1).setHeight(400);//设置行高度
List<XWPFTableCell> cells = table.getRow(i+1).getTableCells();
for(int j = 0; j < cells.size(); j++){
XWPFTableCell cell02 = cells.get(j);
cell02.setText(daList.get(i)[j]);
/** 设置水平居中 */
CTTc cttc = cell02.getCTTc();
CTTcPr ctPr = cttc.addNewTcPr();
ctPr.addNewVAlign().setVal(STVerticalJc.CENTER);
cttc.getPList().get(0).addNewPPr().addNewJc().setVal(STJc.CENTER);
}
}
}else if (4 == type){
//插入表头下面第一行的数据
for(int i = 0; i < tableList.size(); i++){
XWPFTableRow row = table.createRow();
row.setHeight(400);//设置行高度
List<XWPFTableCell> cells = row.getTableCells();
cells.get(0).setText(tableList.get(i));
}
}
}
/**
* 判断文本中时候包含$
* @param text 文本
* @return 包含返回true,不包含返回false
*/
public static boolean checkText(String text){
boolean check = false;
if(text.indexOf("$")!= -1){
check = true;
}
return check;
}
/**
* 匹配传入信息集合与模板
* @param value 模板需要替换的区域
* @param textMap 传入信息集合
* @return 模板需要替换区域信息集合对应值
*/
public static Object changeValue(String value, Map<String, Object> textMap){
Set<Map.Entry<String, Object>> textSets = textMap.entrySet();
Object valu = "";
for (Map.Entry<String, Object> textSet : textSets) {
//匹配模板与替换值 格式${key}
String key = textSet.getKey();
if(value.indexOf(key)!= -1){
valu = textSet.getValue();
}
}
return valu;
}
/**
* 将输入流中的数据写入字节数组
* @param in
* @return
*/
public static byte[] inputStream2ByteArray(InputStream in, boolean isClose){
byte[] byteArray = null;
try {
int total = in.available();
byteArray = new byte[total];
in.read(byteArray);
} catch (IOException e) {
e.printStackTrace();
}finally{
if(isClose){
try {
in.close();
} catch (Exception e2) {
System.out.println("关闭流失败");
}
}
}
return byteArray;
}
/**
* 根据图片类型，取得对应的图片类型代码
* @param picType
* @return int
*/
private static int getPictureType(String picType){
int res = CustomXWPFDocument.PICTURE_TYPE_PICT;
if(picType != null){
if(picType.equalsIgnoreCase("png")){
res = CustomXWPFDocument.PICTURE_TYPE_PNG;
}else if(picType.equalsIgnoreCase("dib")){
res = CustomXWPFDocument.PICTURE_TYPE_DIB;
}else if(picType.equalsIgnoreCase("emf")){
res = CustomXWPFDocument.PICTURE_TYPE_EMF;
}else if(picType.equalsIgnoreCase("jpg") || picType.equalsIgnoreCase("jpeg")){
res = CustomXWPFDocument.PICTURE_TYPE_JPEG;
}else if(picType.equalsIgnoreCase("wmf")){
res = CustomXWPFDocument.PICTURE_TYPE_WMF;
}
}
return res;
}
/**
* 合并行
* @param table
* @param col 需要合并的列
* @param fromRow 开始行
* @param toRow 结束行
*/
public static void mergeCellVertically(XWPFTable table, int col, int fromRow, int toRow) {
for(int rowIndex = fromRow; rowIndex <= toRow; rowIndex++){
CTVMerge vmerge = CTVMerge.Factory.newInstance();
if(rowIndex == fromRow){
vmerge.setVal(STMerge.RESTART);
} else {
vmerge.setVal(STMerge.CONTINUE);
}
XWPFTableCell cell = table.getRow(rowIndex).getCell(col);
CTTcPr tcPr = cell.getCTTc().getTcPr();
if (tcPr != null) {
tcPr.setVMerge(vmerge);
//cell.getCTTc().setTcPr(tcPr);
} else {
tcPr = CTTcPr.Factory.newInstance();
tcPr.setVMerge(vmerge);
cell.getCTTc().setTcPr(tcPr);
}
}
}
/**
* 获取需要合并单元格的下标
* @return
*/
public static List<Integer[]> startEnd(List<String[]> daList){
List<Integer[]> indexList = new ArrayList<Integer[]>();
List<String> list = new ArrayList<String>();
for (int i=0;i<daList.size();i++){
list.add(daList.get(i)[0]);
}
Map<Object, Integer> tm = new HashMap<Object, Integer>();
for (int i=0;i<daList.size();i++){
if (!tm.containsKey(daList.get(i)[0])) {
tm.put(daList.get(i)[0], 1);
} else {
int count = tm.get(daList.get(i)[0]) + 1;
tm.put(daList.get(i)[0], count);
}
}
for (Map.Entry<Object, Integer> entry : tm.entrySet()) {
String key = entry.getKey().toString();
String value = entry.getValue().toString();
if (list.indexOf(key) != (-1)){
Integer[] index = new Integer[2];
index[0] = list.indexOf(key);
index[1] = list.lastIndexOf(key);
indexList.add(index);
}
}
return indexList;
}
}
2.自定义XWPFDocument类
package com.management.util;
import org.apache.xmlbeans.XmlException;
import org.apache.xmlbeans.XmlToken;
import org.apache.poi.openxml4j.opc.OPCPackage;
import org.apache.poi.xwpf.usermodel.XWPFDocument;
import org.apache.poi.xwpf.usermodel.XWPFParagraph;
import org.openxmlformats.schemas.drawingml.x2006.main.CTNonVisualDrawingProps;
import org.openxmlformats.schemas.drawingml.x2006.main.CTPositiveSize2D;
import org.openxmlformats.schemas.drawingml.x2006.wordprocessingDrawing.CTInline;
import java.io.IOException;
import java.io.InputStream;
/**
* Created by wfg 2020-08-12.
* 自定义 XWPFDocument，并重写 createPicture()的方法
*/
public class CustomXWPFDocument extends XWPFDocument{
public CustomXWPFDocument(InputStream in) throws IOException {
super(in);
}
public CustomXWPFDocument() {
super();
}
public CustomXWPFDocument(OPCPackage pkg) throws IOException {
super(pkg);
}
/**
* @param id
* @param width 宽
* @param height 高
* @param paragraph 段落
*/
public void createPicture(String blipId, int id, int width, int height, XWPFParagraph paragraph) {
final int EMU = 9525;
width *= EMU;
height *= EMU;
CTInline inline = paragraph.createRun().getCTR().addNewDrawing().addNewInline();
String picXml = "" +
"<a:graphic xmlns:a="http://schemas.openxmlformats.org/drawingml/2006/main">" +
" <a:graphicData uri="http://schemas.openxmlformats.org/drawingml/2006/picture">" +
" <pic:pic xmlns:pic="http://schemas.openxmlformats.org/drawingml/2006/picture">" +
" <pic:nvPicPr>" +
" <pic:cNvPr id="" + id + "" name="Generated"/>" +
" <pic:cNvPicPr/>" +
" </pic:nvPicPr>" +
" <pic:blipFill>" +
" <a:blip r:embed="" + blipId + "" xmlns:r="http://schemas.openxmlformats.org/officeDocument/2006/relationships"/>" +
" <a:stretch>" +
" <a:fillRect/>" +
" </a:stretch>" +
" </pic:blipFill>" +
" <pic:spPr>" +
" <a:xfrm>" +
" <a:off x="0" y="0"/>" +
" <a:ext cx="" + width + "" cy="" + height + ""/>" +
" </a:xfrm>" +
" <a:prstGeom prst="rect">" +
" <a:avLst/>" +
" </a:prstGeom>" +
" </pic:spPr>" +
" </pic:pic>" +
" </a:graphicData>" +
"</a:graphic>";
inline.addNewGraphic().addNewGraphicData();
XmlToken xmlToken = null;
try {
xmlToken = XmlToken.Factory.parse(picXml);
} catch (XmlException xe) {
xe.printStackTrace();
}
inline.set(xmlToken);
CTPositiveSize2D extent = inline.addNewExtent();
extent.setCx(width);
extent.setCy(height);
CTNonVisualDrawingProps docPr = inline.addNewDocPr();
docPr.setId(id);
docPr.setName("图片" + id);
docPr.setDescr("头像");
}
}
3.创建测试类
注意使用的word模板，要有一个表头和一行空数据,要不运行会报错空指针，找不到有效行，运行下面的类后，即可看到效果
package com.management.web;
import com.management.util.CustomXWPFDocument;
import com.management.util.ExportWordUtil;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
public class TestWord {
public static void main(String[] args) throws Exception {
//需要进行文本替换的信息
Map<String, Object> data = new HashMap<String, Object>();
data.put("${date}", "(2020年08月12日)");
data.put("${name}", "测试一下");
//图片，如果是多个图片，就新建多个map
/* Map<String,Object> picture1 = new HashMap<String, Object>();
picture1.put("width", 100);
picture1.put("height", 150);
picture1.put("type", "jpg");
picture1.put("content", ExportWordUtil.inputStream2ByteArray(new FileInputStream("D:/timg.jpg"), true));
data.put("${picture1}",picture1);
*/
//需要进行动态生成的信息
List<Object> mapList = new ArrayList<Object>();
//第一个动态生成的数据列表
List<String[]> list01 = new ArrayList<String[]>();
list01.add(new String[]{"A","11111111111","22","22","22","22","22"});
list01.add(new String[]{"A","22222222222","33","22","22","22","22"});
list01.add(new String[]{"B","33333333333","44","22","22","22","22"});
list01.add(new String[]{"B","44444444444","55","22","22","22","22"});
list01.add(new String[]{"B","33333333333","44","22","22","22","22"});
list01.add(new String[]{"C","44444444444","55","22","22","22","22"});
list01.add(new String[]{"C","33333333333","44","22","22","22","22"});
list01.add(new String[]{"C","44444444444","55","22","22","22","22"});
list01.add(new String[]{"C","44444444444","55","22","22","22","22"});
//第二个动态生成的数据列表
List<String[]> list02 = new ArrayList<String[]>();
list02.add(new String[]{"A","11111111111","22","22","22","22","22"});
list02.add(new String[]{"d","22222222222","33","22","22","22","22"});
list02.add(new String[]{"B","33333333333","44","22","22","22","22"});
list02.add(new String[]{"C","44444444444","55","22","22","22","22"});
mapList.add(list01);
//mapList.add(list02);
//需要动态改变表格的位置；第一个表格的位置为0,1
int[] placeList = {0,1};
CustomXWPFDocument doc = ExportWordUtil.changWord("D:/word.docx",data,mapList,placeList);
FileOutputStream fopts = new FileOutputStream("D:/合并表格.docx");
doc.write(fopts);
fopts.close();
}
}
最后
以上就是追寻微笑为你收集整理的java poi 动态导出word表格带合并效果的全部内容，希望文章能够帮你解决java poi 动态导出word表格带合并效果所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
