SPARK源码编译

版本要求

Spark版本：Spark-2.4.5（15M的那个，只有spark源码）
Maven版本：Maven-3.5.4
Scala版本： Scala-2.11.12
Hadoop版本：Hadoop-3.3.1
Hive 版本：Hive-3.1.2

前提准备—Maven安装

根据Spark官网中Spark源码编译文档可知，最低版本需要Maven 3.5.4以及Java 8 ，最好按照官方得版本进行编译！

Maven环境配置

将路径/root/package/目录下的apache-maven-3.5.4-bin.tar.gz安装包移动到/opt/目录下

mv /root/package/apache-maven-3.5.4-bin.tar.gz /opt/

在/root/opt/目录下解压该文件并更改目录名称为maven-3.5.4

cd /opt/

tar -zxvf apache-maven-3.5.4-bin.tar.gz

mv apache-maven-3.5.4-bin maven-3.5.4

在maven目录下得conf文件夹下配置阿里云镜像

<mirror>
    <id>alimaven</id>
    <name>aliyun maven</name>
    <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
    <mirrorOf>central</mirrorOf>
</mirror>

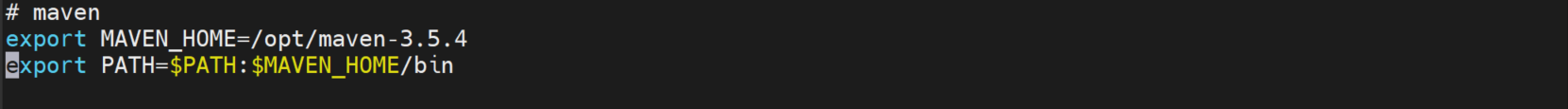

配置maven环境变量

vi /etc/profile

使环境变量生效

source /etc/profile

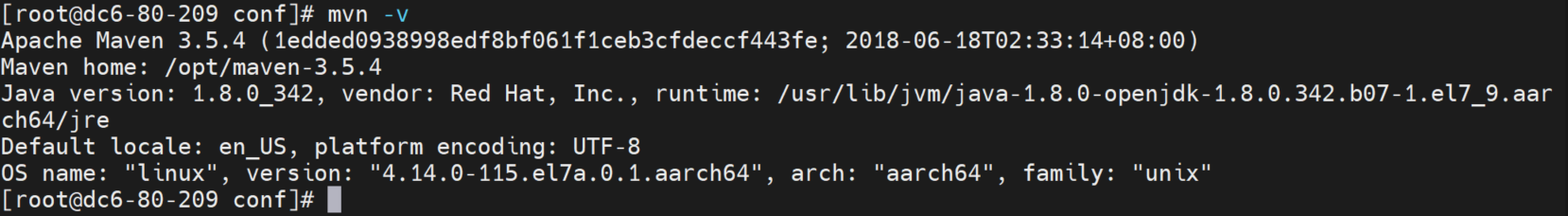

检查是否配置成功

mvn -v

前提准备—Scala安装

在spark官网查看Spark2.4.5开发文档查看spark需要得Scala版本

解压Scala-2.11.12安装包到/opt/目录下并配置系统环境变量

使得环境变量生效

source /etc/profile

[root@dc6-80-209 ~]# mvn -v
Apache Maven 3.5.4 (1edded0938998edf8bf061f1ceb3cfdeccf443fe; 2018-06-18T02:33:14+08:00)
Maven home: /opt/maven-3.5.4
Java version: 1.8.0_342, vendor: Red Hat, Inc., runtime: /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.342.b07-1.el7_9.aarch64/jre
Default locale: en_US, platform encoding: UTF-8
OS name: "linux", version: "4.14.0-115.el7a.0.1.aarch64", arch: "aarch64", family: "unix"
[root@dc6-80-209 ~]# java -version
openjdk version "1.8.0_342"
OpenJDK Runtime Environment (build 1.8.0_342-b07)
OpenJDK 64-Bit Server VM (build 25.342-b07, mixed mode)
[root@dc6-80-209 ~]# scala -version
cat: /usr/lib/jvm/java-1.8.0-openjdk-1.8.0.342.b07-1.el7_9.aarch64/release: No such file or directory
Scala code runner version 2.11.12 -- Copyright 2002-2017, LAMP/EPFL
[root@dc6-80-209 ~]#

spark源码编译

修改make-distribution.sh以跳过检查

vi dev/make-distribution.sh

注释掉一下内容，并在文件末尾添加如下配置：

#VERSION=$("$MVN" help:evaluate -Dexpression=project.version $@ 2>/dev/null | grep -v "INFO" | tail -n 1)
#SCALA_VERSION=$("$MVN" help:evaluate -Dexpression=scala.binary.version $@ 2>/dev/null
#    | grep -v "INFO"
#    | tail -n 1)
#SPARK_HADOOP_VERSION=$("$MVN" help:evaluate -Dexpression=hadoop.version $@ 2>/dev/null
#    | grep -v "INFO"
#    | tail -n 1)
#SPARK_HIVE=$("$MVN" help:evaluate -Dexpression=project.activeProfiles -pl sql/hive $@ 2>/dev/null
#    | grep -v "INFO"
#    | fgrep --count "<id>hive</id>";
#    # Reset exit status to 0, otherwise the script stops here if the last grep finds nothing
#    # because we use "set -o pipefail"
#    echo -n)


# 设置版本信息
VERSION=2.4.5
SCALA_VERSION=2.11.12
SPARK_HADOOP_VERSION=3.3.1
SPARK_HIVE=3.1.2

在根目录执行如下命令：

 ./dev/make-distribution.sh --name build --tgz -Phadoop-3.3 -Dhadoop.version=3.3.1 -DskipTests -Pyarn -Phive -Phive-thriftserver

命令解释：

--name --tgz ：是最后生成的包名，以及采用上面格式打包，比如，编译的是spark-2.4.5，那么最后编译成功后就会在 spark-2.4.5这个目录下生成 spark--bin-build.tgz
-Pyarn： 表示支持yarn
--Phadoop-3.3 ：指定hadoop的主版本号
-Dhadoop.version： 指定hadoop的子版本号
-Phive -Phive-thriftserver：开启HDBC和Hive功能。

还可以加上：
　　-Dscala-2.11 ：指定scala版本。
　　-DskipTests ：忽略测试过程。
　　clean package：clean和package是编译目标。clean执行清理工作，比如清除旧打包痕迹，package用于编译和打包。

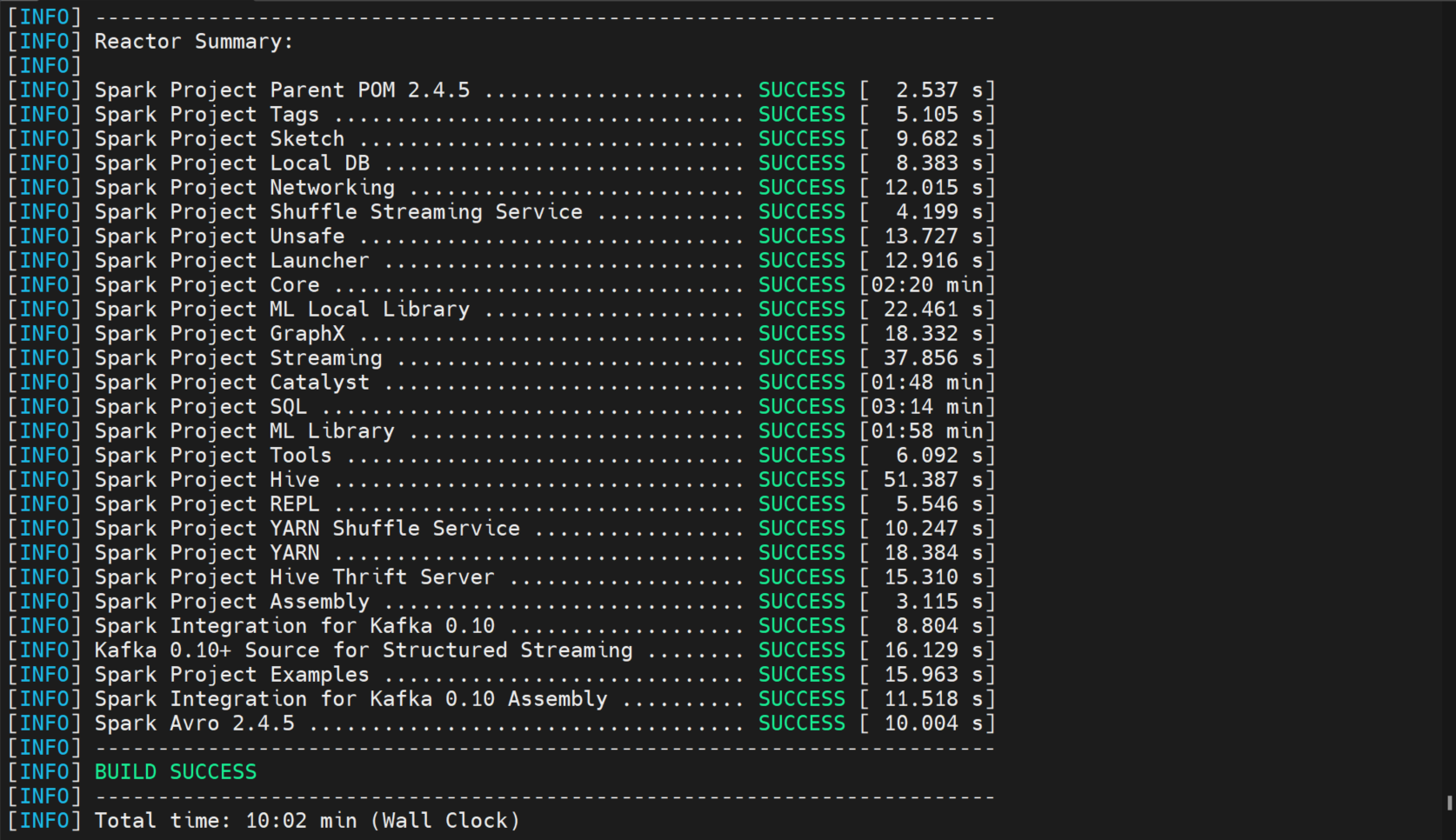

编译结果

编译spark-2.4.5编译支持Hadoop-3.3.1和Hive-3.1.2的tgz文件

spark–bin-build.tgz

编译问题

问题一

BUG

[WARNING] The requested profile "hadoop-3.3" could not be activated because it does not exist.
/opt/spark/build/zinc-0.3.15/bin/nailgun: line 50: /opt/spark/build/zinc-0.3.15/bin/ng/linux32/ng: cannot execute binary file

解决方法

在spark根目录下的pom.xml文件中修改Hadoop的版本配置

<properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
    <java.version>1.8</java.version>
    <maven.compiler.source>${java.version}</maven.compiler.source>
    <maven.compiler.target>${java.version}</maven.compiler.target>
    <maven.version>3.5.4</maven.version>
    <sbt.project.name>spark</sbt.project.name>
    <slf4j.version>1.7.16</slf4j.version>
    <log4j.version>1.2.17</log4j.version>
<!--
    <hadoop.version>2.6.5</hadoop.version>
-->
	<hadoop.version>3.3.1</hadoop.version>
    <protobuf.version>2.5.0</protobuf.version>
    <yarn.version>${hadoop.version}</yarn.version>
    <flume.version>1.6.0</flume.version>
    <zookeeper.version>3.4.6</zookeeper.version>
    <curator.version>2.6.0</curator.version>
    <hive.group>org.spark-project.hive</hive.group>
    <!-- Version used in Maven Hive dependency -->
    <hive.version>1.2.1.spark2</hive.version>
    <!-- Version used for internal directory structure -->
    <hive.version.short>1.2.1</hive.version.short>
    <derby.version>10.12.1.1</derby.version>
    ……
</properties>

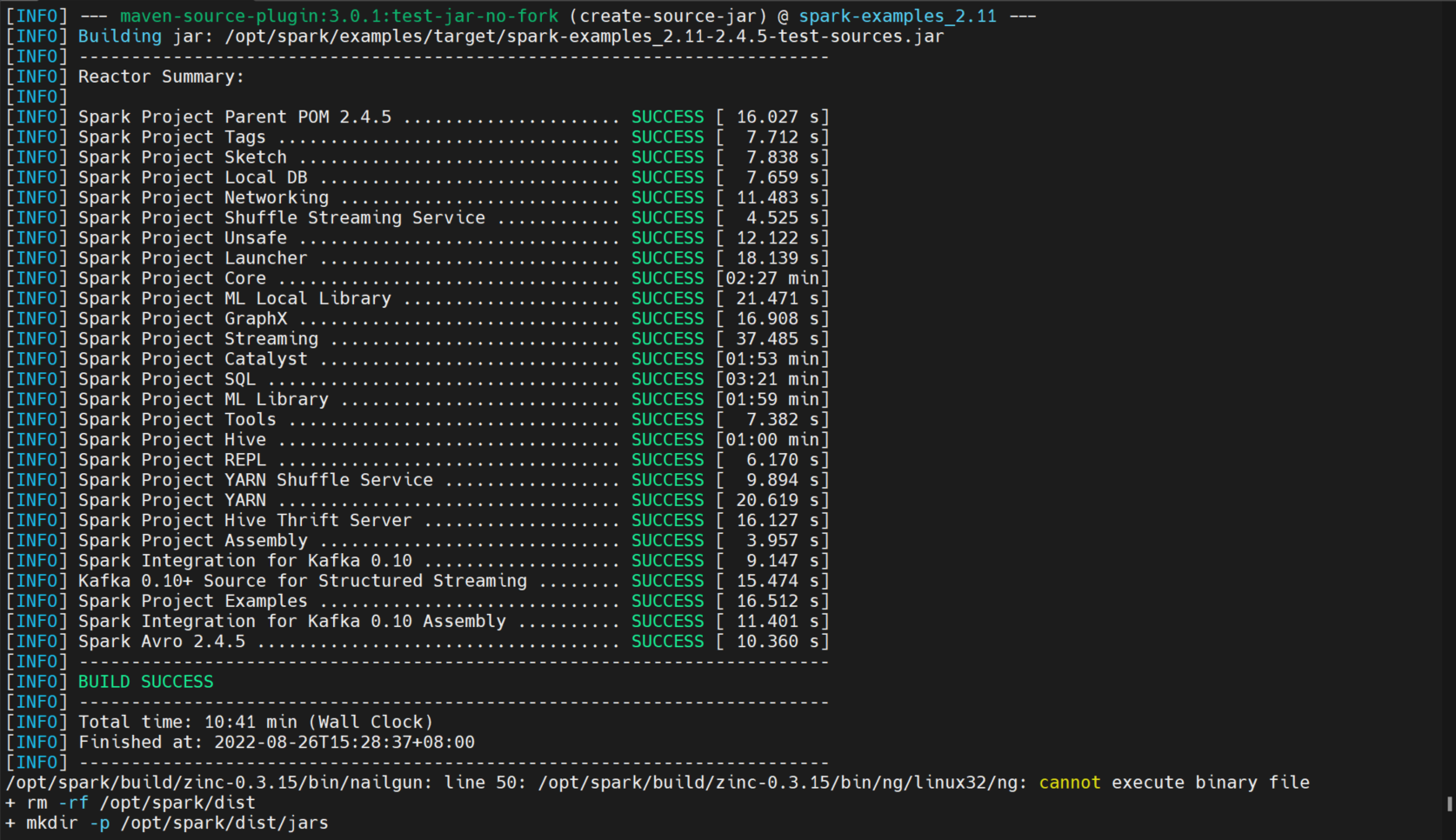

编译成功

问题二

BUG

在sparkbin目录下启动spark-shell出现如下bug，不能够识别Hadoop的版本

解决办法

查看hive3.1.2源码，根据问题所在：

在路径 org.apache.hadoop.hive.shims 下找到 ShimLoader抽象类中的getMajorVersion方法

/**
   * Return the "major" version of Hadoop currently on the classpath.
   * Releases in the 1.x and 2.x series are mapped to the appropriate
   * 0.x release series, e.g. 1.x is mapped to "0.20S" and 2.x
   * is mapped to "0.23".
   */
  public static String getMajorVersion() {
    String vers = VersionInfo.getVersion();

    String[] parts = vers.split("\.");
    if (parts.length < 2) {
      throw new RuntimeException("Illegal Hadoop Version: " + vers +
          " (expected A.B.* format)");
    }

    switch (Integer.parseInt(parts[0])) {
    case 2:
    case 3:
      return HADOOP23VERSIONNAME;
    default:
      throw new IllegalArgumentException("Unrecognized Hadoop major version number: " + vers);
    }
  }

在包org.apache.hadoop.util下找到VersionInfo类如下：

public class VersionInfo {
    private static final Logger LOG = LoggerFactory.getLogger(VersionInfo.class);
    private Properties info = new Properties();
    private static VersionInfo COMMON_VERSION_INFO = new VersionInfo("common");

    protected VersionInfo(String component) {
        String versionInfoFile = component + "-version-info.properties";
        InputStream is = null;

        try {
            is = ThreadUtil.getResourceAsStream(VersionInfo.class.getClassLoader(), versionInfoFile);
            this.info.load(is);
        } catch (IOException var8) {
            LoggerFactory.getLogger(this.getClass()).warn("Could not read '" + versionInfoFile + "', " + var8.toString(), var8);
        } finally {
            IOUtils.closeStream(is);
        }

    }

    ………………

}

发现Hadoop的版本信息是从一个名为 “common-version-info.properties"这个文件中读取的，所以根据网上的说法，在spark的配置文件夹conf下自己添加一个该文件，命令如下：

touch common-version-info.properties
vi common-version-info.properties


#在该文件中设置如下
version=2.7.6 #版本信息设置成2和3都可以，因为源码中的case 2和case 3 都 return HADOOP23VERSIONNAME

Spark 单机模式启动并测试

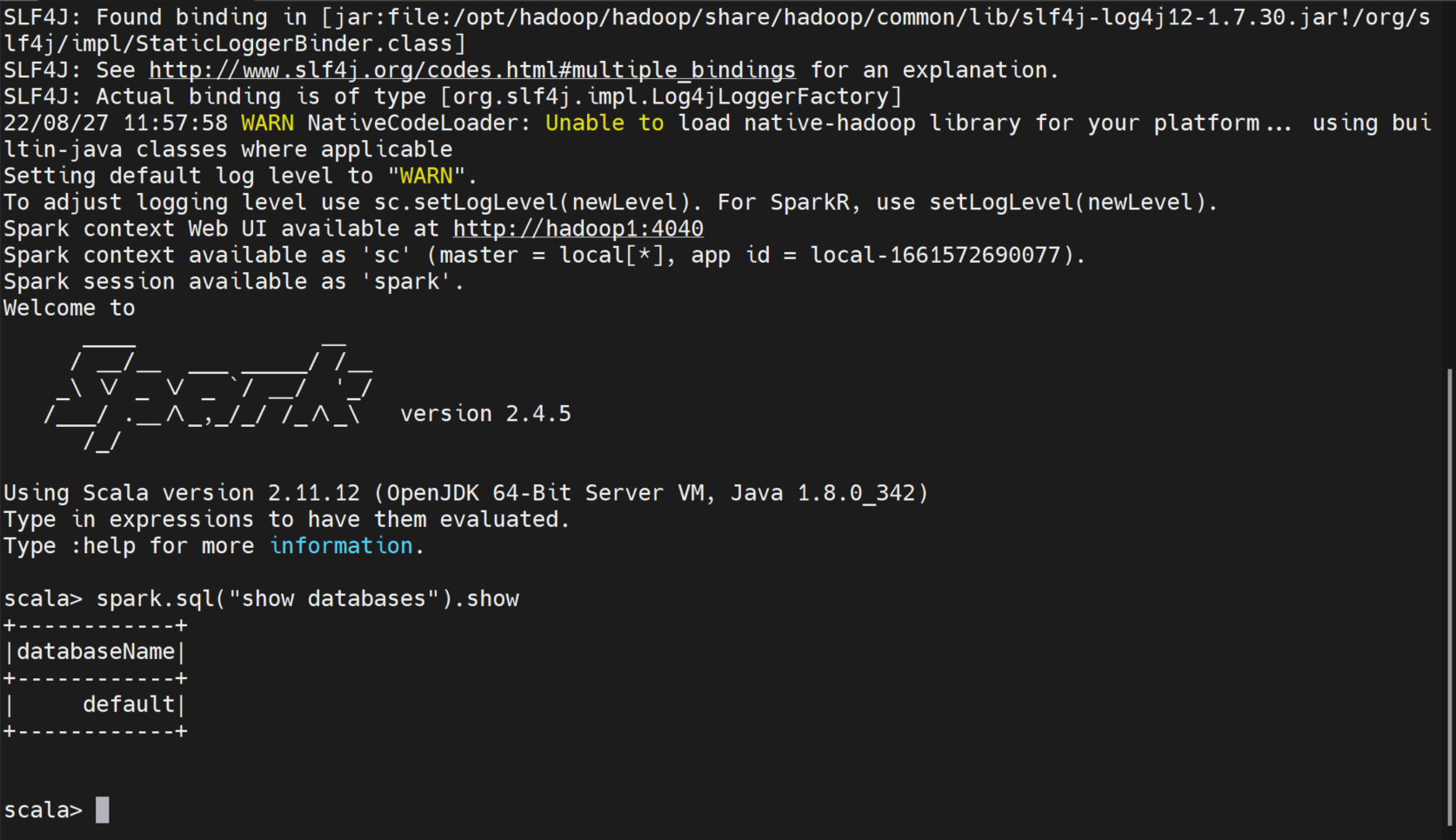

在$SPARK_HOME/bin下启动spark-shell

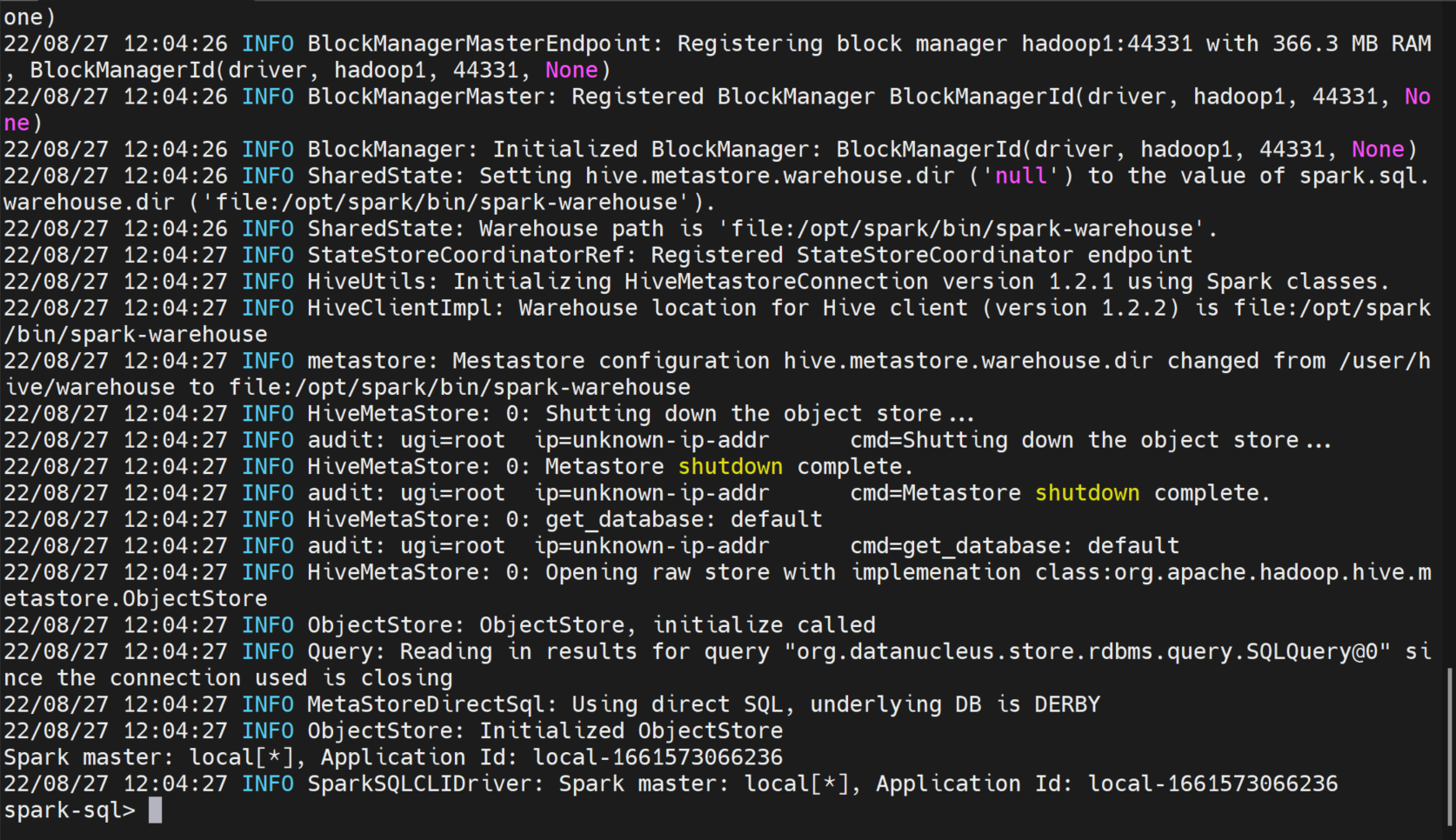

在$SPARK_HOME/bin下启动spark-sql

Spark集群配置

一、spark的安装路径：

/opt/spark

二、现有系统环境变量：

vi /etc/profile

# java
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.342.b07-1.el7_9.aarch64
export JRE_HOME=$JAVA_HOME/jre
export PATH=$PATH:$JAVA_HOME/bin
export HDFS_NAMENODE_USER=root
export HDFS_DATANODE_USER=root
export HDFS_SECONDARYNAMENODE_USER=root
export YARN_RESOURCEMANAGER_USER=root
export YARN_NODEMANAGER_USER=root
# spark
export SPARK_HOME=/opt/spark
export PATH=$PATH:$SPARK_HOME/bin
export SPARK_DIST_CLASSPATH=$(/opt/hadoop/hadoop/bin/hadoop classpath)

vi ~/.bashrc

export HIVE_HOME=/usr/local/hive
export PATH=$PATH:$HIVE_HOME/bin
export HADOOP_HOME=/opt/hadoop/hadoop

三、查看并关闭防火墙

systemctl status firewalld 查看防火墙状态

systemctl stop firewalld 关闭防火墙

四、系统hosts设置

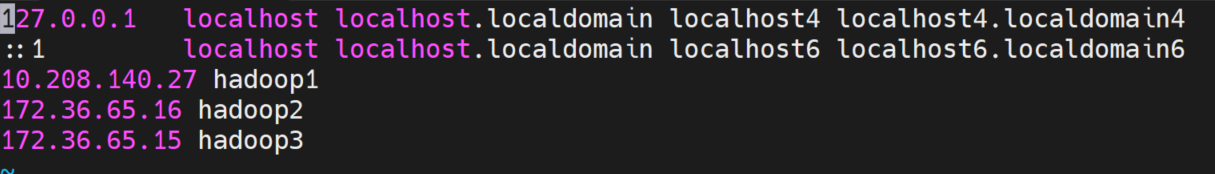

vi /etc/hosts

Hadoop1对应的主机为 172.36.65.14
Hadoop2对应的主机为 172.36.65.16
Hadoop3对应的主机为 172.36.65.15

主节点为Hadoop1 ，从节点分别为Hadoop2、Hadoop3

五、spark文件修改

spark-env.sh 文件

先切换到$SPARK_HOME/conf目录下，执行如下命令

cp  spark-env.sh.template   spark-env.sh

cp  slaves.template  slaves

vi /opt/spark/conf/spark-env.sh

在spark-env.sh文件中添加如下内容：

export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.342.b07-1.el7_9.aarch64
export SPARK_MASTER_IP=hadoop1
export SPARK_MASTER_POST=7077
export SPARK_WORKER_MEMORY=1G

slaves文件

在slaves文件中添加如下内容：

# 将原先文件中的localhost注释掉

hadoop2
hadoop3

将spark文件分发到其他从结点上

cd $SPARK_HOME
cd ../
scp -r spark root@hadoop2:/opt/
scp -r spark root@hadoop3:/opt/

分别在hadoop2和hadoop3两台主机上配置spark的系统环境变量

六、集群启动：

在主机Hadoop1上的$SPARK_HOME/sbin目录下执行

start-all.sh

分别在各个主从结点上使用jps命令查看是否启动成功

# 主节点 Hadoop 1 中
[root@dc6-80-235 sbin]# jps
15713 Master
15826 Jps

#从节点 Hadoop 2 中
[root@dc6-80-209 sbin]# jps
8384 Worker
8455 Jps


#从节点 Hadoop 3 中
[root@dc6-80-210 sbin]# jps
1756 Worker
1838 Jps

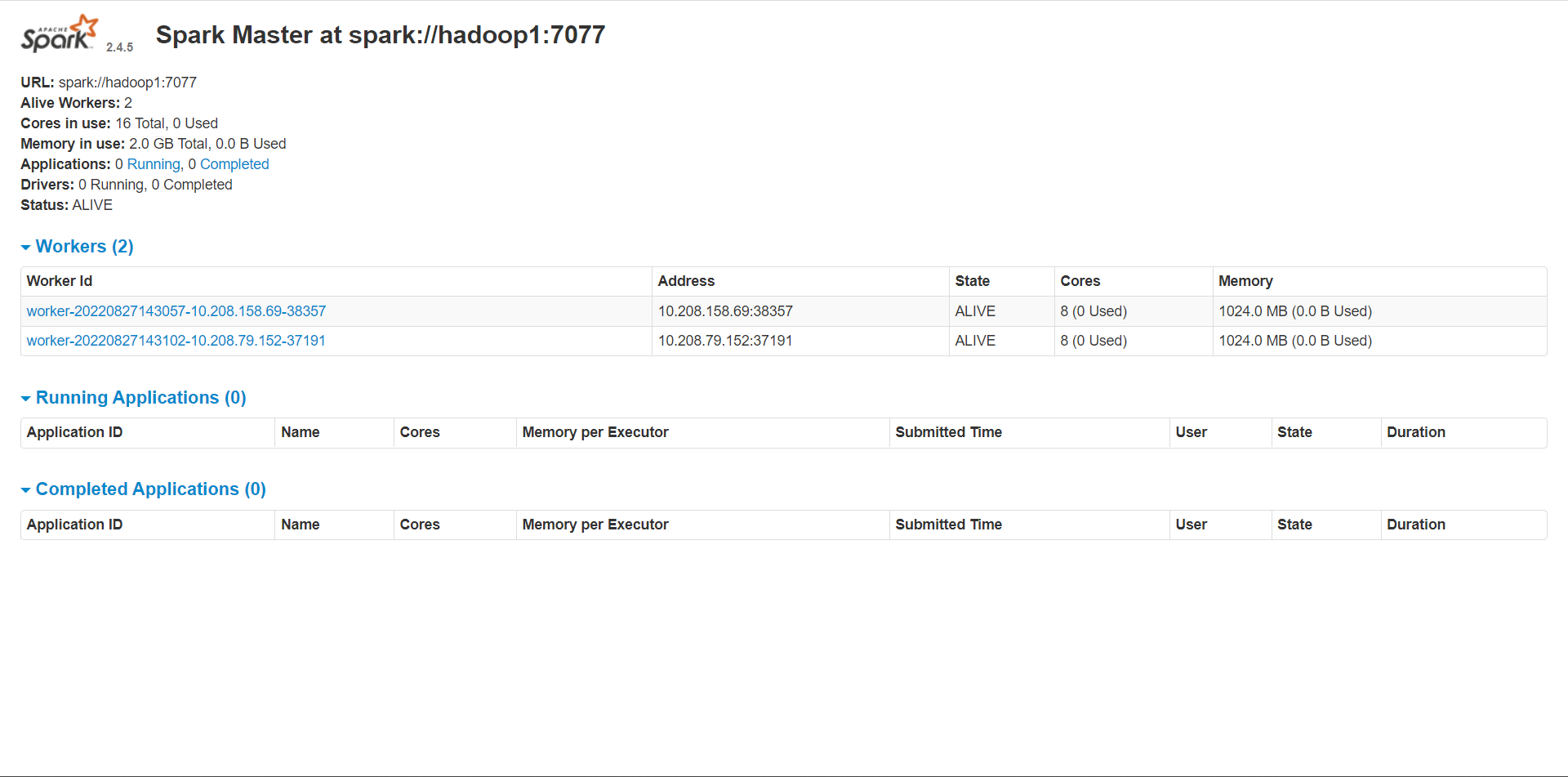

在spark的ui界面中查看（需关闭master主机的防火墙） url为 “ master结点IP：8080 ”

集群可以启动，通过jps查看都正确，但是通过ui界面却只能显示master结点

【解决办法】：

$SPARK_HOME/conf/路径下的spark-env.sh 文件中设置如下：

export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.342.b07-1.el7_9.aarch64
export SPARK_MASTER_HOST=hadoop1
export SPARK_MASTER_POST=7077
export SPARK_WORKER_MEMORY=1G

七、集群测试

Spark整合hive

1. 拷贝hive中的配置文件到spark中的conf目录下

查看hive-site.xml文件中的mysql数据库配置信息

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<configuration>
<property>
    <name>hive.server2.thrift.client.user</name>
    <value>root</value>
    <description>Username to use against thrift client</description>
  </property>
  <property>
    <name>hive.server2.thrift.client.password</name>
    <value>123456</value>
    <description>Password to use against thrift client</description>
 </property>`
 <property>
    <name>javax.jdo.option.ConnectionURL</name>
    <value>jdbc:mysql://localhost:3306/hive?createDatabaseIfNotExist=true</value>
    <description>JDBC connect string for a JDBC metastore</description>
  </property>
  <property>
    <name>javax.jdo.option.ConnectionDriverName</name>
    <value>com.mysql.cj.jdbc.Driver</value>
    <description>Driver class name for a JDBC metastore</description>
  </property>
  <property>
    <name>javax.jdo.option.ConnectionUserName</name>
    <value>hive</value>
    <description>username to use against metastore database</description>
  </property>
  # 添加metastore的url配置（对应hive安装节点，我的为hadoop1节点）
  <property>
    <name>hive.metastore.uris</name>
    <value>thrift://hadoop1:9083</value>
  </property>

整合需要spark能够读取找到Hive的元数据以及数据存放位置。将hive-site.xml文件拷贝到Spark的conf目录下，同时添加metastore的url配置（对应hive安装节点，我的为hadoop1节点）。

【提醒】

 hive.metastore.uris启动metastore服务的端口必须设置为9083,否则将会出错!!!

<property>
    <name>hive.metastore.schema.verification</name>
    <value>false</value>
</property>
<property>
    <name>hive.server2.authentication</name>
    <value>NOSASL</value>
</property>
<property>
  <name>hive.metastore.local</name>
  <value>false</value>
</property>
# 添加metastore的url配置（对应hive安装节点，我的为hadoop1节点）
<property>
  <name>hive.metastore.uris</name>
  <value>thrift://hadoop1:9083</value>
</property>

修改后分发给其他结点

cd $HIVE_HOME/conf
scp -r hive-site.xml root@hadoop2:/opt/spark/conf/
scp -r hive-site.xml root@hadoop3:/opt/spark/conf/

2. 拷贝hive中的mysql驱动jar包到spark中的jars目录下

cd $HIVE_HOME/lib
scp -r mysql-connector-java-8.0.29 /opt/spark/jars/  #复制到本地主机为hadoop1
scp -r mysql-connector-java-8.0.29 root@hadoop2:/opt/spark/jars/  #复制到hadoop2
scp -r mysql-connector-java-8.0.29 root@hadoop3:/opt/spark/jars/  #复制到hadoop2

3. 启动服务

启动hadoop集群

使用start-all.sh命令启动集群，（系统环境变量中已经存在 $HADOOP_HOME/sbin的环境）

[root@dc6-80-235 jars]# start-all.sh
Starting namenodes on [localhost]
Last login: Sat Aug 27 15:54:02 CST 2022 on pts/10
localhost: namenode is running as process 24466.  Stop it first and ensure /tmp/hadoop-root-namenode.pid file is empty before retry.
Starting datanodes
Last login: Sat Aug 27 16:00:00 CST 2022 on pts/10
localhost: datanode is running as process 24647.  Stop it first and ensure /tmp/hadoop-root-datanode.pid file is empty before retry.
Starting secondary namenodes [dc6-80-235.novalocal]
Last login: Sat Aug 27 16:00:01 CST 2022 on pts/10
dc6-80-235.novalocal: secondarynamenode is running as process 24920.  Stop it first and ensure /tmp/hadoop-root-secondarynamenode.pid file is empty before retry.
2022-08-27 16:00:20,039 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Starting resourcemanager
Last login: Sat Aug 27 16:00:07 CST 2022 on pts/10
resourcemanager is running as process 25263.  Stop it first and ensure /tmp/hadoop-root-resourcemanager.pid file is empty before retry.
Starting nodemanagers
Last login: Sat Aug 27 16:00:20 CST 2022 on pts/10
localhost: nodemanager is running as process 25442.  Stop it first and ensure /tmp/hadoop-root-nodemanager.pid file is empty before retry.

jps检测是否启动成功

[root@dc6-80-235 ~]# jps
1697 NameNode
1882 DataNode
2220 SecondaryNameNode
2573 ResourceManager
3150 Jps
2751 NodeManager

在各个结点中查看并启动Mysql服务

#查看mysql的状态
systemctl status mysqld
#启动mysql
systemctl start mysqld

启动hive metastore服务

#切换到hive中的bin目录下
cd $HIVE_HOME/bin
#启动metastore服务
hive --service metastore

启动成功的结果如下:

# 使用jps查看
[root@dc6-80-235 ~]# jps
992 RunJar   # metastore 进程
1697 NameNode
1882 DataNode
2220 SecondaryNameNode
2573 ResourceManager
3150 Jps
2751 NodeManager

启动hive

# 在一个新终端上启动hive
cd $HIVE_HOME/bin
hive

启动结果如下

启动spark集群服务

# 切换到spark根目录中
cd $SPARK_HOME/sbin

#启动集群服务
[root@dc6-80-235 sbin]# ./start-all.sh
starting org.apache.spark.deploy.master.Master, logging to /opt/spark/logs/spark-root-org.apache.spark.deploy.master.Master-1-dc6-80-235.novalocal.out
hadoop2: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-dc6-80-209.novalocal.out
hadoop3: starting org.apache.spark.deploy.worker.Worker, logging to /opt/spark/logs/spark-root-org.apache.spark.deploy.worker.Worker-1-dc6-80-210.novalocal.out

在$SPARK_HOME/bin目录下启动spark-shell

[root@dc6-80-235 ~]# cd $SPARK_HOME/bin
[root@dc6-80-235 bin]# spark-shell
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/spark/jars/slf4j-log4j12-1.7.16.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.30.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
22/08/27 17:53:04 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Setting default log level to "WARN".
To adjust logging level use sc.setLogLevel(newLevel). For SparkR, use setLogLevel(newLevel).
Spark context Web UI available at http://hadoop1:4040
Spark context available as 'sc' (master = local[*], app id = local-1661593991736).
Spark session available as 'spark'.
Welcome to
      ____              __
     / __/__  ___ _____/ /__
    _ / _ / _ `/ __/  '_/
   /___/ .__/_,_/_/ /_/_   version 2.4.5
      /_/

Using Scala version 2.11.12 (OpenJDK 64-Bit Server VM, Java 1.8.0_342)
Type in expressions to have them evaluated.
Type :help for more information.

scala>

在$SPARK_HOME/bin目录下启动spark-sql

[root@dc6-80-235 ~]# cd /opt/spark/bin/      # cd 到 $SPARK_HOME目录下
[root@dc6-80-235 bin]# spark-sql
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/spark/jars/slf4j-log4j12-1.7.16.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.30.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
22/08/28 17:21:47 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
22/08/28 17:21:48 INFO metastore: Trying to connect to metastore with URI thrift://hadoop1:9083
22/08/28 17:21:48 INFO metastore: Connected to metastore.
22/08/28 17:21:49 INFO SessionState: Created local directory: /tmp/ad7756f8-ca79-4693-aa49-fe401bf49adf_resources
22/08/28 17:21:49 INFO SessionState: Created HDFS directory: /tmp/hive/root/ad7756f8-ca79-4693-aa49-fe401bf49adf
22/08/28 17:21:49 INFO SessionState: Created local directory: /tmp/root/ad7756f8-ca79-4693-aa49-fe401bf49adf
22/08/28 17:21:49 INFO SessionState: Created HDFS directory: /tmp/hive/root/ad7756f8-ca79-4693-aa49-fe401bf49adf/_tmp_space.db
22/08/28 17:21:49 INFO SparkContext: Running Spark version 2.4.5
22/08/28 17:21:49 INFO SparkContext: Submitted application: SparkSQL::10.208.140.27
22/08/28 17:21:49 INFO SecurityManager: Changing view acls to: root
22/08/28 17:21:49 INFO SecurityManager: Changing modify acls to: root
22/08/28 17:21:49 INFO SecurityManager: Changing view acls groups to:
22/08/28 17:21:49 INFO SecurityManager: Changing modify acls groups to:
22/08/28 17:21:49 INFO SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(root); groups with view permissions: Set(); users  with modify permissions: Set(root); groups with modify permissions: Set()
22/08/28 17:21:49 INFO Utils: Successfully started service 'sparkDriver' on port 34795.
22/08/28 17:21:49 INFO SparkEnv: Registering MapOutputTracker
22/08/28 17:21:49 INFO SparkEnv: Registering BlockManagerMaster
22/08/28 17:21:49 INFO BlockManagerMasterEndpoint: Using org.apache.spark.storage.DefaultTopologyMapper for getting topology information
22/08/28 17:21:49 INFO BlockManagerMasterEndpoint: BlockManagerMasterEndpoint up
22/08/28 17:21:49 INFO DiskBlockManager: Created local directory at /tmp/blockmgr-757d950e-8d54-4ac1-a17d-b7d9f0019ce6
22/08/28 17:21:49 INFO MemoryStore: MemoryStore started with capacity 366.3 MB
22/08/28 17:21:49 INFO SparkEnv: Registering OutputCommitCoordinator
22/08/28 17:21:49 WARN Utils: Service 'SparkUI' could not bind on port 4040. Attempting port 4041.
22/08/28 17:21:49 INFO Utils: Successfully started service 'SparkUI' on port 4041.
22/08/28 17:21:49 INFO SparkUI: Bound SparkUI to 0.0.0.0, and started at http://hadoop1:4041
22/08/28 17:21:49 INFO Executor: Starting executor ID driver on host localhost
22/08/28 17:21:49 INFO Utils: Successfully started service 'org.apache.spark.network.netty.NettyBlockTransferService' on port 37823.
22/08/28 17:21:49 INFO NettyBlockTransferService: Server created on hadoop1:37823
22/08/28 17:21:49 INFO BlockManager: Using org.apache.spark.storage.RandomBlockReplicationPolicy for block replication policy
22/08/28 17:21:50 INFO BlockManagerMaster: Registering BlockManager BlockManagerId(driver, hadoop1, 37823, None)
22/08/28 17:21:50 INFO BlockManagerMasterEndpoint: Registering block manager hadoop1:37823 with 366.3 MB RAM, BlockManagerId(driver, hadoop1, 37823, None)
22/08/28 17:21:50 INFO BlockManagerMaster: Registered BlockManager BlockManagerId(driver, hadoop1, 37823, None)
22/08/28 17:21:50 INFO BlockManager: Initialized BlockManager: BlockManagerId(driver, hadoop1, 37823, None)
22/08/28 17:21:50 INFO SharedState: loading hive config file: file:/opt/spark/conf/hive-site.xml
22/08/28 17:21:50 INFO SharedState: Setting hive.metastore.warehouse.dir ('null') to the value of spark.sql.warehouse.dir ('file:/opt/spark/bin/spark-warehouse').
22/08/28 17:21:50 INFO SharedState: Warehouse path is 'file:/opt/spark/bin/spark-warehouse'.
22/08/28 17:21:50 INFO StateStoreCoordinatorRef: Registered StateStoreCoordinator endpoint
22/08/28 17:21:50 INFO HiveUtils: Initializing HiveMetastoreConnection version 1.2.1 using Spark classes.
22/08/28 17:21:50 INFO HiveClientImpl: Warehouse location for Hive client (version 1.2.2) is file:/opt/spark/bin/spark-warehouse
22/08/28 17:21:50 INFO metastore: Mestastore configuration hive.metastore.warehouse.dir changed from /user/hive/warehouse to file:/opt/spark/bin/spark-warehouse
22/08/28 17:21:50 INFO metastore: Trying to connect to metastore with URI thrift://hadoop1:9083
22/08/28 17:21:50 INFO metastore: Connected to metastore.
Spark master: local[*], Application Id: local-1661678509887
22/08/28 17:21:51 INFO SparkSQLCLIDriver: Spark master: local[*], Application Id: local-1661678509887
spark-sql> show databases;
22/08/28 17:22:01 INFO CodeGenerator: Code generated in 180.56121 ms
default
Time taken: 2.216 seconds, Fetched 1 row(s)
22/08/28 17:22:01 INFO SparkSQLCLIDriver: Time taken: 2.216 seconds, Fetched 1 row(s)

4. 整合测试

测试数据准备

# 在Linux主机上的/opt/路径下创建测试数据
[root@dc6-80-235 ~]# cd /opt/
[root@dc6-80-235 opt]# touch test.txt
[root@dc6-80-235 opt]# ls
cloudinit  hadoop  rh  software  spark  test.txt  zookeeper
[root@dc6-80-235 opt]# vi test.txt

# 在test.txt文件中编写测试数据如下
    0001 hadoop
    0002 yarn
    0003 hbase
    0004 hive
    0005 spark
    0006 mysql
    0007 flume

在打开的hive服务的终端窗口中创建数据库test以及表test并导入数据(数据源为test.txt文件)

# 创建数据库 test
hive> create database test;
OK
Time taken: 11.584 seconds
# 查看是否创建成功
hive> show databases;
OK
default
test
Time taken: 10.237 seconds, Fetched: 2 row(s)
# 选择test数据库
hive> use test;
OK
Time taken: 10.077 seconds
# 创建表test
hive> create table if not exists test(userid string,username string) row format delimited fields terminated by ' ' stored as textfile;
OK
Time taken: 5.674 seconds
# 查看是否创建成功
hive> show tables;
OK
test
Time taken: 10.089 seconds, Fetched: 1 row(s)
# 从本地文件中导入数据到test表中
hive> load data local inpath "/opt/test.txt" into table test;
Loading data to table test.test
OK
Time taken: 6.653 seconds
hive>

在spark-shell服务的终端窗口中查看数据


scala> spark.sql("show databases").collect();
res1: Array[org.apache.spark.sql.Row] = Array([default])

scala> spark.sql("select * from test.test").show()
+------+--------+
|userid|username|
+------+--------+
|  0001|  hadoop|
|  0002|    yarn|
|  0003|   hbase|
|  0004|    hive|
|  0005|   spark|
|  0006|   mysql|
|  0007|   flume|
|      |    null|
+------+--------+

在spark-sql服务的终端窗口中查看数据

spark-sql> show databases;
default
test
Time taken: 0.028 seconds, Fetched 2 row(s)
22/08/28 17:38:34 INFO SparkSQLCLIDriver: Time taken: 0.028 seconds, Fetched 2 row(s)
spark-sql> use test;
Time taken: 0.046 seconds
22/08/28 17:38:44 INFO SparkSQLCLIDriver: Time taken: 0.046 seconds
spark-sql> select * from test;
22/08/28 17:38:59 INFO MemoryStore: Block broadcast_0 stored as values in memory (estimated size 479.1 KB, free 365.8 MB)
22/08/28 17:38:59 INFO MemoryStore: Block broadcast_0_piece0 stored as bytes in memory (estimated size 52.3 KB, free 365.8 MB)
22/08/28 17:38:59 INFO BlockManagerInfo: Added broadcast_0_piece0 in memory on hadoop1:37823 (size: 52.3 KB, free: 366.2 MB)
22/08/28 17:38:59 INFO SparkContext: Created broadcast 0 from
22/08/28 17:38:59 INFO FileInputFormat: Total input files to process : 1
22/08/28 17:38:59 INFO SparkContext: Starting job: processCmd at CliDriver.java:376
22/08/28 17:38:59 INFO DAGScheduler: Got job 0 (processCmd at CliDriver.java:376) with 1 output partitions
22/08/28 17:38:59 INFO DAGScheduler: Final stage: ResultStage 0 (processCmd at CliDriver.java:376)
22/08/28 17:38:59 INFO DAGScheduler: Parents of final stage: List()
22/08/28 17:38:59 INFO DAGScheduler: Missing parents: List()
22/08/28 17:38:59 INFO DAGScheduler: Submitting ResultStage 0 (MapPartitionsRDD[4] at processCmd at CliDriver.java:376), which has no missing parents
22/08/28 17:38:59 INFO MemoryStore: Block broadcast_1 stored as values in memory (estimated size 8.1 KB, free 365.8 MB)
22/08/28 17:38:59 INFO MemoryStore: Block broadcast_1_piece0 stored as bytes in memory (estimated size 4.4 KB, free 365.8 MB)
22/08/28 17:38:59 INFO BlockManagerInfo: Added broadcast_1_piece0 in memory on hadoop1:37823 (size: 4.4 KB, free: 366.2 MB)
22/08/28 17:38:59 INFO SparkContext: Created broadcast 1 from broadcast at DAGScheduler.scala:1163
22/08/28 17:38:59 INFO DAGScheduler: Submitting 1 missing tasks from ResultStage 0 (MapPartitionsRDD[4] at processCmd at CliDriver.java:376) (first 15 tasks are for partitions Vector(0))
22/08/28 17:38:59 INFO TaskSchedulerImpl: Adding task set 0.0 with 1 tasks
22/08/28 17:38:59 INFO TaskSetManager: Starting task 0.0 in stage 0.0 (TID 0, localhost, executor driver, partition 0, ANY, 7923 bytes)
22/08/28 17:38:59 INFO Executor: Running task 0.0 in stage 0.0 (TID 0)
22/08/28 17:38:59 INFO HadoopRDD: Input split: hdfs://localhost:9000/user/hive/warehouse/test.db/test/test.txt:0+77
22/08/28 17:39:00 INFO ContextCleaner: Cleaned accumulator 2
22/08/28 17:39:00 INFO ContextCleaner: Cleaned accumulator 0
22/08/28 17:39:00 INFO ContextCleaner: Cleaned accumulator 1
22/08/28 17:39:00 INFO ContextCleaner: Cleaned accumulator 3
22/08/28 17:39:00 INFO CodeGenerator: Code generated in 24.82466 ms
22/08/28 17:39:00 INFO LazyStruct: Missing fields! Expected 2 fields but only got 1! Ignoring similar problems.
22/08/28 17:39:00 INFO Executor: Finished task 0.0 in stage 0.0 (TID 0). 1519 bytes result sent to driver
22/08/28 17:39:00 INFO TaskSetManager: Finished task 0.0 in stage 0.0 (TID 0) in 276 ms on localhost (executor driver) (1/1)
22/08/28 17:39:00 INFO TaskSchedulerImpl: Removed TaskSet 0.0, whose tasks have all completed, from pool
22/08/28 17:39:00 INFO DAGScheduler: ResultStage 0 (processCmd at CliDriver.java:376) finished in 0.349 s
22/08/28 17:39:00 INFO DAGScheduler: Job 0 finished: processCmd at CliDriver.java:376, took 0.415864 s
0001    hadoop
0002    yarn
0003    hbase
0004    hive
0005    spark
0006    mysql
0007    flume
        NULL
Time taken: 1.392 seconds, Fetched 8 row(s)
22/08/28 17:39:00 INFO SparkSQLCLIDriver: Time taken: 1.392 seconds, Fetched 8 row(s)
spark-sql> 22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 26
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 23
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 19
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 17
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 18
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 21
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 8
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 29
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 6
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 12
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 22
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 27
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 14
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 11
22/08/28 17:51:50 INFO BlockManagerInfo: Removed broadcast_1_piece0 on hadoop1:37823 in memory (size: 4.4 KB, free: 366.2 MB)
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 5
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 13
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 28
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 9
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 4
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 7
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 10
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 25
22/08/28 17:51:50 INFO BlockManagerInfo: Removed broadcast_0_piece0 on hadoop1:37823 in memory (size: 52.3 KB, free: 366.3 MB)
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 24
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 20
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 15
22/08/28 17:51:50 INFO ContextCleaner: Cleaned accumulator 16

5. ThirftServer和beeline的使用测试

启动metastore服务

# $HIVE_HOME/bin 路径下
[root@dc6-80-235 bin]# hive --service metastore &
[1] 26437
[root@dc6-80-235 bin]# 2022-08-28 18:14:29: Starting Hive Metastore Server
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/local/hive/lib/log4j-slf4j-impl-2.10.0.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/hadoop/hadoop/share/hadoop/common/lib/slf4j-log4j12-1.7.30.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]


# 查看是否启动成功
[root@dc6-80-235 ~]# jps
22736 SparkSubmit
21106 ResourceManager
21285 NodeManager
26437 RunJar     # metastore 服务
20726 SecondaryNameNode
22438 SparkSubmit
20359 DataNode
21932 Master
20189 NameNode
26590 Jps

启动thriftserver服务

# $SPARK_HOME/bin 目录下
[root@dc6-80-235 sbin]# ./start-thriftserver.sh
starting org.apache.spark.sql.hive.thriftserver.HiveThriftServer2, logging to /opt/spark/logs/spark-root-org.apache.spark.sql.hive.thriftserver.HiveThriftServer2-1-dc6-80-235.novalocal.out
# 查看是否启动成功
[root@dc6-80-235 sbin]# jps
22736 SparkSubmit
21106 ResourceManager
21285 NodeManager
26437 RunJar
20726 SecondaryNameNode
22438 SparkSubmit
20359 DataNode
26904 Jps
21932 Master
20189 NameNode
26765 SparkSubmit # 所启动的thriftserver服务的进程号
[root@dc6-80-235 sbin]#

通过beeline链接

# 在$SPARK_HOME/bin 路径下
# !connect jdbc:hive2://主机名:端口号
beeline> !connect jdbc:hive2://hadoop1:10000
Connecting to jdbc:hive2://hadoop1:10000
Enter username for jdbc:hive2://hadoop1:10000: hive
Enter password for jdbc:hive2://hadoop1:10000: ******
22/08/28 18:29:27 INFO Utils: Supplied authorities: hadoop1:10000
22/08/28 18:29:27 INFO Utils: Resolved authority: hadoop1:10000
22/08/28 18:29:27 INFO HiveConnection: Will try to open client transport with JDBC Uri: jdbc:hive2://hadoop1:10000
Connected to: Spark SQL (version 2.4.5)
Driver: Hive JDBC (version 1.2.1.spark2)
Transaction isolation: TRANSACTION_REPEATABLE_READ
0: jdbc:hive2://hadoop1:10000>

使用sql命令访问hive中的数据

0: jdbc:hive2://hadoop1:10000> show databases;
+---------------+--+
| databaseName  |
+---------------+--+
| default       |
| test          |
+---------------+--+
2 rows selected (0.754 seconds)
0: jdbc:hive2://hadoop1:10000> use test;
+---------+--+
| Result  |
+---------+--+
+---------+--+
No rows selected (0.044 seconds)
0: jdbc:hive2://hadoop1:10000> select * from test.test;
+---------+-----------+--+
| userid  | username  |
+---------+-----------+--+
| 0001    | hadoop    |
| 0002    | yarn      |
| 0003    | hbase     |
| 0004    | hive      |
| 0005    | spark     |
| 0006    | mysql     |
| 0007    | flume     |
|         | NULL      |
+---------+-----------+--+
8 rows selected (1.663 seconds)

6.问题集锦

Hadoop错误：

Warning 1：

Failed to load native-hadoop with error: java.lang.UnsatisfiedLinkError: no hadoop in java.library.path

在/HADOOP_HOME/etc/hadoop/中的hadoop_env.sh头部添加了如下信息：

export HADOOP_COMMON_LIB_NATIVE_DIR="/usr/local/hadoop/lib/native/"
export HADOOP_OPTS="$HADOOP_OPTS -Djava.library.path=/usr/local/hadoop/lib/native/"

Warning 2：

【解决方案】

使用命令：hdfs dfsadmin -safemode leave 关闭 Hadoop 的安全模式

Warning 3：

hdfs 页面没有/tmp权限

【解决方案】

hdfs dfs -chmod -R 755 /tmp

Spark错误：

Warning 1：

Master主机正常，从从节点Worker机器中的$SPARK_HOME/logs目录下发现如下错误，从节点无法与主节点建立连接

Caused by: java.net.NoRouteToHostException: No route to host

【解决方案】

检查并关闭Master结点的防火墙

问题集锦

Hadoop错误：

Warning 1：

Failed to load native-hadoop with error: java.lang.UnsatisfiedLinkError: no hadoop in java.library.path

在/HADOOP_HOME/etc/hadoop/中的hadoop_env.sh头部添加了如下信息：

export HADOOP_COMMON_LIB_NATIVE_DIR="/usr/local/hadoop/lib/native/"
export HADOOP_OPTS="$HADOOP_OPTS -Djava.library.path=/usr/local/hadoop/lib/native/"

Warning 2：

[外链图片转存中…(img-17TInDVf-1661694827124)]

【解决方案】

使用命令：hdfs dfsadmin -safemode leave 关闭 Hadoop 的安全模式

Warning 3：

hdfs 页面没有/tmp权限

【解决方案】

hdfs dfs -chmod -R 755 /tmp

Spark错误：

Warning 1：

Master主机正常，从从节点Worker机器中的$SPARK_HOME/logs目录下发现如下错误，从节点无法与主节点建立连接

Caused by: java.net.NoRouteToHostException: No route to host

【解决方案】

检查并关闭Master结点的防火墙

WEB UI 界面

Spark中Master的UI管理界面： http://172.36.65.14:8080/
Spark中Spark-shell的UI管理界面： http://172.36.65.14:4040/
Hadoop的UI管理界面: http://172.36.65.14:9870/dfshealth.html#tab-overview

(其中172.36.65.14为Master主机IP地址)

【问题反馈】
在这里插入图片描述

最后

以上就是真实啤酒为你收集整理的spark-2.4.5编译支持Hadoop-3.3.1和Hive-3.1.2SPARK源码编译版本要求spark源码编译编译问题Spark 单机模式启动并测试Spark集群配置Spark整合hive问题集锦WEB UI 界面的全部内容，希望文章能够帮你解决spark-2.4.5编译支持Hadoop-3.3.1和Hive-3.1.2SPARK源码编译版本要求spark源码编译编译问题Spark 单机模式启动并测试Spark集群配置Spark整合hive问题集锦WEB UI 界面所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：大数据组件
浏览次数：98 次浏览
发布日期：2023-09-06 16:25:27
本文链接：https://www.kaopuke.com/article/k-p-k_14_uzo_10_f2_12__23__22_2.html

stop 未知任务 mysql_Ubuntu hive 安装过程中遇到的一些问题

hive 莫名其名爆出无法识别hadoop 版本

java.lang.IllegalArgumentException: Receiver not registered: android.widget.ZoomButtonsController

Caused by: java.lang.IllegalArgumentException: Receiver not registered: android.widget.ViewFlipper

spark-2.4.5编译支持Hadoop-3.3.1和Hive-3.1.2SPARK源码编译版本要求spark源码编译编译问题Spark 单机模式启动并测试Spark集群配置Spark整合hive问题集锦WEB UI 界面

java.lang.IllegalArgumentException: Receiver not registered

$java.lang.RuntimeException: Error receiving broadcast Intent { act=android.net.wifi.SCAN_RESULTS flg$

spark-2.4.5编译支持Hadoop-3.3.1和Hive-3.1.2SPARK源码编译版本要求spark源码编译编译问题Spark 单机模式启动并测试Spark集群配置Spark整合hive问题集锦WEB UI 界面

概述

文章目录

SPARK源码编译

版本要求

前提准备—Maven安装

前提准备—Scala安装

spark源码编译

编译问题

问题一

问题二

Spark 单机模式启动并测试

Spark集群配置

一、spark的安装路径：

二、现有系统环境变量：

三、查看并关闭防火墙

四、系统hosts设置

五、spark文件修改

六、集群启动：

七、集群测试

Spark整合hive

1. 拷贝hive中的配置文件到spark中的conf目录下

2. 拷贝hive中的mysql驱动jar包到spark中的jars目录下

3. 启动服务

4. 整合测试

5. ThirftServer和beeline的使用测试

6.问题集锦

Hadoop错误：

Spark错误：

问题集锦

Hadoop错误：

Spark错误：

WEB UI 界面

最后

评论列表共有 0 条评论

发表评论取消回复

spark-2.4.5编译支持Hadoop-3.3.1和Hive-3.1.2SPARK源码编译版本要求spark源码编译编译问题Spark 单机模式启动并测试Spark集群配置Spark整合hive问题集锦WEB UI 界面

概述

文章目录

SPARK源码编译

版本要求

前提准备—Maven安装

前提准备—Scala安装

spark源码编译

编译问题

问题一

问题二

Spark 单机模式启动并测试

Spark集群配置

一、spark的安装路径：

二、现有系统环境变量：

三、查看并关闭防火墙

四、系统hosts设置

五、spark文件修改

六、集群启动：

七、集群测试

Spark整合hive

1. 拷贝hive中的配置文件到spark中的conf目录下

2. 拷贝hive中的mysql驱动jar包到spark中的jars目录下

3. 启动服务

4. 整合测试

5. ThirftServer和beeline的使用测试

6.问题集锦

Hadoop错误：

Spark错误：

问题集锦

Hadoop错误：

Spark错误：

WEB UI 界面

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
