概述

在用PADS进行模块复用的时候，保存复用的模块，芯片的管脚字母和数字编号变为纯数字的编号，英文编号丢失。如何解决？

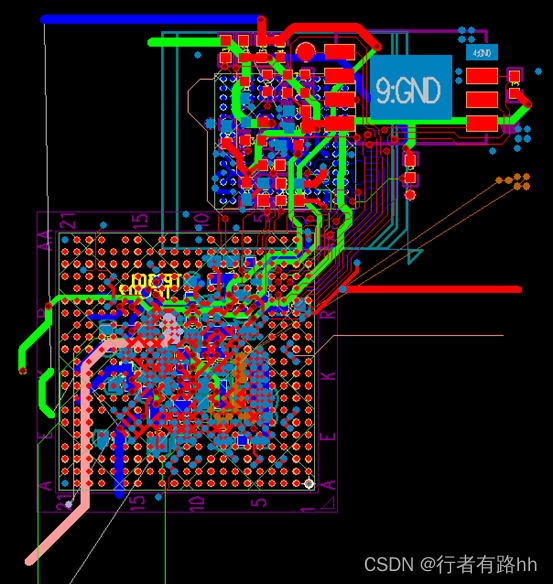

1、问题点：保存的reuse复用到PCB里面进去的时候管脚序号丢失

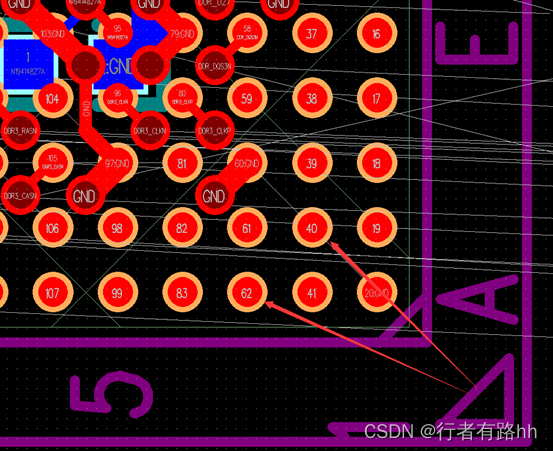

2、现象：本来英文字母和数字混合编号的管脚序号变为纯数字的，如下图

3、问题原因：Reuse复用模块保存的有问题，跟之前保存BGA封装时出现的→是否保存数字和英文混合的编号问题一样。但是保存reuse时没有跳出这个提示的对话框。

4、解决办法：后续再复用模块的时候注意下跳出下面的提示框保存数字和英文混合的编号，前面的选择框记得打勾。
