RabbitMQ 发布确认4 发布确认

133 阅读 0 评论 88 点赞

我是靠谱客的博主着急樱桃，这篇文章主要介绍RabbitMQ 发布确认4 发布确认，现在分享给大家，希望可以做个参考。

4 发布确认

4.1 发布确认原理

生产者将信道设置成confirm模式，一旦信道进入confirm模式所有在该信道上发布的消息都将会指派一个唯一ID（从1开始），一旦消息被投递到所有匹配的队列之后，broker就会发送一个确认给生产者（包含消息的唯一ID），这样生产者就知道消息已经正确到达目的队列了，如果消息和队列是可持久化的，那么消息会在将消息写入磁盘后发出；broker回传给生产者的确认消息中delivery-tag域包含了确认消息的序列号，此外broker也可以设置basic.ack的multiple域，表示这个序列号之前的消息都已经得到了处理。

confirm最大的好处是他是异步的，一旦发布消息，生产者应用程序就可以在等待信道返回的同时继续发送下一条消息，当消息最终得到确认后，生产者应用便可以通过回调方法来处理该确认消息，如果RabbitMQ因为自身内部错误导致消息丢失，就会发送一条nack消息，生产者应用程序同样可以在回调中处理该nack消息。

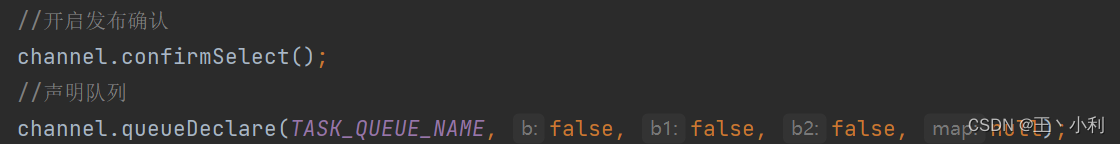

在这里插入图片描述

4.2 单个发布确认

发布一个消息之后只有他被确认之后，后续消息才能继续发布。他是一种同步确认发布

复制代码

public class ConfirmMessage {

public static final int MESSAGE_COUNT = 1000;

public static void main(String[] args) throws Exception {
        publishMessageIndividually(); //Cost Time is 497ms
        publishMessageBatch(); //Cost Time is 61ms
        publishMessageSync(); //Cost Time is 17ms
    }

//单个确认
    public static void publishMessageIndividually() throws Exception {
        Channel channel = RabbitMqUtils.getChannel();
        String queueName = UUID.randomUUID().toString();
        channel.queueDeclare(queueName, false, false, false, null);
        //发布确认
        channel.confirmSelect();
        long startTime = System.currentTimeMillis();
        for (int i = 0; i < MESSAGE_COUNT; i++) {
            String message = i + "";
            channel.basicPublish("", queueName, null, message.getBytes(StandardCharsets.UTF_8));
            //单个发布确认
            boolean confirms = channel.waitForConfirms();
            if (confirms) {
                System.out.println("消息发送成功");
            }
        }
        long endTime = System.currentTimeMillis();
        System.out.println("Cost Time is " + (endTime - startTime) + "ms");
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
public class ConfirmMessage {

    public static final int MESSAGE_COUNT = 1000;

    public static void main(String[] args) throws Exception {
        publishMessageIndividually(); //Cost Time is 497ms
        publishMessageBatch(); //Cost Time is 61ms
        publishMessageSync(); //Cost Time is 17ms
    }

    //单个确认
    public static void publishMessageIndividually() throws Exception {
        Channel channel = RabbitMqUtils.getChannel();
        String queueName = UUID.randomUUID().toString();
        channel.queueDeclare(queueName, false, false, false, null);
        //发布确认
        channel.confirmSelect();
        long startTime = System.currentTimeMillis();
        for (int i = 0; i < MESSAGE_COUNT; i++) {
            String message = i + "";
            channel.basicPublish("", queueName, null, message.getBytes(StandardCharsets.UTF_8));
            //单个发布确认
            boolean confirms = channel.waitForConfirms();
            if (confirms) {
                System.out.println("消息发送成功");
            }
        }
        long endTime = System.currentTimeMillis();
        System.out.println("Cost Time is " + (endTime - startTime) + "ms");
    }
}

4.3 批量确认发布

与单个发布确认相比，先发一批消息然后一起确认可以极大第提高吞吐量，缺点就是：当发送出现故障时，不知道哪个消息出现了问题，我们必须将整个批处理保存在内存中，以记录信息而后重新发布消息。这种方案仍是同步的。

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
//批量发布确认
public static void publishMessageBatch() throws Exception {
    Channel channel = RabbitMqUtils.getChannel();
    String queueName = UUID.randomUUID().toString();
    channel.queueDeclare(queueName, false, false, false, null);
    //发布确认
    channel.confirmSelect();
    //批量大小
    int batchSize = 100;
    long startTime = System.currentTimeMillis();
    for (int i = 0; i < MESSAGE_COUNT; i++) {
        String message = i + "";
        channel.basicPublish("", queueName, null, message.getBytes(StandardCharsets.UTF_8));
        if (i % batchSize == 0){
            channel.confirmSelect();
        }
    }
    long endTime = System.currentTimeMillis();
    System.out.println("Cost Time is " + (endTime - startTime) + "ms");
}

4.4 异步确认发布

性能高，可靠性高；推荐

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
//异步发送确认
public static void publishMessageSync() throws Exception {
    Channel channel = RabbitMqUtils.getChannel();
    String queueName = UUID.randomUUID().toString();
    channel.queueDeclare(queueName, false, false, false, null);
    //开启发布确认
    channel.confirmSelect();
    long startTime = System.currentTimeMillis();
    //消息监听器，监听哪些消息发送失败或成功
    channel.addConfirmListener(
            //消息确认成功回调 1:消息标识；2：是否批量
            (deliveryTag, multiple) -> {
                System.out.println("确认的消息：" + deliveryTag);
            },
            //消息确认失败回调 1:消息标识；2：是否批量
            (deliveryTag, multiple) -> {
                System.out.println("未确认消息：" + deliveryTag);
            });
    for (int i = 0; i < MESSAGE_COUNT; i++) {
        String message = i + "";
        channel.basicPublish("", queueName, null, message.getBytes(StandardCharsets.UTF_8));
    }
    long endTime = System.currentTimeMillis();
    System.out.println("Cost Time is " + (endTime - startTime) + "ms");
}

4.5 异步未确认消息的处理

复制代码

//异步发送确认
public static void publishMessageSync() throws Exception {
    Channel channel = RabbitMqUtils.getChannel();
    String queueName = UUID.randomUUID().toString();
    channel.queueDeclare(queueName, false, false, false, null);
    //开启发布确认
    channel.confirmSelect();
    long startTime = System.currentTimeMillis();

/**
     * 线程安全的哈希表，适用于高并发
     * 将序号与消息进行关联
     * 批量删除条目
     */
    ConcurrentSkipListMap<Long, String> outstandingConfirms = new ConcurrentSkipListMap<>();

//消息监听器，监听哪些消息发送失败或成功
    channel.addConfirmListener(
            //消息确认成功回调 1:消息标识；2：是否批量
            (deliveryTag, multiple) -> {
                if (multiple) {
                    //删除已确认的消息  headMap(deliveryTag)返回一个小于deliveryTag的子map
                    ConcurrentNavigableMap<Long, String> confirmed =
                            outstandingConfirms.headMap(deliveryTag);
                    confirmed.clear();
                } else {
                    outstandingConfirms.remove(deliveryTag);
                }
                System.out.println("确认的消息：" + deliveryTag);
            },
            //消息确认失败回调 1:消息标识；2：是否批量
            (deliveryTag, multiple) -> {
                String message = outstandingConfirms.get(deliveryTag);
                System.out.println("未确认消息：" + message);
            });
    for (int i = 0; i < MESSAGE_COUNT; i++) {
        String message = i + "";
        channel.basicPublish("", queueName, null, message.getBytes(StandardCharsets.UTF_8));
        //记录要发送的消息
        outstandingConfirms.put(channel.getNextPublishSeqNo(), message);
    }
    long endTime = System.currentTimeMillis();
    System.out.println("Cost Time is " + (endTime - startTime) + "ms");
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
//异步发送确认
public static void publishMessageSync() throws Exception {
    Channel channel = RabbitMqUtils.getChannel();
    String queueName = UUID.randomUUID().toString();
    channel.queueDeclare(queueName, false, false, false, null);
    //开启发布确认
    channel.confirmSelect();
    long startTime = System.currentTimeMillis();

    /**
     * 线程安全的哈希表，适用于高并发
     * 将序号与消息进行关联
     * 批量删除条目
     */
    ConcurrentSkipListMap<Long, String> outstandingConfirms = new ConcurrentSkipListMap<>();

    //消息监听器，监听哪些消息发送失败或成功
    channel.addConfirmListener(
            //消息确认成功回调 1:消息标识；2：是否批量
            (deliveryTag, multiple) -> {
                if (multiple) {
                    //删除已确认的消息  headMap(deliveryTag)返回一个小于deliveryTag的子map
                    ConcurrentNavigableMap<Long, String> confirmed =
                            outstandingConfirms.headMap(deliveryTag);
                    confirmed.clear();
                } else {
                    outstandingConfirms.remove(deliveryTag);
                }
                System.out.println("确认的消息：" + deliveryTag);
            },
            //消息确认失败回调 1:消息标识；2：是否批量
            (deliveryTag, multiple) -> {
                String message = outstandingConfirms.get(deliveryTag);
                System.out.println("未确认消息：" + message);
            });
    for (int i = 0; i < MESSAGE_COUNT; i++) {
        String message = i + "";
        channel.basicPublish("", queueName, null, message.getBytes(StandardCharsets.UTF_8));
        //记录要发送的消息
        outstandingConfirms.put(channel.getNextPublishSeqNo(), message);
    }
    long endTime = System.currentTimeMillis();
    System.out.println("Cost Time is " + (endTime - startTime) + "ms");
}
