Coordinate_transformation.py

'''以车位入位点作为原点，得到车身（后轮中心相对于车位点）的新坐标，以及车身角度（相对于车位线）'''

import math
def Coordinate_transformation(xy1,xy2):
    '''

    :param xy1: 入位点1的坐标
    :param xy2: 入位点2的坐标
    :return:    返回值1是车辆后轮轴的坐标，返回值2是车身相对于车位线的角度
    '''
    x1,y1=xy1[0],xy1[1]
    # print(x1,y1)
    x2,y2=xy2[0],xy2[1]
    #两个入位点的中心坐标
    x0=(xy1[0]+xy2[0])//2
    y0=(xy1[1]+xy2[1])//2

    #转换后的车身（后轮中心）坐标
    x_car=375-x0
    y_car=660-y0
    '''以750*1050的环视图为例，后轮轴中心的原始位置是（375,660）'''

    #车身角度（相对于车位线）
    if (x2-x1)==0:
        car_alp=3.14/2
    else:
        car_alp=math.atan((y2-y1)/(x2-x1))

    return (x_car,y_car),car_alp

# if __name__=="__main__":
    # xy1=(800,900)
    # xy2=(1050,900)
    # car_xy,car_alp=Coordinate_transformation(xy1,xy2)
    # print(car_xy)
    # print(car_alp)

path_planning.py

'''垂直车位和平行车位的路径规划，输入为车位的两个入位点像素坐标，输出为路径'''



import cv2
import numpy as np
import matplotlib.pyplot as plt
import math
import time
from Coordinate_transformation import Coordinate_transformation

# img = np.ones((1500, 1500, 3), np.uint8) * 225
#
# #车位线
# #车位尺寸为250*600
# img=cv2.line(img,(0,900),(1500,900),(255,0,0),2)
# img=cv2.rectangle(img,(800,1500),(1050,900),(255,0,0),2)


#车身
car_w=170   #车宽
car_h=470    #车长
L=270        #轴距
# d0=150      #起点处，车身与车位线的平行距离
# R=600       #转弯半径（可由方向盘角度控制）
r=[500,600,700]
# R1=R2=R     #R1,R2分别为第一第二个圆弧的转弯半径
dis=100      #后轮轴与车尾的距离




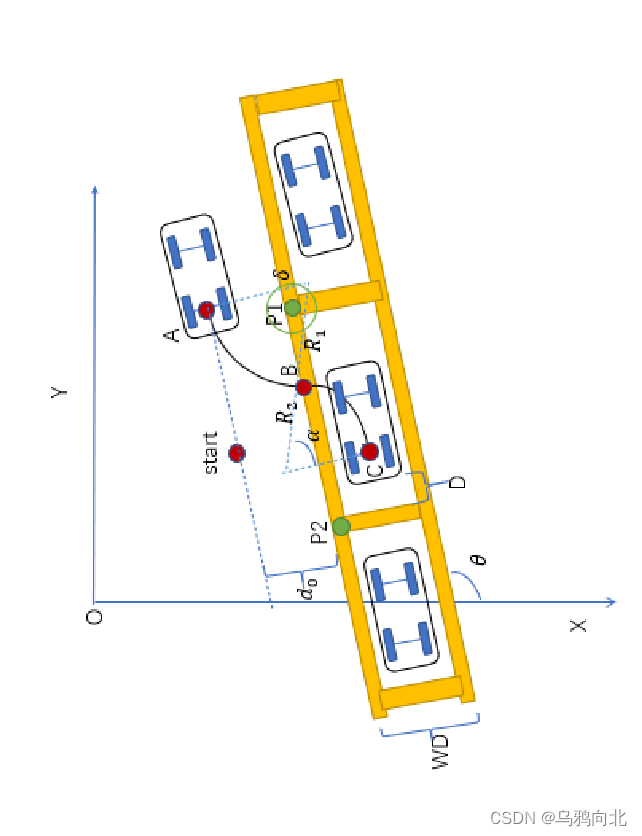

def vertical_path(xy1,xy2):
    '''
    :param xy1: 入位点1的坐标(在环视图中的坐标)
    :param xy2: 入位点2的坐标
    :param d0:  后轮轴中心距离车位线的距离
    :return:    返回垂直车位的泊车路径
    '''
    d0=abs(xy1[0]-375)
    # img = np.ones((1500, 1500, 3), np.uint8) * 225

    xy0,alp0=Coordinate_transformation(xy1,xy2)
    # print(xy0,alp0)

    #后轮轴中心坐标（以入位点为原点）
    x0=int(xy0[0])
    y0=int(xy0[1])
    print(f'后轮轴初始坐标{(x0, y0)}')



    # img = cv2.circle(img, (x0+800, y0+800), 3, (0, 0, 255), 2)

    # 车位入口点坐标
    x_1 = 0
    y_1 = -125
    x_2 = 0
    y_2 = 125

    # 切换点c的坐标计算
    x_c = (x_1 + x_2) // 2 + L // 2
    y_c = (y_1 + y_2) // 2
    print(f"c点坐标{(x_c, y_c)}")
    D = L // 2

    # img = cv2.circle(img, (x_c+800, y_c+800), 3, (0, 0, 255), 2)

    list_all=[] #用于存放路径离散点
    for R in r:
        R1=R2=R
        # 圆心O2的坐标计算
        x_o2 = x_c
        y_o2 = y_c-R2

        # 切换点b的坐标计算
        alp = math.asin((d0 + R2 + D) / (R1+R2))      #alp为切换点c到切换点b的转动角度
        x_b = (x_o2 - R2 * (math.sin(alp))) // 1
        y_b = (y_o2 + R2 * (math.cos(alp))) // 1
        x_b = int(x_b)
        y_b = int(y_b)
        print(f'B点坐标{(x_b, y_b)}')
        # img = cv2.circle(img, (x_b+800, y_b+800), 3, (0, 0, 255), 2)

        # 圆心O1的坐标计算
        x_o1 = x_o2 - (R1+R2) * (math.sin(alp))
        y_o1 = y_o2 + (R1+R2) * (math.cos(alp))
        x_o1 = int(x_o1)
        y_o1 = int(y_o1)

        # 切换点A的坐标计算
        x_a = int(x_o1+R1)
        y_a = int(y_o1)
        print(f'A点坐标{(x_a, y_a)}')
        # img = cv2.circle(img, (x_a+800, y_a+800), 3, (0, 0, 255), 2)

        # 结束点后轮轴中心坐标
        x_end = int((x_1 + x_2) // 2 + car_h)
        y_end = int((y_1 + y_2) // 2)
        print(f'后轮轴结束坐标{(x_end, y_end)}')
        # img = cv2.circle(img, (x_end+800, y_end+800), 3, (0, 0, 255), 2)

        #从初始点到A点
        list0=[]
        for y in range(y_a,y0):
            list0.append((x0,y))
        list0.reverse()
        # img = cv2.line(img, (x0+800, y0+800), (x_a+800, y_a+800), (0, 0, 0), 2)



        list1 = []

        #从a点到b点
        for x in range( x_b,x_a):
            y = int(-math.sqrt(R ** 2 - (x - x_o1) ** 2) + y_o1)
            list1.append((x,y))
            # img = cv2.circle(img, (x+800, y+800), 2, (0, 0, 255), 2)
        list1.reverse()
        print(list1[1])

        list2 = []
        #从b点到c点
        for x in range(x_b, x_c):
            y = int(math.sqrt(R ** 2 - (x - x_o2) ** 2) + y_o2)
            # img = cv2.circle(img, (x+800, y+800), 2, (0, 0, 255), 2)

            list2.append((x,y))
            # list2.append(x)
            # list2.append(y)
        # arr2 = np.array(list2, np.int).reshape(1, x_b - x_c, 2)
        # img = cv2.polylines(img, arr2, False, (255, 0, 0))

        #从c点到结束点
        list3=[]
        for x in range(x_c,x_end):
            list3.append((x,y_end))
        # img = cv2.line(img, (x_c+800, y_c+800), (x_end+800, y_end+800), (0, 0, 0), 2)

        list_all.append(list0+list1+list2+list3)    #不同半径下产生的路径
    # print(type(list_all[1][1][0]))


    return list_all



def parallel_path(xy1,xy2):
    '''

    :param xy1: 入位点1的坐标
    :param xy2: 入位点2的坐标
    :return:
    '''
    d0 = abs(xy1[0] - 375)   #初始位置后轮轴到车位线的距离

    xy0,alp0=Coordinate_transformation(xy1,xy2)
    # print(xy0,alp0)

    #后轮轴中心坐标（以入位点为原点）
    x0=int(xy0[0])
    y0=int(xy0[1])
    print(f'后轮轴初始坐标{(x0, y0)}')


    #入位点坐标
    x_1 = 0
    y_1 = -300
    x_2 = 0
    y_2 = 300

    #点c的坐标计算
    x_c=int(x_1+250/2)
    y_c=int((y_1+y_2)/2+2*L/3)

    list_all=[] #用于存放路径离散点
    for R in r:
        R1=R2=R
        #圆心02的坐标计算
        x_o2=x_c-R2
        y_o2=y_c

        #第二段圆弧的角度计算
        alp=math.acos(1-(d0+250/2)/(R1+R2))

        #切换点b的坐标计算
        x_b=int(x_o2+R2*math.cos(alp))
        y_b=int(y_o2-R2*math.sin(alp))

        #圆心o1的坐标计算
        x_o1=int(x_b+R1*math.cos(alp))
        y_o1=int(y_b-R1*math.sin(alp))

        #切换点A的计算
        x_a=int(x_o1-R1)
        y_a=int(y_o1)

        # 从初始点到A点的路径
        list0 = []
        for y in range(y_a, y0):
            list0.append((x0, y))
        list0.reverse()
        # img = cv2.line(img, (x0+800, y0+800), (x_a+800, y_a+800), (0, 0, 0), 2)


        # 从a点到b点
        list1 = []
        for x in range(x_a, x_b):
            y = int(math.sqrt(R1 ** 2 - (x - x_o1) ** 2) + y_o1)
            list1.append((x, y))
            # img = cv2.circle(img, (x+800, y+800), 2, (0, 0, 255), 2)
        # print(list1[1])

        list2 = []
        # 从b点到c点
        for x in range(x_b, x_c):
            y = int(-math.sqrt(R2 ** 2 - (x - x_o2) ** 2) + y_o2)
            # img = cv2.circle(img, (x+800, y+800), 2, (0, 0, 255), 2)

            list2.append((x, y))
            # list2.append(x)
            # list2.append(y)
        # arr2 = np.array(list2, np.int).reshape(1, x_b - x_c, 2)
        # img = cv2.polylines(img, arr2, False, (255, 0, 0))



        list_all.append(list0+list1+list2)    #不同半径下产生的路径以列表的形式存放在list_all中

    return list_all



# 画图函数
def show(xy1,xy2):
    img = np.ones((1500, 1500, 3), np.uint8) * 225
    img01 = np.ones((1500, 1500, 3), np.uint8) * 225


    if 150<abs(xy1[1]-xy2[1])<350:   #垂直车位
        if xy1[1]> xy2[1]:
            xy1,xy2=xy2,xy1
        cv2.rectangle(img,(0+xy1[0],-125+xy1[1]),(0+xy1[0]+600,-125+xy1[1]+250),(255,0,0),2)
        cv2.rectangle(img01,(0+xy1[0],-125+xy1[1]),(0+xy1[0]+600,-125+xy1[1]+250),(255,0,0),2)

        path=vertical_path(xy1,xy2)

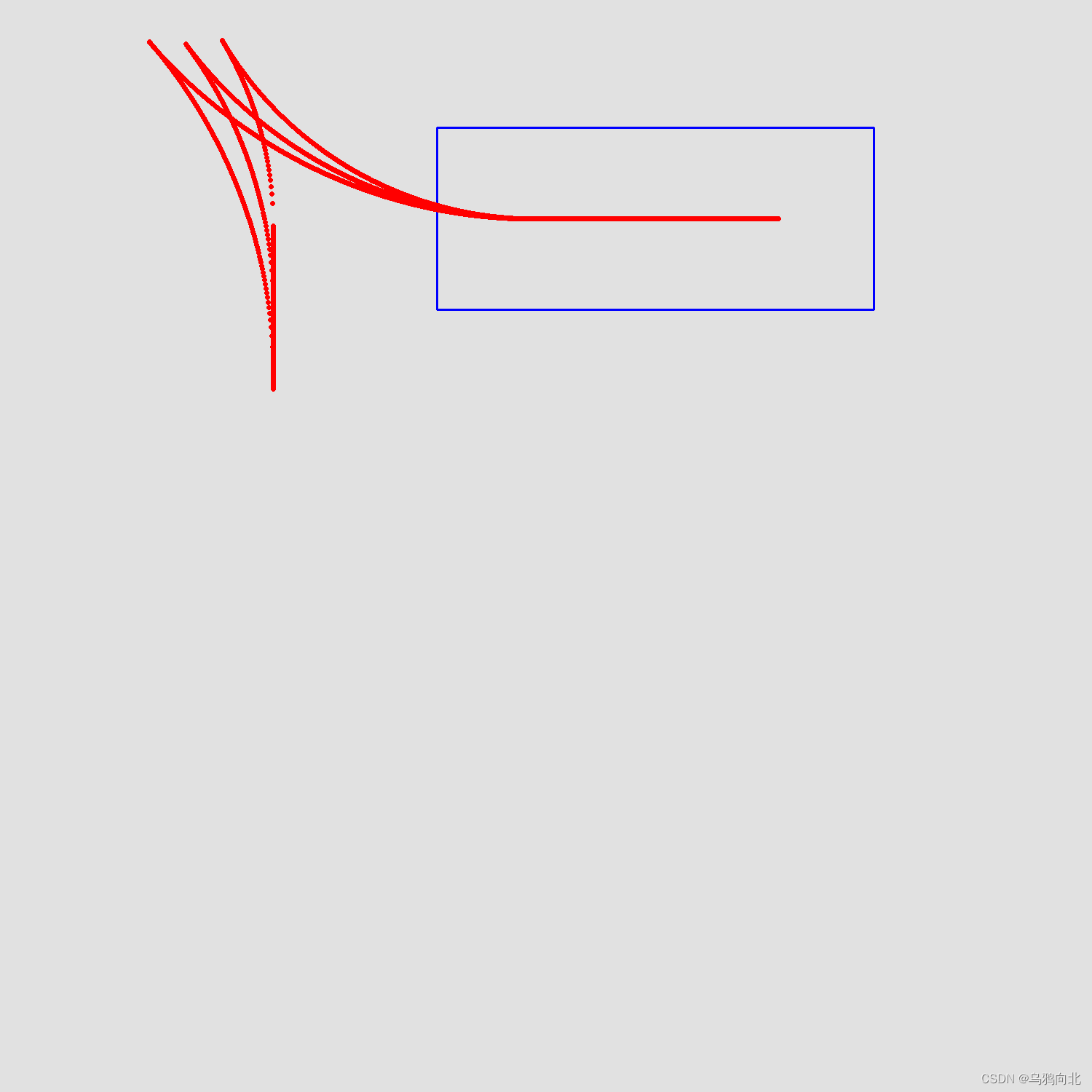

        #画出所有情况下的路径
        for i in range(len(path)):
            for j in path[i]:
                # print(i)
                img = cv2.circle(img, (j[0]+xy1[0], j[1]+xy1[1]), 2, (0, 0, 255), 2)
        cv2.imwrite('vertical_demo.png',img)
        plt.imshow(img[:,:,::-1])
        plt.title("frame")
        plt.show()

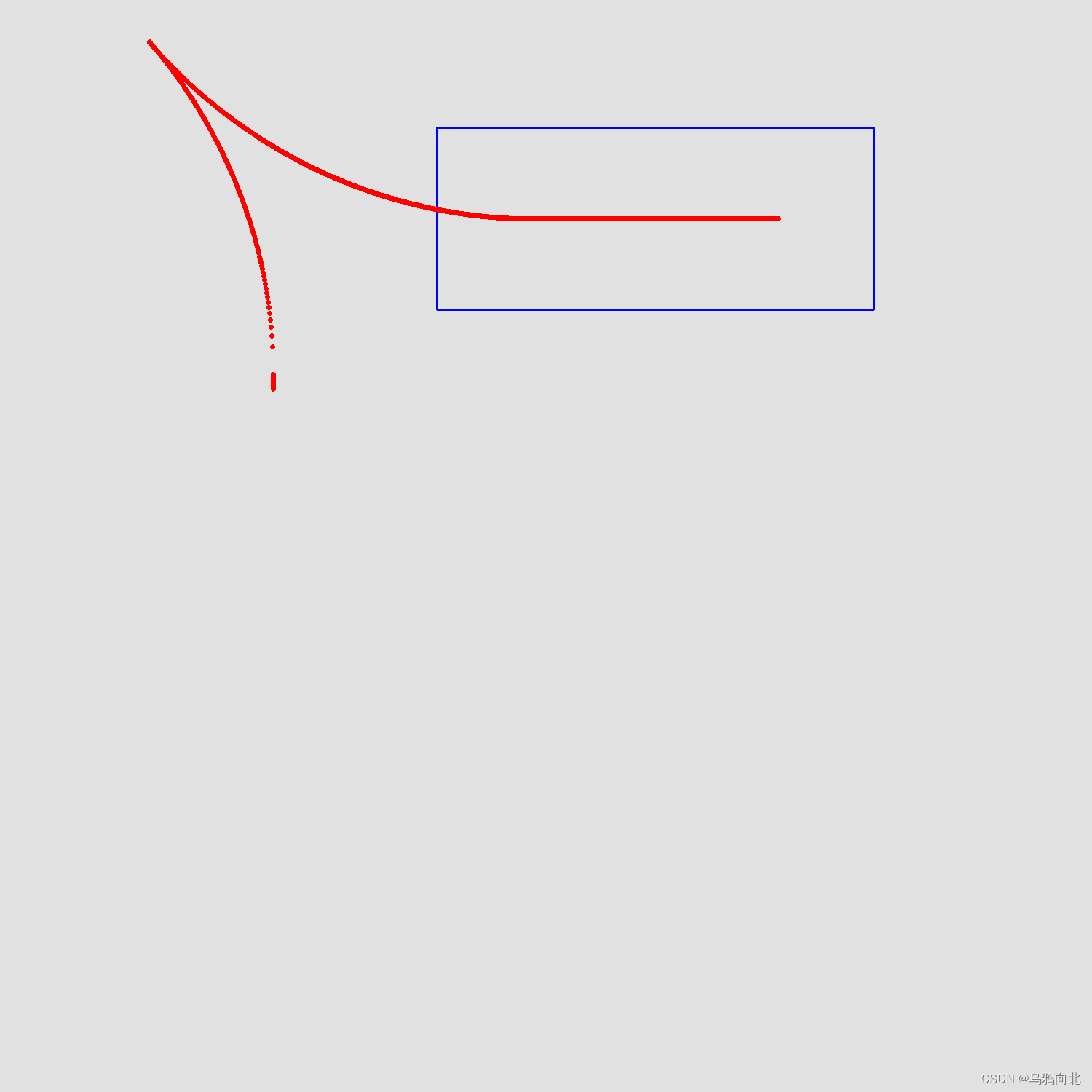

        # 画出最优路径（依据就是路径在入位时距离中心点最近）
        y_list = []
        for i in range(len(path)):
            for j in range(len(path[i])):
                if path[i][j][0] == 0:
                    y = path[i][j][1]
                    y_list.append(y)
        y_center_list = []
        for i in range(len(y_list)):
            y_center = abs(y_list[i])
            y_center_list.append(y_center)
        y_center = min(y_center_list)
        i = y_center_list.index(y_center)
        final_path=path[i]
        for i in final_path:
            # print(i[0])
            img = cv2.circle(img01, (i[0] + xy1[0], i[1] + xy1[1]), 2, (0, 0, 255), 2)
        cv2.imwrite('vertical_demo01.png',img01)
        plt.imshow(img01[:, :, ::-1])
        plt.title("frame01")
        plt.show()




    if 500<abs(xy1[1]-xy2[1])<700:  #平行车位
        if xy1[1]> xy2[1]:
            xy1,xy2=xy2,xy1
        cv2.rectangle(img, (0 + xy1[0], -300 + xy1[1]), (0 + xy1[0] + 250, -125 + xy1[1] + 600), (255, 0, 0), 2)
        cv2.rectangle(img01, (0 + xy1[0], -300 + xy1[1]), (0 + xy1[0] + 250, -125 + xy1[1] + 600), (255, 0, 0), 2)

        path = parallel_path(xy1, xy2)

        #画出所有情况下的路径
        for i in range(len(path)):
            for j in path[i]:
                # print(i)
                img = cv2.circle(img, (j[0]+xy1[0], j[1]+xy1[1]), 2, (0, 0, 255), 2)
        cv2.imwrite('parallel_demo.png',img)
        plt.imshow(img[:,:,::-1])
        plt.title("frame")
        plt.show()

        # 画出最优路径（依据就是路径在入位时距离中心点最近）
        y_list = []
        for i in range(len(path)):
            for j in range(len(path[i])):
                if path[i][j][0] == 0:
                    y = path[i][j][1]
                    y_list.append(y)
        y_center_list = []
        for i in range(len(y_list)):
            y_center = abs(y_list[i])
            y_center_list.append(y_center)
        y_center = min(y_center_list)
        i = y_center_list.index(y_center)
        final_path=path[i]
        for i in final_path:
            # print(i[0])
            img = cv2.circle(img01, (i[0] + xy1[0], i[1] + xy1[1]), 2, (0, 0, 255), 2)
        cv2.imwrite('parallel_demo01.png',img01)
        plt.imshow(img01[:, :, ::-1])
        plt.title("frame01")
        plt.show()
        # for i in path:
        #     img = cv2.circle(img, (i[0] + 800, i[1] + 800), 2, (0, 0, 255), 2)
        # cv2.imwrite('parallel_demo.png',img)
        # plt.imshow(img[:, :, ::-1])
        # plt.title("frame")
        # plt.show()


#将两种情况的路径规划函数综合到一个主函数
def path(xy1,xy2):
    if 150 < abs(xy1[1] - xy2[1]) < 350:  # 垂直车位
        path=vertical_path(xy1,xy2)
        y_list = []
        for i in range(len(path)):
            for j in range(len(path[i])):
                if path[i][j][0] == 0:
                    y = path[i][j][1]
                    y_list.append(y)
        y_center_list = []
        for i in range(len(y_list)):
            y_center = abs(y_list[i])
            y_center_list.append(y_center)
        y_center = min(y_center_list)
        i = y_center_list.index(y_center)
        final_path=path[i]
        return final_path

    if 500 < abs(xy1[1] - xy2[1]) < 700:  # 平行车位
        path=parallel_path(xy1,xy2)
        y_list=[]
        for i in range(len(path)):
            for j in range(len(path[i])):
                if path[i][j][0] == 0:
                    y = path[i][j][1]
                    y_list.append(y)
        y_center_list = []
        for i in range(len(y_list)):
            y_center = abs(y_list[i])
            y_center_list.append(y_center)
        y_center = min(y_center_list)
        i = y_center_list.index(y_center)
        final_path=path[i]
        return final_path




if __name__=='__main__':
    #垂直车位的例子
    # xy1=(600,300)
    # xy2=(600,550)

    #平行车位的例子
    xy1=(600,800)
    xy2=(600,1400)

    # show(xy1,xy2)

    final_path=path(xy1,xy2)
    print(final_path)

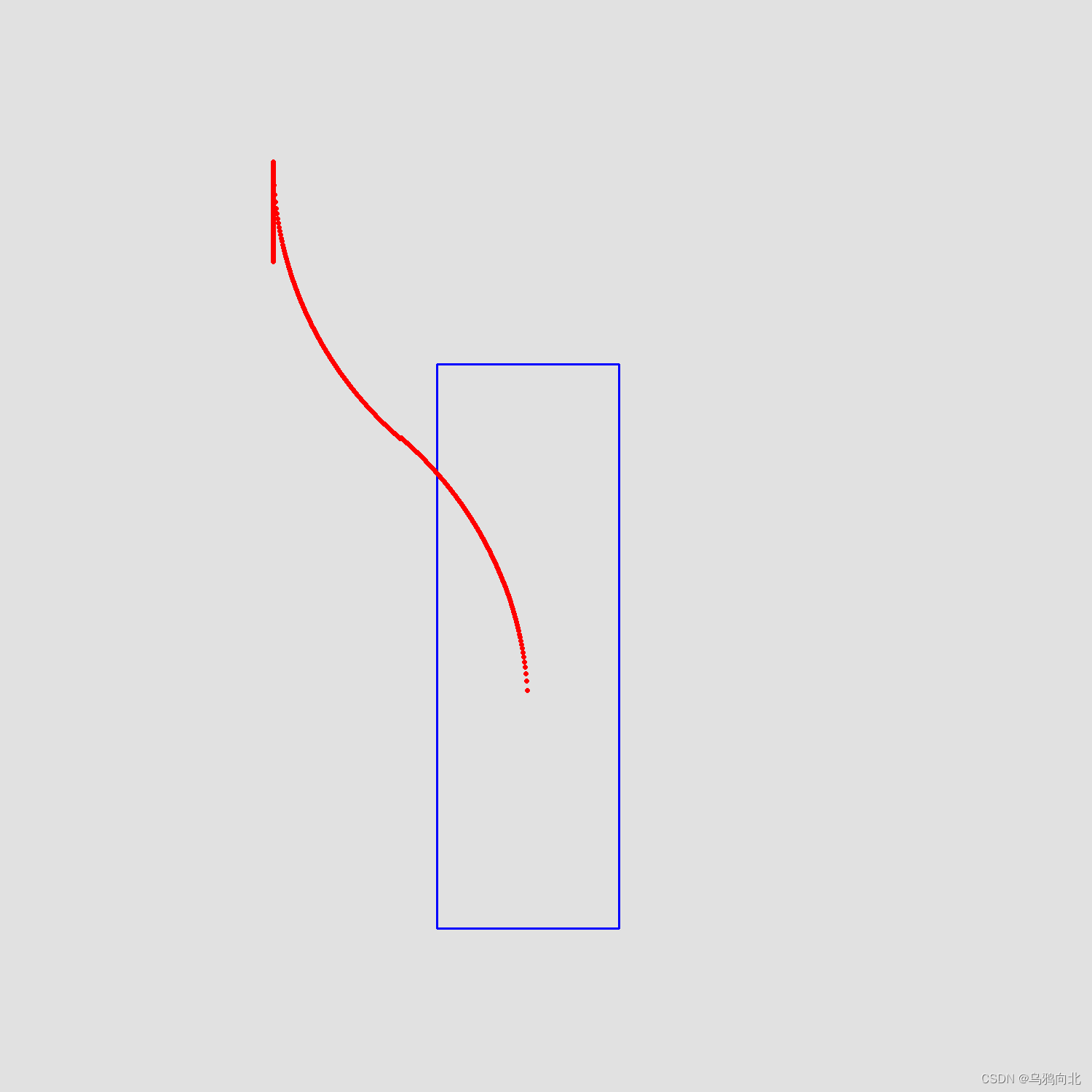

平行车位

垂直车位

最后
