概述

码字不易，多谢支持

1、名词解释

ITS是一个对Android摄像头生成的图像进行测试的框架。每个测试的一般目标是按照所需的方式配置相机并捕获一个或

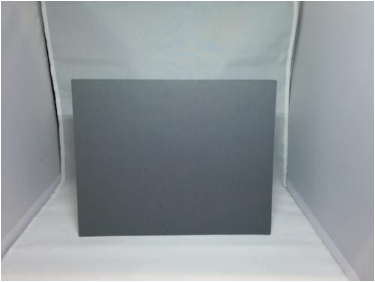

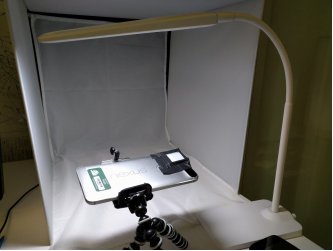

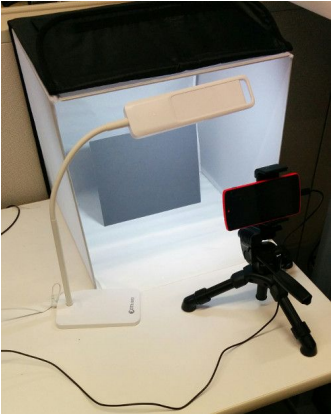

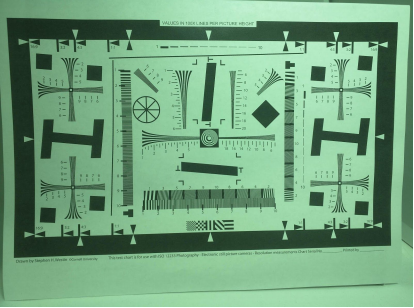

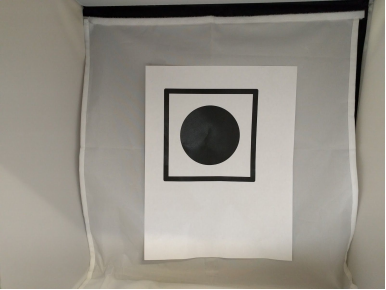

更多的照片，然后检查这些照片，看看它们是否包含预期的图像数据。许多在这些测试中，将要求照相机对着一个特定的目标图或被照亮特定的强度。它的框架位于KitKat的Android源代码的pdk/apps/区域版本，但是转移到CTS验证器测试装具中(在源代码的CTS /区域下)。

2、环境准备

从http://source.android.com/compatibility/downloads.html 中下载CTS Verifier的测试包并解压

android-cts-verifierandroid-cts-verifierCameraITSCameraITS.pdf

1、安装adb

sudo apt-get install adb

2、下载android-cts-verifier

从谷歌官网上下载，解压

        sudo apt-get install python-numpy
        sudo apt-get install python-scipy
        sudo apt-get install python-matplotlib
      sudo apt-get install python-opencv

        sudo apt install openjdk-11-jdk

运行完上面步骤后：

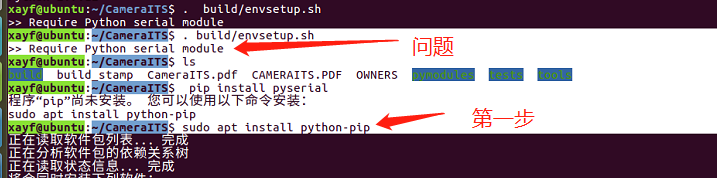

需要 source build/envsetup.sh 检查环境。可能会遇到下面的问题：

参考链接：https://blog.csdn.net/zwl1584671413/article/details/80305920

可能遇到的问题：

问题：E: Package 'python-scipy' has no installation candidate 等

test@test-HP-ProDesk-680-G4-MT:/usr/local$ sudo apt-get install python-scipy
Reading package lists... Done
Building dependency tree
Reading state information... Done
Package python-scipy is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source
E: Package 'python-scipy' has no installation candidate
vivotest@vivotest-HP-ProDesk-680-G4-MT:/usr/local$ sudo apt-get install python-matplotlib
Reading package lists... Done
Building dependency tree
Reading state information... Done
Package python-matplotlib is not available, but is referred to by another package.
This may mean that the package is missing, has been obsoleted, or
is only available from another source
E: Package 'python-matplotlib' has no installation candidate
vivotest@vivotest-HP-ProDesk-680-G4-MT:/usr/local$ sudo apt-get install python-opencv
Reading package lists... Done
Building dependency tree
Reading state information... Done
E: Unable to locate package python-opencv

分析：大概率你用的是python3，而不是python2。

命令输入python3 OR python2 去查看

解决方法：sudo apt-get install python3-scipy 等命令

https://askubuntu.com/questions/1276852/e-package-python-scipy-has-no-installation-candidate-ubuntu-20-04

3、安装Android SDK platform tools

android-sdk下载地址：http://tools.android-studio.org/index.php/sdk/

       配置/etc/profile
      export ANDROID_HOME=/usr/local/android-sdk/android-sdk-linux
      export PATH=${PATH}:${ANDROID_HOME}/tools
      export PATH=${PATH}:${ANDROID_HOME}/platform-tools

生效环境变量配置，命令行输入：source /etc/profile

检查sdk安装成功：android -h

4、手机上安装CtsVerifier.apk
