veins中实现rsu与车辆通信

受博客 https://blog.csdn.net/PERSEUS_/article/details/105647598
的启发，学习之后，自己试着实现一个小例子：rsu广播自己的id等信息，车辆收到后将rsu的id记录下来。

一、创建msg消息

1 在路径veins/modules/application/traci/创建BeaconRSU.msg

cplusplus{{
#import "veins/base/utils/Coord.h"
#import "veins/modules/utility/Consts80211p.h"
#include "veins/modules/messages/BaseFrame1609_4_m.h"
#include "veins/base/utils/SimpleAddress.h"
}};
namespace veins;
class noncobject Coord;
class BaseFrame1609_4;
packet BeaconRSU extends BaseFrame1609_4{
//id of the originator
int RSUId = 0;
Coord position[100];
double beaconrate[100];
string myDemoData;
Coord slotpos;
simtime_t timestamp = 0;
}

2 build project后生成对应的.h和.cc文件

二、创建RSU的应用层实现类

在我的设定中，rsu用来发送消息，将原有的MyVeinsApp复制一份，重命名为MyVeinsAppRSU，在头文件中增加

cMessage* sendBeacon;

MyVeinsAppRSU.cc文件中，初始化函数中发送一个自消息

void MyVeinsAppRSU::initialize(int stage)
{
DemoBaseApplLayer::initialize(stage);
if (stage == 0) {
sendBeacon = new cMessage("send Beacon");
EV << "Initializing " << par("appName").stringValue() << std::endl;
}
else if (stage == 1) {
if (sendBeacon->isScheduled()) {
cancelEvent(sendBeacon);
}
scheduleAt(simTime()+5,sendBeacon);
}
}

再重写一下handleSelfMsg函数

void MyVeinsAppRSU::handleSelfMsg(cMessage* msg)
{
if (msg == sendBeacon) {
BeaconRSU* rsuBeacon = new BeaconRSU();
rsuBeacon->setRSUId(this->getParentModule()->getIndex());
rsuBeacon->setMyDemoData("RSU message!!");
//
新建WSM，这是应用层和MAC层通信的消息
BaseFrame1609_4* WSM = new BaseFrame1609_4();
//把rsuBeacon封装在WSM中
WSM->encapsulate(rsuBeacon);
//设置WSM的基本信息
populateWSM(WSM);
send(WSM,lowerLayerOut);
EV << "rsu send success" <<endl;
if (simTime() < 2000) {
scheduleAt(simTime()+1,sendBeacon);
}
return;
}
}

这样，rsu就可以实现发送消息的功能了

三、创建车辆的应用层实现类

车辆用来接收rsu的消息，所以只用重写initialize和handleLowerMsg函数，继续将原有的MyVeinsApp复制一份，重命名为MyVeinsAppCar，头文件如下

#pragma once
#include "veins/veins.h"
#include "veins/modules/application/ieee80211p/DemoBaseApplLayer.h"
#include "veins/modules/application/traci/RSUBeacon_m.h"
using namespace omnetpp;
namespace veins {
class VEINS_API MyVeinsAppCar : public DemoBaseApplLayer {
public:
void initialize(int stage) override;
void finish() override;
protected:
void onBSM(DemoSafetyMessage* bsm) override;
void onWSM(BaseFrame1609_4* wsm) override;
void onWSA(DemoServiceAdvertisment* wsa) override;
void handleLowerMsg(cMessage* msg) override;
void handleSelfMsg(cMessage* msg) override;
void handlePositionUpdate(cObject* obj) override;
cOutVector RSUIndex;
int a;
};
} // namespace veins

在MyVeinsAppCar.cc中，initialize函数如下，其中RSUIndex用来记录收到消息的rsu的id

void MyVeinsAppCar::initialize(int stage)
{
DemoBaseApplLayer::initialize(stage);
if (stage == 0) {
EV << "Initializing " << par("appName").stringValue() << std::endl;
int a = INT_MIN;
}
else if (stage == 1) {
RSUIndex.setName("test");
int a = INT_MIN;
}
}

handleLowerMsg函数如下:

void MyVeinsAppCar::handleLowerMsg(cMessage* msg) {
EV << "receive message
!!!" << endl;
//消息传换成WSM
BaseFrame1609_4* WSM = check_and_cast<BaseFrame1609_4*>(msg);
//从WSM中解封数据包
cPacket* enc = WSM->getEncapsulatedPacket();
//数据包转换成BeaconRSU
BeaconRSU* bc = dynamic_cast<BeaconRSU*>(enc);
if(a!=bc->getRSUId()){
RSUIndex.record(bc->getRSUId());
a=bc->getRSUId();
}
EV << "my message = " <<bc->getMyDemoData()<<endl;
EV <<"send message RSU id:" <<bc->getRSUId() << "
Receive successfully !!!!!!!!!!!" << endl;
}

四、在ini文件中修改配置信息

在ini文件中，进行如下修改

*.rsu[*].applType = "MyVeinsAppRSU"
*.node[*].applType = "MyVeinsAppCar"

五、结果

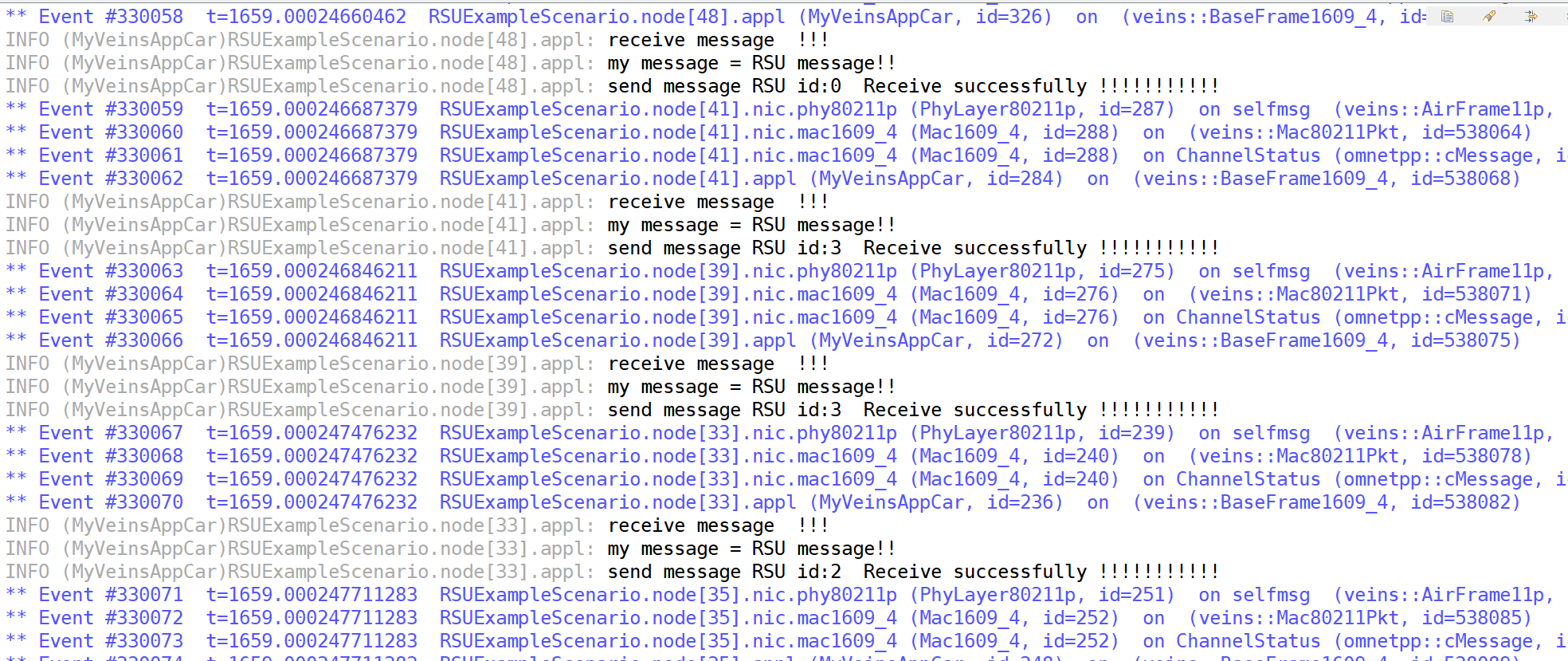

运行之后，就可以观察到车辆收到消息,如下图所示
