如何用C++实现A*寻路算法

1
2
3
//假设已经定义Width和Height分别为地图的长和宽
bool barrierList[Width][Height];
bool closetList[Width][Height];

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
#include <iostream>
#include <list>
#include <vector>
#include <queue>

struct OpenPoint{
    int x;
    int y;
    int cost;                 // 耗费值
    int pred;                 // 预测值
    OpenPoint* father;        // 父节点
    OpenPoint() = default;
    OpenPoint(int pX,int pY, int endX, int endY, int c, OpenPoint* fatherp) : x(pX),y(pY),cost(c), father(fatherp) {
        //相对位移x,y取绝对值
        int relativeX = std::abs(endX - pX);
        int relativeY = std::abs(endY - pY);
        //x,y偏移值n
        int n = relativeX - relativeY;
        //预测值pred = (max–n)*14+n*10+c
        pred = std::max(relativeX, relativeY) * 14 - std::abs(n) * 4 + c;
    }
};

//比较器，用以优先队列的指针类型比较
struct OpenPointPtrCompare {
    bool operator()(OpenPoint* a, OpenPoint* b) {
        return a->pred > b->pred;
    }
};

const int width = 30;            //地图长度
const int height = 100;          //地图高度
char mapBuffer[width][height];   //地图数据
int depth = 0;                   //记录深度
const int depthLimit = 2000;     //深度限制
bool closeAndBarrierList[width][height];    //记录障碍物+关闭点的二维表
//八方的位置
int direction[8][2] = { {1,0},{0,1},{-1,0},{0,-1},{1,1},{ -1,1 },{ -1,-1 },{ 1,-1 } };
//使用最大优先队列
std::priority_queue<OpenPoint*, std::vector<OpenPoint*>, OpenPointPtrCompare> openlist;
//存储OpenPoint的内存空间
std::vector<OpenPoint> pointList = std::vector<OpenPoint>(depthLimit);

//是否在障碍物或者关闭列表
inline bool inBarrierAndCloseList(int pX,int pY) {
    if (pX < 0 || pY < 0 || pX >= width || pY >= height)
        return true;
    return closeAndBarrierList[pX][pY];
}

//创建一个开启点
inline OpenPoint* createOpenPoint(int pX,int pY,int endX,int endY, int c, OpenPoint* fatherp) {
    pointList.emplace_back(pX,pY,endX,endY, c, fatherp);
    return &pointList.back();
}

// 开启检查，检查父节点
void open(OpenPoint& pointToOpen, int endX,int endY) {
    //将父节点从openlist移除
    openlist.pop();
    //深度+1
    depth++;
    //检查p点八方的点
    for (int i = 0; i < 4; ++i)
    {
        int toOpenX = pointToOpen.x + direction[i][0];
        int toOpenY = pointToOpen.y + direction[i][1];
        if (!inBarrierAndCloseList(toOpenX,toOpenY)) {
            openlist.push(createOpenPoint(toOpenX, toOpenY, endX,endY, pointToOpen.cost + 10, &pointToOpen));
        }
    }
    for (int i = 4; i < 8; ++i)
    {
        int toOpenX = pointToOpen.x + direction[i][0];
        int toOpenY = pointToOpen.y + direction[i][1];
        if (!inBarrierAndCloseList(toOpenX, toOpenY)) {
            openlist.push(createOpenPoint(toOpenX, toOpenY, endX, endY, pointToOpen.cost + 14, &pointToOpen));
        }
    }
    //最后移入closelist
    closeAndBarrierList[pointToOpen.x][pointToOpen.y] = true;
}

//开始搜索路径
std::list<OpenPoint*> findway(int startX,int startY, int endX,int endY) {
    std::list<OpenPoint*> road;
    // 创建并开启一个父节点
    openlist.push(createOpenPoint(startX,startY, endX,endY, 0, nullptr));
    OpenPoint* toOpen = nullptr;
    //重复寻找预测和花费之和最小节点开启检查
    while (!openlist.empty())
    {
        toOpen = openlist.top();
        // 找到终点后，则停止搜索
        if (toOpen->x == endX && toOpen->y ==endY) {break;}//若超出一定深度(1000深度)，则搜索失败
        if (depth >= depthLimit) {
            toOpen = nullptr;
            break;
        }
        open(*toOpen, endX,endY);
    }
    for (auto rs = toOpen; rs != nullptr; rs = rs->father) {road.push_back(rs);}
    return road;
}

//创建地图
void createMap() {
    for (int i = 0; i < width; ++i)
        for (int j = 0; j < height; ++j) {
            //五分之一概率生成障碍物，不可走
            if (rand() % 5 == 0) {
                mapBuffer[i][j] = '*';
                closeAndBarrierList[i][j] = true;
            }
            else {
                mapBuffer[i][j] = ' ';
                closeAndBarrierList[i][j] = false;
            }
        }
}

//打印地图
void printMap() {
    for (int i = 0; i < width; ++i) {
        for (int j = 0; j < height; ++j)
            std::cout << mapBuffer[i][j];
        std::cout << std::endl;
    }
    std::cout << std::endl << std::endl << std::endl;
}

int main() {
    //起点
    int beginX = 0;
    int beginY = 0;
    //终点
    int endX = 29;
    int endY = 99;
    //创建地图
    createMap();
    //保证起点和终点都不是障碍物
    mapBuffer[beginX][beginY] = mapBuffer[endX][endY] = ' ';
    closeAndBarrierList[beginX][beginY] = closeAndBarrierList[endX][endY] = false;
    //A*搜索得到一条路径
    std::list<OpenPoint*> road = findway(beginX,beginY,endX,endY);

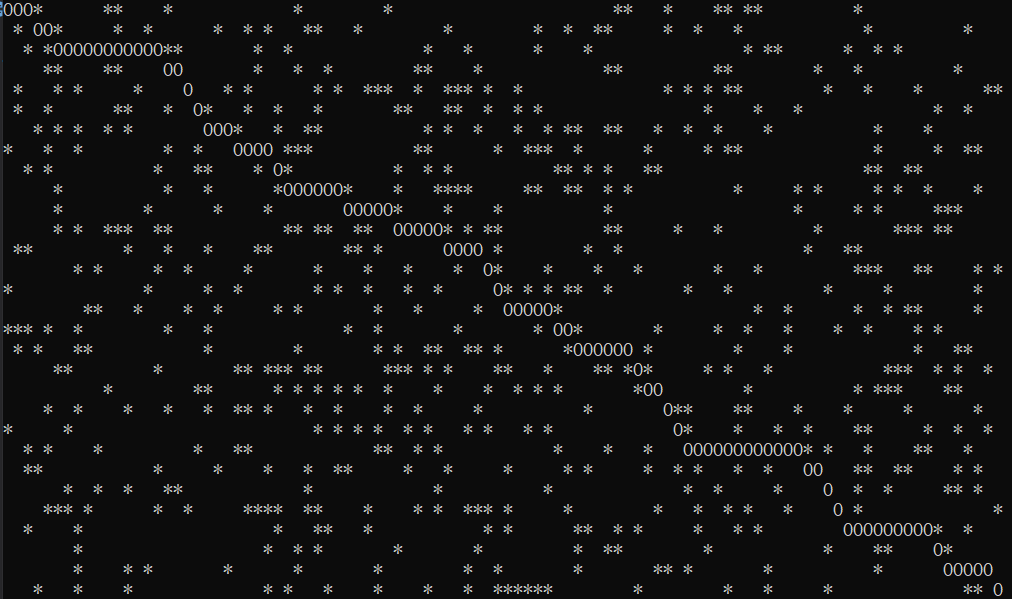

    //将A*搜索的路径经过的点标记为'O'
    for (auto& p : road){mapBuffer[p->x][p->y] = 'O';}
    //打印走过路后的地图
    printMap();
    system("pause");
    return 0;
}
