Android自定义View实现直播点赞特效

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
import android.animation.Animator;
import android.animation.AnimatorSet;
import android.animation.ObjectAnimator;
import android.animation.TypeEvaluator;
import android.animation.ValueAnimator;
import android.content.Context;
import android.graphics.PointF;
import android.graphics.drawable.Drawable;
import android.util.AttributeSet;
import android.view.View;
import android.view.animation.AccelerateDecelerateInterpolator;
import android.view.animation.AccelerateInterpolator;
import android.view.animation.DecelerateInterpolator;
import android.view.animation.Interpolator;
import android.view.animation.LinearInterpolator;
import android.widget.ImageView;
import android.widget.RelativeLayout;
import com.xinrui.ndkapp.R;
import java.util.Random;

/**
 * Created by liuyong
 * Data: 2017/8/8
 * Github:https://github.com/MrAllRight
 * 直播点赞view
 */

public class GivePraiseView extends RelativeLayout {
 private RelativeLayout.LayoutParams layoutParams;//图片布局参数
 private PointF mPointF0, mPointF1, mPointF2, mPointF3;//通过3阶贝塞尔曲线控制图片的移动轨迹
 private int mScreenWidth, mScreenHeight;//屏幕宽高
 private Drawable[] mImageDrawables;//加载点赞红心图片，红黄蓝
 private int mDrawableWidth, mDrawableHeight;//图片的宽高
 private Random mRandom = new Random();
 private int count = 0;
 private Interpolator[] interpolators = new Interpolator[4];

 public GivePraiseView(Context context) {
  super(context);
  init();
 }

 public GivePraiseView(Context context, AttributeSet attrs, int defStyleAttr) {
  super(context, attrs, defStyleAttr);
  init();
 }

 public GivePraiseView(Context context, AttributeSet attrs) {
  super(context, attrs);
  init();
 }

 @Override
 protected void onSizeChanged(int w, int h, int oldw, int oldh) {
  super.onSizeChanged(w, h, oldw, oldh);
  mScreenHeight = h;
  mScreenWidth = w;
 }

 //初始化drawable，layoutParams
 private void init() {
  mImageDrawables = new Drawable[4];
  mImageDrawables[0] = getResources().getDrawable(R.drawable.pl_blue);
  mImageDrawables[1] = getResources().getDrawable(R.drawable.pl_red);
  mImageDrawables[2] = getResources().getDrawable(R.drawable.pl_yellow);
  mImageDrawables[3] = getResources().getDrawable(R.drawable.pl_red);
  // 插值器
  interpolators[0] = new AccelerateDecelerateInterpolator(); // 在动画开始与结束的地方速率改变比较慢，在中间的时候加速
  interpolators[1] = new AccelerateInterpolator(); // 在动画开始的地方速率改变比较慢，然后开始加速
  interpolators[2] = new DecelerateInterpolator(); // 在动画开始的地方快然后慢
  interpolators[3] = new LinearInterpolator(); // 以常量速率改变
  mDrawableWidth = mImageDrawables[0].getIntrinsicWidth();
  mDrawableHeight = mImageDrawables[0].getIntrinsicHeight();
  layoutParams = new LayoutParams(50, 50);
  layoutParams.addRule(ALIGN_PARENT_BOTTOM, TRUE);
  layoutParams.addRule(ALIGN_PARENT_RIGHT, TRUE);
  layoutParams.setMargins(0, 0, 60, 60);//放置在屏幕的右下角
  //这里为了演示我们现在布局初始化的时候，放置一个imageview，颜色随机，设置点击屏幕出现点赞效果
  ImageView iv = new ImageView(getContext());
  iv.setLayoutParams(layoutParams);
  iv.setImageDrawable(mImageDrawables[0]);
  addView(iv);
  this.setOnClickListener(new OnClickListener() {
   @Override
   public void onClick(View v) {
    for(int i=0;i<10;i++) {
     addGivePraiseImg(count);
     count++;
     if (count == 4) count = 0;
    }
   }
  });
 }

 //点击图片是添加imageview到布局中，并添加动画
 private void addGivePraiseImg(int count) {
  final ImageView givepraiseImg = new ImageView(getContext());
  givepraiseImg.setLayoutParams(layoutParams);
  givepraiseImg.setImageDrawable(mImageDrawables[count]);
  addView(givepraiseImg);
  addAnimator(givepraiseImg);//添加动画效果，动画分两部分，第一部分是产生图片时缩放和透明度，第二部是移动图片再进行透明度变化
 }

 private void addAnimator(final ImageView imageView) {
  //点击的时候，让图片经过放大，缩放效果，之后再开始沿着贝塞尔曲线的轨迹移动
  ObjectAnimator alpha = ObjectAnimator.ofFloat(imageView, "alpha", 0.3f, 1f);
  ObjectAnimator scaleX = ObjectAnimator.ofFloat(imageView, "scaleX", 0.2f, 1f);
  ObjectAnimator scaleY = ObjectAnimator.ofFloat(imageView, "scaleY", 0.2f, 1f);
  AnimatorSet set = new AnimatorSet();
  set.setDuration(100);
  set.playTogether(alpha, scaleX, scaleY);
  set.setTarget(imageView);
  set.addListener(new Animator.AnimatorListener() {
   @Override
   public void onAnimationStart(Animator animation) {

   }

   @Override
   public void onAnimationEnd(Animator animation) {
    //设置贝塞尔曲线移动效果
    ValueAnimator va = getBzierAnimator(imageView);//第二部分动画
    va.start();
   }

   @Override
   public void onAnimationCancel(Animator animation) {

   }

   @Override
   public void onAnimationRepeat(Animator animation) {

   }
  });
  set.start();
 }

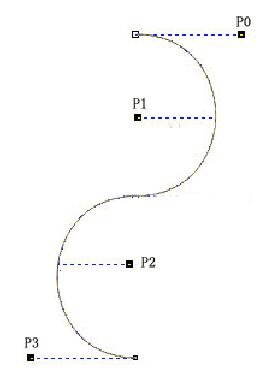

 //初始化贝塞尔曲线的4个点
 private void initPointF() {
  mPointF0 = new PointF(mScreenWidth - 60 - 50, mScreenHeight - 60 - 50);//起点是初始化时的点
  mPointF1 = new PointF(mRandom.nextInt(mScreenWidth), mRandom.nextInt((int) mPointF0.y));//第一个控制点必须要在起始点的上方
  mPointF2 = new PointF(mRandom.nextInt(mScreenWidth), mRandom.nextInt((int) mPointF1.y));//第二个控制点必须在第一个点的上方
  mPointF3 = new PointF(mRandom.nextInt(mScreenWidth), -50);//终点在屏幕的最顶部0-图片的高度
 }


 /**
  * 自定义估值器计算图片移动的轨迹
  * 计算公式参考贝塞尔曲线3阶计算公式
  * 自定义估值器的方法可百度搜索
  * 其中估值器定义返回的结果为PointF
  */
 public class BezierEvaluator implements TypeEvaluator<PointF> {
  private PointF pointF1, pointF2;

  public BezierEvaluator(PointF p1, PointF p2) {
   this.pointF1 = p1;
   this.pointF2 = p2;
  }

  @Override
  public PointF evaluate(float t, PointF p0, PointF p3) {
   PointF point = new PointF();
   point.x = p0.x * (1 - t) * (1 - t) * (1 - t) //
     + 3 * pointF1.x * t * (1 - t) * (1 - t)//
     + 3 * pointF2.x * t * t * (1 - t)//
     + p3.x * t * t * t;//

   point.y = p0.y * (1 - t) * (1 - t) * (1 - t) //
     + 3 * pointF1.y * t * (1 - t) * (1 - t)//
     + 3 * pointF2.y * t * t * (1 - t)//
     + p3.y * t * t * t;//
   return point;
  }
 }

 private ValueAnimator getValueAnimator(final ImageView imageView) {
  initPointF();
  BezierEvaluator bezierEvaluator = new BezierEvaluator(mPointF1, mPointF2);
  ValueAnimator valueAnimator = ValueAnimator.ofObject(bezierEvaluator, mPointF0, mPointF3);
  valueAnimator.setDuration(3000);
  valueAnimator.setTarget(imageView);
  valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
   @Override
   public void onAnimationUpdate(ValueAnimator animation) {
    //改变imageview位置实现移动效果
    PointF point = (PointF) animation.getAnimatedValue();
    imageView.setX(point.x);
    imageView.setY(point.y);
    imageView.setAlpha(1 - animation.getAnimatedFraction());
    //动画结束移除imageview
    if (animation.getAnimatedFraction() >= 1) {
     removeView(imageView);
    }
   }
  });
  return valueAnimator;
 }

 /**
  * 贝塞尔动画
  * */
 private ValueAnimator getBzierAnimator(final ImageView iv) {
  // TODO Auto-generated method stub
  PointF[] PointFs = getPointFs(iv); // 4个点的坐标
  BezierEvaluator evaluator = new BezierEvaluator(PointFs[1], PointFs[2]);
  ValueAnimator valueAnim = ValueAnimator.ofObject(evaluator, PointFs[0], PointFs[3]);
  valueAnim.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {

   @Override
   public void onAnimationUpdate(ValueAnimator animation) {
    // TODO Auto-generated method stub
    PointF p = (PointF) animation.getAnimatedValue();
    iv.setX(p.x);
    iv.setY(p.y);
    iv.setAlpha(1- animation.getAnimatedFraction()); // 透明度
    //动画结束移除imageview
    if (animation.getAnimatedFraction() >= 1) {
     removeView(iv);
    }
   }
  });
  valueAnim.setTarget(iv);
  valueAnim.setDuration(3000);
  valueAnim.setInterpolator(interpolators[new Random().nextInt(4)]);
  return valueAnim;
 }

 private PointF[] getPointFs(ImageView iv) {
  // TODO Auto-generated method stub
  PointF[] PointFs = new PointF[4];
  PointFs[0] = new PointF(); // p0
  PointFs[0].x = (mScreenWidth- layoutParams.width)/ 2;
  PointFs[0].y = mScreenHeight - layoutParams.height;

  PointFs[1] = new PointF(); // p1
  PointFs[1].x = new Random().nextInt(mScreenWidth);
  PointFs[1].y = new Random().nextInt(mScreenHeight /2) + mScreenHeight / 2 + layoutParams.height;

  PointFs[2] = new PointF(); // p2
  PointFs[2].x = new Random().nextInt(mScreenWidth);
  PointFs[2].y = new Random().nextInt(mScreenHeight /2);

  PointFs[3] = new PointF(); // p3
  PointFs[3].x = new Random().nextInt(mScreenWidth);
  PointFs[3].y = 0;
  return PointFs;
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:background="@android:color/darker_gray">
 <com.xinrui.ndkapp.view.GivePraiseView
  android:layout_width="match_parent"
  android:layout_height="match_parent"/>
 <!--<com.xinrui.ndkapp.view.LoveLayout-->
  <!--android:layout_width="match_parent"-->
  <!--android:layout_height="match_parent"/>-->
</RelativeLayout>

1
2
3
4
5
6
7
8
9
10
import android.app.Activity;
import android.os.Bundle;

public class GivePraiseActivity extends Activity {
 @Override
 protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.givepraise_layout);
 }
}
