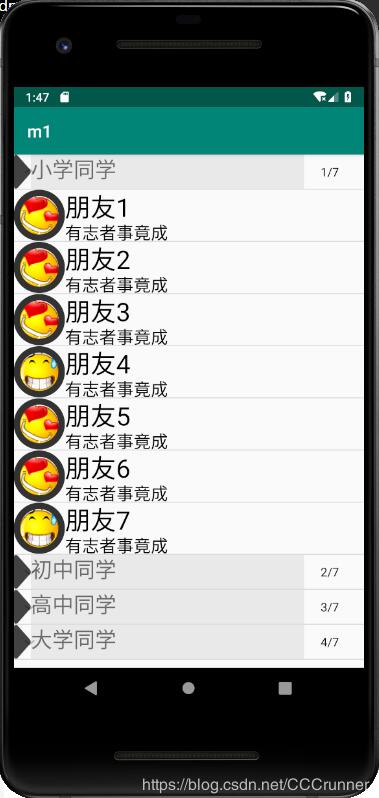

Android仿QQ分组实现二级菜单展示

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

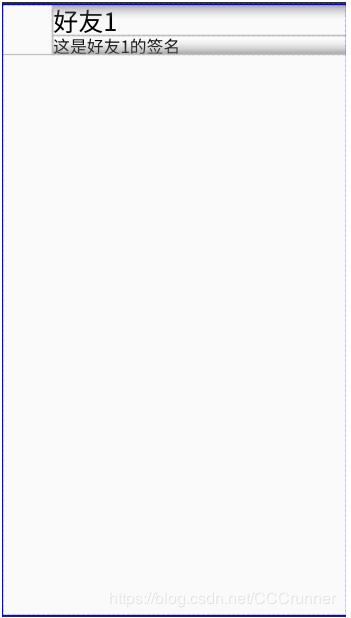

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
 android:id="@+id/list_friend"
 xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="match_parent">

 <com.makeramen.roundedimageview.RoundedImageView xmlns:app="http://schemas.android.com/apk/res-auto"
 android:id="@+id/iv"
 android:layout_width="60dp"
 android:layout_height="60dp"
 android:gravity="center_horizontal"
 android:src="#000000"
 app:riv_border_color="#333333"
 app:riv_border_width="3dip"
 app:riv_corner_radius="10dip"
 app:riv_mutate_background="true"
 app:riv_oval="true" />

 <LinearLayout
 android:layout_width="match_parent"
 android:layout_height="60dp"
 android:layout_toRightOf="@id/iv"
 android:orientation="vertical">

 <TextView
  android:id="@+id/friendname"
  android:layout_width="match_parent"
  android:layout_height="wrap_content"
  android:layout_weight="1"
  android:text="好友1"
  android:textColor="#000000"
  android:textSize="30dp" />

 <TextView
  android:id="@+id/motto"
  android:layout_width="match_parent"
  android:layout_height="wrap_content"
  android:layout_weight="1"
  android:text="这是好友1的签名"
  android:textColor="#000000"
  android:textSize="20dp" />

 </LinearLayout>
</RelativeLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

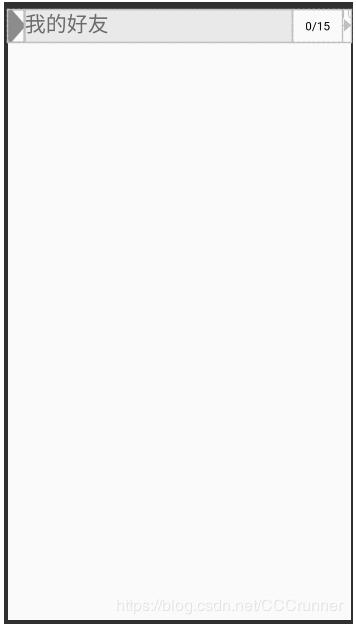

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:layout_marginBottom="10dp">

 <ImageView
 android:id="@+id/triangle_right"
 android:layout_width="20dp"
 android:layout_height="40dp"
 android:layout_alignParentLeft="true"
 android:background="@drawable/triangle_right" />

 <TextView
 android:id="@+id/headtext"
 android:layout_width="match_parent"
 android:layout_height="40dp"
 android:layout_toLeftOf="@+id/online_people_num"
 android:layout_toRightOf="@+id/triangle_right"
 android:background="#E9E9E9"
 android:text="我的好友"
 android:textSize="25dp" />

 <TextView
 android:id="@+id/online_people_num"
 android:layout_width="60dp"
 android:layout_height="40dp"
 android:layout_alignParentRight="true"
 android:layout_marginRight="10dp"
 android:gravity="center_horizontal|center_vertical"
 android:text="0/15"
 android:textColor="#000000" />
</RelativeLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
package com.example.m1.QQGroup;

public class Group {
 private int mGroupImage;
 private String mGroupName; //分组名
 private String mGroupNum; //分组人数
 private boolean isDown;

 public Group(int mGroupImage, String mGroupName, String mGroupNum) {
 this.mGroupImage = mGroupImage;
 this.mGroupName = mGroupName;
 this.mGroupNum = mGroupNum;
 }

 public Group() {
 this.isDown = false;
 }

 public void changeDownStatus(){
 isDown = !isDown;
 }

 public boolean isDown() {
 return isDown;
 }

 public void setDown(boolean down) {
 isDown = down;
 }

 public int getmGroupImage() {
 return mGroupImage;
 }

 public void setmGroupImage(int mGroupImage) {
 this.mGroupImage = mGroupImage;
 }

 public String getmGroupName() {
 return mGroupName;
 }

 public void setmGroupName(String mGroupName) {
 this.mGroupName = mGroupName;
 }

 public String getmGroupNum() {
 return mGroupNum;
 }

 public void setmGroupNum(String mGroupNum) {
 this.mGroupNum = mGroupNum;
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
package com.example.m1.QQGroup;

public class Item {
 private String mName;//人名
 private String mMotto; //签名
 private int mPhoto; //头像

 public Item() {

 }

 public Item(String mName, String mMotto) {
 this.mName = mName;
 this.mMotto = mMotto;

 }

 public Item(String mName, String mMotto, int mPhoto) {
 this.mName = mName;
 this.mMotto = mMotto;
 this.mPhoto = mPhoto;
 }

 public String getmName() {
 return mName;
 }

 public void setmName(String mName) {
 this.mName = mName;
 }

 public String getmMotto() {
 return mMotto;
 }

 public void setmMotto(String mMotto) {
 this.mMotto = mMotto;
 }

 public int getmPhoto() {
 return mPhoto;
 }

 public void setmPhoto(int mPhoto) {
 this.mPhoto = mPhoto;
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
package com.example.m1.QQGroup;

import android.content.Context;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseExpandableListAdapter;
import android.widget.ImageView;
import android.widget.TextView;

import com.example.m1.R;

import java.util.ArrayList;

public class MyBaseExpandableListAdapter extends BaseExpandableListAdapter {

 private ArrayList<Group> gData; //分组
 private ArrayList<ArrayList<Item>> iData; //长链表
 private Context mContext;

 public MyBaseExpandableListAdapter(ArrayList<Group> gData, ArrayList<ArrayList<Item>> iData, Context mContext) {
 this.gData = gData;
 this.iData = iData;
 this.mContext = mContext;
 }

 @Override
 public int getGroupCount() {
 return gData.size();
 }

 @Override
 public int getChildrenCount(int i) {
 return iData.get(i).size();
 }

 @Override
 public Object getGroup(int i) {
 return gData.get(i);
 }

 @Override
 public Object getChild(int i, int i1) {
 return iData.get(i).get(i1);
 }

 @Override
 public long getGroupId(int i) {
 return i;
 }

 @Override
 public long getChildId(int i, int i1) {
 return i1;
 }

 @Override
 public boolean hasStableIds() {
 return false;
 }

 /**
 * 取得用于显示给定分组的视图，这个方法仅返回分组的试图对象
 * @param i
 * @param b
 * @param view
 * @param viewGroup
 * @return
 */
 @Override
 public View getGroupView(final int i, boolean b, View view, final ViewGroup viewGroup) {
 final ViewHolderGroup groupHolder;
 if (view == null){
  view = LayoutInflater.from(mContext).inflate(R.layout.groupitem,viewGroup,false);
  groupHolder = new ViewHolderGroup();
  groupHolder.mGroupImage = view.findViewById(R.id.triangle_right);
  groupHolder.mGroupName = view.findViewById(R.id.headtext);
  groupHolder.mGroupNum = view.findViewById(R.id.online_people_num);
  view.setTag(groupHolder);
 }else{
  groupHolder = (ViewHolderGroup) view.getTag();
 }
 //groupHolder.mGroupImage.setImageResource(gData.get(i).getmGroupImage());
 Log.d("gData",gData.get(i).getmGroupImage()+"");
 Log.d("gData",gData.get(i).getmGroupName()+"");
 groupHolder.mGroupName.setText(gData.get(i).getmGroupName());
 groupHolder.mGroupNum.setText(gData.get(i).getmGroupNum());

 return view;
 }

 @Override
 public View getChildView(int i, int i1, boolean b, View view, ViewGroup viewGroup) {
 ViewHolderItem itemHolder;
 if (view == null){
  view = LayoutInflater.from(mContext).inflate(R.layout.child_item,viewGroup,false);
  itemHolder = new ViewHolderItem();
  itemHolder.mPhoto = view.findViewById(R.id.iv);
  itemHolder.mMotto = view.findViewById(R.id.motto);
  itemHolder.mName = view.findViewById(R.id.friendname);
  view.setTag(itemHolder);
 }else{
  itemHolder = (ViewHolderItem) view.getTag();
 }

 itemHolder.mPhoto.setImageResource(iData.get(i).get(i1).getmPhoto());
 itemHolder.mName.setText(iData.get(i).get(i1).getmName());
 itemHolder.mMotto.setText(iData.get(i).get(i1).getmMotto());
 return view;
 }

 /**
 * 设置子列表是否可以选中
 * @param i
 * @param i1
 * @return
 */
 @Override
 public boolean isChildSelectable(int i, int i1) {
 return true;
 }

 private static class ViewHolderGroup{
 private ImageView mGroupImage;
 private TextView mGroupName; //分组名
 private TextView mGroupNum; //分组人数
 private boolean isDown;

 public ViewHolderGroup() {
  isDown = false;
 }
 }
 private static class ViewHolderItem{
 private TextView mName;//人名
 private TextView mMotto; //签名
 private ImageView mPhoto; //头像
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
package com.example.m1.QQGroup;

import android.content.Context;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.ExpandableListView;
import android.widget.Toast;

import com.example.m1.R;

import java.util.ArrayList;

public class Main5Activity extends AppCompatActivity {

 private ArrayList<Group> gData = null; //存储所有的分组信息
 private ArrayList<ArrayList<Item>> iData = null; //每个分组的子信息
 private ArrayList<Item> lData = null;
 private Context mContext;
 private ExpandableListView mQQlist;
 private MyBaseExpandableListAdapter myAdapter = null;
 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main5);
 mContext = Main5Activity.this;
 mQQlist = findViewById(R.id.QQList);
 //数据准备
 gData = new ArrayList<Group>();
 iData = new ArrayList<ArrayList<Item>>();
 gData.add(new Group(R.drawable.triangle_right,"小学同学","1/7"));
 gData.add(new Group(R.drawable.triangle_right,"初中同学","2/7"));
 gData.add(new Group(R.drawable.triangle_down,"高中同学","3/7"));
 gData.add(new Group(R.drawable.triangle_right,"大学同学","4/7"));

 lData =new ArrayList<Item>();

 //小学组
 lData.add(new Item("朋友1","有志者事竟成",R.drawable.f015));
 lData.add(new Item("朋友2","有志者事竟成",R.drawable.f015));
 lData.add(new Item("朋友3","有志者事竟成",R.drawable.f015));
 lData.add(new Item("朋友4","有志者事竟成",R.drawable.f040));
 lData.add(new Item("朋友5","有志者事竟成",R.drawable.f015));
 lData.add(new Item("朋友6","有志者事竟成",R.drawable.f015));
 lData.add(new Item("朋友7","有志者事竟成",R.drawable.f040));
 iData.add(lData);
 //初中组
 lData =new ArrayList<Item>();
 lData.add(new Item("朋友1","我爱你，不是说说而已",R.drawable.f015));
 lData.add(new Item("朋友2","我爱你，不是说说而已",R.drawable.f015));
 lData.add(new Item("朋友3","我爱你，不是说说而已",R.drawable.f040));
 lData.add(new Item("朋友4","我爱你，不是说说而已",R.drawable.f015));
 lData.add(new Item("朋友5","我爱你，不是说说而已",R.drawable.f040));
 lData.add(new Item("朋友6","我爱你，不是说说而已",R.drawable.f015));
 lData.add(new Item("朋友7","我爱你，不是说说而已",R.drawable.f040));
 iData.add(lData);
 //高中组
 lData =new ArrayList<Item>();
 lData.add(new Item("朋友1","为赋新词强说愁",R.drawable.f015));
 lData.add(new Item("朋友2","为赋新词强说愁",R.drawable.f040));
 lData.add(new Item("朋友3","为赋新词强说愁",R.drawable.f015));
 lData.add(new Item("朋友4","为赋新词强说愁",R.drawable.f040));
 lData.add(new Item("朋友5","为赋新词强说愁",R.drawable.f015));
 lData.add(new Item("朋友6","为赋新词强说愁",R.drawable.f040));
 lData.add(new Item("朋友7","为赋新词强说愁",R.drawable.f015));
 iData.add(lData);
 //大学组
 lData =new ArrayList<Item>();
 lData.add(new Item("朋友1","I love you ",R.drawable.f015));
 lData.add(new Item("朋友2","I love you ",R.drawable.f015));
 lData.add(new Item("朋友3","I love you ",R.drawable.f040));
 lData.add(new Item("朋友4","I love you ",R.drawable.f015));
 lData.add(new Item("朋友5","I love you ",R.drawable.f040));
 lData.add(new Item("朋友6","I love you ",R.drawable.f015));
 lData.add(new Item("朋友7","I love you ",R.drawable.f015));
 iData.add(lData);
 myAdapter = new MyBaseExpandableListAdapter(gData,iData,mContext);
 mQQlist.setAdapter(myAdapter);

 mQQlist.setOnChildClickListener(new ExpandableListView.OnChildClickListener() {
  @Override
  public boolean onChildClick(ExpandableListView parent, View v, int groupPosition, int childPosition, long id) {
  Toast.makeText(mContext, "你点击了：" + iData.get(groupPosition).get(childPosition).getmName(), Toast.LENGTH_SHORT).show();
  return true;
  }
 });

 }
}
