Android 自定义 View 中使用 Spannable的实例详解

1
2
3
4
5
6
7
8
9
10
/**

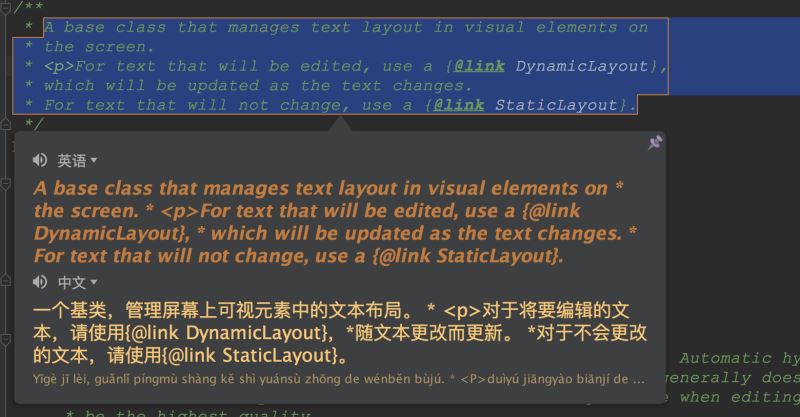

 * A base class that manages text layout in visual elements on
 * the screen.
 * <p>For text that will be edited, use a {@link DynamicLayout},
 * which will be updated as the text changes.
 * For text that will not change, use a {@link StaticLayout}.
 */

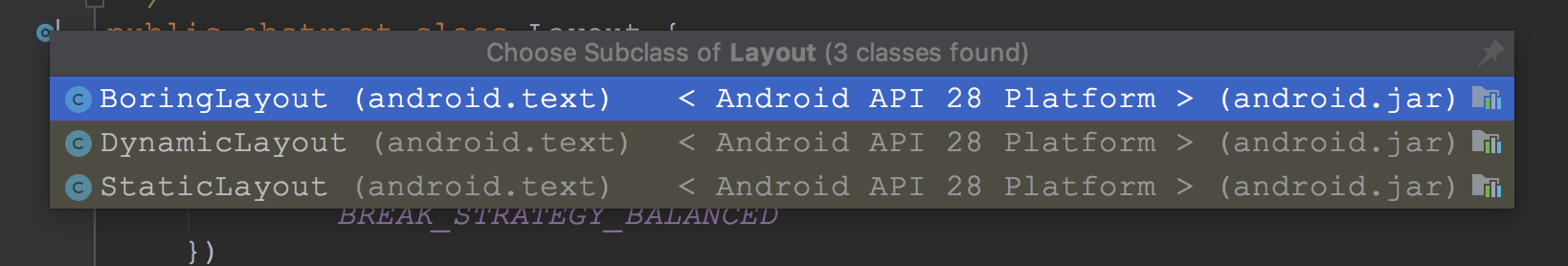

public abstract class Layout {

}

1
2
3
4
5
6
7
8
9
10
11
12
13
<?xml version="1.0" encoding="utf-8"?>
<resources>
 <declare-styleable name="ArcProgressView">
  <attr name="arcBackgroundColor" format="color" />
  <attr name="arcProgressColor" format="color" />
  <attr name="arcSubTitleColor" format="color" />
  <attr name="arcStrokeWidth" format="dimension" />
  <attr name="arcTitleTextSize" format="dimension" />
  <attr name="arcSubTitleTextSize" format="dimension" />
  <attr name="arcProgress" format="float" />
  <attr name="arcTitleNumber" format="integer" />
 </declare-styleable>
</resources>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
public class ArcProgressView extends View {
 private int arcBackgroundColor; // 圆弧背景颜色
 private int arcProgressColor;  // 圆弧进度颜色
 private int arcSubTitleColor;  // 副标题颜色
 private float arcStrokeWidth;  // 圆弧线的厚度
 private float arcTitleTextSize; // 标题文字大小
 private float arcSubTitleTextSize; // 副标题文字大小
 private float arcProgress; // 进度
 private int arcTitleNumber; // 值
 private Paint paint;
 private float centerX;
 private float centerY;
 private float radius; // 半径
 private RectF rectF;
 private int startAngle = 135;
 private int sweepAngle = 270;
 private String subTitle = "1月份";
 private SpannableString spannableString;
 private TextPaint textPaint;
 private RelativeSizeSpan relativeSizeSpan;
 private DynamicLayout dynamicLayout;
 private String text = "11分";
 private StyleSpan styleSpan;
 private float curProgress; // 当前进度
 private int curNumber;
 public ArcProgressView(Context context) {
  this(context, null);
 }
 public ArcProgressView(Context context, @Nullable AttributeSet attrs) {
  this(context, attrs, 0);
 }
 public ArcProgressView(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
  super(context, attrs, defStyleAttr);
  readAttrs(context, attrs);
  init(context);
 }
 private void readAttrs(Context context, AttributeSet attributeSet) {
  TypedArray typedArray = context.obtainStyledAttributes(attributeSet, R.styleable.ArcProgressView);
  arcBackgroundColor = typedArray.getColor(R.styleable.ArcProgressView_arcBackgroundColor, 0x1c979797);
  arcProgressColor = typedArray.getColor(R.styleable.ArcProgressView_arcProgressColor, 0xff3372FF);
  arcSubTitleColor = typedArray.getColor(R.styleable.ArcProgressView_arcSubTitleColor, 0x66000000);
  arcStrokeWidth = typedArray.getDimensionPixelSize(R.styleable.ArcProgressView_arcStrokeWidth, dp2px(5));
  arcTitleTextSize = typedArray.getDimensionPixelSize(R.styleable.ArcProgressView_arcTitleTextSize, dp2px(30));
  arcSubTitleTextSize = typedArray.getDimensionPixelSize(R.styleable.ArcProgressView_arcSubTitleTextSize, dp2px(14));
  arcProgress = typedArray.getFloat(R.styleable.ArcProgressView_arcProgress, 1.0f);
  arcTitleNumber = typedArray.getInt(R.styleable.ArcProgressView_arcTitleNumber, 100);
  typedArray.recycle();
 }
 private void init(Context context) {
  paint = new Paint(Paint.ANTI_ALIAS_FLAG);
  paint.setStrokeCap(Paint.Cap.ROUND);
  relativeSizeSpan = new RelativeSizeSpan(0.6f);
  styleSpan = new StyleSpan(android.graphics.Typeface.BOLD);
  textPaint = new TextPaint(TextPaint.ANTI_ALIAS_FLAG);
  textPaint.setColor(arcProgressColor);
//  textPaint.setTextAlign(Paint.Align.CENTER); // 设置该属性导致文字间有间隔
  textPaint.setTextSize(sp2px(22));
 }
 @Override
 protected void onSizeChanged(int w, int h, int oldw, int oldh) {
  super.onSizeChanged(w, h, oldw, oldh);
  centerX = w / 2f;
  centerY = h / 2f;
  radius = (Math.min(w, h) - arcStrokeWidth) / 2f;
  rectF = new RectF(-radius, -radius, radius, radius);
 }
 @Override
 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
  super.onMeasure(widthMeasureSpec, heightMeasureSpec);
  int width = getMeasuredSize(widthMeasureSpec, dp2px(100));
  int height = getMeasuredSize(heightMeasureSpec, dp2px(100));
  setMeasuredDimension(width, height);
 }
 @Override
 protected void onDraw(Canvas canvas) {
  super.onDraw(canvas);
  // 绘制圆弧和进度
  drawArc(canvas);
  // 绘制文字 title
  drawTitleText(canvas);
  // 绘制文字副标题
  drawSubTitle(canvas);
 }
 @Override
 protected void onAttachedToWindow() {
  super.onAttachedToWindow();
  startAnimation();
 }
 private void startAnimation() {
  ValueAnimator progressAnimator = ValueAnimator.ofFloat(0f, arcProgress);
  ValueAnimator numberAnimator = ValueAnimator.ofInt(0, arcTitleNumber);
  progressAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
   @Override
   public void onAnimationUpdate(ValueAnimator animation) {
    curProgress = (float) animation.getAnimatedValue();
    invalidate();
   }
  });
  numberAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
   @Override
   public void onAnimationUpdate(ValueAnimator animation) {
    curNumber = (int) animation.getAnimatedValue();
    text = curNumber + "分";
   }
  });
  AnimatorSet animatorSet = new AnimatorSet();
  animatorSet.playTogether(progressAnimator, numberAnimator);
  animatorSet.setDuration(700);
  animatorSet.setInterpolator(new LinearInterpolator());
  animatorSet.start();
 }
 private void drawSubTitle(Canvas canvas) {
  canvas.save();
  canvas.translate(centerX, centerY);
  paint.setTextSize(arcSubTitleTextSize);
  paint.setTextAlign(Paint.Align.CENTER);
  paint.setColor(arcSubTitleColor);
  paint.setStyle(Paint.Style.FILL);
  paint.setStrokeWidth(0);
  canvas.drawText(subTitle, 0, 60, paint);
  canvas.restore();
 }
 private void drawArc(Canvas canvas) {
  canvas.save();
  canvas.translate(centerX, centerY);
  paint.setColor(arcBackgroundColor);
  paint.setStrokeWidth(arcStrokeWidth);
  paint.setStyle(Paint.Style.STROKE);
  canvas.drawArc(rectF, startAngle, sweepAngle, false, paint);
  paint.setColor(arcProgressColor);
  canvas.drawArc(rectF, startAngle, sweepAngle * curProgress, false, paint);
  canvas.restore();
 }
 private void drawTitleText(Canvas canvas) {
  canvas.save();
  textPaint.setTextSize(arcTitleTextSize);
  float textWidth = textPaint.measureText(text); // 文字宽度
  float textHeight = -textPaint.ascent() + textPaint.descent(); // 文字高度
  // 由于 StaticLayout 绘制文字时，默认画在Canvas的(0,0)点位置，所以居中绘制居中位置，需要将画布 translate到中间位置。
  canvas.translate(centerX - textWidth * 2 / 5f, centerY - textHeight * 2 / 3f);
  spannableString = SpannableString.valueOf(text);
  spannableString.setSpan(styleSpan, 0, text.length() - 1, Spanned.SPAN_INCLUSIVE_EXCLUSIVE);
  spannableString.setSpan(relativeSizeSpan, text.length() - 1, text.length(), Spannable.SPAN_EXCLUSIVE_EXCLUSIVE);
  dynamicLayout = new DynamicLayout(spannableString, textPaint, getWidth(), Layout.Alignment.ALIGN_NORMAL, 0, 0, false);
  dynamicLayout.draw(canvas);
  canvas.restore();
 }
 /**
  * 对外提供方法，设置进度
  *
  * @param percent
  */
 public void setArcProgress(float percent) {
  this.curProgress = percent;
  invalidate();
 }
 private int getMeasuredSize(int measureSpec, int defvalue) {
  int mode = MeasureSpec.getMode(measureSpec);
  int size = MeasureSpec.getSize(measureSpec);
  if (mode == MeasureSpec.EXACTLY) {
   return size;
  }
  return Math.min(size, defvalue);
 }
 private int dp2px(int dp) {
  return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, dp, getResources().getDisplayMetrics());
 }
 private int sp2px(int sp) {
  return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP, sp, getResources().getDisplayMetrics());
 }
}

1
2
3
4
5
6
7
8
<com.xing.bottomsheetsample.ArcProgressView
  android:layout_width="match_parent"
  android:layout_height="100dp"
  android:layout_marginTop="20dp"
  app:arcProgress="0.6"
  app:arcSubTitleTextSize="14sp"
  app:arcTitleNumber="61"
  app:arcTitleTextSize="28sp" />
