MAYA车轮建模教程：MAYA制作真实的车轮建模

早上看到靠谱客MAYA群里的一位朋友的车轮模型截图，觉得做的还是挺不错的，很多新手朋友也想学习MAYA汽车建模的具体流程和方法，给大家翻译一个国外的MAYA车轮建模的教程，希望对大家有所帮助吧！如果有看不懂教程的朋友请大家在评论中说明，我会及时回复。好了，先来看看最终的效果图：

本文着重介绍的是轮胎的轮毂建模，轮胎建模教程靠谱客已经不少了，这里就不做介绍了，好了，一起来学习吧！

Step 1

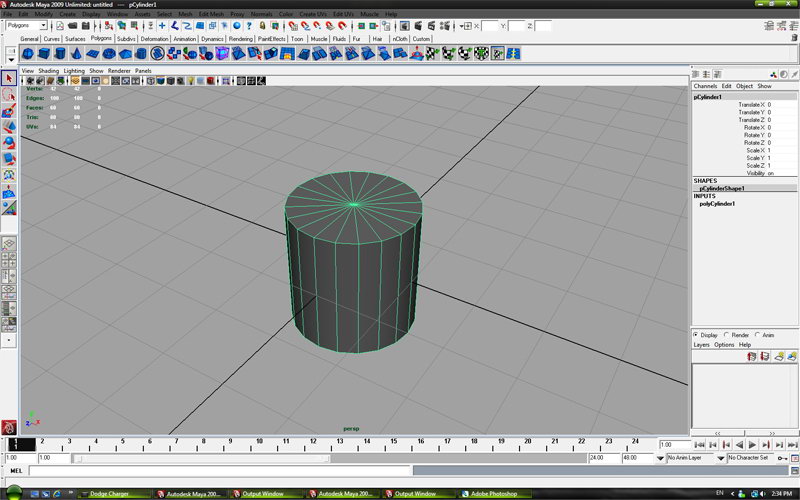

首先创建一个Polygon Cylinder.

删除两个底面，如图所示：

选择顶部的线条，使用挤压命令，挤压出如图所示形状：Select all top edges end extrude with tool witch you can find in Edit mash - Extrude.

向上挤压Then extrude up.

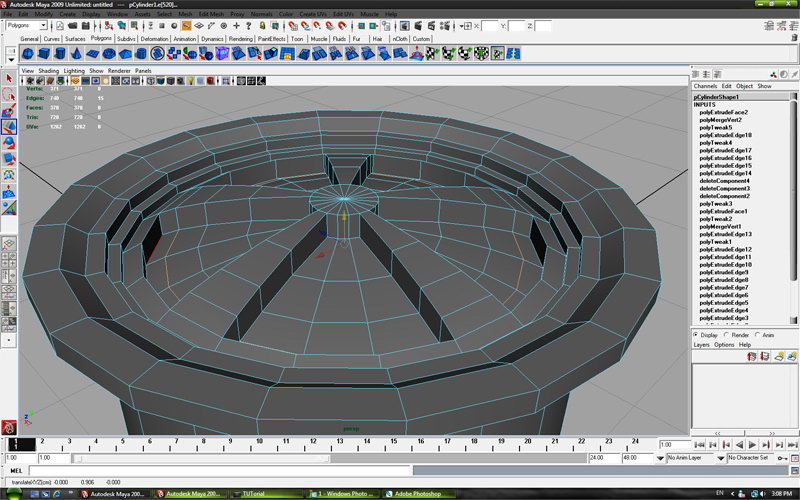

再次挤压到如图所示形状。Then with Extrude tool make object like on picture.

再次使用挤压工具，制作出下图形状。Then with Extrude tool make object like on picture.

当你的模型状态如下所示时改变到选择点模式。When your model starts to look like on this picture change to vertex mode.

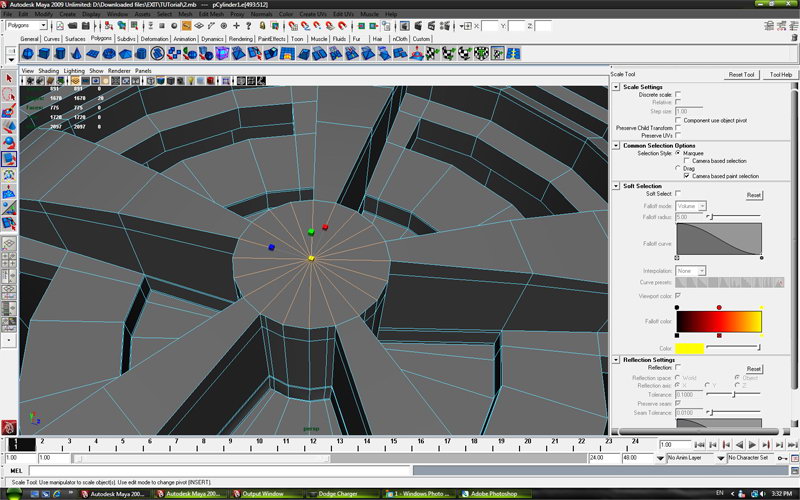

这时执行，合并中心点到面。Then select centar vertex and go to Edit mash - Merge to Center.

得到如图所示模型。It has to look like on picture.

复选如图所示的面，按住SHIFT键即可复选。Than select faces like on picture.

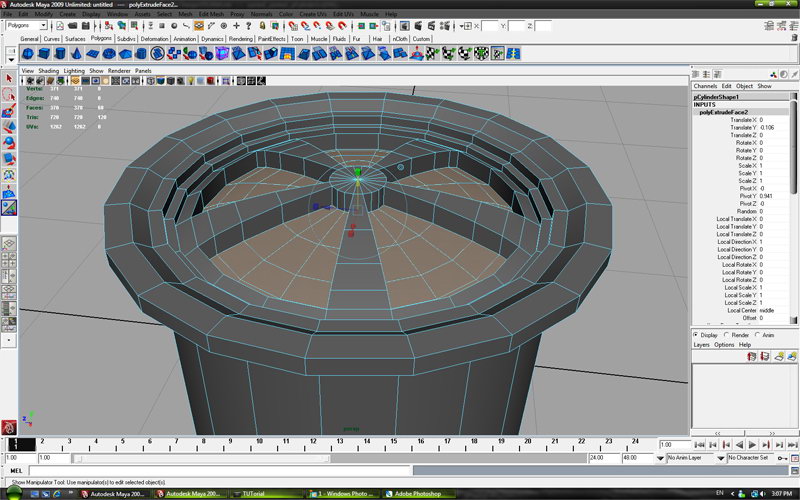

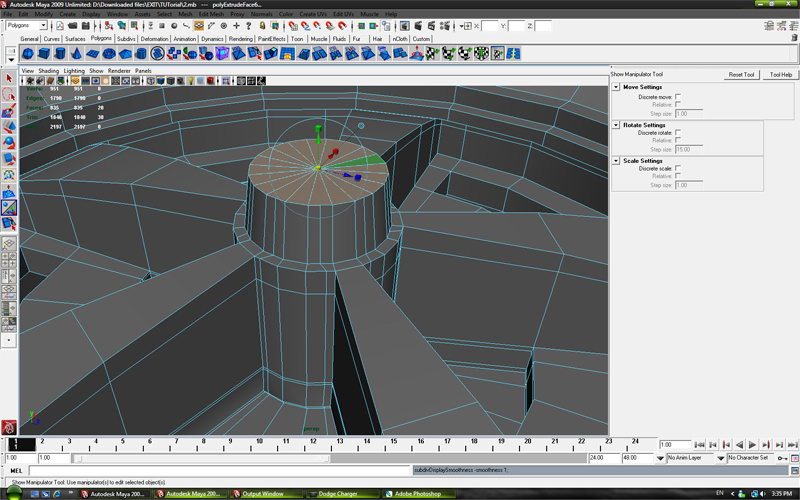

挤压选择的面Extrude selected faces.

切换到边选择模式，如图：Switch to edge mode and select edges like on picture.

Then select the Y axis ,hold "v" on keyboard and with mouse scroll wheel click on the marked vertex to align.

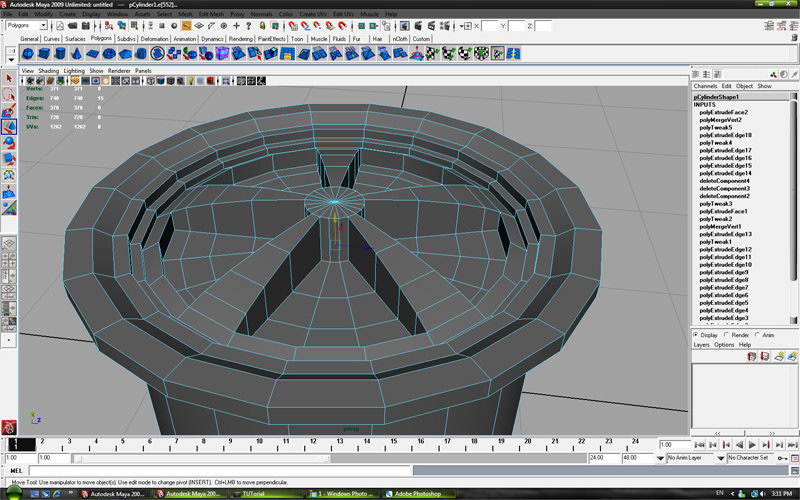

Align rest edges with marked vertex to look like on picture.

Select faces.

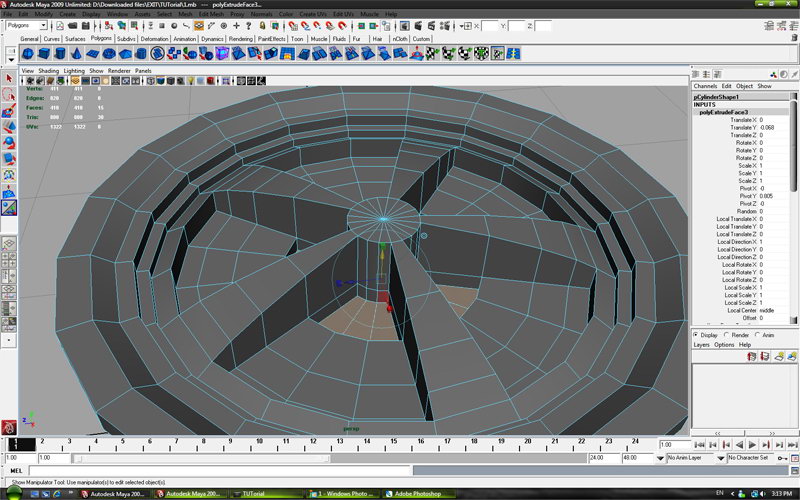

Extrude selected faces.

With "Insert Edge Loop Tool" add edges to look like on picture.

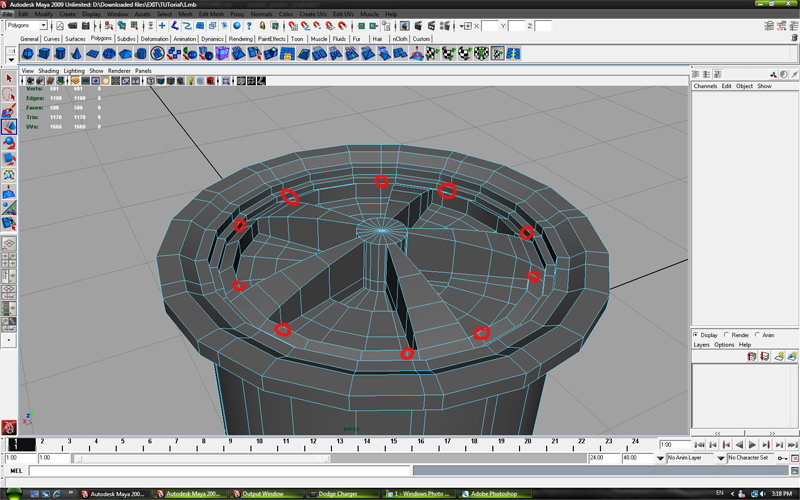

Then remove the marked edges.

Delete rest of the edges with "delete edge/vertex" tool and leave the edge marked od picture.

Select faces.

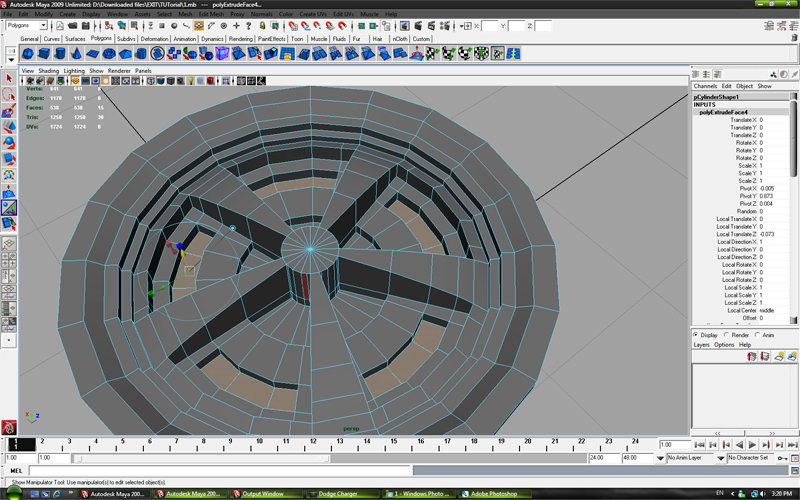

Extrude faces.

Again extrude same faces.

Scale faces.

Delete faces.

Add edges with "Insert Edge Loop Tool" to look like on picure.

Again add edges with "Insert Edge Loop Tool" on each hole.

Select 20 edges.

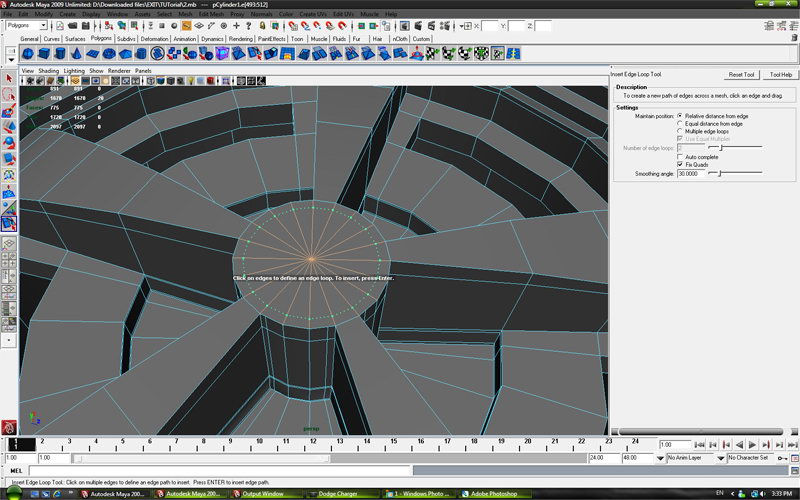

When you selected edges go to "Insert Edge Loop Tool" settings and turn off "auto complete" and clik on one of selected edges, and when you done press enter on keyboard .

Extrude faces to look like on picture.
