概述
前面
两
篇文章分
别
介
绍
了
MFC ActiveX
应
用程序和使用
ATL
开发
ActiveX
的
简单实
例，但
还
有
两个问题
需要解
决
：
1）标记ActiveX控件为安全的控件 2)对控件进行数字签名。本文将结合这两点进行简单的介绍。
Building a Safe ActiveX Control
如何不想办法将控件标记为安全的，就会在Web页面与控件进行交互时出现如下图的警告信息：
下面将分别介绍在MFC ActiveX和ATL中如何标记一个控件为安全的控件。
要标记一个MFC ActiveX控件为安全，可以仿照下面代码修改而得：
//
CardScan.cpp : CCardScanApp 和DLL 注册的实现。
#include " stdafx.h "
#include " CardScan.h "
#include " comcat.h "
#include " strsafe.h "
#include " objsafe.h "
CCardScanApp theApp;
const GUID CDECL BASED_CODE _tlid =
{ 0x29959268 , 0x9729 , 0x458E , { 0xA8 , 0x39 , 0xBB , 0x39 , 0x2E , 0xCB , 0x7E , 0x37 } };
const WORD _wVerMajor = 1 ;
const WORD _wVerMinor = 0 ;
const CATID CLSID_SafeItem =
{ 0xB548F3C7 , 0x2135 , 0x4242 ,{ 0x92 , 0x0B , 0xA7 , 0xBD , 0xEE , 0x6D , 0x2B , 0xA3 }};
// { 0x36299202, 0x9ef, 0x4abf,{ 0xad, 0xb9, 0x47, 0xc5, 0x99, 0xdb, 0xe7, 0x78}};
// CCardScanApp::InitInstance - DLL 初始化
BOOL CCardScanApp::InitInstance()
{
BOOL bInit = COleControlModule::InitInstance();
if (bInit)
{
}
return bInit;
}
// CCardScanApp::ExitInstance - DLL 终止
int CCardScanApp::ExitInstance()
{
return COleControlModule::ExitInstance();
}
HRESULT CreateComponentCategory(CATID catid, CHAR * catDescription)
{
ICatRegister * pcr = NULL ;
HRESULT hr = S_OK ;
hr = CoCreateInstance(CLSID_StdComponentCategoriesMgr,
NULL, CLSCTX_INPROC_SERVER, IID_ICatRegister, ( void ** ) & pcr);
if (FAILED(hr))
return hr;
// Make sure the HKCRComponent Categories{..catid
}
// key is registered.
CATEGORYINFO catinfo;
catinfo.catid = catid;
catinfo.lcid = 0x0409 ; // english
size_t len;
// Make sure the provided description is not too long.
// Only copy the first 127 characters if it is.
// The second parameter of StringCchLength is the maximum
// number of characters that may be read into catDescription.
// There must be room for a NULL-terminator. The third parameter
// contains the number of characters excluding the NULL-terminator.
hr = StringCchLength(catDescription, STRSAFE_MAX_CCH, & len);
if (SUCCEEDED(hr))
{
if (len > 127 )
{
len = 127 ;
}
}
else
{
// TODO: Write an error handler;
}
// The second parameter of StringCchCopy is 128 because you need
// room for a NULL-terminator.
hr = StringCchCopy(COLE2T(catinfo.szDescription), len + 1 , catDescription);
// Make sure the description is null terminated.
catinfo.szDescription[len + 1 ] = ' ' ;
hr = pcr -> RegisterCategories( 1 , & catinfo);
pcr -> Release();
return hr;
}
// HRESULT RegisterCLSIDInCategory -
// Register your component categories information
HRESULT RegisterCLSIDInCategory(REFCLSID clsid, CATID catid)
{
// Register your component categories information.
ICatRegister * pcr = NULL ;
HRESULT hr = S_OK ;
hr = CoCreateInstance(CLSID_StdComponentCategoriesMgr,
NULL, CLSCTX_INPROC_SERVER, IID_ICatRegister, ( void ** ) & pcr);
if (SUCCEEDED(hr))
{
// Register this category as being "implemented" by the class.
CATID rgcatid[ 1 ] ;
rgcatid[ 0 ] = catid;
hr = pcr -> RegisterClassImplCategories(clsid, 1 , rgcatid);
}
if (pcr != NULL)
pcr -> Release();
return hr;
}
// HRESULT UnRegisterCLSIDInCategory - Remove entries from the registry
HRESULT UnRegisterCLSIDInCategory(REFCLSID clsid, CATID catid)
{
ICatRegister * pcr = NULL ;
HRESULT hr = S_OK ;
hr = CoCreateInstance(CLSID_StdComponentCategoriesMgr,
NULL, CLSCTX_INPROC_SERVER, IID_ICatRegister, ( void ** ) & pcr);
if (SUCCEEDED(hr))
{
// Unregister this category as being "implemented" by the class.
CATID rgcatid[ 1 ] ;
rgcatid[ 0 ] = catid;
hr = pcr -> UnRegisterClassImplCategories(clsid, 1 , rgcatid);
}
if (pcr != NULL)
pcr -> Release();
return hr;
}
// DllRegisterServer - 将项添加到系统注册表
STDAPI DllRegisterServer( void )
{
HRESULT hr;
AFX_MANAGE_STATE(_afxModuleAddrThis);
if ( ! AfxOleRegisterTypeLib(AfxGetInstanceHandle(), _tlid))
return ResultFromScode(SELFREG_E_TYPELIB);
if ( ! COleObjectFactoryEx::UpdateRegistryAll(TRUE))
return ResultFromScode(SELFREG_E_CLASS);
// Mark the control as safe for initializing.
hr = CreateComponentCategory(CATID_SafeForInitializing,
_T( " Controls safely initializable from persistent data! " ));
if (FAILED(hr))
return hr;
hr = RegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForInitializing);
if (FAILED(hr))
return hr;
// Mark the control as safe for scripting.
hr = CreateComponentCategory(CATID_SafeForScripting,
_T( " Controls safely scriptable! " ));
if (FAILED(hr))
return hr;
hr = RegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForScripting);
if (FAILED(hr))
return hr;
return NOERROR;
}
// DllUnregisterServer - 将项从系统注册表中移除
STDAPI DllUnregisterServer( void )
{
HRESULT hr;
AFX_MANAGE_STATE(_afxModuleAddrThis);
// Remove entries from the registry.
hr = UnRegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForInitializing);
if (FAILED(hr))
return hr;
hr = UnRegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForScripting);
if (FAILED(hr))
return hr;
if ( ! AfxOleUnregisterTypeLib(_tlid, _wVerMajor, _wVerMinor))
return ResultFromScode(SELFREG_E_TYPELIB);
if ( ! COleObjectFactoryEx::UpdateRegistryAll(FALSE))
return ResultFromScode(SELFREG_E_CLASS);
return NOERROR;
}
#include " stdafx.h "
#include " CardScan.h "
#include " comcat.h "
#include " strsafe.h "
#include " objsafe.h "
CCardScanApp theApp;
const GUID CDECL BASED_CODE _tlid =
{ 0x29959268 , 0x9729 , 0x458E , { 0xA8 , 0x39 , 0xBB , 0x39 , 0x2E , 0xCB , 0x7E , 0x37 } };
const WORD _wVerMajor = 1 ;
const WORD _wVerMinor = 0 ;
const CATID CLSID_SafeItem =
{ 0xB548F3C7 , 0x2135 , 0x4242 ,{ 0x92 , 0x0B , 0xA7 , 0xBD , 0xEE , 0x6D , 0x2B , 0xA3 }};
// { 0x36299202, 0x9ef, 0x4abf,{ 0xad, 0xb9, 0x47, 0xc5, 0x99, 0xdb, 0xe7, 0x78}};
// CCardScanApp::InitInstance - DLL 初始化
BOOL CCardScanApp::InitInstance()
{
BOOL bInit = COleControlModule::InitInstance();
if (bInit)
{
}
return bInit;
}
// CCardScanApp::ExitInstance - DLL 终止
int CCardScanApp::ExitInstance()
{
return COleControlModule::ExitInstance();
}
HRESULT CreateComponentCategory(CATID catid, CHAR * catDescription)
{
ICatRegister * pcr = NULL ;
HRESULT hr = S_OK ;
hr = CoCreateInstance(CLSID_StdComponentCategoriesMgr,
NULL, CLSCTX_INPROC_SERVER, IID_ICatRegister, ( void ** ) & pcr);
if (FAILED(hr))
return hr;
// Make sure the HKCRComponent Categories{..catid
}// key is registered.
CATEGORYINFO catinfo;
catinfo.catid = catid;
catinfo.lcid = 0x0409 ; // english
size_t len;
// Make sure the provided description is not too long.
// Only copy the first 127 characters if it is.
// The second parameter of StringCchLength is the maximum
// number of characters that may be read into catDescription.
// There must be room for a NULL-terminator. The third parameter
// contains the number of characters excluding the NULL-terminator.
hr = StringCchLength(catDescription, STRSAFE_MAX_CCH, & len);
if (SUCCEEDED(hr))
{
if (len > 127 )
{
len = 127 ;
}
}
else
{
// TODO: Write an error handler;
}
// The second parameter of StringCchCopy is 128 because you need
// room for a NULL-terminator.
hr = StringCchCopy(COLE2T(catinfo.szDescription), len + 1 , catDescription);
// Make sure the description is null terminated.
catinfo.szDescription[len + 1 ] = ' ' ;
hr = pcr -> RegisterCategories( 1 , & catinfo);
pcr -> Release();
return hr;
}
// HRESULT RegisterCLSIDInCategory -
// Register your component categories information
HRESULT RegisterCLSIDInCategory(REFCLSID clsid, CATID catid)
{
// Register your component categories information.
ICatRegister * pcr = NULL ;
HRESULT hr = S_OK ;
hr = CoCreateInstance(CLSID_StdComponentCategoriesMgr,
NULL, CLSCTX_INPROC_SERVER, IID_ICatRegister, ( void ** ) & pcr);
if (SUCCEEDED(hr))
{
// Register this category as being "implemented" by the class.
CATID rgcatid[ 1 ] ;
rgcatid[ 0 ] = catid;
hr = pcr -> RegisterClassImplCategories(clsid, 1 , rgcatid);
}
if (pcr != NULL)
pcr -> Release();
return hr;
}
// HRESULT UnRegisterCLSIDInCategory - Remove entries from the registry
HRESULT UnRegisterCLSIDInCategory(REFCLSID clsid, CATID catid)
{
ICatRegister * pcr = NULL ;
HRESULT hr = S_OK ;
hr = CoCreateInstance(CLSID_StdComponentCategoriesMgr,
NULL, CLSCTX_INPROC_SERVER, IID_ICatRegister, ( void ** ) & pcr);
if (SUCCEEDED(hr))
{
// Unregister this category as being "implemented" by the class.
CATID rgcatid[ 1 ] ;
rgcatid[ 0 ] = catid;
hr = pcr -> UnRegisterClassImplCategories(clsid, 1 , rgcatid);
}
if (pcr != NULL)
pcr -> Release();
return hr;
}
// DllRegisterServer - 将项添加到系统注册表
STDAPI DllRegisterServer( void )
{
HRESULT hr;
AFX_MANAGE_STATE(_afxModuleAddrThis);
if ( ! AfxOleRegisterTypeLib(AfxGetInstanceHandle(), _tlid))
return ResultFromScode(SELFREG_E_TYPELIB);
if ( ! COleObjectFactoryEx::UpdateRegistryAll(TRUE))
return ResultFromScode(SELFREG_E_CLASS);
// Mark the control as safe for initializing.
hr = CreateComponentCategory(CATID_SafeForInitializing,
_T( " Controls safely initializable from persistent data! " ));
if (FAILED(hr))
return hr;
hr = RegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForInitializing);
if (FAILED(hr))
return hr;
// Mark the control as safe for scripting.
hr = CreateComponentCategory(CATID_SafeForScripting,
_T( " Controls safely scriptable! " ));
if (FAILED(hr))
return hr;
hr = RegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForScripting);
if (FAILED(hr))
return hr;
return NOERROR;
}
// DllUnregisterServer - 将项从系统注册表中移除
STDAPI DllUnregisterServer( void )
{
HRESULT hr;
AFX_MANAGE_STATE(_afxModuleAddrThis);
// Remove entries from the registry.
hr = UnRegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForInitializing);
if (FAILED(hr))
return hr;
hr = UnRegisterCLSIDInCategory(CLSID_SafeItem,
CATID_SafeForScripting);
if (FAILED(hr))
return hr;
if ( ! AfxOleUnregisterTypeLib(_tlid, _wVerMajor, _wVerMinor))
return ResultFromScode(SELFREG_E_TYPELIB);
if ( ! COleObjectFactoryEx::UpdateRegistryAll(FALSE))
return ResultFromScode(SELFREG_E_CLASS);
return NOERROR;
}
这里值得注意的一个地方是DllUnregisterServer函数，在这段代码中，我是将
hr
=
UnRegisterCLSIDInCategory(CLSID_SafeItem, CATID_SafeForInitializing);
hr = UnRegisterCLSIDInCategory(CLSID_SafeItem, CATID_SafeForScripting);
hr = UnRegisterCLSIDInCategory(CLSID_SafeItem, CATID_SafeForScripting);
这两句代码放在
if
(
!
AfxOleUnregisterTypeLib(_tlid, _wVerMajor, _wVerMinor))
return ResultFromScode(SELFREG_E_TYPELIB);
if ( ! COleObjectFactoryEx::UpdateRegistryAll(FALSE))
return ResultFromScode(SELFREG_E_CLASS);
return ResultFromScode(SELFREG_E_TYPELIB);
if ( ! COleObjectFactoryEx::UpdateRegistryAll(FALSE))
return ResultFromScode(SELFREG_E_CLASS);

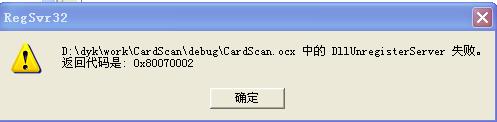

这两句代码的前面，如果你查阅MSDN，将会发现它上面的顺序和我是相反的，这应该是微软的一个错误代码，如果按照MSDN的代码来写，则你使用regsvr32 -u CardScan.ocx反注册时会报下面的错误：
调整为我所说的顺序就没问题了。
2）要标记使用ATL写的ActiveX控件为安全的控件，这比MFC要简单的多，只需要在控件头文件中增加几行代码就可以了：
class
ATL_NO_VTABLE CTestCtrl :
…
public IObjectSafetyImpl < CTestCtrl, INTERFACESAFE_FOR_UNTRUSTED_CALLER | INTERFACESAFE_FOR_UNTRUSTED_DATA > ,
…
public IObjectSafetyImpl < CTestCtrl, INTERFACESAFE_FOR_UNTRUSTED_CALLER | INTERFACESAFE_FOR_UNTRUSTED_DATA > ,
然后在COM映射表中增加一项：
BEGIN_COM_MAP(CTestCtrl)
…
COM_INTERFACE_ENTRY(IObjectSafety)
END_COM_MAP()
…
COM_INTERFACE_ENTRY(IObjectSafety)
END_COM_MAP()
Building a Signed ActiveX Control
ActiveX控件是个危险的东西，如果不对其合法性进行数字签名和验证，IE是会拒绝其安装的。
工具包准备：CABARC.exe, cert2spc.exe, makecab.exe, makecert.exe, signcode.exe(或新版本中的signtool)，以上小工具都可以在VS的安装路径下"Common7"Tools"Bin找到，或去微软官方网站上下载。
ActiveX控件的安装过程中，一部分工作就是自注册，这需要控件在VERSIONINFO结构中定义OLESelfRegister值，你可以对资源文件进行编辑如下
BEGIN
BLOCK " StringFileInfo "
BEGIN
BLOCK " 080403a8 "
BEGIN
VALUE " CompanyName " , " TODO: <公司名> "
VALUE " FileDescription " , " TODO: <文件说明> "
VALUE " FileVersion " , " 1.0.0.1 "
VALUE " InternalName " , " CardScan.ocx "
VALUE " LegalCopyright " , " TODO: (C) <公司名>。保留所有权利。 "
VALUE " OLESelfRegister " , " "
VALUE " OriginalFilename " , " CardScan.ocx "
VALUE " ProductName " , " TODO: <产品名> "
VALUE " ProductVersion " , " 1.0.0.1 "
END
END
BLOCK " VarFileInfo "
BEGIN
VALUE " Translation " , 0x804 , 936
END
END
BLOCK " StringFileInfo "
BEGIN
BLOCK " 080403a8 "
BEGIN
VALUE " CompanyName " , " TODO: <公司名> "
VALUE " FileDescription " , " TODO: <文件说明> "
VALUE " FileVersion " , " 1.0.0.1 "
VALUE " InternalName " , " CardScan.ocx "
VALUE " LegalCopyright " , " TODO: (C) <公司名>。保留所有权利。 "
VALUE " OLESelfRegister " , " "
VALUE " OriginalFilename " , " CardScan.ocx "
VALUE " ProductName " , " TODO: <产品名> "
VALUE " ProductVersion " , " 1.0.0.1 "
END
END
BLOCK " VarFileInfo "
BEGIN
VALUE " Translation " , 0x804 , 936
END
END
打包为CAB文件
因为ActiveX控件要放在网站上供客户下载到本地，因此压缩是必需的。一段典型的html代码如下：
<
OBJECT
ID
="FuckATL1"
CODEBASE ="http://localhost:8080/CardScan.cab"
CLASSID ="CLSID:B548F3C7-2135-4242-920B-A7BDEE6D2BA3" WIDTH =300 HEIGHT =200
/>
CODEBASE ="http://localhost:8080/CardScan.cab"
CLASSID ="CLSID:B548F3C7-2135-4242-920B-A7BDEE6D2BA3" WIDTH =300 HEIGHT =200
/>
CODEBASE就指明了要下载的压缩包，其中包含了oxc，dll控件等所需要的文件。
通常CAB文件包含了一个INF文件，它用来描述CAB文件的所有细节信息，下面举个简单例子，代码如下：
;
Sample INF file
for
SCRIPTABLEACTIVEX
.
DLL
[version]
; version signature ( same for both NT and Win95 ) do not remove
signature = " $CHICAGO$ "
AdvancedINF = 2.0
[Add . Code]
CardScan . ocx = CardScan . ocx
CardScan . inf = CardScan . inf
[CardScan . ocx]
file-win32-x86 = thiscab
clsid = {B548F3C7- 2135 - 4242 -920B-A7BDEE6D2BA3}
FileVersion = 1 , 0 , 0 , 1
RegisterServer = yes
[CardScan . inf]
file = thiscab
; end of INF file
[version]
; version signature ( same for both NT and Win95 ) do not remove
signature = " $CHICAGO$ "
AdvancedINF = 2.0
[Add . Code]
CardScan . ocx = CardScan . ocx
CardScan . inf = CardScan . inf
[CardScan . ocx]
file-win32-x86 = thiscab
clsid = {B548F3C7- 2135 - 4242 -920B-A7BDEE6D2BA3}
FileVersion = 1 , 0 , 0 , 1
RegisterServer = yes
[CardScan . inf]
file = thiscab
; end of INF file
至于打包就不赘述了，详尽的图解过程请看《如何给ActiveX数字签名(Step by Step, Delphi)》
最后
以上就是玩命外套为你收集整理的COM组件开发实践（三）的全部内容，希望文章能够帮你解决COM组件开发实践（三）所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
