概述

1、Oracle数据准备

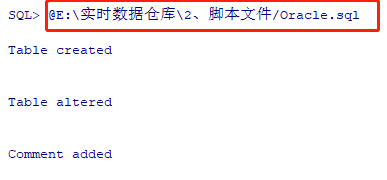

（1）将Oracle.sql文件导入到Oracle

--在PLSQL中打开命令执行窗口
@ @E:实时数据仓库2、脚本文件/Oracle.sql               --脚本路径

在这里插入图片描述

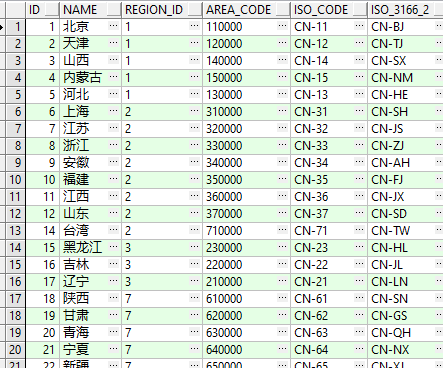

（2）查看表数据

select * from base_province

在这里插入图片描述

2、测试环境准备

（1）创建文件夹，下面要用到

E:oracledb_recovery_file_dest
E:oraclenamespace

（2）以DBA身份连接到数据库

Windows打开CMD运行SqlPlus，以DBA身份连接数据库

sqlplus sys/123456 AS SYSDBA

（3）开启日志归档

alter system set db_recovery_file_dest_size = 10G;
alter system set db_recovery_file_dest = 'E:oracledb_recovery_file_dest' scope=spfile;
shutdown immediate;
startup mount;
alter database archivelog;
alter database open;

在这里插入图片描述

查看日志是否归档

archive log list;

在这里插入图片描述

（4）启用补充日志记录（库表）

ALTER TABLE scott.emp ADD SUPPLEMENTAL LOG DATA (ALL) COLUMNS;
ALTER DATABASE ADD SUPPLEMENTAL LOG DATA;

（5）创建表空间

CREATE TABLESPACE logminer_tbs DATAFILE 'E:ORACLEnamespacelogminer_tbs.dbf' SIZE 25M REUSE AUTOEXTEND ON MAXSIZE UNLIMITED;

（6）创建用户及授予权限

-- 创建用户family绑定表空间LOGMINER_TBS
CREATE USER family IDENTIFIED BY chickenkang DEFAULT TABLESPACE LOGMINER_TBS QUOTA UNLIMITED ON LOGMINER_TBS;

-- 授予family用户dba的权限
 grant connect,resource,dba to family;

-- 并授予权限
  GRANT CREATE SESSION TO family;
  GRANT SELECT ON V_$DATABASE to family;
  GRANT FLASHBACK ANY TABLE TO family;
  GRANT SELECT ANY TABLE TO family;
  GRANT SELECT_CATALOG_ROLE TO family;
  GRANT EXECUTE_CATALOG_ROLE TO family;
  GRANT SELECT ANY TRANSACTION TO family;
  GRANT EXECUTE ON SYS.DBMS_LOGMNR TO family;
  GRANT SELECT ON V_$LOGMNR_CONTENTS TO family;
  GRANT CREATE TABLE TO family;
  GRANT LOCK ANY TABLE TO family;
  GRANT ALTER ANY TABLE TO family;
  GRANT CREATE SEQUENCE TO family;

  GRANT EXECUTE ON DBMS_LOGMNR TO family;
  GRANT EXECUTE ON DBMS_LOGMNR_D TO family;

  GRANT SELECT ON V_$LOG TO family;
  GRANT SELECT ON V_$LOG_HISTORY TO family;
  GRANT SELECT ON V_$LOGMNR_LOGS TO family;
  GRANT SELECT ON V_$LOGMNR_CONTENTS TO family;
  GRANT SELECT ON V_$LOGMNR_PARAMETERS TO family;
  GRANT SELECT ON V_$LOGFILE TO family;
  GRANT SELECT ON V_$ARCHIVED_LOG TO family;
  GRANT SELECT ON V_$ARCHIVE_DEST_STATUS TO family;

（7）创建user表，修改user表让其支持增量日志

ALTER TABLE family.emp ADD SUPPLEMENTAL LOG DATA (ALL) COLUMNS;

3、编写脚本

（1）pom依赖

 <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>1.12.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_2.12</artifactId>
            <version>1.12.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.12</artifactId>
            <version>1.12.0</version>
        </dependency>
        <dependency>
            <groupId>com.ververica</groupId>
            <artifactId>flink-connector-oracle-cdc</artifactId>
            <version>2.1.0</version>
        </dependency>
        <dependency>
            <groupId>com.oracle.database.jdbc</groupId>
            <artifactId>ojdbc10</artifactId>
            <version>19.10.0.0</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>3.1.3</version>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-table-planner-blink_2.12</artifactId>
            <version>1.12.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.75</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>3.0.0</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

（2）代码编写

package com.hxjy;


import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import com.ververica.cdc.debezium.JsonDebeziumDeserializationSchema;


public class OracleSourceExample {
    public static void main(String[] args) throws Exception {
        SourceFunction<String> sourceFunction = OracleSourceExample.<String>builder()
                .hostname("localhost")
                .port(1521)
                .database("ORCL") // monitor XE database
                .schemaList("family") // monitor inventory schema
                //.tableList("inventory.products") // monitor products table
                .username("family")
                .password("chickenkang")
                .deserializer(new JsonDebeziumDeserializationSchema()) // converts SourceRecord to JSON String
                .build();

        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

        env
                .addSource(sourceFunction)
                .print().setParallelism(1); // use parallelism 1 for sink to keep message ordering

        env.execute("FlinkCDCOracle");
    }
}
