stm32心率监测系统(心率监测，wifi上传，APP显示，上位机显示)

一、硬件材料清单：

1、STM32核心板

2、OLED显示屏

3、心率传感器

4、ESP8266

二、实现的功能

1：STM32采集心率传感器数据
2：OLED实时显示心率数据和心率曲线
3：wifi上传心率数据
4：APP实时显示心率数据
5：C#上位机实时显示心率，心率数据存储，历史数据查看

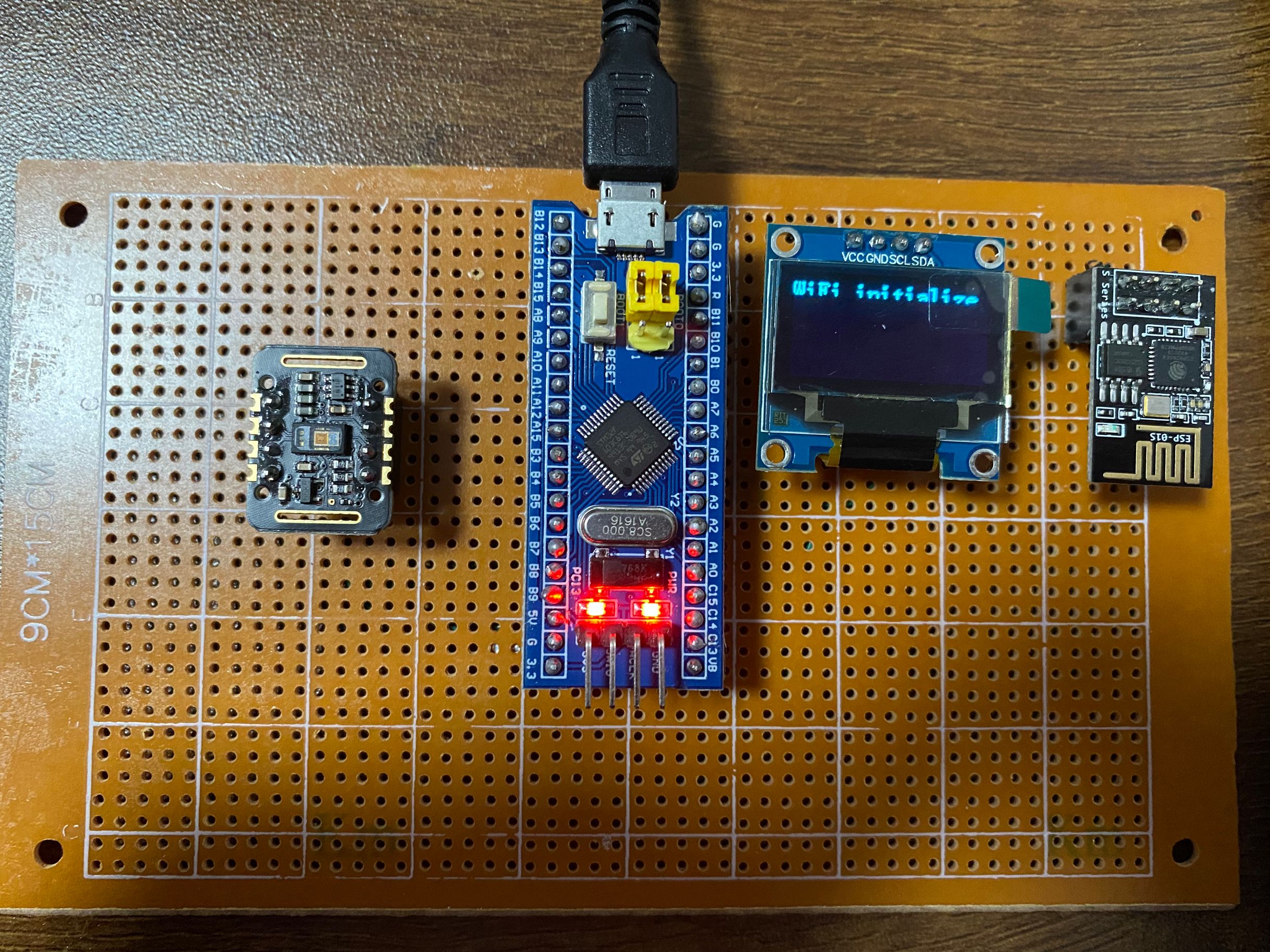

三、效果演示

四、硬件部分源代码共享

	while(1)
	{
				i=0;
        un_min=0x3FFFF;
        un_max=0;

		//dumping the first 100 sets of samples in the memory and shift the last 400 sets of samples to the top
        for(i=100;i<500;i++)
        {
            aun_red_buffer[i-100]=aun_red_buffer[i];
            aun_ir_buffer[i-100]=aun_ir_buffer[i];

            //update the signal min and max
            if(un_min>aun_red_buffer[i])
            un_min=aun_red_buffer[i];
            if(un_max<aun_red_buffer[i])
            un_max=aun_red_buffer[i];
        }
		//take 100 sets of samples before calculating the heart rate.
        for(i=400;i<500;i++)
        {
            un_prev_data=aun_red_buffer[i-1];
            while(MAX30102_INT==1);
            max30102_FIFO_ReadBytes(REG_FIFO_DATA,temp);
			aun_red_buffer[i] =  (long)((long)((long)temp[0]&0x03)<<16) | (long)temp[1]<<8 | (long)temp[2];    // Combine values to get the actual number
			aun_ir_buffer[i] = (long)((long)((long)temp[3] & 0x03)<<16) |(long)temp[4]<<8 | (long)temp[5];   // Combine values to get the actual number

            if(aun_red_buffer[i]>un_prev_data)
            {
                f_temp=aun_red_buffer[i]-un_prev_data;
                f_temp/=(un_max-un_min);
                f_temp*=MAX_BRIGHTNESS;
                n_brightness-=(int)f_temp;
                if(n_brightness<0)
                    n_brightness=0;
            }
            else
            {
                f_temp=un_prev_data-aun_red_buffer[i];
                f_temp/=(un_max-un_min);
                f_temp*=MAX_BRIGHTNESS;
                n_brightness+=(int)f_temp;
                if(n_brightness>MAX_BRIGHTNESS)
                    n_brightness=MAX_BRIGHTNESS;
            }

}

五、源代码链接

https://item.taobao.com/item.htm?spm=a1z10.5-c-s.w4002-22569760063.19.141f3134HIEvMf&id=632312737526
