概述

一、前述

剖析hadoop源码，首先从Client看起，因为Client在MapReduce的过程中承担了很多重要的角色。

二、MapReduce框架主类

代码如下：

	public static void main(String[] args) throws Exception {
		// System.setProperty("hadoop.home.dir", "E:/Hadoop/hadoop-2.6.5");
		Configuration conf = new Configuration();
		// Job job = new Job(conf);
		Job job = Job.getInstance(conf);

		job.setJarByClass(WordCount.class);
		job.setJobName("wordcount");

		job.setOutputKeyClass(Text.class);
		job.setOutputValueClass(IntWritable.class);

		job.setMapperClass(WordCountMap.class);
		job.setReducerClass(WordCountReduce.class);

		job.setInputFormatClass(TextInputFormat.class);
		job.setOutputFormatClass(TextOutputFormat.class);

		// FileInputFormat.addInputPath(job, new Path(args[0]));
		// FileOutputFormat.setOutputPath(job, new Path(args[1]));
		FileInputFormat.addInputPath(job, new Path("hdfs://node03:9000/lxk/haha.txt"));
		FileOutputFormat.setOutputPath(job, new Path("hdfs://node03:9000/lxk01/haha.txt"));

		// 向yarn集群提交这个job
		boolean res = job.waitForCompletion(true);
		System.exit(res ? 0 : 1);

	}

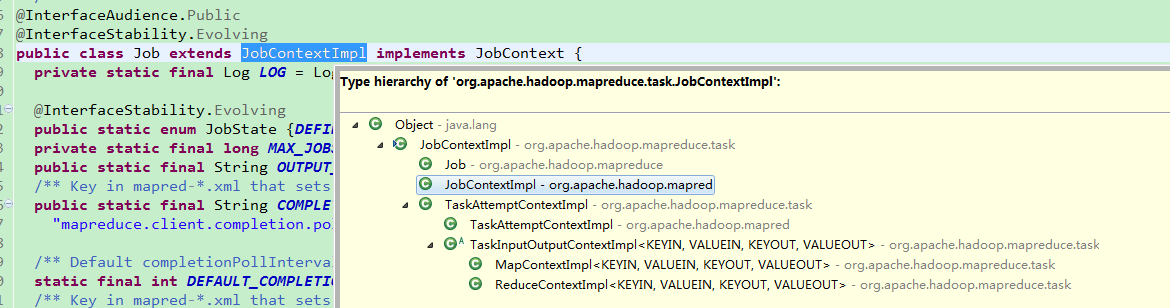

第一步，先分析Job，可以看见源码中Job实现了public class Job extends JobContextImpl implements JobContext

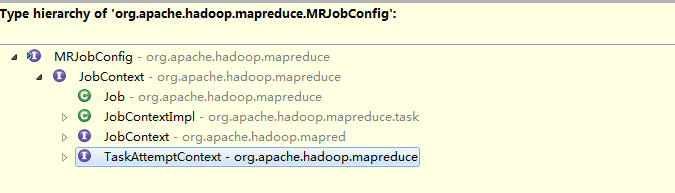

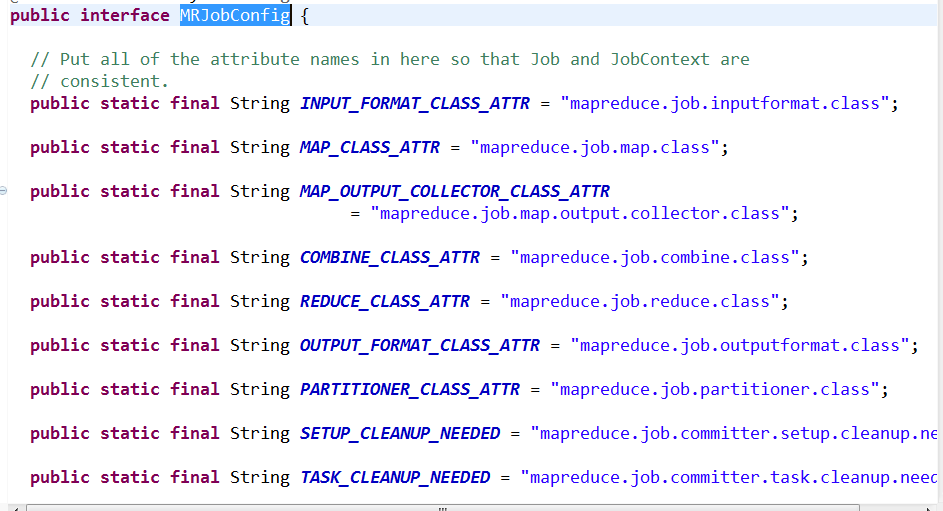

然后JobContext实现了 MRJobConfig,可以看见其中有很多配置

因为job中传的参数为conf,所以这里的配置即对应我们的配置文件中的属性值。

  Job  job = Job.getInstance(conf);

 挑几个重要的看下：

  // 默认的Mapper任务内存大小。
  public static final String MAP_MEMORY_MB = "mapreduce.map.memory.mb";
  public static final int DEFAULT_MAP_MEMORY_MB = 1024;

  // 默认的Mapper任务计算使用CPU资源核数
  public static final String MAP_CPU_VCORES = "mapreduce.map.cpu.vcores";
  public static final int DEFAULT_MAP_CPU_VCORES = 1;

  // 默认的reduce任务内存大小。
  public static final String REDUCE_MEMORY_MB = "mapreduce.reduce.memory.mb";
  public static final int DEFAULT_REDUCE_MEMORY_MB = 1024;

  // 默认的reduce任务计算使用CPU资源核数
  public static final String REDUCE_CPU_VCORES = "mapreduce.reduce.cpu.vcores";
  public static final int DEFAULT_REDUCE_CPU_VCORES = 1;

第二步，分析提交过程 job.waitForCompletion(true); 追踪源码发现主要实现这个类

JobStatus submitJobInternal(Job job, Cluster cluster)
  throws ClassNotFoundException, InterruptedException, IOException

Checking the input and output specifications of the job. //检查输入输出路径
Computing the InputSplits for the job. //检查切片
Setup the requisite accounting information for the DistributedCache of the job, if necessary.
Copying the job's jar and configuration to the map-reduce system directory on the distributed file-system.
Submitting the job to the JobTracker and optionally monitoring it's status.

在此方法中，重点看下此方法 int maps = writeSplits(job, submitJobDir);

追踪后具体实现可知

private <T extends InputSplit>
  int writeNewSplits(JobContext job, Path jobSubmitDir) throws IOException,
      InterruptedException, ClassNotFoundException {
    Configuration conf = job.getConfiguration();
    InputFormat<?, ?> input =
      ReflectionUtils.newInstance(job.getInputFormatClass(), conf);

    List<InputSplit> splits = input.getSplits(job);
    T[] array = (T[]) splits.toArray(new InputSplit[splits.size()]);

    // sort the splits into order based on size, so that the biggest
    // go first
    Arrays.sort(array, new SplitComparator());
    JobSplitWriter.createSplitFiles(jobSubmitDir, conf,
        jobSubmitDir.getFileSystem(conf), array);
    return array.length;
  }

追踪job.getInputFormatClass()可以发现如下代码：
所以可得知用户的默认输入类是TextInputformat类并且继承关系如下：
TextInputforMat-->FileinputFormat-->InputFormat

追踪 List<InputSplit> splits = input.getSplits(job);可以得到如下源码：

最为重要的一个源码！！！！！！！！！！！

public List<InputSplit> getSplits(JobContext job) throws IOException {
    Stopwatch sw = new Stopwatch().start();
    long minSize = Math.max(getFormatMinSplitSize(), getMinSplitSize(job));如果用户设置则取用户，没有是1
    long maxSize = getMaxSplitSize(job);//如果用户设置则取用户，没有取最大值

    // generate splits
    List<InputSplit> splits = new ArrayList<InputSplit>();
    List<FileStatus> files = listStatus(job);
    for (FileStatus file: files) {
      Path path = file.getPath();//取输入文件的大小和路径
      long length = file.getLen();
      if (length != 0) {
        BlockLocation[] blkLocations;
        if (file instanceof LocatedFileStatus) {
          blkLocations = ((LocatedFileStatus) file).getBlockLocations();
        } else {
          FileSystem fs = path.getFileSystem(job.getConfiguration());
          blkLocations = fs.getFileBlockLocations(file, 0, length);//获得所有块的位置。
        }
        if (isSplitable(job, path)) {
          long blockSize = file.getBlockSize();
          long splitSize = computeSplitSize(blockSize, minSize, maxSize);//获得切片大小

          long bytesRemaining = length;
          while (((double) bytesRemaining)/splitSize > SPLIT_SLOP) {
            int blkIndex = getBlockIndex(blkLocations, length-bytesRemaining);//这一块传参传的是切块的偏移量，返回这个块的索引
            splits.add(makeSplit(path, length-bytesRemaining, splitSize,
                        blkLocations[blkIndex].getHosts(),//根据当前块的索引号取出来块的位置包括副本的位置 然后传递给切片，然后切片知道往哪运算。即往块的位置信息计算
                        blkLocations[blkIndex].getCachedHosts()));
            bytesRemaining -= splitSize;
          }

          if (bytesRemaining != 0) {
            int blkIndex = getBlockIndex(blkLocations, length-bytesRemaining);
            splits.add(makeSplit(path, length-bytesRemaining, bytesRemaining,
                       blkLocations[blkIndex].getHosts(),
                       blkLocations[blkIndex].getCachedHosts()));
          }
        } else { // not splitable
          splits.add(makeSplit(path, 0, length, blkLocations[0].getHosts(),
                      blkLocations[0].getCachedHosts()));
        }
      } else {
        //Create empty hosts array for zero length files
        splits.add(makeSplit(path, 0, length, new String[0]));
      }
    }
    // Save the number of input files for metrics/loadgen
    job.getConfiguration().setLong(NUM_INPUT_FILES, files.size());
    sw.stop();
    if (LOG.isDebugEnabled()) {
      LOG.debug("Total # of splits generated by getSplits: " + splits.size()
          + ", TimeTaken: " + sw.elapsedMillis());
    }
    return splits;
  }

 1.long splitSize = computeSplitSize(blockSize, minSize, maxSize);追踪源码发现

protected long computeSplitSize(long blockSize, long minSize, long maxSize) {

return Math.max(minSize, Math.min(maxSize, blockSize));

}

切片大小默认是块的大小！！！！

假如让切片大小 < 块的大小则更改配置的最大值MaxSize，让其小于blocksize

假如让切片大小 > 块的大小则更改配置的最小值MinSize，让其大于blocksize

通过FileInputFormat.setMinInputSplitSize即可。

2. int blkIndex = getBlockIndex(blkLocations, length-bytesRemaining) 追踪源码发现

protected int getBlockIndex(BlockLocation[] blkLocations,
                             long offset) {
   for (int i = 0 ; i < blkLocations.length; i++) {
     // is the offset inside this block?
     if ((blkLocations[i].getOffset() <= offset) &&
         (offset < blkLocations[i].getOffset() + blkLocations[i].getLength())){
      //切片要大于>=块的起始量，小于一个块的末尾量。
       return i;//返回这个块
     }
   }
   BlockLocation last = blkLocations[blkLocations.length -1];
   long fileLength = last.getOffset() + last.getLength() -1;
   throw new IllegalArgumentException("Offset " + offset +
                                      " is outside of file (0.." +
                                      fileLength + ")");
 }

3. splits.add(makeSplit(path, length-bytesRemaining, splitSize, blkLocations[blkIndex].getHosts()

创建切片的时候，一个切片对应一个mapperr任务，所以创建切片的四个位置（path,0,10,host）

根据host可知mapper任务的计算位置，则对应计算向数据移动！！！！块是逻辑的，并没有真正切割数据。！！

4.上述getSplits方法最终得到一个切片的清单,清单的数目就是mapper的数量！！即开始方法的入口 int maps = writeSplits(job, submitJobDir);返回值。

5.计算向数据移动时会拉取只属于自己的文件。

参考：https://www.cnblogs.com/LHWorldBlog/p/8244881.html
