深入理解ConcurrentHashMap原理分析以及线程安全性问题

1
2

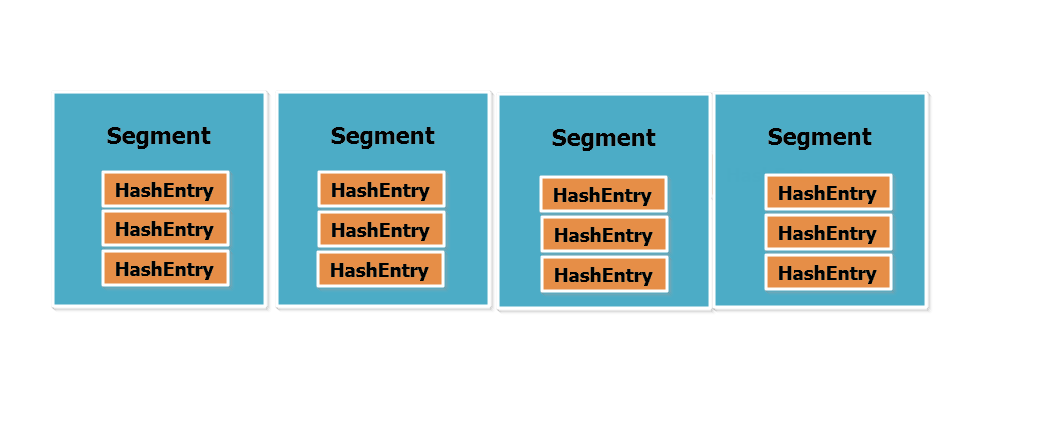

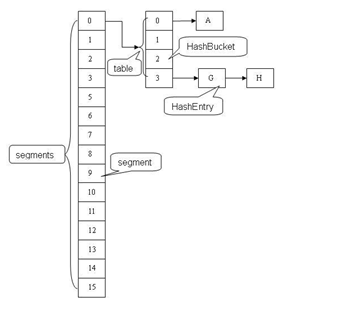

 final Segment<K,V>[] segments;

1
2
3
4
5
6
7
8
// 跟HashMap结构有点类似
Segment(float lf, int threshold, HashEntry<K,V>[] tab) {
            this.loadFactor = lf;//负载因子
            this.threshold = threshold;//阈值
            this.table = tab;//主干数组即HashEntry数组
        }


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
 public V put(K key, V value) {
        Segment<K,V> s;
        //concurrentHashMap不允许key/value为空
        if (value == null)
            throw new NullPointerException();
        //hash函数对key的hashCode重新散列，避免差劲的不合理的hashcode，保证散列均匀
        int hash = hash(key);
        //返回的hash值无符号右移segmentShift位与段掩码进行位运算，定位segment
        int j = (hash >>> segmentShift) & segmentMask;
        if ((s = (Segment<K,V>)UNSAFE.getObject          // nonvolatile; recheck
             (segments, (j << SSHIFT) + SBASE)) == null) //  in ensureSegment
            s = ensureSegment(j);
        return s.put(key, hash, value, false);
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
final V put(K key, int hash, V value, boolean onlyIfAbsent) {
    HashEntry<K,V> node = tryLock() ? null :scanAndLockForPut(key, hash, value);
    //tryLock()是ReentrantLock获取锁一个方法。如果当前线程获取锁成功 返回true,如果别线程获取了锁返回false不成功时会遍历定位到的HashEnry位置的链表（遍历主要是为了使CPU缓存链表），若找不到，则创建HashEntry。tryLock一定次数后（MAX_SCAN_RETRIES变量决定），则lock。若遍历过程中，由于其他线程的操作导致链表头结点变化，则需要重新遍历。
            V oldValue;
            try {
                HashEntry<K,V>[] tab = table;
                int index = (tab.length - 1) & hash;//定位HashEntry，可以看到，这个hash值在定位Segment时和在Segment中定位HashEntry都会用到，只不过定位Segment时只用到高几位。
                HashEntry<K,V> first = entryAt(tab, index);
                for (HashEntry<K,V> e = first;;) {
                    if (e != null) {
                        K k;
                        if ((k = e.key) == key ||
                            (e.hash == hash && key.equals(k))) {
                            oldValue = e.value;
                            if (!onlyIfAbsent) {
                                e.value = value;
                                ++modCount;
                            }
                            break;
                        }
                        e = e.next;
                    }
                    else {
                        if (node != null)
                            node.setNext(first);
                        else
                            node = new HashEntry<K,V>(hash, key, value, first);
                        int c = count + 1;
　　　　　　　　　　　　　　//若c超出阈值threshold，需要扩容并rehash。扩容后的容量是当前容量的2倍。这样可以最大程度避免之前散列好的entry重新散列。扩容并rehash的这个过程是比较消耗资源的。
                        if (c > threshold && tab.length < MAXIMUM_CAPACITY)
                            rehash(node);
                        else
                            setEntryAt(tab, index, node);
                        ++modCount;
                        count = c;
                        oldValue = null;
                        break;
                    }
                }
            } finally {
                unlock();
            }
            return oldValue;
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
 final V putVal(K key, V value, boolean onlyIfAbsent) {
        if (key == null || value == null) throw new NullPointerException();
        int hash = spread(key.hashCode());
        int binCount = 0;
        for (Node<K,V>[] tab = table;;) {
            Node<K,V> f; int n, i, fh;
            if (tab == null || (n = tab.length) == 0)
                tab = initTable();
            else if ((f = tabAt(tab, i = (n - 1) & hash)) == null) {
                if (casTabAt(tab, i, null,
                             new Node<K,V>(hash, key, value, null)))
                    break;                   // no lock when adding to empty bin
            }
            else if ((fh = f.hash) == MOVED)
                tab = helpTransfer(tab, f);
            else {
                V oldVal = null;
                synchronized (f) {
                    if (tabAt(tab, i) == f) {
                        if (fh >= 0) {
                            binCount = 1;
                            for (Node<K,V> e = f;; ++binCount) {
                                K ek;
                                if (e.hash == hash &&
                                    ((ek = e.key) == key ||
                                     (ek != null && key.equals(ek)))) {
                                    oldVal = e.val;
                                    if (!onlyIfAbsent)
                                        e.val = value;
                                    break;
                                }
                                Node<K,V> pred = e;
                                if ((e = e.next) == null) {
                                    pred.next = new Node<K,V>(hash, key,
                                                              value, null);
                                    break;
                                }
                            }
                        }
                        else if (f instanceof TreeBin) {
                            Node<K,V> p;
                            binCount = 2;
                            if ((p = ((TreeBin<K,V>)f).putTreeVal(hash, key,
                                                           value)) != null) {
                                oldVal = p.val;
                                if (!onlyIfAbsent)
                                    p.val = value;
                            }
                        }
                    }
                }
                if (binCount != 0) {
                    if (binCount >= TREEIFY_THRESHOLD)
                        treeifyBin(tab, i);
                    if (oldVal != null)
                        return oldVal;
                    break;
                }
            }
        }
        addCount(1L, binCount);
        return null;


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
//计算Segment中元素的数量
transient volatile int count;
***********************************************************
    public V get(Object key) {
        int hash = hash(key.hashCode());
        return segmentFor(hash).get(key, hash);
    }
***********************************************************

    final Segment<K,V> segmentFor(int hash) {
        return segments[(hash >>> segmentShift) & segmentMask];
    }
********************************************************
    V get(Object key, int hash) {
        if (count != 0) { // read-volatile
            HashEntry<K,V> e = getFirst(hash);
            while (e != null) {
                if (e.hash == hash && key.equals(e.key)) {
                    V v = e.value;
                    if (v != null)
                        return v;
                    return readValueUnderLock(e); // recheck
                }
                e = e.next;
            }
        }
        return null;
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

        Node<K,V>[] tab; Node<K,V> e, p; int n, eh; K ek;
        int h = spread(key.hashCode());
        if ((tab = table) != null && (n = tab.length) > 0 &&
            (e = tabAt(tab, (n - 1) & h)) != null) {
            if ((eh = e.hash) == h) {
                if ((ek = e.key) == key || (ek != null && key.equals(ek)))
                    return e.val;
            }
            else if (eh < 0)
                return (p = e.find(h, key)) != null ? p.val : null;
            while ((e = e.next) != null) {
                if (e.hash == h &&
                    ((ek = e.key) == key || (ek != null && key.equals(ek))))
                    return e.val;
            }
        }
        return null;


1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

    V remove(Object key, int hash, Object value) {
        lock();
        try {
            int c = count - 1;
            HashEntry<K,V>[] tab = table;
            int index = hash & (tab.length - 1);
            HashEntry<K,V> first = tab[index];
            HashEntry<K,V> e = first;
            while (e != null && (e.hash != hash || !key.equals(e.key)))
                e = e.next;

            V oldValue = null;
            if (e != null) {
                V v = e.value;
                if (value == null || value.equals(v)) {
                    oldValue = v;
                    // All entries following removed node can stay
                    // in list, but all preceding ones need to be
                    // cloned.
                    ++modCount;
                    HashEntry<K,V> newFirst = e.next;
                    for (HashEntry<K,V> p = first; p != e; p = p.next)
                        newFirst = new HashEntry<K,V>(p.key, p.hash,
                                                      newFirst, p.value);
                    tab[index] = newFirst;
                    count = c; // write-volatile
                }
            }
            return oldValue;
        } finally {
            unlock();
        }
    }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
public class VolatileTest{

	int a=1;
	int b=2;

	//赋值操作
	public  void change(){
		a=3;
		b=a;
	}

	//打印操作
	public  void print(){
		System.out.println("b:"+b+",a:"+a);
	}

	@Test
	public void testNorMal(){
		VolatileTest vt=new VolatileTest();

	 for (int i = 0; i < 100000; i++) {
		 new Thread(new Runnable() {
				@Override
				public void run() {
					 try {
						Thread.sleep(100);
					} catch (InterruptedException e) {
						// TODO Auto-generated catch block
						e.printStackTrace();
					}
					 vt.change();
				}
			}).start();


			new Thread(new Runnable() {
				@Override
				public void run() {
					 try {
						Thread.sleep(10);
					} catch (InterruptedException e) {
						// TODO Auto-generated catch block
						e.printStackTrace();
					}
					 vt.print();
				}
			}).start();
	}


	}
}
