概述

实验环境

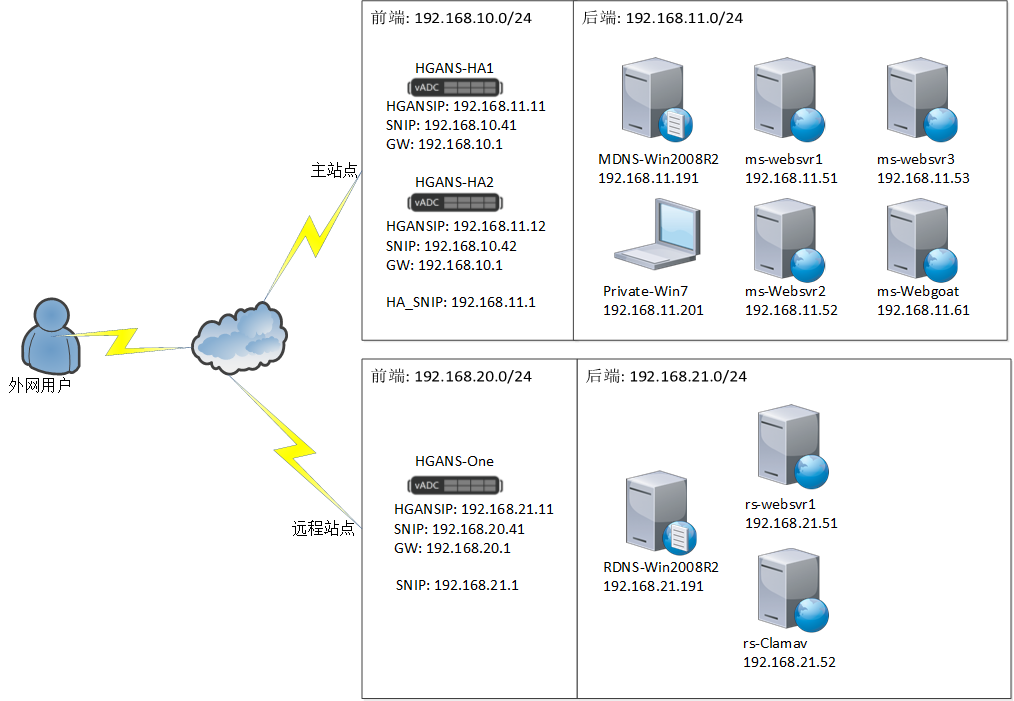

摘要拓扑图：

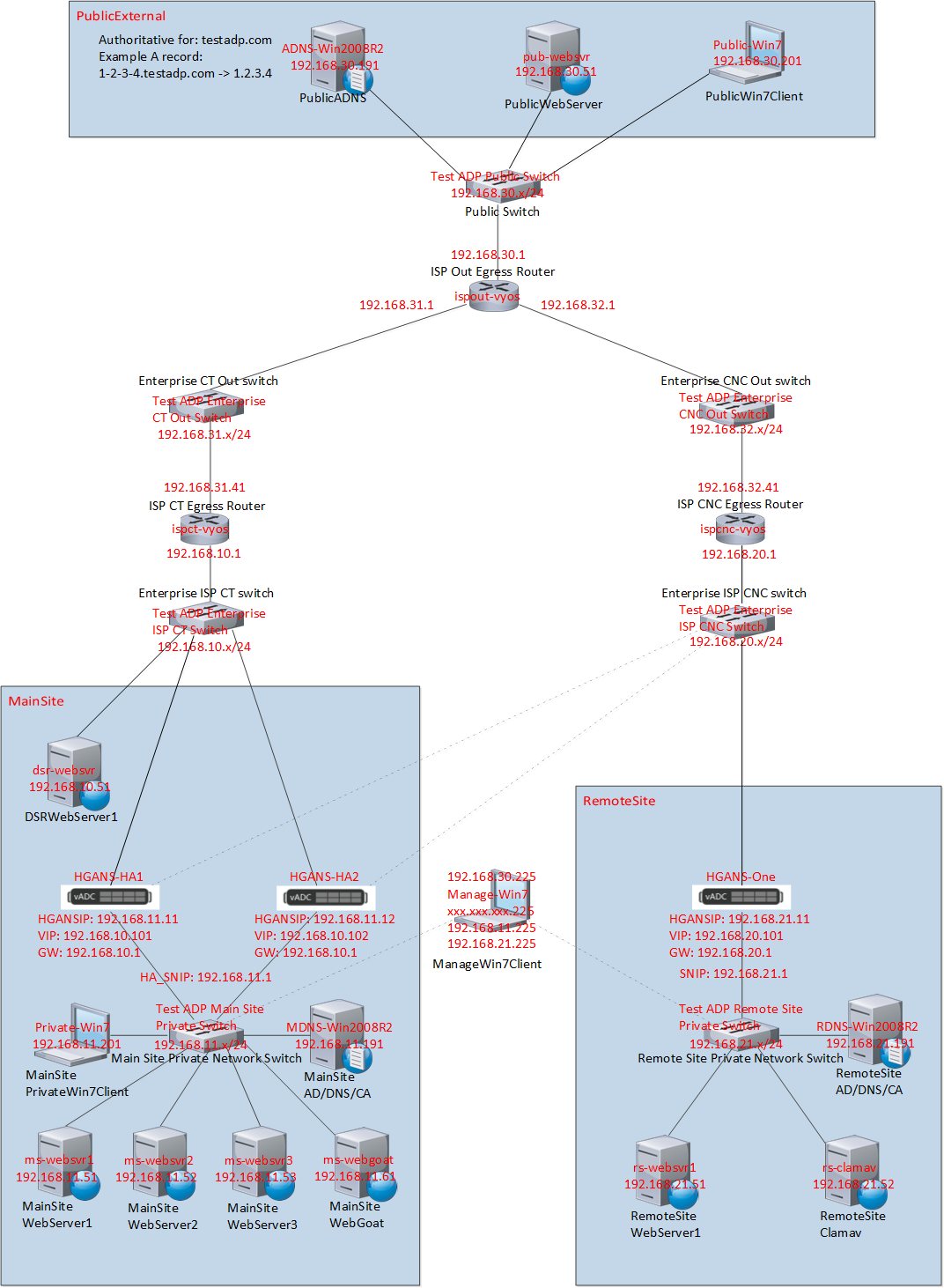

实验拓扑图

设备登录凭据

软路由设备：( GatewayIP: 1-9 )

Hostname	IP Address	Username/Password
ispct-vyos	eth0IP: 192.168.31.41/24 eth1IP: 192.168.10.1/24 dns: 192.168.30.191 ospfv2: Route-ID(1.1.1.1/32)	vyos/123456
ispcnc-vyos	eth0IP: 192.168.32.41/24 eth1IP: 192.168.20.1/24 dns: 192.168.30.191 ospfv2: Route-ID(2.2.2.2/32)	vyos/123456
ispout-vyos	eth0IP: 192.168.30.1/24 eth1IP: 192.168.31.1/24 eth2IP: 192.168.32.1/24 dns: 192.168.30.191 ospfv2: Route-ID(3.3.3.3/32)	vyos/123456

应用交付控制器设备：

( ANSIP: 11-19, CLIP: 21-29,

MIP: 31-39, SNIP: 41-49, VIP: 101-149, GSLBsiteIP: 151-159 )

Hostname	IP Address	Username/Password
ans-ha1	ANSIP: 192.168.11.11 Gateway: 192.168.10.1 SNIP: 192.168.10.41 SNIP: 192.168.11.1 TimeZone: GMT+08:00-CST-Asia/Shanghai DNS: 192.168.11.191 NTP: 192.168.11.191 SystemParam: timeout(43200) CliMode: color(on) page(off) timeout(43200)	ansroot/ansroot
ans-ha2	ANSIP: 192.168.11.12 Gateway: 192.168.10.1 SNIP: 192.168.10.42 SNIP: 192.168.11.2 TimeZone: GMT+08:00-CST-Asia/Shanghai DNS: 192.168.11.191 NTP: 192.168.11.191 SystemParam: timeout(43200) CliMode: color(on) page(off) timeout(43200)	ansroot/ansroot
ans-one	ANSIP: 192.168.21.11 Gateway: 192.168.20.1 SNIP: 192.168.20.41 SNIP: 192.168.21.1 TimeZone: GMT+08:00-CST-Asia/Shanghai DNS: 192.168.21.191 NTP: 192.168.21.191 SystemParam: timeout(43200) CliMode: color(on) page(off) timeout(43200)	ansroot/ansroot

应用服务器：( ServerIP: 51-99 )

Hostname	IP Address	Username/Password
pub-websvr	IP: 192.168.30.51/24 GW: 192.168.30.1 DNS1: 192.168.30.191 nginx: www.pub-websvr.com mariadb: root/qwe123	root/123456
rs-websvr1	IP: 192.168.21.51/24 GW: 192.168.21.1 DNS1: 192.168.21.191 nginx: www.rs-websvr1.com mariadb: root/qwe123	root/123456
rs-clamav	IP: 192.168.21.52/24 GW: 192.168.21.1 DNS1: 192.168.21.191 nginx: www.rs-clamav.com mariadb: root/qwe123 snort: snort/123456 clamav: clamav/123456 squid: clamav/qwe123	root/123456
dsr-websvr1	IP: 192.168.10.51/24 GW: 192.168.10.1 DNS1: 192.168.30.191 nginx: www.dsr-websvr1.com mariadb: root/qwe123	root/123456
ms-websvr1	IP: 192.168.11.51/24 GW: 192.168.11.1 DNS1: 192.168.11.191 nginx: www.ms-websvr1.com mariadb: root/qwe123	root/123456
ms-websvr2	IP: 192.168.11.52/24 GW: 192.168.11.1 DNS1: 192.168.11.191 nginx: www.ms-websvr2.com mariadb: root/qwe123	root/123456
ms-websvr3	IP: 192.168.11.53/24 GW: 192.168.11.1 DNS1: 192.168.11.191 nginx: www.ms-websvr3.com mariadb: root/qwe123	root/123456
ms-webgoat	IP: 192.168.11.61/24 GW: 192.168.11.1 DNS1: 192.168.11.191 nginx: www.ms-webgoat.com mariadb: root/qwe123 webgot: http://ip:8080/webgoat/login.mvc	root/123456

Windows Desktop客户端：( ClientIP: 201-209 )

Hostname	IP Address	Username/Password
Manage-Win7	-------------------------------------- IP: xxx.xxx.xxx.225/24 GW: xxx.xxx.xxx.1 DNS1: 8.8.8.8 DNS2: 4.2.2.1 -------------------------------------- IP: 192.168.30.225/24 GW: 192.168.30.1 DNS1: 192.168.30.191 -------------------------------------- IP: 192.168.11.225/24 GW: 192.168.30.1 DNS1: 192.168.11.191 -------------------------------------- IP: 192.168.21.225/24 GW: 192.168.30.1 DNS1: 192.168.21.191 --------------------------------------	Administrator/123456 TestUser01/123456 TestUser02/123456 TestUser03/123456
Public-Win7	-------------------------------------- IP: 192.168.30.201/24 GW: 192.168.30.1 DNS1: 192.168.30.191 --------------------------------------	Administrator/123456 TestUser01/123456 TestUser02/123456 TestUser03/123456
Private-Win7	-------------------------------------- IP: 192.168.11.201/24 GW: 192.168.11.1 DNS1: 192.168.11.191 --------------------------------------	Administrator/123456 TestUser01/123456 TestUser02/123456 TestUser03/123456

Windows Server 服务器：( ServerIP: 191-199 )

Hostname	IP Address	Username/Password
ADNS-Win2008R2	IP: 192.168.30.191/24 GW: 192.168.30.1 DNS1: 127.0.0.1 DNSService – DNS_domain: testadp.com DHCPService: 192.168.30.91-99 192.168.10.91-99 192.168.20.91-99 CAService: http://ip/certsrv/default.asp	Administrator/123456
MDNS-Win2008R2	IP: 192.168.11.191/24 GW: 192.168.11.1 DNS1: 127.0.0.1 ADService – AD_FQDN: mtestadp.com AD_NetBIOS: MTESTADP AD_Pass: testadp ADUsers – adpadmin/adpadmin adpuser01/adpuser01 adpuser02/adpuser02 adpuser03/adpuser03 DNSService – DNS_domain: mtestadp.com DHCPService: 192.168.11.91-192.168.11.99 CAService: http://ip/certsrv/default.asp	Administrator/123456
RDNS-Win2008R2	-------------------------------------- IP: 192.168.21.191/24 GW: 192.168.21.1 DNS1: 127.0.0.1 -------------------------------------- ADService – AD_FQDN: rtestadp.com AD_NetBIOS: RTESTADP AD_Pass: testadp ADUsers – adpadmin/adpadmin adpuser01/adpuser01 adpuser02/adpuser02 adpuser03/adpuser03 DNSService – DNS_domain: rtestadp.com DHCPService: 192.168.21.91-192.168.21.99 CAService: http://ip/certsrv/default.asp	Administrator/123456

Template模版机：( ManageIP: 211-219 )

Hostname	IP Address	Username/Password
Client-Win7	IP: xxx.xxx.xxx.211/24 GW: xxx.xxx.xxx.1 DNS1: 8.8.8.8 DNS2: 4.2.2.1	Administrator/123456
Svr-Win2008R2	IP: xxx.xxx.xxx.212/24 GW: xxx.xxx.xxx.1 DNS1: 8.8.8.8 DNS2: 4.2.2.1	Administrator/123456
tpls-websvr	IP: xxx.xxx.xxx.213/24 GW: xxx.xxx.xxx.1 DNS1: 8.8.8.8 DNS2: 4.2.2.1 nginx: www.tpls-websvr.com mariadb: root/qwe123	root/123456

VMware ESXI 宿主机：( ManageIP: 221-229 )

Hostname

IP Address

Username/Password

localhost

IP: xxx.xxx.xxx.229/24 GW: xxx.xxx.xxx.1

DNS1: 8.8.8.8 DNS2: 4.2.2.1

root/xxxxxx

路由设置:

vyos@ispout-vyos:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface        IP Address                        S/L  Description
---------        ----------                        ---  -----------
eth0             192.168.30.1/24                   u/u
eth1             192.168.31.1/24                   u/u
eth2             192.168.32.1/24                   u/u
eth3             192.168.50.1/24                   u/u
eth4             172.16.205.221/24                 u/u
lo               127.0.0.1/8                       u/u
                 1.1.1.1/32
                 ::1/128
vyos@ispout-vyos:~$
vyos@ispout-vyos:~$
vyos@ispout-vyos:~$ show configuration all
firewall {
    all-ping enable
    broadcast-ping disable
    config-trap disable
    ipv6-receive-redirects disable
    ipv6-src-route disable
    ip-src-route disable
    log-martians enable
    name OUTSIDE-IN {
        default-action drop
        rule 10 {
            action accept
            state {
                established enable
                related enable
            }
        }
    }
    name OUTSIDE-LOCAL {
        default-action drop
        rule 10 {
            action accept
            state {
                established enable
                related enable
            }
        }
        rule 20 {
            action accept
            icmp {
                type-name echo-request
            }
            protocol icmp
            state {
                new enable
            }
        }
        rule 30 {
            action drop
            destination {
                port 22
            }
            protocol tcp
            recent {
                count 4
                time 60
            }
            state {
                new enable
            }
        }
        rule 31 {
            action accept
            destination {
                port 22
            }
            protocol tcp
            state {
                new enable
            }
        }
    }
    receive-redirects disable
    send-redirects enable
    source-validation disable
    syn-cookies enable
    twa-hazards-protection disable
}
interfaces {
    ethernet eth0 {
        address 192.168.30.1/24
        duplex auto
        hw-id 00:0c:29:64:f1:9f
        smp_affinity auto
        speed auto
    }
    ethernet eth1 {
        address 192.168.31.1/24
        duplex auto
        hw-id 00:0c:29:64:f1:a9
        smp_affinity auto
        speed auto
    }
    ethernet eth2 {
        address 192.168.32.1/24
        duplex auto
        hw-id 00:0c:29:64:f1:b3
        smp_affinity auto
        speed auto
    }
    ethernet eth3 {
        address 192.168.50.1/24
        duplex auto
        hw-id 00:0c:29:64:f1:bd
        smp_affinity auto
        speed auto
    }
    ethernet eth4 {
        address 172.16.205.221/24
        duplex auto
        hw-id 00:0c:29:64:f1:c7
        smp_affinity auto
        speed auto
    }
    loopback lo {
        address 1.1.1.1/32
    }
}
nat {
    destination {
        rule 100 {
            destination {
                address 172.16.205.221
                port 9075
            }
            inbound-interface eth4
            protocol tcp
            translation {
                address 192.168.10.45
                port 22
            }
        }
        rule 101 {
            destination {
                address 172.16.205.221
                port 9076
            }
            inbound-interface eth4
            protocol tcp
            translation {
                address 192.168.10.45
                port 443
            }
        }
    }
    source {
        rule 100 {
            outbound-interface eth4
            source {
                address 192.168.30.0/24
            }
            translation {
                address masquerade
            }
        }
        rule 101 {
            outbound-interface eth4
            source {
                address 192.168.31.0/24
            }
            translation {
                address masquerade
            }
        }
        rule 102 {
            outbound-interface eth4
            source {
                address 192.168.32.0/24
            }
            translation {
                address masquerade
            }
        }
        rule 103 {
            outbound-interface eth4
            source {
                address 192.168.50.0/24
            }
            translation {
                address masquerade
            }
        }
        rule 104 {
            outbound-interface eth4
            source {
                address 192.168.10.0/24
            }
            translation {
                address masquerade
            }
        }
        rule 105 {
            outbound-interface eth4
            source {
                address 192.168.20.0/24
            }
            translation {
                address masquerade
            }
        }
    }
}
policy {
    route-map CONNECT {
        rule 10 {
            action permit
            match {
                interface lo
            }
        }
    }
}
protocols {
    ospf {
        area 0 {
            network 192.168.30.0/24
            network 192.168.31.0/24
            network 192.168.32.0/24
            network 192.168.50.0/24
        }
        default-information {
            originate {
                always
                metric 10
                metric-type 2
            }
        }
        parameters {
            abr-type cisco
            router-id 1.1.1.1
        }
        redistribute {
            connected {
                metric-type 2
                route-map CONNECT
            }
        }
    }
    static {
        route 0.0.0.0/0 {
            next-hop 172.16.205.254 {
            }
        }
    }
}
service {
    dhcp-server {
        disabled false
        shared-network-name LAN30 {
            authoritative disable
            subnet 192.168.30.0/24 {
                default-router 192.168.30.1
                dns-server 192.168.30.1
                domain-name internal-network-30
                lease 86400
                start 192.168.30.11 {
                    stop 192.168.30.19
                }
            }
        }
        shared-network-name LAN31 {
            authoritative disable
            subnet 192.168.31.0/24 {
                default-router 192.168.31.1
                dns-server 192.168.31.1
                domain-name internal-network-31
                lease 86400
                start 192.168.31.11 {
                    stop 192.168.31.19
                }
            }
        }
        shared-network-name LAN32 {
            authoritative disable
            subnet 192.168.32.0/24 {
                default-router 192.168.32.1
                dns-server 192.168.32.1
                domain-name internal-network-32
                lease 86400
                start 192.168.32.11 {
                    stop 192.168.32.19
                }
            }
        }
        shared-network-name LAN50 {
            authoritative disable
            subnet 192.168.50.0/24 {
                default-router 192.168.50.1
                dns-server 192.168.50.1
                domain-name internal-network-50
                lease 86400
                start 192.168.50.11 {
                    stop 192.168.50.19
                }
            }
        }
    }
    dns {
        forwarding {
            cache-size 0
            listen-on eth0
            listen-on eth1
            listen-on eth2
            listen-on eth3
            name-server 8.8.8.8
            name-server 4.2.2.1
            name-server 192.168.30.191
        }
    }
    ssh {
        port 22
    }
}
system {
    config-management {
        commit-revisions 20
    }
    console {
        device ttyS0 {
            speed 9600
        }
    }
    host-name ispout-vyos
    login {
        user vyos {
            authentication {
                encrypted-password ****************
                plaintext-password ****************
            }
            level admin
        }
    }
    name-server 8.8.8.8
    name-server 192.168.30.191
    ntp {
        server 0.pool.ntp.org {
        }
        server 1.pool.ntp.org {
        }
        server 2.pool.ntp.org {
        }
    }
    options {
        ctrl-alt-del-action ignore
        reboot-on-panic true
    }
    package {
        auto-sync 1
        repository community {
            components main
            distribution helium
            password ****************
            url http://packages.vyos.net/vyos
            username ""
        }
    }
    syslog {
        global {
            facility all {
                level notice
            }
            facility protocols {
                level debug
            }
        }
        user all {
            facility all {
                level emerg
            }
        }
    }
    time-zone Asia/Shanghai
}
vyos@ispout-vyos:~$

vyos@ispct-vyos:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface        IP Address                        S/L  Description
---------        ----------                        ---  -----------
eth0             192.168.31.41/24                  u/u
eth1             192.168.10.1/24                   u/u
eth2             -                                 u/u
lo               127.0.0.1/8                       u/u
                 2.2.2.2/32
                 ::1/128
vyos@ispct-vyos:~$
vyos@ispct-vyos:~$ show configuration all
firewall {
    all-ping enable
    broadcast-ping disable
    config-trap disable
    ipv6-receive-redirects disable
    ipv6-src-route disable
    ip-src-route disable
    log-martians enable
    name OUTSIDE-IN {
        default-action drop
        rule 10 {
            action accept
            state {
                established enable
                related enable
            }
        }
    }
    name OUTSIDE-LOCAL {
        default-action drop
        rule 10 {
            action accept
            state {
                established enable
                related enable
            }
        }
        rule 20 {
            action accept
            icmp {
                type-name echo-request
            }
            protocol icmp
            state {
                new enable
            }
        }
        rule 30 {
            action drop
            destination {
                port 22
            }
            protocol tcp
            recent {
                count 4
                time 60
            }
            state {
                new enable
            }
        }
        rule 31 {
            action accept
            destination {
                port 22
            }
            protocol tcp
            state {
                new enable
            }
        }
    }
    receive-redirects disable
    send-redirects enable
    source-validation disable
    syn-cookies enable
    twa-hazards-protection disable
}
interfaces {
    ethernet eth0 {
        address 192.168.31.41/24
        duplex auto
        hw-id 00:0c:29:b9:b0:69
        smp_affinity auto
        speed auto
    }
    ethernet eth1 {
        address 192.168.10.1/24
        duplex auto
        hw-id 00:0c:29:b9:b0:73
        smp_affinity auto
        speed auto
    }
    ethernet eth2 {
        duplex auto
        hw-id 00:0c:29:b9:b0:7d
        smp_affinity auto
        speed auto
    }
    loopback lo {
        address 2.2.2.2/32
    }
}
policy {
    route-map CONNECT {
        rule 10 {
            action permit
            match {
                interface lo
            }
        }
    }
}
protocols {
    ospf {
        area 0 {
            network 192.168.10.0/24
            network 192.168.31.0/24
        }
        parameters {
            abr-type cisco
            router-id 2.2.2.2
        }
        redistribute {
            connected {
                metric-type 2
                route-map CONNECT
            }
        }
    }
    static {
        route 0.0.0.0/0 {
            next-hop 192.168.31.1 {
            }
        }
    }
}
service {
    dhcp-server {
        disabled false
        shared-network-name LAN10 {
            authoritative disable
            subnet 192.168.10.0/24 {
                default-router 192.168.10.1
                dns-server 192.168.10.1
                domain-name internal-network-10
                lease 86400
                start 192.168.10.11 {
                    stop 192.168.10.19
                }
            }
        }
    }
    dns {
        forwarding {
            cache-size 0
            listen-on eth1
            listen-on eth2
            name-server 8.8.8.8
            name-server 4.2.2.1
            name-server 192.168.30.191
        }
    }
    ssh {
        port 22
    }
}
system {
    config-management {
        commit-revisions 20
    }
    console {
        device ttyS0 {
            speed 9600
        }
    }
    host-name ispct-vyos
    login {
        user vyos {
            authentication {
                encrypted-password ****************
                plaintext-password ****************
            }
            level admin
        }
    }
    name-server 8.8.8.8
    name-server 192.168.30.191
    ntp {
        server 0.pool.ntp.org {
        }
        server 1.pool.ntp.org {
        }
        server 2.pool.ntp.org {
        }
    }
    options {
        ctrl-alt-del-action ignore
        reboot-on-panic true
    }
    package {
        auto-sync 1
        repository community {
            components main
            distribution helium
            password ****************
            url http://packages.vyos.net/vyos
            username ""
        }
    }
    syslog {
        global {
            facility all {
                level notice
            }
            facility protocols {
                level debug
            }
        }
        user all {
            facility all {
                level emerg
            }
        }
    }
    time-zone Asia/Shanghai
}
vyos@ispct-vyos:~$

vyos@ispcnc-vyos:~$ show interfaces
Codes: S - State, L - Link, u - Up, D - Down, A - Admin Down
Interface        IP Address                        S/L  Description
---------        ----------                        ---  -----------
eth0             192.168.32.41/24                  u/u
eth1             192.168.20.1/24                   u/u
eth2             -                                 u/u
lo               127.0.0.1/8                       u/u
                 3.3.3.3/32
                 ::1/128
vyos@ispcnc-vyos:~$
vyos@ispcnc-vyos:~$ show configuration all
firewall {
    all-ping enable
    broadcast-ping disable
    config-trap disable
    ipv6-receive-redirects disable
    ipv6-src-route disable
    ip-src-route disable
    log-martians enable
    name OUTSIDE-IN {
        default-action drop
        rule 10 {
            action accept
            state {
                established enable
                related enable
            }
        }
    }
    name OUTSIDE-LOCAL {
        default-action drop
        rule 10 {
            action accept
            state {
                established enable
                related enable
            }
        }
        rule 20 {
            action accept
            icmp {
                type-name echo-request
            }
            protocol icmp
            state {
                new enable
            }
        }
        rule 30 {
            action drop
            destination {
                port 22
            }
            protocol tcp
            recent {
                count 4
                time 60
            }
            state {
                new enable
            }
        }
        rule 31 {
            action accept
            destination {
                port 22
            }
            protocol tcp
            state {
                new enable
            }
        }
    }
    receive-redirects disable
    send-redirects enable
    source-validation disable
    syn-cookies enable
    twa-hazards-protection disable
}
interfaces {
    ethernet eth0 {
        address 192.168.32.41/24
        duplex auto
        hw-id 00:0c:29:9a:28:eb
        smp_affinity auto
        speed auto
    }
    ethernet eth1 {
        address 192.168.20.1/24
        duplex auto
        hw-id 00:0c:29:9a:28:f5
        smp_affinity auto
        speed auto
    }
    ethernet eth2 {
        duplex auto
        hw-id 00:0c:29:9a:28:ff
        smp_affinity auto
        speed auto
    }
    loopback lo {
        address 3.3.3.3/32
    }
}
policy {
    route-map CONNECT {
        rule 10 {
            action permit
            match {
                interface lo
            }
        }
    }
}
protocols {
    ospf {
        area 0 {
            network 192.168.20.0/24
            network 192.168.32.0/24
        }
        parameters {
            abr-type cisco
            router-id 3.3.3.3
        }
        redistribute {
            connected {
                metric-type 2
                route-map CONNECT
            }
        }
    }
    static {
        route 0.0.0.0/0 {
            next-hop 192.168.32.1 {
            }
        }
    }
}
service {
    dhcp-server {
        disabled false
        shared-network-name LAN20 {
            authoritative disable
            subnet 192.168.20.0/24 {
                default-router 192.168.20.1
                dns-server 192.168.20.1
                domain-name internal-network-20
                lease 86400
                start 192.168.20.11 {
                    stop 192.168.20.19
                }
            }
        }
    }
    dns {
        forwarding {
            cache-size 0
            listen-on eth1
            listen-on eth2
            name-server 8.8.8.8
            name-server 4.2.2.1
            name-server 192.168.30.191
        }
    }
    ssh {
        port 22
    }
}
system {
    config-management {
        commit-revisions 20
    }
    console {
        device ttyS0 {
            speed 9600
        }
    }
    host-name ispcnc-vyos
    login {
        user vyos {
            authentication {
                encrypted-password ****************
                plaintext-password ****************
            }
            level admin
        }
    }
    name-server 8.8.8.8
    name-server 192.168.30.191
    ntp {
        server 0.pool.ntp.org {
        }
        server 1.pool.ntp.org {
        }
        server 2.pool.ntp.org {
        }
    }
    options {
        ctrl-alt-del-action ignore
        reboot-on-panic true
    }
    package {
        auto-sync 1
        repository community {
            components main
            distribution helium
            password ****************
            url http://packages.vyos.net/vyos
            username ""
        }
    }
    syslog {
        global {
            facility all {
                level notice
            }
            facility protocols {
                level debug
            }
        }
        user all {
            facility all {
                level emerg
            }
        }
    }
    time-zone Asia/Shanghai
}
vyos@ispcnc-vyos:~$

管理客户端设置：

[c:~]$ ipconfig /all

Windows IP 配置

   主机名  . . . . . . . . . . . . . : Manage-Win7
   主 DNS 后缀 . . . . . . . . . . . :
   节点类型  . . . . . . . . . . . . : 混合
   IP 路由已启用 . . . . . . . . . . : 否
   WINS 代理已启用 . . . . . . . . . : 否

以太网适配器 Tester Network:

   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Intel(R) PRO/1000 MT Network Connection #5
   ?锢淼刂? . . . . . . . . . . . . : 00-0C-29-57-FA-46
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是
   本地链接 IPv6 地址. . . . . . . . : fe80::9906:a9b3:e9a6:42d2%20(首选)
   IPv4 地址 . . . . . . . . . . . . : 192.168.50.225(首选)
   子网掩码  . . . . . . . . . . . . : 255.255.255.0
   默认网关. . . . . . . . . . . . . :
   DHCPv6 IAID . . . . . . . . . . . : 520096809
   DHCPv6 客户端 DUID  . . . . . . . : 00-01-00-01-20-ED-F8-48-00-0C-29-57-FA-1E
   DNS 服务器  . . . . . . . . . . . : 192.168.50.191
                                       192.168.50.1
   TCPIP 上的 NetBIOS  . . . . . . . : 已启用

以太网适配器 Public Network:

   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Intel(R) PRO/1000 MT Network Connection #4
   物理地址. . . . . . . . . . . . . : 00-0C-29-57-FA-3C
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是
   本地链接 IPv6 地址. . . . . . . . : fe80::e500:d68c:353:3eaa%17(首选)
   IPv4 地址 . . . . . . . . . . . . : 192.168.30.225(首选)
   子网掩码  . . . . . . . . . . . . : 255.255.255.0
   默认网关. . . . . . . . . . . . . :
   DHCPv6 IAID . . . . . . . . . . . : 452987945
   DHCPv6 客户端 DUID  . . . . . . . : 00-01-00-01-20-ED-F8-48-00-0C-29-57-FA-1E
   DNS 服务器  . . . . . . . . . . . : 192.168.30.191
                                       192.168.30.1
   TCPIP 上的 NetBIOS  . . . . . . . : 已启用

以太网适配器 ISP CT Network:

   连接特定的 DNS 后??. . . . . . . :
   描述. . . . . . . . . . . . . . . : Intel(R) PRO/1000 MT Network Connection #3
   物理地址. . . . . . . . . . . . . : 00-0C-29-57-FA-28
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是
   本地链接 IPv6 地址. . . . . . . . : fe80::ae:375c:73bb:7d89%14(首选)
   IPv4 地址 . . . . . . . . . . . . : 192.168.11.225(首选)
   子网掩码  . . . . . . . . . . . . : 255.255.255.0
   默认网关. . . . . . . . . . . . . :
   DHCPv6 IAID . . . . . . . . . . . : 369101865
   DHCPv6 客户端 DUID  . . . . . . . : 00-01-00-01-20-ED-F8-48-00-0C-29-57-FA-1E
   DNS 服务器  . . . . . . . . . . . : 192.168.11.191
                                       192.168.30.191
   TCPIP 上的 NetBIOS  . . . . . . . : 已启用

以太网适配器 ISP CNC Network:

   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Intel(R) PRO/1000 MT Network Connection #2
   物理地址. . . . . . . . . . . . . : 00-0C-29-57-FA-32
   DHCP 已启用 . . . . . . . . . . . : ??
                                            自动配置已启用. . . . . . . . . . : 是
   本地链接 IPv6 地址. . . . . . . . : fe80::f4e6:e45d:703b:b4c2%13(首选)
   IPv4 地址 . . . . . . . . . . . . : 192.168.21.225(首选)
   子网掩码  . . . . . . . . . . . . : 255.255.255.0
   默认网关. . . . . . . . . . . . . :
   DHCPv6 IAID . . . . . . . . . . . : 318770217
   DHCPv6 客户端 DUID  . . . . . . . : 00-01-00-01-20-ED-F8-48-00-0C-29-57-FA-1E
   DNS 服务器  . . . . . . . . . . . : 192.168.21.191
                                       192.168.30.191
   TCPIP 上的 NetBIOS  . . . . . . . : 已启用

以太网适配器 Manage Network:

   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Intel(R) PRO/1000 MT Network Connection
   物理地址. . . . . . . . . . . . . : 00-0C-29-57-FA-1E
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是
   本地链接 IPv6 地址. . . . . . . . : fe80::d812:17bf:769d:9501%12(首选)
   IPv4 地址 . . . . . . . . . . . . : 172.16.205.225(首选)
   子网掩码  . . . . . . . . . . . . : 255.255.255.0
   默认网关. . . . . . . . . . . . . : 172.16.205.254
   DHCPv6 IAID . . . . . . . . . . . : 251661353
   DHCPv6 客户端 DUID  . . . . . . . : 00-01-00-01-20-ED-F8-48-00-0C-29-57-FA-1E
   DNS 服务器  . . . . . . . . . . . : 8.8.8.8
                                       4.2.2.1
   TCPIP 上的 NetBIOS  . . . . . . . : 已启用

隧道适配器 isatap.{98131348-37BA-4DB6-8696-F11454B2BB4E}:

   媒体状态  . . . . . . . . . . . . : 媒体已断开
   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Microsoft ISATAP Adapter
   物理地址. . . . . . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是

隧道适配器 本地连接* 11:

   媒体状态  . . . . . . . . . . . . : 媒体已断开
   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Microsoft Teredo Tunneling Adapter
   物理地址. . . . . . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是

隧道适配器 isatap.{2314BED2-5791-46B5-AC0E-95AFAB941404}:

   媒体状态  . . . . . . . . . . . . : 媒?逡讯峡?
                                                    连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Microsoft ISATAP Adapter #2
   物理地?? . . . . . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是

隧道适配器 isatap.{068FFB88-2095-461A-998E-4E8663434A59}:

   媒体状态  . . . . . . . . . . . . : 媒体已断开
   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Microsoft ISATAP Adapter #3
   物理地址. . . . . . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是

隧道适配器 isatap.{F3218EE1-631D-4D2C-A787-653461F3AD44}:

   媒体状态  . . . . . . . . . . . . : 媒体已断开
   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Microsoft ISATAP Adapter #4
   物理地址. . . . . . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是

隧道适配器 isatap.{C85B4EED-4F92-4207-AED1-0826A8D281FC}:

   媒体状态  . . . . . . . . . . . . : 媒体已断开
   连接特定的 DNS 后缀 . . . . . . . :
   描述. . . . . . . . . . . . . . . : Microsoft ISATAP Adapter #5
   物理地址. . . . . . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP 已启用 . . . . . . . . . . . : 否
   自动配置已启用. . . . . . . . . . : 是
[c:~]$
[c:~]$ route print
===========================================================================
接口列表
 20...00 0c 29 57 fa 46 ......Intel(R) PRO/1000 MT Network Connection #5
 17...00 0c 29 57 fa 3c ......Intel(R) PRO/1000 MT Network Connection #4
 14...00 0c 29 57 fa 28 ......Intel(R) PRO/1000 MT Network Connection #3
 13...00 0c 29 57 fa 32 ......Intel(R) PRO/1000 MT Network Connection #2
 12...00 0c 29 57 fa 1e ......Intel(R) PRO/1000 MT Network Connection
  1...........................Software Loopback Interface 1
 19...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter
 11...00 00 00 00 00 00 00 e0 Microsoft Teredo Tunneling Adapter
 15...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter #2
 16...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter #3
 18...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter #4
 21...00 00 00 00 00 00 00 e0 Microsoft ISATAP Adapter #5
===========================================================================

IPv4 路由表
===========================================================================
活动路由:
网络目标        网络掩码          网关       接口   跃点数
          0.0.0.0          0.0.0.0   172.16.205.254   172.16.205.225    266
        127.0.0.0        255.0.0.0            在链路上         127.0.0.1    306
        127.0.0.1  255.255.255.255            在链路上         127.0.0.1    306
  127.255.255.255  255.255.255.255            在链路上         127.0.0.1    306
     172.16.205.0    255.255.255.0            在链路上    172.16.205.225    266
   172.16.205.225  255.255.255.255            在链路上    172.16.205.225    266
   172.16.205.255  255.255.255.255            在链路上    172.16.205.225    266
     192.168.10.0    255.255.255.0     192.168.30.1   192.168.30.225     11
     192.168.11.0    255.255.255.0            在链路上    192.168.11.225    266
     192.168.11.0    255.255.255.0     192.168.11.1   192.168.11.225     11
   192.168.11.225  255.255.255.255            在链路上    192.168.11.225    266
   192.168.11.255  255.255.255.255            在链路上    192.168.11.225    266
     192.168.20.0    255.255.255.0     192.168.30.1   192.168.30.225     11
     192.168.21.0    255.255.255.0            在链路上    192.168.21.225    266
     192.168.21.0    255.255.255.0     192.168.21.1   192.168.21.225     11
   192.168.21.225  255.255.255.255            在链路上    192.168.21.225    266
   192.168.21.255  255.255.255.255            在链路上    192.168.21.225    266
     192.168.30.0    255.255.255.0            在链路上    192.168.30.225    266
     192.168.30.0    255.255.255.0     192.168.30.1   192.168.30.225     11
   192.168.30.225  255.255.255.255            在链路上    192.168.30.225    266
   192.168.30.255  255.255.255.255            在链路上    192.168.30.225    266
     192.168.31.0    255.255.255.0     192.168.30.1   192.168.30.225     11
     192.168.32.0    255.255.255.0     192.168.30.1   192.168.30.225     11
     192.168.50.0    255.255.255.0            在链路上    192.168.50.225    266
     192.168.50.0    255.255.255.0     192.168.50.1   192.168.50.225     11
   192.168.50.225  255.255.255.255            在链路上    192.168.50.225    266
   192.168.50.255  255.255.255.255            在链路上    192.168.50.225    266
        224.0.0.0        240.0.0.0            在链路上         127.0.0.1    306
        224.0.0.0        240.0.0.0            在链路上    172.16.205.225    266
        224.0.0.0        240.0.0.0            在链路上    192.168.11.225    266
        224.0.0.0        240.0.0.0            在链路上    192.168.21.225    266
        224.0.0.0        240.0.0.0            在链路上    192.168.30.225    266
        224.0.0.0        240.0.0.0            在链路上    192.168.50.225    266
  255.255.255.255  255.255.255.255            在链路上         127.0.0.1    306
  255.255.255.255  255.255.255.255            在链路上    172.16.205.225    266
  255.255.255.255  255.255.255.255            在链路上    192.168.11.225    266
  255.255.255.255  255.255.255.255            在链路上    192.168.21.225    266
  255.255.255.255  255.255.255.255            在链路上    192.168.30.225    266
  255.255.255.255  255.255.255.255            在链路上    192.168.50.225    266
===========================================================================
永久路由:
  网络地址          网络掩码  网关地址  跃点数
     192.168.30.0    255.255.255.0     192.168.30.1       1
     192.168.31.0    255.255.255.0     192.168.30.1       1
     192.168.32.0    255.255.255.0     192.168.30.1       1
     192.168.50.0    255.255.255.0     192.168.50.1       1
     192.168.10.0    255.255.255.0     192.168.30.1       1
     192.168.20.0    255.255.255.0     192.168.30.1       1
     192.168.21.0    255.255.255.0     192.168.21.1       1
     192.168.11.0    255.255.255.0     192.168.11.1       1
          0.0.0.0          0.0.0.0   172.16.205.254     默认
===========================================================================

IPv6 路由表
===========================================================================
活动路由:
 如果跃点数网络目标      网关
  1    306 ::1/128                  在链路上
 12    266 fe80::/64                在链路上
 14    266 fe80::/64                在链路上
 13    266 fe80::/64                在链路上
 17    266 fe80::/64                在链路上
 20    266 fe80::/64                在链路上
 14    266 fe80::ae:375c:73bb:7d89/128
                                    在链路上
 20    266 fe80::9906:a9b3:e9a6:42d2/128
                                    在链路上
 12    266 fe80::d812:17bf:769d:9501/128
                                    在链路上
 17    266 fe80::e500:d68c:353:3eaa/128
                                    在链路上
 13    266 fe80::f4e6:e45d:703b:b4c2/128
                                    在链路上
  1    306 ff00::/8                 在链?飞?
                                             12    266 ff00::/8                 在链路上
 14    266 ff00::/8                 在链路上
 13    266 ff00::/8                 在链路上
 17    266 ff00::/8                 在链路上
 20    266 ff00::/8                 在链路上
===========================================================================
永久路由:
  无
[c:~]$

AppFwErrorPage.html

<html>
<title>Application Firewall Block Page</title>
<body>
<h1><B>your request has been blocked by a security policy</B></h>
<H3>Access has been blocked- if you feel this is in an error, please contact the site administrators quoting the following:</H3>
<li>System Transaction ID:${NS_TRANSACTION_ID}:
<li>AppFW Session ID: ${NS_APPFW_SESSION_ID}:
<li>Violation Category: ${NS_APPFW_VIOLATION_CATEGORY}:
<li>Violation Details:${NS_APPFW_VIOLATION_LOG}:
</body>
</html>
