概述

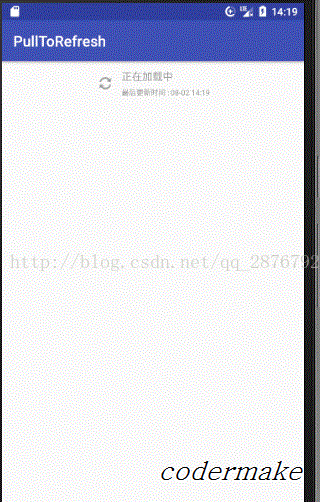

PullToRefresh是一个很好的框架，但是功能多了，对于仅需求某一些功能的开发者来说，确实大了点。

因为项目中仅仅需要用到下拉刷新，所以手动把下拉方法抽出来了，简化了一些代码。

当然，代码比较多，还有问题的话可以下载我的demo，地址是：http://download.csdn.net/detail/qq_28767927/9918846

有这么几个类

HeaderLoadingLayout类：

/**
 * 这个类封装了下拉刷新的布局
 *
 * @author Li Hong
 * @since 2013-7-30
 */
public class HeaderLoadingLayout extends LoadingLayout {
    /** 旋转动画时间 */
    private static final int ROTATE_ANIM_DURATION = 150;
    /**Header的容器*/
    private RelativeLayout mHeaderContainer;
    /**箭头图片*/
    private ImageView mArrowImageView;
    /**进度条*/
    private ProgressBar mProgressBar;
    /**状态提示TextView*/
    private TextView mHintTextView;
    /**最后更新时间的TextView*/
    private TextView mHeaderTimeView;
    /**最后更新时间的标题*/
    private TextView mHeaderTimeViewTitle;
    /**向上的动画*/
    private Animation mRotateUpAnim;
    /**向下的动画*/
    private Animation mRotateDownAnim;

    /**
     * 构造方法
     *
     * @param context context
     */
    public HeaderLoadingLayout(Context context) {
        super(context);
        init();
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     */
    public HeaderLoadingLayout(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    /**
     * 初始化
     */
    private void init() {
        mHeaderContainer = (RelativeLayout) findViewById(R.id.pull_to_refresh_header_content);
        mArrowImageView = (ImageView) findViewById(R.id.pull_to_refresh_header_arrow);
        mHintTextView = (TextView) findViewById(R.id.pull_to_refresh_header_hint_textview);
        mProgressBar = (ProgressBar) findViewById(R.id.pull_to_refresh_header_progressbar);
        mHeaderTimeView = (TextView) findViewById(R.id.pull_to_refresh_header_time);
        mHeaderTimeViewTitle = (TextView) findViewById(R.id.pull_to_refresh_last_update_time_text);

        float pivotValue = 0.5f;    // SUPPRESS CHECKSTYLE
        float toDegree = -180f;     // SUPPRESS CHECKSTYLE
        // 初始化旋转动画
        mRotateUpAnim = new RotateAnimation(0.0f, toDegree, Animation.RELATIVE_TO_SELF, pivotValue,
                Animation.RELATIVE_TO_SELF, pivotValue);
        mRotateUpAnim.setDuration(ROTATE_ANIM_DURATION);
        mRotateUpAnim.setFillAfter(true);
        mRotateDownAnim = new RotateAnimation(toDegree, 0.0f, Animation.RELATIVE_TO_SELF, pivotValue,
                Animation.RELATIVE_TO_SELF, pivotValue);
        mRotateDownAnim.setDuration(ROTATE_ANIM_DURATION);
        mRotateDownAnim.setFillAfter(true);
    }

    @Override
    public void setLastUpdatedLabel(CharSequence label) {
        // 如果最后更新的时间的文本是空的话，隐藏前面的标题
        mHeaderTimeViewTitle.setVisibility(TextUtils.isEmpty(label) ? View.INVISIBLE : View.VISIBLE);
        mHeaderTimeView.setText(label);
    }

    @Override
    public int getContentSize() {
        if (null != mHeaderContainer) {
            return mHeaderContainer.getHeight();
        }

        return (int) (getResources().getDisplayMetrics().density * 60);
    }

    @Override
    protected View createLoadingView(Context context, AttributeSet attrs) {
        return LayoutInflater.from(context).inflate(R.layout.pull_to_refresh_header, null);
    }

    @Override
    protected void onStateChanged(State curState, State oldState) {
        mArrowImageView.setVisibility(View.VISIBLE);
        mProgressBar.setVisibility(View.INVISIBLE);

        super.onStateChanged(curState, oldState);
    }

    @Override
    protected void onReset() {
        mArrowImageView.clearAnimation();
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_normal);
    }

    @Override
    protected void onPullToRefresh() {
        if (State.RELEASE_TO_REFRESH == getPreState()) {
            mArrowImageView.clearAnimation();
            mArrowImageView.startAnimation(mRotateDownAnim);
        }

        mHintTextView.setText(R.string.pull_to_refresh_header_hint_normal);
    }

    @Override
    protected void onReleaseToRefresh() {
        mArrowImageView.clearAnimation();
        mArrowImageView.startAnimation(mRotateUpAnim);
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_ready);
    }

    @Override
    protected void onRefreshing() {
        mArrowImageView.clearAnimation();
        mArrowImageView.setVisibility(View.INVISIBLE);
        mProgressBar.setVisibility(View.VISIBLE);
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_loading);
    }
}

ILoadingLayout类：

/**
 * 下拉刷新界面接口
 *
 * @author Li Hong
 * @since 2013-7-29
 */
public interface ILoadingLayout {
    /**
     * 当前的状态
     */
    enum State {

        /**
         * Initial state
         */
        NONE,

        /**
         * When the UI is in a state which means that user is not interacting
         * with the Pull-to-Refresh function.
         */
        RESET,

        /**
         * When the UI is being pulled by the user, but has not been pulled far
         * enough so that it refreshes when released.
         */
        PULL_TO_REFRESH,

        /**
         * When the UI is being pulled by the user, and <strong>has</strong>
         * been pulled far enough so that it will refresh when released.
         */
        RELEASE_TO_REFRESH,

        /**
         * When the UI is currently refreshing, caused by a pull gesture.
         */
        REFRESHING,

        /**
         * No more data
         */
        NO_MORE_DATA,
    }

    /**
     * 设置当前状态，派生类应该根据这个状态的变化来改变View的变化
     *
     * @param state 状态
     */
    void setState(State state);

    /**
     * 得到当前的状态
     *
     * @return 状态
     */
    State getState();

    /**
     * 得到当前Layout的内容大小，它将作为一个刷新的临界点
     *
     * @return 高度
     */
    int getContentSize();

    /**
     * 在拉动时调用
     *
     * @param scale 拉动的比例
     */
    void onPull(float scale);
}

IPullToRefresh类：

/**
 * 定义了拉动刷新的接口
 * @author Li Hong
 * @since 2013-8-22
 * @param <T>
 */
public interface IPullToRefresh<T extends View> {
    /**
     * 判断当前下拉刷新是否可用
     *
     * @return true如果可用，false不可用
     */
    boolean isPullRefreshEnabled();

    /**
     * 设置刷新的监听器
     *
     * @param refreshListener 监听器对象
     */
    void setOnRefreshListener(PullToRefreshBase.OnRefreshListener<T> refreshListener);

    /**
     * 结束下拉刷新
     */
    void onPullDownRefreshComplete();

    /**
     * 得到可刷新的View对象
     *
     * @return 返回调用{@link #createRefreshableView(Context, AttributeSet)} 方法返回的对象
     */
    T getRefreshableView();

    void setLastUpdatedLabel(CharSequence label);
}

LoadingLayout类：

/**
 * 这个类定义了Header和Footer的共通行为
 *
 * @author Li Hong
 * @since 2013-8-16
 */
public abstract class LoadingLayout extends FrameLayout implements ILoadingLayout {

    /**容器布局*/
    private View mContainer;
    /**当前的状态*/
    private State mCurState = State.NONE;
    /**前一个状态*/
    private State mPreState = State.NONE;

    /**
     * 构造方法
     *
     * @param context context
     */
    public LoadingLayout(Context context) {
        this(context, null);
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     */
    public LoadingLayout(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     * @param defStyle defStyle
     */
    public LoadingLayout(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);

        init(context, attrs);
    }

    /**
     * 初始化
     *
     * @param context context
     * @param attrs attrs
     */
    protected void init(Context context, AttributeSet attrs) {
        mContainer = createLoadingView(context, attrs);
        if (null == mContainer) {
            throw new NullPointerException("Loading view can not be null.");
        }

        LayoutParams params = new LayoutParams(
                LayoutParams.MATCH_PARENT,
                LayoutParams.WRAP_CONTENT);
        addView(mContainer, params);
    }

    /**
     * 显示或隐藏这个布局
     *
     * @param show flag
     */
    public void show(boolean show) {
        // If is showing, do nothing.
        if (show == (View.VISIBLE == getVisibility())) {
            return;
        }

        ViewGroup.LayoutParams params = mContainer.getLayoutParams();
        if (null != params) {
            if (show) {
                params.height = ViewGroup.LayoutParams.WRAP_CONTENT;
            } else {
                params.height = 0;
            }
            setVisibility(show ? View.VISIBLE : View.INVISIBLE);
        }
    }

    /**
     * 设置最后更新的时间文本
     *
     * @param label 文本
     */
    public void setLastUpdatedLabel(CharSequence label) {

    }


    @Override
    public void setState(State state) {
        if (mCurState != state) {
            mPreState = mCurState;
            mCurState = state;
            onStateChanged(state, mPreState);
        }
    }

    @Override
    public State getState() {
        return mCurState;
    }

    @Override
    public void onPull(float scale) {

    }

    /**
     * 得到前一个状态
     *
     * @return 状态
     */
    protected State getPreState() {
        return mPreState;
    }

    /**
     * 当状态改变时调用
     *
     * @param curState 当前状态
     * @param oldState 老的状态
     */
    protected void onStateChanged(State curState, State oldState) {
        switch (curState) {
        case RESET:
            onReset();
            break;

        case RELEASE_TO_REFRESH:
            onReleaseToRefresh();
            break;

        case PULL_TO_REFRESH:
            onPullToRefresh();
            break;

        case REFRESHING:
            onRefreshing();
            break;

        case NO_MORE_DATA:
            onNoMoreData();
            break;

        default:
            break;
        }
    }

    /**
     * 当状态设置为{@link State#RESET}时调用
     */
    protected void onReset() {

    }

    /**
     * 当状态设置为{@link State#PULL_TO_REFRESH}时调用
     */
    protected void onPullToRefresh() {

    }

    /**
     * 当状态设置为{@link State#RELEASE_TO_REFRESH}时调用
     */
    protected void onReleaseToRefresh() {

    }

    /**
     * 当状态设置为{@link State#REFRESHING}时调用
     */
    protected void onRefreshing() {

    }

    /**
     * 当状态设置为{@link State#NO_MORE_DATA}时调用
     */
    protected void onNoMoreData() {

    }

    /**
     * 得到当前Layout的内容大小，它将作为一个刷新的临界点
     *
     * @return 高度
     */
    public abstract int getContentSize();

    /**
     * 创建Loading的View
     *
     * @param context context
     * @param attrs attrs
     * @return Loading的View
     */
    protected abstract View createLoadingView(Context context, AttributeSet attrs);
}

PullToRefreshBase类：

/**
 * 这个实现了下拉刷新
 *
 * @author Li Hong
 * @since 2013-7-29
 * @param <T>
 */
public abstract class PullToRefreshBase<T extends View> extends LinearLayout implements IPullToRefresh<T> {
    /**
     * 定义了下拉刷新的接口。
     *
     * @author Li Hong
     * @since 2013-7-29
     */
    public interface OnRefreshListener<V extends View> {

        /**
         * 下拉松手后会被调用
         *
         * @param refreshView 刷新的View
         */
        void onPullDownToRefresh(final PullToRefreshBase<V> refreshView);

    }

    /**回滚的时间*/
    private static final int SCROLL_DURATION = 150;
    /**阻尼系数*/
    private static final float OFFSET_RADIO = 2.5f;
    /**上一次移动的点 */
    private float mLastMotionY = -1;
    /**下拉刷新的监听器 */
    private OnRefreshListener<T> mRefreshListener;
    /**下拉刷新的布局 */
    private LoadingLayout mHeaderLayout;
    /**上拉加载更多的布局*/
//    private LoadingLayout mFooterLayout;
    /**HeaderView的高度*/
    private int mHeaderHeight;
    /**下拉刷新是否可用*/
    private boolean mPullRefreshEnabled = true;
    /**是否截断touch事件*/
    private boolean mInterceptEventEnable = true;
    /**表示是否消费了touch事件，如果是，则不调用父类的onTouchEvent方法*/
    private boolean mIsHandledTouchEvent = false;
    /**移动点的保护范围值*/
    private int mTouchSlop;
    /**下拉的状态*/
    private State mPullDownState = State.NONE;
    /**可以下拉刷新的View*/
    T mRefreshableView;
    /**平滑滚动的Runnable*/
    private SmoothScrollRunnable mSmoothScrollRunnable;
    /**可刷新View的包装布局*/
    private FrameLayout mRefreshableViewWrapper;

    /**
     * 构造方法
     *
     * @param context context
     */
    public PullToRefreshBase(Context context) {
        super(context);
        init(context, null);
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     */
    public PullToRefreshBase(Context context, AttributeSet attrs) {
        super(context, attrs);
        init(context, attrs);
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     * @param defStyle defStyle
     */
    public PullToRefreshBase(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        init(context, attrs);
    }

    /**
     * 初始化
     *
     * @param context context
     */
    private void init(Context context, AttributeSet attrs) {
        setOrientation(LinearLayout.VERTICAL);
        mTouchSlop = ViewConfiguration.get(context).getScaledTouchSlop();
        mHeaderLayout = createHeaderLoadingLayout(context, attrs);
        mRefreshableView = createRefreshableView(context, attrs);

        if (null == mRefreshableView) {
            throw new NullPointerException("Refreshable view can not be null.");
        }

        addRefreshableView(context, mRefreshableView);
        addHeaderAndFooter(context);

        // 得到Header的高度，这个高度需要用这种方式得到，在onLayout方法里面得到的高度始终是0
        getViewTreeObserver().addOnGlobalLayoutListener(new OnGlobalLayoutListener() {
            @Override
            public void onGlobalLayout() {
                refreshLoadingViewsSize();
                getViewTreeObserver().removeGlobalOnLayoutListener(this);
            }
        });
    }

    /**
     * 初始化padding，我们根据header和footer的高度来设置top padding和bottom padding
     */
    private void refreshLoadingViewsSize() {
        // 得到header和footer的内容高度，它将会作为拖动刷新的一个临界值，如果拖动距离大于这个高度
        // 然后再松开手，就会触发刷新操作
        int headerHeight = (null != mHeaderLayout) ? mHeaderLayout.getContentSize() : 0;
        if (headerHeight < 0) {
            headerHeight = 0;
        }

        mHeaderHeight = headerHeight;
        // 这里得到Header和Footer的高度，设置的padding的top和bottom就应该是header和footer的高度
        // 因为header和footer是完全看不见的
        headerHeight = (null != mHeaderLayout) ? mHeaderLayout.getMeasuredHeight() : 0;

        int pLeft = getPaddingLeft();
        int pTop = -headerHeight;
        int pRight = getPaddingRight();
        int pBottom = getPaddingBottom();

        setPadding(pLeft, pTop, pRight, pBottom);
    }

    @Override
    protected final void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);

        // We need to update the header/footer when our size changes
        refreshLoadingViewsSize();

        // 设置刷新View的大小
        refreshRefreshableViewSize(w, h);

        /**
         * As we're currently in a Layout Pass, we need to schedule another one
         * to layout any changes we've made here
         */
        post(new Runnable() {
            @Override
            public void run() {
                requestLayout();
            }
        });
    }

    @Override
    public void setOrientation(int orientation) {
        if (LinearLayout.VERTICAL != orientation) {
            throw new IllegalArgumentException("This class only supports VERTICAL orientation.");
        }

        // Only support vertical orientation
        super.setOrientation(orientation);
    }

    @Override
    public final boolean onInterceptTouchEvent(MotionEvent event) {
        if (!isInterceptTouchEventEnabled()) {
            return false;
        }

        final int action = event.getAction();
        if (action == MotionEvent.ACTION_CANCEL || action == MotionEvent.ACTION_UP) {
            mIsHandledTouchEvent = false;
            return false;
        }

        if (action != MotionEvent.ACTION_DOWN && mIsHandledTouchEvent) {
            return true;
        }

        switch (action) {
        case MotionEvent.ACTION_DOWN:
            mLastMotionY = event.getY();
            mIsHandledTouchEvent = false;
            break;

        case MotionEvent.ACTION_MOVE:
            final float deltaY = event.getY() - mLastMotionY;
            final float absDiff = Math.abs(deltaY);
            // 这里有三个条件：
            // 1，位移差大于mTouchSlop，这是为了防止快速拖动引发刷新
            // 2，isPullRefreshing()，如果当前正在下拉刷新的话，是允许向上滑动，并把刷新的HeaderView挤上去
            // 3，isPullLoading()，理由与第2条相同
            if (absDiff > mTouchSlop || isPullRefreshing() )  {
                mLastMotionY = event.getY();
                // 第一个显示出来，Header已经显示或拉下
                if (isPullRefreshEnabled() && isReadyForPullDown()) {
                    // 1，Math.abs(getScrollY()) > 0：表示当前滑动的偏移量的绝对值大于0，表示当前HeaderView滑出来了或完全
                    // 不可见，存在这样一种case，当正在刷新时并且RefreshableView已经滑到顶部，向上滑动，那么我们期望的结果是
                    // 依然能向上滑动，直到HeaderView完全不可见
                    // 2，deltaY > 0.5f：表示下拉的值大于0.5f
                    mIsHandledTouchEvent = (Math.abs(getScrollYValue()) > 0 || deltaY > 0.5f);
                    // 如果截断事件，我们则仍然把这个事件交给刷新View去处理，典型的情况是让ListView/GridView将按下
                    // Child的Selector隐藏
                    if (mIsHandledTouchEvent) {
                        mRefreshableView.onTouchEvent(event);
                    }
                }
            }
            break;

        default:
            break;
        }

        return mIsHandledTouchEvent;
    }

    @Override
    public final boolean onTouchEvent(MotionEvent ev) {
        boolean handled = false;
        switch (ev.getAction()) {
        case MotionEvent.ACTION_DOWN:
            mLastMotionY = ev.getY();
            mIsHandledTouchEvent = false;
            break;

        case MotionEvent.ACTION_MOVE:
            final float deltaY = ev.getY() - mLastMotionY;
            mLastMotionY = ev.getY();
            if (isPullRefreshEnabled() && isReadyForPullDown()) {
                pullHeaderLayout(deltaY / OFFSET_RADIO);
                handled = true;
            } else {
                mIsHandledTouchEvent = false;
            }
            break;

        case MotionEvent.ACTION_CANCEL:
        case MotionEvent.ACTION_UP:
            if (mIsHandledTouchEvent) {
                mIsHandledTouchEvent = false;
                // 当第一个显示出来时
                if (isReadyForPullDown()) {
                    // 调用刷新
                    if (mPullRefreshEnabled && (mPullDownState == State.RELEASE_TO_REFRESH)) {
                        startRefreshing();
                        handled = true;
                    }
                    resetHeaderLayout();
                }
            }
            break;

        default:
            break;
        }

        return handled;
    }

    @Override
    public boolean isPullRefreshEnabled() {
        return mPullRefreshEnabled && (null != mHeaderLayout);
    }

    @Override
    public void setOnRefreshListener(OnRefreshListener<T> refreshListener) {
        mRefreshListener = refreshListener;
    }

    @Override
    public void onPullDownRefreshComplete() {
        if (isPullRefreshing()) {
            mPullDownState = State.RESET;
            onStateChanged(State.RESET, true);

            // 回滚动有一个时间，我们在回滚完成后再设置状态为normal
            // 在将LoadingLayout的状态设置为normal之前，我们应该禁止
            // 截断Touch事件，因为设里有一个post状态，如果有post的Runnable
            // 未被执行时，用户再一次发起下拉刷新，如果正在刷新时，这个Runnable
            // 再次被执行到，那么就会把正在刷新的状态改为正常状态，这就不符合期望
            postDelayed(new Runnable() {
                @Override
                public void run() {
                    setInterceptTouchEventEnabled(true);
                    mHeaderLayout.setState(State.RESET);
                }
            }, getSmoothScrollDuration());

            resetHeaderLayout();
            setInterceptTouchEventEnabled(false);
        }
    }

    @Override
    public T getRefreshableView() {
        return mRefreshableView;
    }

    @Override
    public void setLastUpdatedLabel(CharSequence label){
        if (null != mHeaderLayout) {
            mHeaderLayout.setLastUpdatedLabel(label);
        }
    }

    /**
     * 开始刷新，通常用于调用者主动刷新，典型的情况是进入界面，开始主动刷新，这个刷新并不是由用户拉动引起的
     *
     * @param smoothScroll 表示是否有平滑滚动，true表示平滑滚动，false表示无平滑滚动
     * @param delayMillis 延迟时间
     */
    public void doPullRefreshing(final boolean smoothScroll, final long delayMillis) {
        postDelayed(new Runnable() {
            @Override
            public void run() {
                int newScrollValue = -mHeaderHeight;
                int duration = smoothScroll ? SCROLL_DURATION : 0;

                startRefreshing();
                smoothScrollTo(newScrollValue, duration, 0);
            }
        }, delayMillis);
    }

    /**
     * 创建可以刷新的View
     *
     * @param context context
     * @param attrs 属性
     * @return View
     */
    protected abstract T createRefreshableView(Context context, AttributeSet attrs);

    /**
     * 判断刷新的View是否滑动到顶部
     *
     * @return true表示已经滑动到顶部，否则false
     */
    protected abstract boolean isReadyForPullDown();


    /**
     * 创建Header的布局
     *
     * @param context context
     * @param attrs 属性
     * @return LoadingLayout对象
     */
    protected LoadingLayout createHeaderLoadingLayout(Context context, AttributeSet attrs) {
        return new HeaderLoadingLayout(context);
    }

    /**
     * 得到平滑滚动的时间，派生类可以重写这个方法来控件滚动时间
     *
     * @return 返回值时间为毫秒
     */
    protected long getSmoothScrollDuration() {
        return SCROLL_DURATION;
    }

    /**
     * 计算刷新View的大小
     *
     * @param width 当前容器的宽度
     * @param height 当前容器的宽度
     */
    protected void refreshRefreshableViewSize(int width, int height) {
        if (null != mRefreshableViewWrapper) {
            LayoutParams lp = (LayoutParams) mRefreshableViewWrapper.getLayoutParams();
            if (lp.height != height) {
                lp.height = height;
                mRefreshableViewWrapper.requestLayout();
            }
        }
    }

    /**
     * 将刷新View添加到当前容器中
     *
     * @param context context
     * @param refreshableView 可以刷新的View
     */
    protected void addRefreshableView(Context context, T refreshableView) {
        int width  = ViewGroup.LayoutParams.MATCH_PARENT;
        int height = ViewGroup.LayoutParams.MATCH_PARENT;

        // 创建一个包装容器
        mRefreshableViewWrapper = new FrameLayout(context);
        mRefreshableViewWrapper.addView(refreshableView, width, height);

        // 这里把Refresh view的高度设置为一个很小的值，它的高度最终会在onSizeChanged()方法中设置为MATCH_PARENT
        // 这样做的原因是，如果此是它的height是MATCH_PARENT，那么footer得到的高度就是0，所以，我们先设置高度很小
        // 我们就可以得到header和footer的正常高度，当onSizeChanged后，Refresh view的高度又会变为正常。
        height = 10;
        addView(mRefreshableViewWrapper, new LayoutParams(width, height));
    }

    /**
     * 添加Header和Footer
     *
     * @param context context
     */
    protected void addHeaderAndFooter(Context context) {
        LayoutParams params = new LayoutParams(
                ViewGroup.LayoutParams.MATCH_PARENT,
                ViewGroup.LayoutParams.WRAP_CONTENT);

        final LoadingLayout headerLayout = mHeaderLayout;
//        final LoadingLayout footerLayout = mFooterLayout;

        if (null != headerLayout) {
            if (this == headerLayout.getParent()) {
                removeView(headerLayout);
            }

            addView(headerLayout, 0, params);
        }
    }

    /**
     * 拉动Header Layout时调用
     *
     * @param delta 移动的距离
     */
    protected void pullHeaderLayout(float delta) {
        // 向上滑动，并且当前scrollY为0时，不滑动
        int oldScrollY = getScrollYValue();
        if (delta < 0 && (oldScrollY - delta) >= 0) {
            setScrollTo(0, 0);
            return;
        }

        // 向下滑动布局
        setScrollBy(0, -(int)delta);

        if (null != mHeaderLayout && 0 != mHeaderHeight) {
            float scale = Math.abs(getScrollYValue()) / (float) mHeaderHeight;
            mHeaderLayout.onPull(scale);
        }

        // 未处于刷新状态，更新箭头
        int scrollY = Math.abs(getScrollYValue());
        if (isPullRefreshEnabled() && !isPullRefreshing()) {
            if (scrollY > mHeaderHeight) {
                mPullDownState = State.RELEASE_TO_REFRESH;
            } else {
                mPullDownState = State.PULL_TO_REFRESH;
            }

            mHeaderLayout.setState(mPullDownState);
            onStateChanged(mPullDownState, true);
        }
    }


    /**
     * 得置header
     */
    protected void resetHeaderLayout() {
        final int scrollY = Math.abs(getScrollYValue());
        final boolean refreshing = isPullRefreshing();

        if (refreshing && scrollY <= mHeaderHeight) {
            smoothScrollTo(0);
            return;
        }

        if (refreshing) {
            smoothScrollTo(-mHeaderHeight);
        } else {
            smoothScrollTo(0);
        }
    }


    /**
     * 判断是否正在下拉刷新
     *
     * @return true正在刷新，否则false
     */
    protected boolean isPullRefreshing() {
        return (mPullDownState == State.REFRESHING);
    }


    /**
     * 开始刷新，当下拉松开后被调用
     */
    protected void startRefreshing() {
        // 如果正在刷新
        if (isPullRefreshing()) {
            return;
        }

        mPullDownState = State.REFRESHING;
        onStateChanged(State.REFRESHING, true);

        if (null != mHeaderLayout) {
            mHeaderLayout.setState(State.REFRESHING);
        }

        if (null != mRefreshListener) {
            // 因为滚动回原始位置的时间是200，我们需要等回滚完后才执行刷新回调
            postDelayed(new Runnable() {
                @Override
                public void run() {
                    mRefreshListener.onPullDownToRefresh(PullToRefreshBase.this);
                }
            }, getSmoothScrollDuration());
        }
    }


    /**
     * 当状态发生变化时调用
     *
     * @param state 状态
     * @param isPullDown 是否向下
     */
    protected void onStateChanged(State state, boolean isPullDown) {

    }

    /**
     * 设置滚动位置
     *
     * @param x 滚动到的x位置
     * @param y 滚动到的y位置
     */
    private void setScrollTo(int x, int y) {
        scrollTo(x, y);
    }

    /**
     * 设置滚动的偏移
     *
     * @param x 滚动x位置
     * @param y 滚动y位置
     */
    private void setScrollBy(int x, int y) {
        scrollBy(x, y);
    }

    /**
     * 得到当前Y的滚动值
     *
     * @return 滚动值
     */
    private int getScrollYValue() {
        return getScrollY();
    }

    /**
     * 平滑滚动
     *
     * @param newScrollValue 滚动的值
     */
    private void smoothScrollTo(int newScrollValue) {
        smoothScrollTo(newScrollValue, getSmoothScrollDuration(), 0);
    }

    /**
     * 平滑滚动
     *
     * @param newScrollValue 滚动的值
     * @param duration 滚动时候
     * @param delayMillis 延迟时间，0代表不延迟
     */
    private void smoothScrollTo(int newScrollValue, long duration, long delayMillis) {
        if (null != mSmoothScrollRunnable) {
            mSmoothScrollRunnable.stop();
        }

        int oldScrollValue = this.getScrollYValue();
        boolean post = (oldScrollValue != newScrollValue);
        if (post) {
            mSmoothScrollRunnable = new SmoothScrollRunnable(oldScrollValue, newScrollValue, duration);
        }

        if (post) {
            if (delayMillis > 0) {
                postDelayed(mSmoothScrollRunnable, delayMillis);
            } else {
                post(mSmoothScrollRunnable);
            }
        }
    }

    /**
     * 设置是否截断touch事件
     *
     * @param enabled true截断，false不截断
     */
    private void setInterceptTouchEventEnabled(boolean enabled) {
        mInterceptEventEnable = enabled;
    }

    /**
     * 标志是否截断touch事件
     *
     * @return true截断，false不截断
     */
    private boolean isInterceptTouchEventEnabled() {
        return mInterceptEventEnable;
    }

    /**
     * 实现了平滑滚动的Runnable
     *
     * @author Li Hong
     * @since 2013-8-22
     */
    final class SmoothScrollRunnable implements Runnable {
        /**动画效果*/
        private final Interpolator mInterpolator;
        /**结束Y*/
        private final int mScrollToY;
        /**开始Y*/
        private final int mScrollFromY;
        /**滑动时间*/
        private final long mDuration;
        /**是否继续运行*/
        private boolean mContinueRunning = true;
        /**开始时刻*/
        private long mStartTime = -1;
        /**当前Y*/
        private int mCurrentY = -1;

        /**
         * 构造方法
         *
         * @param fromY 开始Y
         * @param toY 结束Y
         * @param duration 动画时间
         */
        public SmoothScrollRunnable(int fromY, int toY, long duration) {
            mScrollFromY = fromY;
            mScrollToY = toY;
            mDuration = duration;
            mInterpolator = new DecelerateInterpolator();
        }

        @Override
        public void run() {
            /**
             * If the duration is 0, we scroll the view to target y directly.
             */
            if (mDuration <= 0) {
                setScrollTo(0, mScrollToY);
                return;
            }

            /**
             * Only set mStartTime if this is the first time we're starting,
             * else actually calculate the Y delta
             */
            if (mStartTime == -1) {
                mStartTime = System.currentTimeMillis();
            } else {

                /**
                 * We do do all calculations in long to reduce software float
                 * calculations. We use 1000 as it gives us good accuracy and
                 * small rounding errors
                 */
                final long oneSecond = 1000;    // SUPPRESS CHECKSTYLE
                long normalizedTime = (oneSecond * (System.currentTimeMillis() - mStartTime)) / mDuration;
                normalizedTime = Math.max(Math.min(normalizedTime, oneSecond), 0);

                final int deltaY = Math.round((mScrollFromY - mScrollToY)
                        * mInterpolator.getInterpolation(normalizedTime / (float) oneSecond));
                mCurrentY = mScrollFromY - deltaY;

                setScrollTo(0, mCurrentY);
            }

            // If we're not at the target Y, keep going...
            if (mContinueRunning && mScrollToY != mCurrentY) {
                PullToRefreshBase.this.postDelayed(this, 16);// SUPPRESS CHECKSTYLE
            }
        }

        /**
         * 停止滑动
         */
        public void stop() {
            mContinueRunning = false;
            removeCallbacks(this);
        }
    }
}

PullToRefreshListView类：

/**
 * 这个类实现了ListView下拉刷新
 *
 * @author Li Hong
 * @since 2013-8-15
 */
public class PullToRefreshListView extends PullToRefreshBase<ListView>  {

    /**ListView*/
    private ListView mListView;

    /**
     * 构造方法
     *
     * @param context context
     */
    public PullToRefreshListView(Context context) {
        this(context, null);
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     */
    public PullToRefreshListView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     * @param defStyle defStyle
     */
    public PullToRefreshListView(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
    }

    @Override
    protected ListView createRefreshableView(Context context, AttributeSet attrs) {
        ListView listView = new ListView(context);
        mListView = listView;

        return listView;
    }


    @Override
    protected boolean isReadyForPullDown() {
        return isFirstItemVisible();
    }


    @Override
    protected LoadingLayout createHeaderLoadingLayout(Context context, AttributeSet attrs) {
        return new RotateLoadingLayout(context);
    }

    /**
     * 判断第一个child是否完全显示出来
     *
     * @return true完全显示出来，否则false
     */
    private boolean isFirstItemVisible() {
        final Adapter adapter = mListView.getAdapter();

        if (null == adapter || adapter.isEmpty()) {
            return true;
        }

        int mostTop = (mListView.getChildCount() > 0) ? mListView.getChildAt(0).getTop() : 0;
        if (mostTop >= 0) {
            return true;
        }

        return false;
    }

}

RotateLoadingLayout类：

/**
 * 这个类封装了下拉刷新的布局
 *
 * @author Li Hong
 * @since 2013-7-30
 */
public class RotateLoadingLayout extends LoadingLayout {
    /**旋转动画的时间*/
    static final int ROTATION_ANIMATION_DURATION = 1200;
    /**动画插值*/
    static final Interpolator ANIMATION_INTERPOLATOR = new LinearInterpolator();
    /**Header的容器*/
    private RelativeLayout mHeaderContainer;
    /**箭头图片*/
    private ImageView mArrowImageView;
    /**状态提示TextView*/
    private TextView mHintTextView;
    /**最后更新时间的TextView*/
    private TextView mHeaderTimeView;
    /**最后更新时间的标题*/
    private TextView mHeaderTimeViewTitle;
    /**旋转的动画*/
    private Animation mRotateAnimation;

    /**
     * 构造方法
     *
     * @param context context
     */
    public RotateLoadingLayout(Context context) {
        super(context);
        init();
    }
    /**
     * 构造方法
     *
     * @param context context
     * @param attrs attrs
     */
    public RotateLoadingLayout(Context context, AttributeSet attrs) {
        super(context, attrs);
        init();
    }

    /**
     * 初始化
     */
    private void init() {
        mHeaderContainer = (RelativeLayout) findViewById(R.id.pull_to_refresh_header_content);
        mArrowImageView = (ImageView) findViewById(R.id.pull_to_refresh_header_arrow);
        mHintTextView = (TextView) findViewById(R.id.pull_to_refresh_header_hint_textview);
        mHeaderTimeView = (TextView) findViewById(R.id.pull_to_refresh_header_time);
        mHeaderTimeViewTitle = (TextView) findViewById(R.id.pull_to_refresh_last_update_time_text);

        mArrowImageView.setScaleType(ScaleType.CENTER);
        mArrowImageView.setImageResource(R.mipmap.default_ptr_rotate);

        float pivotValue = 0.5f;    // SUPPRESS CHECKSTYLE
        float toDegree = 720.0f;    // SUPPRESS CHECKSTYLE
        mRotateAnimation = new RotateAnimation(0.0f, toDegree, Animation.RELATIVE_TO_SELF, pivotValue,
                Animation.RELATIVE_TO_SELF, pivotValue);
        mRotateAnimation.setFillAfter(true);
        mRotateAnimation.setInterpolator(ANIMATION_INTERPOLATOR);
        mRotateAnimation.setDuration(ROTATION_ANIMATION_DURATION);
        mRotateAnimation.setRepeatCount(Animation.INFINITE);
        mRotateAnimation.setRepeatMode(Animation.RESTART);
    }

    @Override
    protected View createLoadingView(Context context, AttributeSet attrs) {
        return LayoutInflater.from(context).inflate(R.layout.pull_to_refresh_header2, null);
    }

    @Override
    public void setLastUpdatedLabel(CharSequence label) {
        // 如果最后更新的时间的文本是空的话，隐藏前面的标题
        mHeaderTimeViewTitle.setVisibility(TextUtils.isEmpty(label) ? View.INVISIBLE : View.VISIBLE);
        mHeaderTimeView.setText(label);
    }

    @Override
    public int getContentSize() {
        if (null != mHeaderContainer) {
            return mHeaderContainer.getHeight();
        }

        return (int) (getResources().getDisplayMetrics().density * 60);
    }

    @Override
    protected void onStateChanged(State curState, State oldState) {
        super.onStateChanged(curState, oldState);
    }

    @Override
    protected void onReset() {
        resetRotation();
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_normal);
    }

    @Override
    protected void onReleaseToRefresh() {
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_ready);
    }

    @Override
    protected void onPullToRefresh() {
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_normal);
    }

    @Override
    protected void onRefreshing() {
        resetRotation();
        mArrowImageView.startAnimation(mRotateAnimation);
        mHintTextView.setText(R.string.pull_to_refresh_header_hint_loading);
    }

    @Override
    public void onPull(float scale) {
        float angle = scale * 180f; // SUPPRESS CHECKSTYLE
        mArrowImageView.setRotation(angle);
    }

    /**
     * 重置动画
     */
    private void resetRotation() {
        mArrowImageView.clearAnimation();
        mArrowImageView.setRotation(0);
    }
}
