概述

最近学习k8s遇到很多问题，建了一个qq群：153144292，交流devops、k8s、docker等

Kubernetes dashboard认证及分级授权

认证、授权

API server：

Subject-->action-->object

认证

Token、tls、user/password

账号：UserAccount、ServiceAccount

授权

RBAC

role、rolebinding

clusterrole、clusterrolebinding

rolebinding、clusterrolebinding：

subject：

user

group

serviceaccount

role

role、clusterrole

subject：

resouce group

resource

non-resource url

action：get、list、watch、patch、delete、deletecollection、.........

角色应用：dashboard

项目：https://github.com/kubernetes/dashboard

认证代理，所有账号，所有授权都是k8s的账号和授权

一、部署

1、直接使用社区连接部署

[root@master manifests]# kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml

secret/kubernetes-dashboard-certs created

serviceaccount/kubernetes-dashboard created

role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

deployment.apps/kubernetes-dashboard created

service/kubernetes-dashboard created

这里有坑，被墙了

2、下载yaml和images安装

上面的安装方式不灵

可以使用

docker search kubernetes-dashboard-amd64

docker pull siriuszg/kubernetes-dashboard-amd64

docker tag siriuszg/kubernetes-dashboard-amd64:latest k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1

docker tag mirrorgooglecontainers/kubernetes-dashboard-amd64 k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1

然后wget yaml文件

[root@master manifests]# wget https://raw.githubusercontent.com/kubernetes/dashboard/v1.10.1/src/deploy/recommended/kubernetes-dashboard.yaml

修改一下

[root@master manifests]# cat kubernetes-dashboard.yaml

# Licensed under the Apache License, Version 2.0 (the "License");

# you may not use this file except in compliance with the License.

# You may obtain a copy of the License at

# http://www.apache.org/licenses/LICENSE-2.0

# Unless required by applicable law or agreed to in writing, software

# distributed under the License is distributed on an "AS IS" BASIS,

# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

# See the License for the specific language governing permissions and

# limitations under the License.

# ------------------- Dashboard Secret ------------------- #

apiVersion: v1

kind: Secret

metadata:

labels:

k8s-app: kubernetes-dashboard

namespace: kube-system

type: Opaque

---

# ------------------- Dashboard Service Account ------------------- #

apiVersion: v1

kind: ServiceAccount

metadata:

labels:

k8s-app: kubernetes-dashboard

namespace: kube-system

---

# ------------------- Dashboard Role & Role Binding ------------------- #

kind: Role

apiVersion: rbac.authorization.k8s.io/v1

metadata:

namespace: kube-system

rules:

# Allow Dashboard to create 'kubernetes-dashboard-key-holder' secret.

- apiGroups: [""]

resources: ["secrets"]

verbs: ["create"]

# Allow Dashboard to create 'kubernetes-dashboard-settings' config map.

- apiGroups: [""]

resources: ["configmaps"]

verbs: ["create"]

# Allow Dashboard to get, update and delete Dashboard exclusive secrets.

- apiGroups: [""]

resources: ["secrets"]

resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs"]

verbs: ["get", "update", "delete"]

# Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.

- apiGroups: [""]

resources: ["configmaps"]

resourceNames: ["kubernetes-dashboard-settings"]

verbs: ["get", "update"]

# Allow Dashboard to get metrics from heapster.

- apiGroups: [""]

resources: ["services"]

resourceNames: ["heapster"]

verbs: ["proxy"]

- apiGroups: [""]

resources: ["services/proxy"]

resourceNames: ["heapster", "http:heapster:", "https:heapster:"]

verbs: ["get"]

---

apiVersion: rbac.authorization.k8s.io/v1

kind: RoleBinding

metadata:

namespace: kube-system

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: Role

subjects:

- kind: ServiceAccount

namespace: kube-system

---

# ------------------- Dashboard Deployment ------------------- #

kind: Deployment

apiVersion: apps/v1

metadata:

labels:

k8s-app: kubernetes-dashboard

namespace: kube-system

spec:

replicas: 1

revisionHistoryLimit: 10

selector:

matchLabels:

k8s-app: kubernetes-dashboard

template:

metadata:

labels:

k8s-app: kubernetes-dashboard

spec:

containers:

- name: kubernetes-dashboard

image: k8s.gcr.io/kubernetes-dashboard-amd64:v1.10.1

imagePullPolicy: IfNotPresent 这里是我添加的，永远使用本地

ports:

- containerPort: 8443

protocol: TCP

args:

- --auto-generate-certificates

# Uncomment the following line to manually specify Kubernetes API server Host

# If not specified, Dashboard will attempt to auto discover the API server and connect

# to it. Uncomment only if the default does not work.

# - --apiserver-host=http://my-address:port

volumeMounts:

- name: kubernetes-dashboard-certs

mountPath: /certs

# Create on-disk volume to store exec logs

- mountPath: /tmp

livenessProbe:

httpGet:

scheme: HTTPS

path: /

port: 8443

initialDelaySeconds: 30

timeoutSeconds: 30

volumes:

- name: kubernetes-dashboard-certs

secret:

secretName: kubernetes-dashboard-certs

- name: tmp-volume

emptyDir: {}

serviceAccountName: kubernetes-dashboard

# Comment the following tolerations if Dashboard must not be deployed on master

tolerations:

- key: node-role.kubernetes.io/master

effect: NoSchedule

---

# ------------------- Dashboard Service ------------------- #

kind: Service

apiVersion: v1

metadata:

labels:

k8s-app: kubernetes-dashboard

namespace: kube-system

spec:

ports:

- port: 443

targetPort: 8443

selector:

k8s-app: kubernetes-dashboard

[root@master manifests]# kubectl apply -f kubernetes-dashboard.yaml

secret/kubernetes-dashboard-certs created

serviceaccount/kubernetes-dashboard created

role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

deployment.apps/kubernetes-dashboard created

service/kubernetes-dashboard created

[root@master manifests]# kubectl get pods -n kube-system

NAME READY STATUS RESTARTS AGE

coredns-86c58d9df4-fltl9 1/1 Running 2 24d

coredns-86c58d9df4-kdm2h 1/1 Running 2 24d

etcd-master 1/1 Running 3 24d

kube-apiserver-master 1/1 Running 2 24d

kube-controller-manager-master 1/1 Running 2 24d

kube-flannel-ds-amd64-bf7s9 1/1 Running 0 37m

kube-flannel-ds-amd64-vm9vw 1/1 Running 1 37m

kube-flannel-ds-amd64-xqcg9 1/1 Running 0 36m

kube-proxy-6fp6m 1/1 Running 1 24d

kube-proxy-wv6gg 1/1 Running 0 24d

kube-proxy-zndjb 1/1 Running 2 24d

kube-scheduler-master 1/1 Running 2 24d

kubernetes-dashboard-57df4db6b-cwr44 1/1 Running 0 10s 这里成功了

[root@master manifests]# kubectl get svc -n kube-system

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP 24d

kubernetes-dashboard ClusterIP 10.102.254.30 <none> 443/TCP 5m40s

这里修改为NodePort

[root@master manifests]# kubectl patch svc kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}' -n kube-system

service/kubernetes-dashboard patched

或者使用跟上面的命令一个效果

[root@master manifests]# kubectl -n kube-system edit service kubernetes-dashboard

[root@master manifests]# kubectl get svc -n kube-system

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE

kube-dns ClusterIP 10.96.0.10 <none> 53/UDP,53/TCP 24d

kubernetes-dashboard NodePort 10.102.254.30 <none> 443:30376/TCP 12m

查看docker容器log发现报错，

2019/03/25 13:34:00 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds.

2019/03/25 13:34:30 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds.

2019/03/25 13:34:56 http: TLS handshake error from 10.244.2.1:53815: tls: first record does not look like a TLS handshake

2019/03/25 13:35:00 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds.

2019/03/25 13:35:06 http: TLS handshake error from 10.244.2.1:53816: EOF

2019/03/25 13:35:30 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds.

2019/03/25 13:36:00 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds.

2019/03/25 13:36:30 Metric client health check failed: the server could not find the requested resource (get services heapster). Retrying in 30 seconds.

wget https://raw.githubusercontent.com/kubernetes/heapster/master/deploy/kube-config/influxdb/grafana.yaml

wget https://raw.githubusercontent.com/kubernetes/heapster/master/deploy/kube-config/influxdb/influxdb.yaml

wget https://raw.githubusercontent.com/kubernetes/heapster/master/deploy/kube-config/influxdb/heapster.yaml

wget https://raw.githubusercontent.com/kubernetes/heapster/master/deploy/kube-config/rbac/heapster-rbac.yaml

[root@master manifests]# cat heapster.yaml | grep image

image: k8s.gcr.io/heapster-amd64:v1.5.4

imagePullPolicy: IfNotPresent

[root@master manifests]# cat grafana.yaml | grep image

image: k8s.gcr.io/heapster-grafana-amd64:v5.0.4

[root@master manifests]# cat influxdb.yaml | grep image

image: k8s.gcr.io/heapster-influxdb-amd64:v1.5.2

docker pull mirrorgooglecontainers/heapster-grafana-amd64:v5.0.4

docker pull mirrorgooglecontainers/heapster-amd64:v1.5.4

docker pull mirrorgooglecontainers/heapster-influxdb-amd64:v1.5.2

docker tag mirrorgooglecontainers/heapster-grafana-amd64:v5.0.4 k8s.gcr.io/heapster-grafana-amd64:v5.0.4

docker tag mirrorgooglecontainers/heapster-amd64:v1.5.4 k8s.gcr.io/heapster-amd64:v1.5.4

docker tag mirrorgooglecontainers/heapster-influxdb-amd64:v1.5.2 k8s.gcr.io/heapster-influxdb-amd64:v1.5.2

[root@master kubernetes-dashboard]# ls

grafana.yaml heapster-rbac.yaml heapster.yaml influxdb.yaml

[root@master kubernetes-dashboard]# ll

total 16

-rw-r--r--. 1 root root 2276 Mar 25 09:38 grafana.yaml

-rw-r--r--. 1 root root 264 Mar 25 09:44 heapster-rbac.yaml

-rw-r--r--. 1 root root 1100 Mar 25 09:44 heapster.yaml

-rw-r--r--. 1 root root 960 Mar 25 09:44 influxdb.yaml

[root@master kubernetes-dashboard]# kubectl create -f .

deployment.extensions/monitoring-grafana created

service/monitoring-grafana created

clusterrolebinding.rbac.authorization.k8s.io/heapster created

serviceaccount/heapster created

deployment.extensions/heapster created

service/heapster created

deployment.extensions/monitoring-influxdb created

service/monitoring-influxdb created

[root@master kubernetes-dashboard]# kubectl get pods -n kube-system

NAME READY STATUS RESTARTS AGE

coredns-86c58d9df4-fltl9 1/1 Running 2 25d

coredns-86c58d9df4-kdm2h 1/1 Running 2 25d

etcd-master 1/1 Running 3 25d

heapster-f64999bc-pcxgw 1/1 Running 0 6s

kube-apiserver-master 1/1 Running 2 25d

kube-controller-manager-master 1/1 Running 2 25d

kube-flannel-ds-amd64-bf7s9 1/1 Running 0 23h

kube-flannel-ds-amd64-vm9vw 1/1 Running 1 23h

kube-flannel-ds-amd64-xqcg9 1/1 Running 0 23h

kube-proxy-6fp6m 1/1 Running 1 25d

kube-proxy-wv6gg 1/1 Running 0 25d

kube-proxy-zndjb 1/1 Running 2 25d

kube-scheduler-master 1/1 Running 2 25d

kubernetes-dashboard-57df4db6b-cr5qw 1/1 Running 0 20m

monitoring-grafana-564f579fd4-c22mj 1/1 Running 0 7s

monitoring-influxdb-8b7d57f5c-nbwhk 1/1 Running 0 7s

发现还是有问题

修改 yaml 文件

# heapster.yaml 文件

#### 修改如下部分 #####

因为 kubelet 启用了 https 所以如下配置需要增加 https 端口

- --source=kubernetes:https://kubernetes.default

修改为

- --source=kubernetes:https://kubernetes.default?kubeletHttps=true&kubeletPort=10250&insecure=true

# heapster-rbac.yaml 文件

#### 修改为部分 #####

将 serviceAccount kube-system:heapster 与 ClusterRole system:kubelet-api-admin 绑定，授予它调用 kubelet API 的权限；

kind: ClusterRoleBinding

apiVersion: rbac.authorization.k8s.io/v1beta1

metadata:

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: ClusterRole

subjects:

- kind: ServiceAccount

namespace: kube-system

---

kind: ClusterRoleBinding

apiVersion: rbac.authorization.k8s.io/v1beta1

metadata:

roleRef:

apiGroup: rbac.authorization.k8s.io

kind: ClusterRole

subjects:

- kind: ServiceAccount

namespace: kube-system

[root@master-47-35 heapster]# kubectl create -f .

deployment.extensions/monitoring-grafana created

service/monitoring-grafana created

clusterrolebinding.rbac.authorization.k8s.io/heapster created

clusterrolebinding.rbac.authorization.k8s.io/heapster-kubelet-api created

serviceaccount/heapster created

deployment.extensions/heapster created

service/heapster created

deployment.extensions/monitoring-influxdb created

service/monitoring-influxdb created

[root@master-47-35 heapster]# kubectl logs -f heapster-7797bb6dd4-jvs6n -n kube-system

I0827 02:25:20.229353 1 heapster.go:78] /heapster --source=kubernetes:https://kubernetes.default?kubeletHttps=true&kubeletPort=10250&insecure=true --sink=influxdb:http://monitoring-influxdb.kube-system.svc:8086

I0827 02:25:20.229399 1 heapster.go:79] Heapster version v1.5.4

I0827 02:25:20.230543 1 configs.go:61] Using Kubernetes client with master "https://kubernetes.default" and version v1

I0827 02:25:20.230569 1 configs.go:62] Using kubelet port 10250

[root@node02 ~]# docker logs ee39c9d6530a

2019/03/25 14:01:01 Metric client health check failed: the server is currently unable to handle the request (get services heapster). Retrying in 30 seconds.

2019/03/25 14:01:31 Metric client health check failed: the server is currently unable to handle the request (get services heapster). Retrying in 30 seconds.

2019/03/25 14:02:01 Metric client health check failed: an error on the server ("[-]healthz failed: could not get the latest data batchnhealthz check failed") has prevented the request from succeeding (get services heapster). Retrying in 30 seconds.

2019/03/25 14:02:31 Successful request to heapster

理论到这里输入任何node ip：30255就可以访问了

在k8s中 dashboard可以有两种访问方式：kubeconfig（HTTPS）和token（http）

3、token认证

（1）创建dashboard专用证书

[root@master kubernetes-dashboard]# cd /etc/kubernetes/pki

[root@master pki]# ll

total 68

-rw-r--r--. 1 root root 1216 Feb 28 06:23 apiserver.crt

-rw-r--r--. 1 root root 1090 Feb 28 06:23 apiserver-etcd-client.crt

-rw-------. 1 root root 1679 Feb 28 06:23 apiserver-etcd-client.key

-rw-------. 1 root root 1675 Feb 28 06:23 apiserver.key

-rw-r--r--. 1 root root 1099 Feb 28 06:23 apiserver-kubelet-client.crt

-rw-------. 1 root root 1679 Feb 28 06:23 apiserver-kubelet-client.key

-rw-r--r--. 1 root root 1025 Feb 28 06:23 ca.crt

-rw-------. 1 root root 1675 Feb 28 06:23 ca.key

drwxr-xr-x. 2 root root 162 Feb 28 06:23 etcd

-rw-r--r--. 1 root root 1038 Feb 28 06:23 front-proxy-ca.crt

-rw-------. 1 root root 1675 Feb 28 06:23 front-proxy-ca.key

-rw-r--r--. 1 root root 1058 Feb 28 06:23 front-proxy-client.crt

-rw-------. 1 root root 1679 Feb 28 06:23 front-proxy-client.key

-rw-------. 1 root root 1675 Feb 28 06:23 sa.key

-rw-------. 1 root root 451 Feb 28 06:23 sa.pub

-rw-r--r--. 1 root root 973 Mar 19 12:07 wolf.crt

-rw-r--r--. 1 root root 883 Mar 19 12:06 wolf.csr

-rw-------. 1 root root 1679 Mar 19 12:04 wolf.key

[root@master pki]# (umask 077;openssl genrsa -out dashboard.key 2048)

Generating RSA private key, 2048 bit long modulus

.............................................................................................................................................+++

...................................+++

e is 65537 (0x10001)

[root@master pki]# openssl req -new -key dashboard.key -out dashboard.csr -subj "/O=magedu/CN=dashboard"

[root@master pki]# openssl x509 -req -in dashboard.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out dashboard.crt -days 365

Signature ok

subject=/O=magedu/CN=dashboard

Getting CA Private Key

[root@master pki]# kubectl create secret generic dashboard-cert -n kube-system --from-file=./dashboard.crt --from-file=dashboard.key=./dashboard.key

secret/dashboard-cert created

[root@master pki]# kubectl get secret -n kube-system |grep dashboard

dashboard-cert Opaque 2 8s

kubernetes-dashboard-certs Opaque 0 100m

kubernetes-dashboard-key-holder Opaque 2 24h

kubernetes-dashboard-token-jdw29 kubernetes.io/service-account-token 3 100m

[root@master pki]# kubectl create serviceaccount def-ns-admin -n default

serviceaccount/def-ns-admin created

[root@master pki]# kubectl create rolebinding def-ns-admin --clusterrole=admin --serviceaccount=default:def-ns-admin

rolebinding.rbac.authorization.k8s.io/def-ns-admin created

[root@master pki]# kubectl get secret

NAME TYPE DATA AGE

admin-token-68nnz kubernetes.io/service-account-token 3 5d23h

def-ns-admin-token-m5hhd kubernetes.io/service-account-token 3 3m41s

default-token-6q28w kubernetes.io/service-account-token 3 25d

mysa-token-hb6lq kubernetes.io/service-account-token 3 5d23h

mysecret Opaque 2 8d

mysecret-1 Opaque 2 8d

mysecret2 Opaque 2 8d

tomcat-ingress-secret kubernetes.io/tls 2 11d

[root@master pki]# kubectl describe secret def-ns-admin-token-m5hhd

Name: def-ns-admin-token-m5hhd

Namespace: default

Labels: <none>

Annotations: kubernetes.io/service-account.name: def-ns-admin

kubernetes.io/service-account.uid: 5712af5c-4f10-11e9-bca0-a0369f95b76e

Type: kubernetes.io/service-account-token

Data

====

ca.crt: 1025 bytes

namespace: 7 bytes

token: eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi1tNWhoZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI1NzEyYWY1Yy00ZjEwLTExZTktYmNhMC1hMDM2OWY5NWI3NmUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.Pek2gNquzGfO07MZeZcmZqGlTf3osL0R1x1qNRSPwL25mrTkyU9TLmBQ0nPKkNFmHfQFqz9thJ9BgG5ANRrZ2USYXJy4so9wjk0pPLtk3RaDh-Y6xLta4wjVeGBRJIMf2NLCgAK3JoM6CIc3OawBzjlJR8Y0R2ea_HtN_X48uxciAmzfuxpUG-QdU5Bxt3AEccSTrSTyVKxhx2fJfYFwo-zyJfkznxDfuClvF6aG-h0mztMlvVZArGzxFSjb9O-ZHoyPzymYHmjC9LP6K0KdcIhnxkMFJl-VvJt4khVXoy_6a8MCrOAyG2hk4YQtCuMgkPpG806CuW8a-56Fj8LHUg

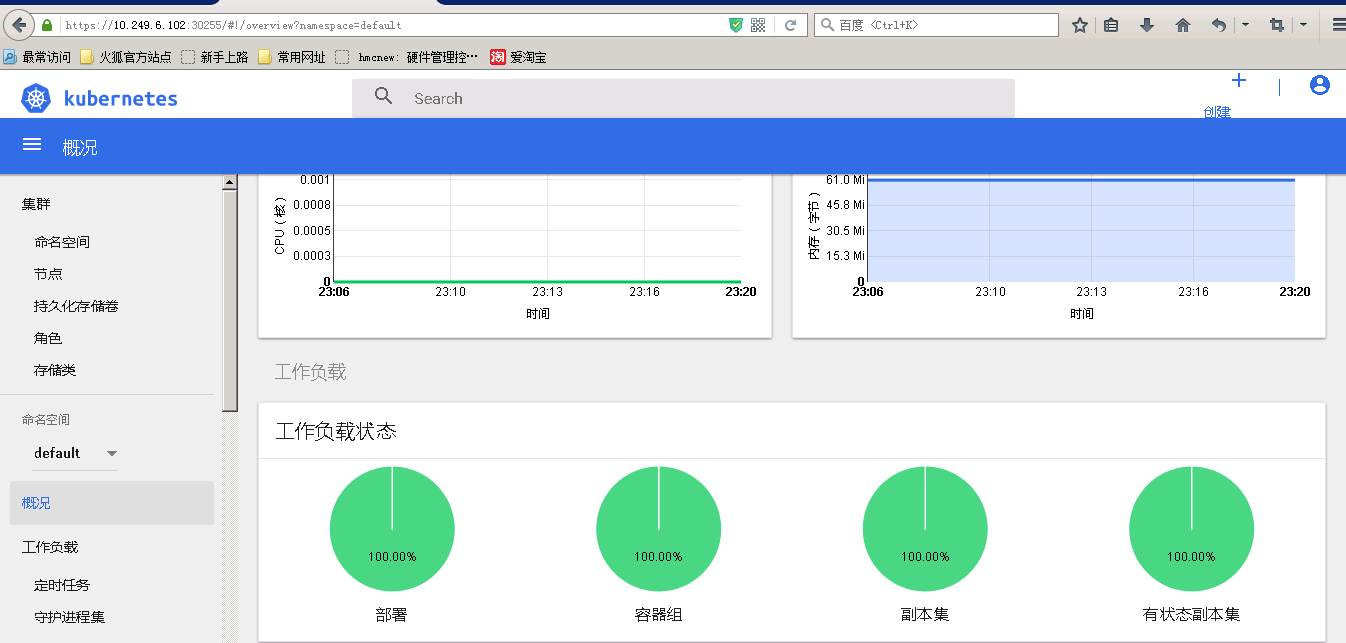

将该token复制后，填入验证，要知道的是，该token认证仅可以查看default名称空间的内容，如下图：

4、kubeconfig认证

（1）配置def-ns-admin的集群信息

[root@master pki]# kubectl config set-cluster kubernetes --certificate-authority=./ca.crt --server="https://10.249.6.100:6443" --embed-certs=true --kubeconfig=/root/def-ns-admin.conf

Cluster "kubernetes" set.

使用token写入集群验证

kubectl config set-credentials -h #认证的方式可以通过crt和key文件，也可以使用token进行配置，这里使用tonken

Usage:

kubectl config set-credentials NAME [--client-certificate=path/to/certfile] [--client-key=path/to/keyfile]

[--token=bearer_token] [--username=basic_user] [--password=basic_password] [--auth-provider=provider_name]

[--auth-provider-arg=key=value] [options]

[root@master pki]# kubectl describe secret def-ns-admin-token-m5hhd

Name: def-ns-admin-token-m5hhd

Namespace: default

Labels: <none>

Annotations: kubernetes.io/service-account.name: def-ns-admin

kubernetes.io/service-account.uid: 5712af5c-4f10-11e9-bca0-a0369f95b76e

Type: kubernetes.io/service-account-token

Data

====

ca.crt: 1025 bytes

namespace: 7 bytes

这里的token是base64编码，此处需要进行解码操作

[root@master pki]# kubectl get secret def-ns-admin-token-m5hhd -o jsonpath={.data.token} |base64 -d

eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi1tNWhoZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI1NzEyYWY1Yy00ZjEwLTExZTktYmNhMC1hMDM2OWY5NWI3NmUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.Pek2gNquzGfO07MZeZcmZqGlTf3osL0R1x1qNRSPwL25mrTkyU9TLmBQ0nPKkNFmHfQFqz9thJ9BgG5ANRrZ2USYXJy4so9wjk0pPLtk3RaDh-Y6xLta4wjVeGBRJIMf2NLCgAK3JoM6CIc3OawBzjlJR8Y0R2ea_HtN_X48uxciAmzfuxpUG-QdU5Bxt3AEccSTrSTyVKxhx2fJfYFwo-zyJfkznxDfuClvF6aG-h0mztMlvVZArGzxFSjb9O-ZHoyPzymYHmjC9LP6K0KdcIhnxkMFJl-VvJt4khVXoy_6a8MCrOAyG2hk4YQtCuMgkPpG806CuW8a-56Fj8LHUg[root@master pki]#

配置token信息

[root@master pki]# kubectl config set-credentials def-ns-admin --token=eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJkZWZhdWx0Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZWNyZXQubmFtZSI6ImRlZi1ucy1hZG1pbi10b2tlbi1tNWhoZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJkZWYtbnMtYWRtaW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiI1NzEyYWY1Yy00ZjEwLTExZTktYmNhMC1hMDM2OWY5NWI3NmUiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6ZGVmYXVsdDpkZWYtbnMtYWRtaW4ifQ.Pek2gNquzGfO07MZeZcmZqGlTf3osL0R1x1qNRSPwL25mrTkyU9TLmBQ0nPKkNFmHfQFqz9thJ9BgG5ANRrZ2USYXJy4so9wjk0pPLtk3RaDh-Y6xLta4wjVeGBRJIMf2NLCgAK3JoM6CIc3OawBzjlJR8Y0R2ea_HtN_X48uxciAmzfuxpUG-QdU5Bxt3AEccSTrSTyVKxhx2fJfYFwo-zyJfkznxDfuClvF6aG-h0mztMlvVZArGzxFSjb9O-ZHoyPzymYHmjC9LP6K0KdcIhnxkMFJl-VvJt4khVXoy_6a8MCrOAyG2hk4YQtCuMgkPpG806CuW8a-56Fj8LHU --kubeconfig=/root/def-ns-admin.conf

User "def-ns-admin" set.

[root@master pki]#

配置上下文和当前上下文

[root@master pki]# kubectl config set-context def-ns-admin@kubernetes --cluster=kubernetes --user=def-ns-admin --kubeconfig=/root/def-ns-admin.con

Context "def-ns-admin@kubernetes" created.

[root@master pki]# kubectl config use-context def-ns-admin@kubernetes --kubeconfig=/root/def-ns-admin.conf

Switched to context "def-ns-admin@kubernetes".

[root@master pki]# kubectl config view --kubeconfig=/root/def-ns-admin.conf

apiVersion: v1

clusters:

- cluster:

certificate-authority-data: DATA+OMITTED

server: https://10.249.6.100:6443

contexts:

- context:

cluster: kubernetes

user: def-ns-admin

current-context: def-ns-admin@kubernetes

kind: Config

preferences: {}

users:

- name: def-ns-admin

user:

二、总结

1、部署dashboard：

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/master/src/deploy/recommended/kubernetes-dashboard.yaml

2、将Service改为Node Port方式进行访问：

kubectl patch svc kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}' -n kube-system

3、访问认证：

认证时的账号必须为ServiceAccount：其作用是被dashboard pod拿来由kubenetes进行认证；认证方式有2种：
token：

（1）创建ServiceAccount，根据其管理目标，使用rolebinding或clusterbinding绑定至合理的role或clusterrole；
（2）获取此ServiceAccount的secret，查看secret的详细信息，其中就有token；
（3）复制token到认证页面即可登录。

kubeconfig：把ServiceAccount的token封装为kubeconfig文件

（1）创建ServiceAccount，根据其管理目标，使用rolebinding或clusterbinding绑定至合理的role或clusterrole；
（2）kubectl get secret |awk '/^ServiceAccount/{print $1}'
KUBE_TOKEN=$(kubectl get secret SERVICEACCOUNT_SECRET_NAME -o jsonpath={.data.token} | base64 -d)
（3）生成kubeconfig文件

kubectl config set-cluster

kubectl config set-credentials NAME --token=$KUBE_TOKEN

kubectl config set-context

kubectl config use-context

最后

以上就是文静御姐为你收集整理的Kubernetes入门学习-十八-dashboard认证及分级授权的全部内容，希望文章能够帮你解决Kubernetes入门学习-十八-dashboard认证及分级授权所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：devops
浏览次数：72 次浏览
发布日期：2023-10-27 22:25:20
本文链接：https://www.kaopuke.com/article/k-p-k_13_u_23_o_18_fw_14_j_26_2.html

Kubernetes入门学习-十八-dashboard认证及分级授权

概述

一、部署

1、直接使用社区连接部署

2、下载yaml和images安装

3、token认证

4、kubeconfig认证

Cluster "kubernetes" set.

二、总结

最后

评论列表共有 0 条评论

发表评论取消回复

Kubernetes入门学习-十八-dashboard认证及分级授权

概述

一、部署

1、直接使用社区连接部署

2、下载yaml和images安装

3、token认证

4、kubeconfig认证

Cluster "kubernetes" set.

二、总结

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
