构造：gsMultiPatch<> * patches = NULL;
    if ( fn.empty() )
   patches= gsReadFile<>("../xml/straight_unit_beam.xml");

gsMultiBasis<> bases(*patches);

gsBasisEvalTest2.cpp

gsBasis是gismo中所有基函数的基础类型。其他类，例如gsSplineBasis, gsBSplineBasis, gsHTensorBasis都从该类派生。

gsRationalBasis派生于gsBasis.

1. 生成gsBasis;

gsBasis 类只有无参数默认构造函数，赋值构造函数；

gsBasis 作为gsGeometry的内部变量，使用时不需要单独定义；

    gsGeometry<>          geo  ;

    gsBasis<>              &space = geo.basis ();

2. 从文件读入

    gsFileData<> fileData(input);

    gsBasis<>* pBasis = NULL;
    if (fileData.has< gsBasis<> >())
    {
        pBasis = fileData.getFirst< gsBasis<> >();
    }

gsBasis读入文件定义格式为：

<?xml version="1.0" encoding="UTF-8"?>
<xml>
   <Basis type="TensorBSplineBasis2" parDim="2">
    <Basis type="BSplineBasis" index="0">
     <KnotVector degree="2">0 0 0 0.25 0.5 0.75 1 1 1</KnotVector>
    </Basis>
    <Basis type="BSplineBasis" index="1">
     <KnotVector degree="3">0 0 0 0 0.25 0.5 0.75 1 1 1 1</KnotVector>
    </Basis>
   </Basis>
</xml>

3. 输出基本信息

std::cout << "The file contains: n" << *pBasis << std::endl;


输出为：

The file contains:
TensorBSplineBasis: dim=2, size=42.
  Direction 0: [ 0 0 0 0.25 0.5 0.75 1 1 1 ] (deg=2, size=9, minSpan=0.25, maxSp
an=0.25)
  Direction 1: [ 0 0 0 0 0.25 0.5 0.75 1 1 1 1 ] (deg=3, size=11, minSpan=0.25,
maxSpan=0.25)

    // printing some properties of the basis
    std::cout << "Dimension of the parameter space: " << pBasis->dim() << "n"
              << "Number of basis functions: " << pBasis->size() << "n"
              << "Number of elements: " << pBasis->numElements() << "n"
              << "Degree of the basis: " << pBasis->degree() << "n"
              << std::endl;

输出为：

Dimension of the parameter space: 2
Number of basis functions: 42
Number of elements: 16
Degree of the basis: 2

gsMatrix<> support = pBasis->support();
    std::cout << "Support: n"
              << support << "n" << std::endl;

Support:
0 1
0 1

4 计算参数点的值

    gsMatrix<> u = 0.3 * support.col(0) + 0.7 * support.col(1);
    std::cout << "u " << size(u) << ": n" << u << "n" << std::endl;

    // indices of active (nonzero) functions at parameter u
    gsMatrix<unsigned> active = pBasis->active(u);
    std::cout << "Active functions at u " << size(active) << ": n"
                   << active << "n" << std::endl;

    // values of all active functions at u
    gsMatrix<> values = pBasis->eval(u);
    std::cout << "Values at u " << size(values) << ": n"
                   << values << "n" << std::endl;

    // values of single basis functions
    for (index_t i = 0; i != active.rows(); i++)
    {
        gsMatrix<> val = pBasis->evalSingle(active(i), u);

        std::cout << "basis fun. index:  " << active(i)
                  << "   value: " << val(0, 0) << "n";
    }
    std::cout << std::endl;

Values at u (12 x 1):
2.66667e-005
     0.00088
 0.000426667
  0.00565333
     0.18656
   0.0904533
     0.01176
     0.38808
     0.18816
     0.00256
     0.08448
     0.04096


basis fun. index:  14   value: 2.66667e-005

。。。。。

5. 计算参数点的导数

 gsMatrix<> derivs = pBasis->deriv(u);
    std::cout << "Derivatives at u " << size(derivs) << ": n"
              << derivs << "n" << std::endl;



    // derivatives of single basis function
    for (index_t i = 0; i != active.rows(); i++)
    {
        gsMatrix<> der = pBasis->derivSingle(active(i), u);

        std::cout << "basis fun. index:  " << active(i)
                  << "   value: " << std::setw(15) <<  der(0, 0) << "n";

        for (index_t row = 1; row != der.rows(); row++)
        {
            std::cout << std::setw(46) << der(row, 0) << "n";
        }
    }
    std::cout << std::endl;

6 计算参数点的二阶导数

    gsMatrix<> derivs2 = pBasis->deriv2(u);
    std::cout << "Second derivatives at u " << size(derivs2) << ": n"
              << derivs2 << "n" << std::endl;

    for (index_t i = 0; i != active.rows(); i++)
    {
        gsMatrix<> der2 = pBasis->deriv2Single(active(i), u);
        std::cout << "basis fun. index:  " << active(i)
                  << "   value: " << std::setw(15) << der2(0, 0) << "n";
        for (index_t row = 1; row != der2.rows(); row++)
        {
            std::cout << std::setw(46) << der2(row, 0) << "n";
        }
    }
    std::cout << "nFor more information about evaluation "
              << "(and order of derivatives) look at doxygen documentation."
              << "n" << std::endl;


7 输出到paraview

    if (output != " ")
    {
        std::cout << "Writing the basis to a paraview file: " << output
                  << "n" << std::endl;
        gsWriteParaview(*pBasis, output);
    }

8. anchor points

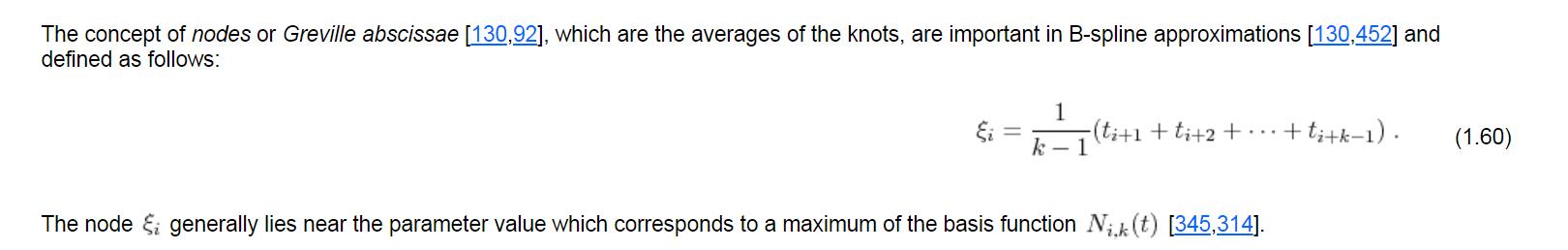

Greville abscissae 点

        m_patches.basis(0).anchors_into(ct);
